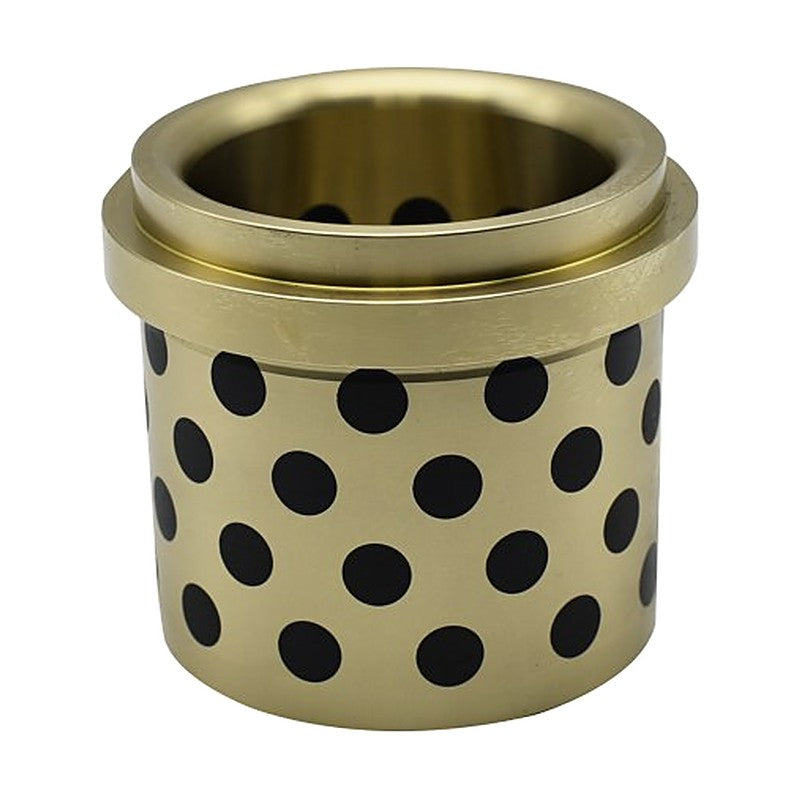

LuBo LGBD Guide Bushings - DIN (Bore d 24-160 mm)

LuBo LGBD Guide Bushings - DIN (Bore d 24-160 mm)

LuBo LGBD Guide Bushings - DIN from the LuBo Oilless Bushings & Plates catalogue, listed in 14 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Bushings - DIN - series LGBD
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 14 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LGBD
Product Guide Bushings - DIN
Catalogue chapter Oilless Bushings & Plates
Orderable codes 14
Size range Bore d 24-160 mm
Code example LGBD-24X40
Row spec keys Bore d, Outer D, Length L
Source LuBo Oilless Bushings & Plates catalogue
LGBD-24X40 Bore d: 24 mm | Outer D: 32 mm | Length L: 40 mm
LGBD-25X40 Bore d: 25 mm | Outer D: 32 mm | Length L: 40 mm
LGBD-30X50 Bore d: 30 mm | Outer D: 40 mm | Length L: 50 mm
LGBD-32X50 Bore d: 32 mm | Outer D: 40 mm | Length L: 50 mm
LGBD-38X63 Bore d: 38 mm | Outer D: 50 mm | Length L: 63 mm
LGBD-40X63 Bore d: 40 mm | Outer D: 50 mm | Length L: 63 mm
LGBD-48X71 Bore d: 48 mm | Outer D: 63 mm | Length L: 71 mm
LGBD-50X71 Bore d: 50 mm | Outer D: 63 mm | Length L: 71 mm
LGBD-60X80 Bore d: 60 mm | Outer D: 80 mm | Length L: 80 mm
LGBD-63X80 Bore d: 63 mm | Outer D: 80 mm | Length L: 80 mm
LGBD-80X100 Bore d: 80 mm | Outer D: 100 mm | Length L: 100 mm
LGBD-100X125 Bore d: 100 mm | Outer D: 125 mm | Length L: 125 mm
LGBD-125X160 Bore d: 125 mm | Outer D: 160 mm | Length L: 160 mm
LGBD-160X200 Bore d: 160 mm | Outer D: 200 mm | Length L: 200 mm
Oilless Slide ComponentLuBo
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGBD Guide Bushings - DIN (Bore d 24-160 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (14)

LGBD-24X40, LGBD-25X40, LGBD-30X50, LGBD-32X50, LGBD-38X63, LGBD-40X63, LGBD-48X71, LGBD-50X71, LGBD-60X80, LGBD-63X80 + 4 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGBD-24X40Bore d: 24 mm | Outer D: 32 mm | Length L: 40 mm
LGBD-25X40Bore d: 25 mm | Outer D: 32 mm | Length L: 40 mm
LGBD-30X50Bore d: 30 mm | Outer D: 40 mm | Length L: 50 mm
LGBD-32X50Bore d: 32 mm | Outer D: 40 mm | Length L: 50 mm
LGBD-38X63Bore d: 38 mm | Outer D: 50 mm | Length L: 63 mm
LGBD-40X63Bore d: 40 mm | Outer D: 50 mm | Length L: 63 mm
LGBD-48X71Bore d: 48 mm | Outer D: 63 mm | Length L: 71 mm
LGBD-50X71Bore d: 50 mm | Outer D: 63 mm | Length L: 71 mm
LGBD-60X80Bore d: 60 mm | Outer D: 80 mm | Length L: 80 mm
LGBD-63X80Bore d: 63 mm | Outer D: 80 mm | Length L: 80 mm
LGBD-80X100Bore d: 80 mm | Outer D: 100 mm | Length L: 100 mm
LGBD-100X125Bore d: 100 mm | Outer D: 125 mm | Length L: 125 mm
LGBD-125X160Bore d: 125 mm | Outer D: 160 mm | Length L: 160 mm
LGBD-160X200Bore d: 160 mm | Outer D: 200 mm | Length L: 200 mm
