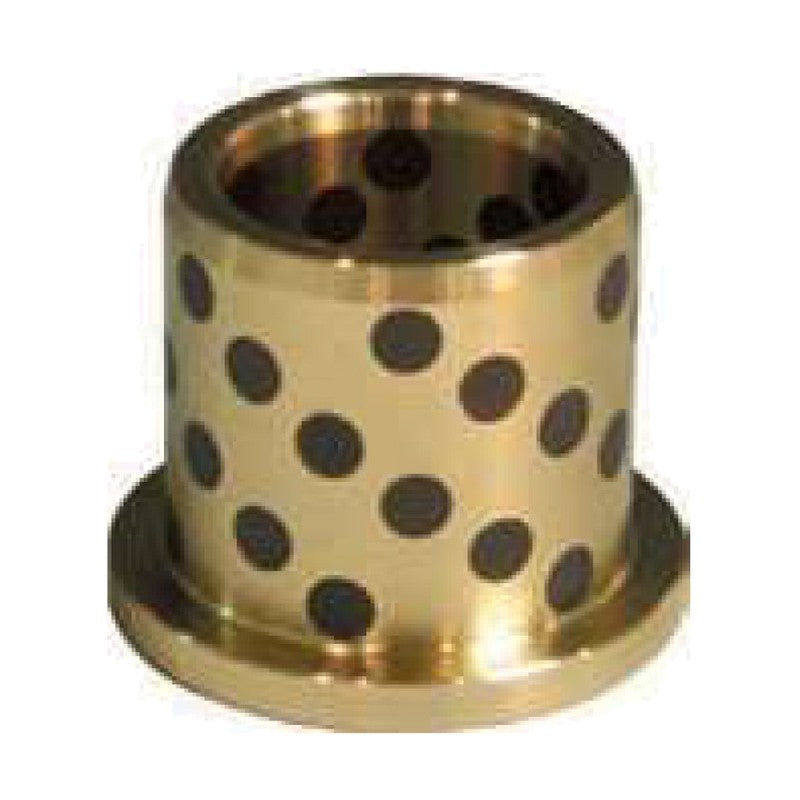

LuBo LGBF Guide Flanged Bushings (Bore d 25-100 mm)

LuBo LGBF Guide Flanged Bushings (Bore d 25-100 mm)

LuBo LGBF Guide Flanged Bushings from the LuBo Oilless Bushings & Plates catalogue, listed in 10 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Flanged Bushings - series LGBF
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 10 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LGBF
Product Guide Flanged Bushings
Catalogue chapter Oilless Bushings & Plates
Orderable codes 10
Size range Bore d 25-100 mm
Code example LGBF-25X40
Row spec keys Bore d, Outer D, Length L
Source LuBo Oilless Bushings & Plates catalogue
LGBF-25X40 Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm
LGBF-30X50 Bore d: 30 mm | Outer D: 40 mm | Length L: 50 mm
LGBF-40X70 Bore d: 40 mm | Outer D: 55 mm | Length L: 70 mm
LGBF-50X80 Bore d: 50 mm | Outer D: 65 mm | Length L: 80 mm
LGBF-60X80 Bore d: 60 mm | Outer D: 75 mm | Length L: 80 mm
LGBF-65X120 Bore d: 65 mm | Outer D: 80 mm | Length L: 120 mm
LGBF-80X100 Bore d: 80 mm | Outer D: 100 mm | Length L: 100 mm
LGBF-80X140 Bore d: 80 mm | Outer D: 100 mm | Length L: 140 mm
LGBF-100X100 Bore d: 100 mm | Outer D: 120 mm | Length L: 100 mm
LGBF-100X140 Bore d: 100 mm | Outer D: 120 mm | Length L: 140 mm
Oilless Slide ComponentLuBo
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGBF Guide Flanged Bushings (Bore d 25-100 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (10)

LGBF-25X40, LGBF-30X50, LGBF-40X70, LGBF-50X80, LGBF-60X80, LGBF-65X120, LGBF-80X100, LGBF-80X140, LGBF-100X100, LGBF-100X140

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGBF-25X40Bore d: 25 mm | Outer D: 35 mm | Length L: 40 mm
LGBF-30X50Bore d: 30 mm | Outer D: 40 mm | Length L: 50 mm
LGBF-40X70Bore d: 40 mm | Outer D: 55 mm | Length L: 70 mm
LGBF-50X80Bore d: 50 mm | Outer D: 65 mm | Length L: 80 mm
LGBF-60X80Bore d: 60 mm | Outer D: 75 mm | Length L: 80 mm
LGBF-65X120Bore d: 65 mm | Outer D: 80 mm | Length L: 120 mm
LGBF-80X100Bore d: 80 mm | Outer D: 100 mm | Length L: 100 mm
LGBF-80X140Bore d: 80 mm | Outer D: 100 mm | Length L: 140 mm
LGBF-100X100Bore d: 100 mm | Outer D: 120 mm | Length L: 100 mm
LGBF-100X140Bore d: 100 mm | Outer D: 120 mm | Length L: 140 mm
