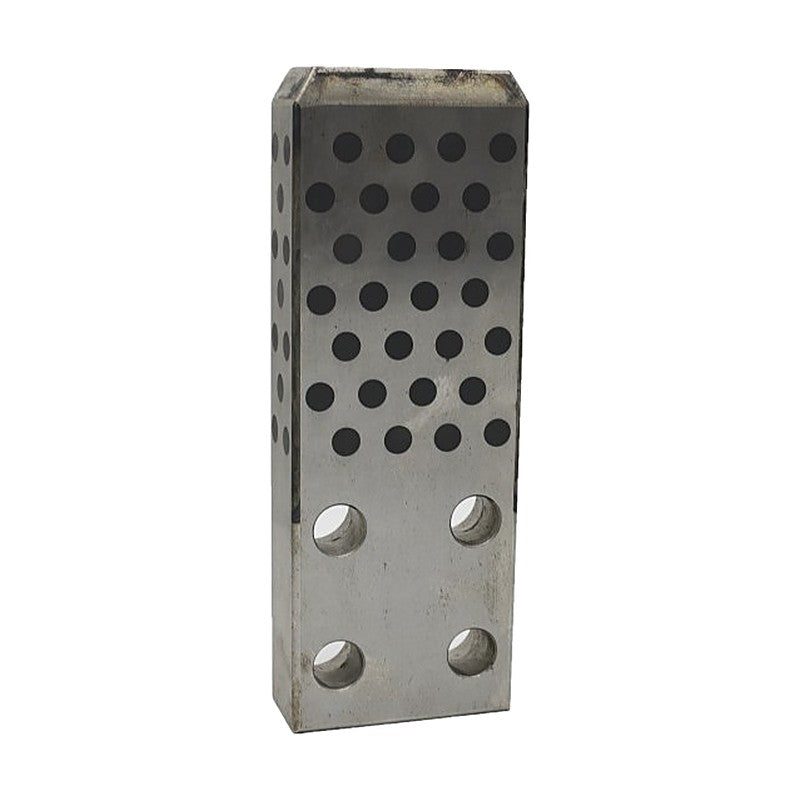

LuBo LGP Guide Plates (Width 50-180 mm)

LuBo LGP Guide Plates (Width 50-180 mm)

LuBo LGP Guide Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 25 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Plates - series LGP
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500CS

Specifications

Brand LuBo
Series LGP
Product Guide Plates
Catalogue chapter Oilless Bushings & Plates
Material #500CS
Orderable codes 25
Size range Width 50-180 mm
Code example LGP-50X160
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LGP-50X160 Width W: 50 mm | Length L: 160 mm | Thickness T: 30 mm | Material: #500CS
LGP-50X200 Width W: 50 mm | Length L: 200 mm | Thickness T: 30 mm | Material: #500CS
LGP-50X260 Width W: 50 mm | Length L: 260 mm | Thickness T: 30 mm | Material: #500CS
LGP-70X230 Width W: 70 mm | Length L: 230 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X260 Width W: 70 mm | Length L: 260 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X300 Width W: 70 mm | Length L: 300 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X350 Width W: 70 mm | Length L: 350 mm | Thickness T: 35 mm | Material: #500CS
LGP-100X230 Width W: 100 mm | Length L: 230 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X280 Width W: 100 mm | Length L: 280 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X330 Width W: 100 mm | Length L: 330 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X390 Width W: 100 mm | Length L: 390 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X230 Width W: 120 mm | Length L: 230 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X280 Width W: 120 mm | Length L: 280 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X330 Width W: 120 mm | Length L: 330 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X390 Width W: 120 mm | Length L: 390 mm | Thickness T: 45 mm | Material: #500CS
LGP-150X280 Width W: 150 mm | Length L: 280 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X330 Width W: 150 mm | Length L: 330 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X390 Width W: 150 mm | Length L: 390 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X430 Width W: 150 mm | Length L: 430 mm | Thickness T: 50 mm | Material: #500CS
LGP-180X280 Width W: 180 mm | Length L: 280 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X330 Width W: 180 mm | Length L: 330 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X390 Width W: 180 mm | Length L: 390 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X430 Width W: 180 mm | Length L: 430 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X480 Width W: 180 mm | Length L: 480 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X550 Width W: 180 mm | Length L: 550 mm | Thickness T: 55 mm | Material: #500CS
Oilless Slide ComponentLuBo
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGP Guide Plates (Width 50-180 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (25)

LGP-50X160, LGP-50X200, LGP-50X260, LGP-70X230, LGP-70X260, LGP-70X300, LGP-70X350, LGP-100X230, LGP-100X280, LGP-100X330 + 15 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGP-50X160Width W: 50 mm | Length L: 160 mm | Thickness T: 30 mm | Material: #500CS
LGP-50X200Width W: 50 mm | Length L: 200 mm | Thickness T: 30 mm | Material: #500CS
LGP-50X260Width W: 50 mm | Length L: 260 mm | Thickness T: 30 mm | Material: #500CS
LGP-70X230Width W: 70 mm | Length L: 230 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X260Width W: 70 mm | Length L: 260 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X300Width W: 70 mm | Length L: 300 mm | Thickness T: 35 mm | Material: #500CS
LGP-70X350Width W: 70 mm | Length L: 350 mm | Thickness T: 35 mm | Material: #500CS
LGP-100X230Width W: 100 mm | Length L: 230 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X280Width W: 100 mm | Length L: 280 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X330Width W: 100 mm | Length L: 330 mm | Thickness T: 45 mm | Material: #500CS
LGP-100X390Width W: 100 mm | Length L: 390 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X230Width W: 120 mm | Length L: 230 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X280Width W: 120 mm | Length L: 280 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X330Width W: 120 mm | Length L: 330 mm | Thickness T: 45 mm | Material: #500CS
LGP-120X390Width W: 120 mm | Length L: 390 mm | Thickness T: 45 mm | Material: #500CS
LGP-150X280Width W: 150 mm | Length L: 280 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X330Width W: 150 mm | Length L: 330 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X390Width W: 150 mm | Length L: 390 mm | Thickness T: 50 mm | Material: #500CS
LGP-150X430Width W: 150 mm | Length L: 430 mm | Thickness T: 50 mm | Material: #500CS
LGP-180X280Width W: 180 mm | Length L: 280 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X330Width W: 180 mm | Length L: 330 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X390Width W: 180 mm | Length L: 390 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X430Width W: 180 mm | Length L: 430 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X480Width W: 180 mm | Length L: 480 mm | Thickness T: 55 mm | Material: #500CS
LGP-180X550Width W: 180 mm | Length L: 550 mm | Thickness T: 55 mm | Material: #500CS
