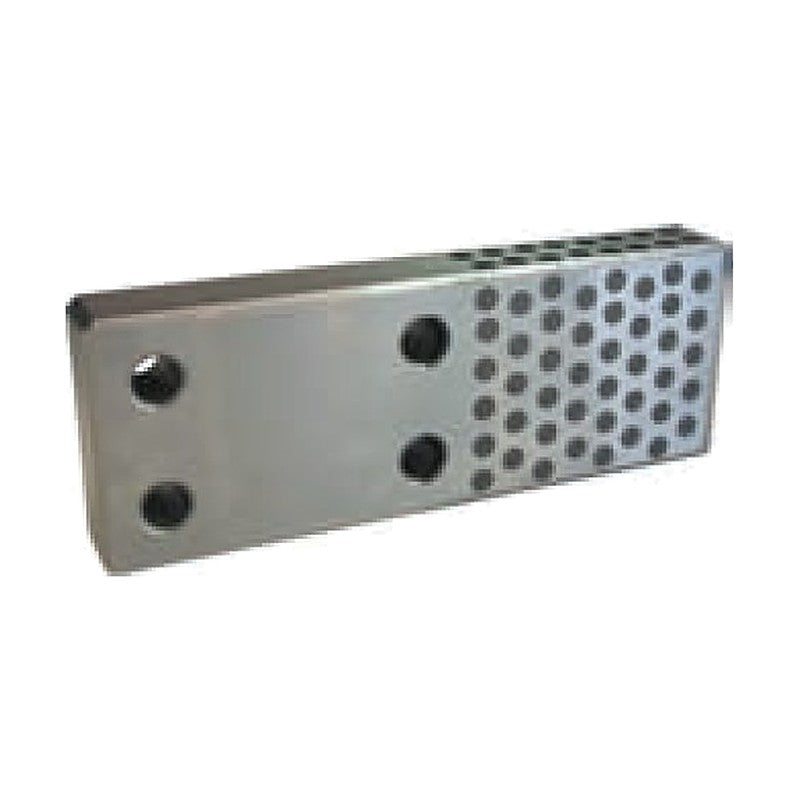

LuBo LGPB Guide Bars (Width 80-190 mm)

LuBo LGPB Guide Bars (Width 80-190 mm)

LuBo LGPB Guide Bars from the LuBo Oilless Bushings & Plates catalogue, listed in 24 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Bars - series LGPB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500F

Specifications

Brand LuBo
Series LGPB
Product Guide Bars
Catalogue chapter Oilless Bushings & Plates
Material #500F
Orderable codes 24
Size range Width 80-190 mm
Code example LGPB-80X220
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LGPB-80X220 Width W: 80 mm | Length L: 220 mm | Thickness T: 40 mm | Material: #500F
LGPB-80X260 Width W: 80 mm | Length L: 260 mm | Thickness T: 40 mm | Material: #500F
LGPB-80X300 Width W: 80 mm | Length L: 300 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X220 Width W: 90 mm | Length L: 220 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X260 Width W: 90 mm | Length L: 260 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X300 Width W: 90 mm | Length L: 300 mm | Thickness T: 40 mm | Material: #500F
LGPB-120X280 Width W: 120 mm | Length L: 280 mm | Thickness T: 60 mm | Material: #500F
LGPB-120X340 Width W: 120 mm | Length L: 340 mm | Thickness T: 60 mm | Material: #500F
LGPB-120X380 Width W: 120 mm | Length L: 380 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X280 Width W: 130 mm | Length L: 280 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X340 Width W: 130 mm | Length L: 340 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X380 Width W: 130 mm | Length L: 380 mm | Thickness T: 60 mm | Material: #500F
LGPB-150X340 Width W: 150 mm | Length L: 340 mm | Thickness T: 75 mm | Material: #500F
LGPB-150X380 Width W: 150 mm | Length L: 380 mm | Thickness T: 75 mm | Material: #500F
LGPB-150X430 Width W: 150 mm | Length L: 430 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X340 Width W: 160 mm | Length L: 340 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X380 Width W: 160 mm | Length L: 380 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X430 Width W: 160 mm | Length L: 430 mm | Thickness T: 75 mm | Material: #500F
LGPB-180X340 Width W: 180 mm | Length L: 340 mm | Thickness T: 90 mm | Material: #500F
LGPB-180X380 Width W: 180 mm | Length L: 380 mm | Thickness T: 90 mm | Material: #500F
LGPB-180X430 Width W: 180 mm | Length L: 430 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X340 Width W: 190 mm | Length L: 340 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X380 Width W: 190 mm | Length L: 380 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X430 Width W: 190 mm | Length L: 430 mm | Thickness T: 90 mm | Material: #500F
Oilless Slide ComponentLuBo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGPB Guide Bars (Width 80-190 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (24)

LGPB-80X220, LGPB-80X260, LGPB-80X300, LGPB-90X220, LGPB-90X260, LGPB-90X300, LGPB-120X280, LGPB-120X340, LGPB-120X380, LGPB-130X280 + 14 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGPB-80X220Width W: 80 mm | Length L: 220 mm | Thickness T: 40 mm | Material: #500F
LGPB-80X260Width W: 80 mm | Length L: 260 mm | Thickness T: 40 mm | Material: #500F
LGPB-80X300Width W: 80 mm | Length L: 300 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X220Width W: 90 mm | Length L: 220 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X260Width W: 90 mm | Length L: 260 mm | Thickness T: 40 mm | Material: #500F
LGPB-90X300Width W: 90 mm | Length L: 300 mm | Thickness T: 40 mm | Material: #500F
LGPB-120X280Width W: 120 mm | Length L: 280 mm | Thickness T: 60 mm | Material: #500F
LGPB-120X340Width W: 120 mm | Length L: 340 mm | Thickness T: 60 mm | Material: #500F
LGPB-120X380Width W: 120 mm | Length L: 380 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X280Width W: 130 mm | Length L: 280 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X340Width W: 130 mm | Length L: 340 mm | Thickness T: 60 mm | Material: #500F
LGPB-130X380Width W: 130 mm | Length L: 380 mm | Thickness T: 60 mm | Material: #500F
LGPB-150X340Width W: 150 mm | Length L: 340 mm | Thickness T: 75 mm | Material: #500F
LGPB-150X380Width W: 150 mm | Length L: 380 mm | Thickness T: 75 mm | Material: #500F
LGPB-150X430Width W: 150 mm | Length L: 430 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X340Width W: 160 mm | Length L: 340 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X380Width W: 160 mm | Length L: 380 mm | Thickness T: 75 mm | Material: #500F
LGPB-160X430Width W: 160 mm | Length L: 430 mm | Thickness T: 75 mm | Material: #500F
LGPB-180X340Width W: 180 mm | Length L: 340 mm | Thickness T: 90 mm | Material: #500F
LGPB-180X380Width W: 180 mm | Length L: 380 mm | Thickness T: 90 mm | Material: #500F
LGPB-180X430Width W: 180 mm | Length L: 430 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X340Width W: 190 mm | Length L: 340 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X380Width W: 190 mm | Length L: 380 mm | Thickness T: 90 mm | Material: #500F
LGPB-190X430Width W: 190 mm | Length L: 430 mm | Thickness T: 90 mm | Material: #500F
