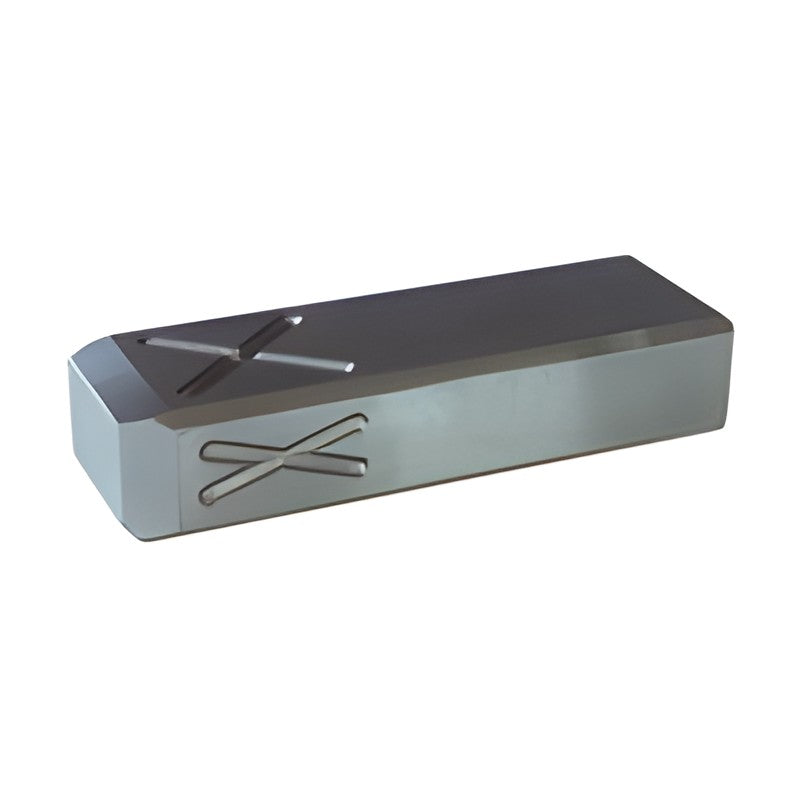

LuBo LGPM / LGPMA / LGPMB Heel Guide Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 33 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Heel Guide Plates - series LGPM / LGPMA / LGPMB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 33 catalogue codes covering the full printed size range
  • Order code W x S x L; L chosen in 10 mm steps within the printed range.

Specifications

Brand LuBo
Series LGPM / LGPMA / LGPMB
Product Heel Guide Plates
Catalogue chapter Oilless Bushings & Plates
Orderable codes 33
Size range Width 50-180 mm
Code example LGPM-50X60
Row spec keys Width W, Slot S, Length L, Type
Source LuBo Oilless Bushings & Plates catalogue
LGPM-50X60 Width W: 50 mm | Slot S: 60 mm | Length L: 150-180 mm (10 mm steps) | Type: LGPM
LGPM-50X90 Width W: 50 mm | Slot S: 90 mm | Length L: 190-250 mm (10 mm steps) | Type: LGPM
LGPM-70X90 Width W: 70 mm | Slot S: 90 mm | Length L: 200-250 mm (10 mm steps) | Type: LGPM
LGPM-70X120 Width W: 70 mm | Slot S: 120 mm | Length L: 230-350 mm (10 mm steps) | Type: LGPM
LGPM-100X120 Width W: 100 mm | Slot S: 120 mm | Length L: 270-320 mm (10 mm steps) | Type: LGPM
LGPM-100X180 Width W: 100 mm | Slot S: 180 mm | Length L: 330-400 mm (10 mm steps) | Type: LGPM
LGPM-130X150 Width W: 130 mm | Slot S: 150 mm | Length L: 300-380 mm (10 mm steps) | Type: LGPM
LGPM-130X210 Width W: 130 mm | Slot S: 210 mm | Length L: 390-500 mm (10 mm steps) | Type: LGPM
LGPM-150X180 Width W: 150 mm | Slot S: 180 mm | Length L: 340-450 mm (10 mm steps) | Type: LGPM
LGPM-150X240 Width W: 150 mm | Slot S: 240 mm | Length L: 460-550 mm (10 mm steps) | Type: LGPM
LGPM-180X200 Width W: 180 mm | Slot S: 200 mm | Length L: 380-470 mm (10 mm steps) | Type: LGPM
LGPMA-50X60 Width W: 50 mm | Slot S: 60 mm | Length L: 150-180 mm (10 mm steps) | Type: LGPMA
LGPMA-50X90 Width W: 50 mm | Slot S: 90 mm | Length L: 190-250 mm (10 mm steps) | Type: LGPMA
LGPMA-70X90 Width W: 70 mm | Slot S: 90 mm | Length L: 200-250 mm (10 mm steps) | Type: LGPMA
LGPMA-70X120 Width W: 70 mm | Slot S: 120 mm | Length L: 230-350 mm (10 mm steps) | Type: LGPMA
LGPMA-100X120 Width W: 100 mm | Slot S: 120 mm | Length L: 270-320 mm (10 mm steps) | Type: LGPMA
LGPMA-100X180 Width W: 100 mm | Slot S: 180 mm | Length L: 330-400 mm (10 mm steps) | Type: LGPMA
LGPMA-130X150 Width W: 130 mm | Slot S: 150 mm | Length L: 300-380 mm (10 mm steps) | Type: LGPMA
LGPMA-130X210 Width W: 130 mm | Slot S: 210 mm | Length L: 390-500 mm (10 mm steps) | Type: LGPMA
LGPMA-150X180 Width W: 150 mm | Slot S: 180 mm | Length L: 340-450 mm (10 mm steps) | Type: LGPMA
LGPMA-150X240 Width W: 150 mm | Slot S: 240 mm | Length L: 460-550 mm (10 mm steps) | Type: LGPMA
LGPMA-180X200 Width W: 180 mm | Slot S: 200 mm | Length L: 380-470 mm (10 mm steps) | Type: LGPMA
LGPMB-50X60 Width W: 50 mm | Slot S: 60 mm | Length L: 150-180 mm (10 mm steps) | Type: LGPMB
LGPMB-50X90 Width W: 50 mm | Slot S: 90 mm | Length L: 190-250 mm (10 mm steps) | Type: LGPMB
LGPMB-70X90 Width W: 70 mm | Slot S: 90 mm | Length L: 200-250 mm (10 mm steps) | Type: LGPMB
LGPMB-70X120 Width W: 70 mm | Slot S: 120 mm | Length L: 230-350 mm (10 mm steps) | Type: LGPMB
LGPMB-100X120 Width W: 100 mm | Slot S: 120 mm | Length L: 270-320 mm (10 mm steps) | Type: LGPMB
LGPMB-100X180 Width W: 100 mm | Slot S: 180 mm | Length L: 330-400 mm (10 mm steps) | Type: LGPMB
LGPMB-130X150 Width W: 130 mm | Slot S: 150 mm | Length L: 300-380 mm (10 mm steps) | Type: LGPMB
LGPMB-130X210 Width W: 130 mm | Slot S: 210 mm | Length L: 390-500 mm (10 mm steps) | Type: LGPMB
LGPMB-150X180 Width W: 150 mm | Slot S: 180 mm | Length L: 340-450 mm (10 mm steps) | Type: LGPMB
LGPMB-150X240 Width W: 150 mm | Slot S: 240 mm | Length L: 460-550 mm (10 mm steps) | Type: LGPMB
LGPMB-180X200 Width W: 180 mm | Slot S: 200 mm | Length L: 380-470 mm (10 mm steps) | Type: LGPMB
Oilless Slide ComponentLuBo
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGPM / LGPMA / LGPMB Heel Guide Plates (Width 50-180 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (33)

LGPM-50X60, LGPM-50X90, LGPM-70X90, LGPM-70X120, LGPM-100X120, LGPM-100X180, LGPM-130X150, LGPM-130X210, LGPM-150X180, LGPM-150X240 + 23 more — see full table ↓
