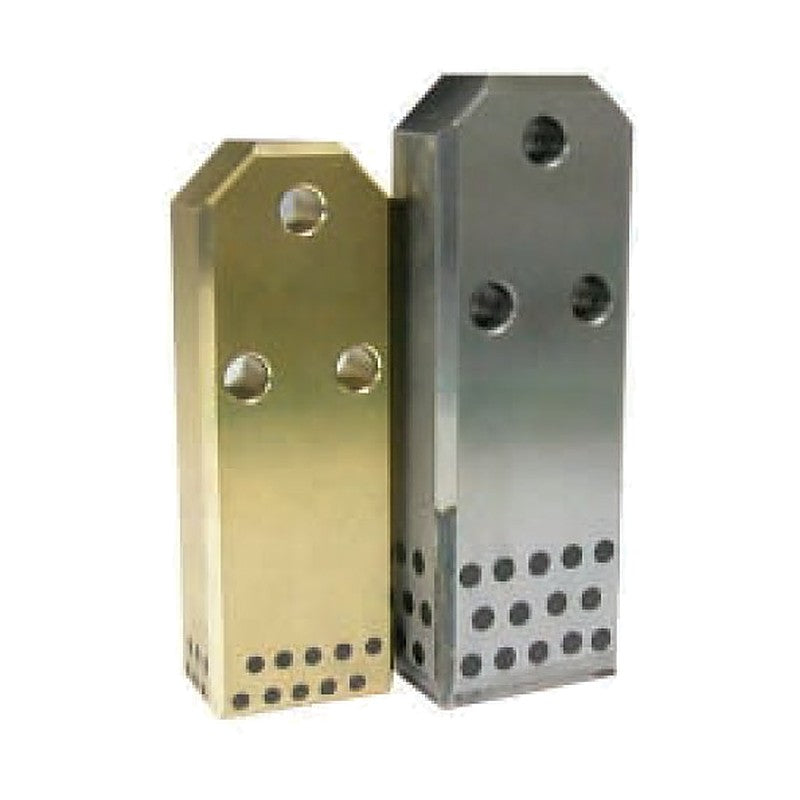

LuBo LGPV Guide Plates - VDI 3357 (Width 63-240 mm)

LuBo LGPV Guide Plates - VDI 3357 (Width 63-240 mm)

LuBo LGPV Guide Plates - VDI 3357 from the LuBo Oilless Bushings & Plates catalogue, listed in 32 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Plates - VDI 3357 - series LGPV
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: CS, SP

Specifications

Brand LuBo
Series LGPV
Product Guide Plates - VDI 3357
Catalogue chapter Oilless Bushings & Plates
Material CS, SP
Orderable codes 32
Size range Width 63-240 mm
Code example LGPV-63X180-SP
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LGPV-63X180-SP Width W: 63 mm | Length L: 180 mm | Thickness T: 36 mm | Material: SP
LGPV-63X200-SP Width W: 63 mm | Length L: 200 mm | Thickness T: 36 mm | Material: SP
LGPV-63X224-SP Width W: 63 mm | Length L: 224 mm | Thickness T: 36 mm | Material: SP
LGPV-71X180-SP Width W: 71 mm | Length L: 180 mm | Thickness T: 36 mm | Material: SP
LGPV-71X200-SP Width W: 71 mm | Length L: 200 mm | Thickness T: 36 mm | Material: SP
LGPV-71X224-SP Width W: 71 mm | Length L: 224 mm | Thickness T: 36 mm | Material: SP
LGPV-90X200-SP Width W: 90 mm | Length L: 200 mm | Thickness T: 45 mm | Material: SP
LGPV-90X224-SP Width W: 90 mm | Length L: 224 mm | Thickness T: 45 mm | Material: SP
LGPV-90X250-SP Width W: 90 mm | Length L: 250 mm | Thickness T: 45 mm | Material: SP
LGPV-112X200-SP Width W: 112 mm | Length L: 200 mm | Thickness T: 45 mm | Material: SP
LGPV-112X224-SP Width W: 112 mm | Length L: 224 mm | Thickness T: 45 mm | Material: SP
LGPV-112X250-SP Width W: 112 mm | Length L: 250 mm | Thickness T: 45 mm | Material: SP
LGPV-140X315-SP Width W: 140 mm | Length L: 315 mm | Thickness T: 56 mm | Material: SP
LGPV-190X400-SP Width W: 190 mm | Length L: 400 mm | Thickness T: 56 mm | Material: SP
LGPV-240X500-SP Width W: 240 mm | Length L: 500 mm | Thickness T: 56 mm | Material: SP
LGPV-240X630-SP Width W: 240 mm | Length L: 630 mm | Thickness T: 56 mm | Material: SP
LGPV-63X180-CS Width W: 63 mm | Length L: 180 mm | Thickness T: 36 mm | Material: CS
LGPV-63X200-CS Width W: 63 mm | Length L: 200 mm | Thickness T: 36 mm | Material: CS
LGPV-63X224-CS Width W: 63 mm | Length L: 224 mm | Thickness T: 36 mm | Material: CS
LGPV-71X180-CS Width W: 71 mm | Length L: 180 mm | Thickness T: 36 mm | Material: CS
LGPV-71X200-CS Width W: 71 mm | Length L: 200 mm | Thickness T: 36 mm | Material: CS
LGPV-71X224-CS Width W: 71 mm | Length L: 224 mm | Thickness T: 36 mm | Material: CS
LGPV-90X200-CS Width W: 90 mm | Length L: 200 mm | Thickness T: 45 mm | Material: CS
LGPV-90X224-CS Width W: 90 mm | Length L: 224 mm | Thickness T: 45 mm | Material: CS
LGPV-90X250-CS Width W: 90 mm | Length L: 250 mm | Thickness T: 45 mm | Material: CS
LGPV-112X200-CS Width W: 112 mm | Length L: 200 mm | Thickness T: 45 mm | Material: CS
LGPV-112X224-CS Width W: 112 mm | Length L: 224 mm | Thickness T: 45 mm | Material: CS
LGPV-112X250-CS Width W: 112 mm | Length L: 250 mm | Thickness T: 45 mm | Material: CS
LGPV-140X315-CS Width W: 140 mm | Length L: 315 mm | Thickness T: 56 mm | Material: CS
LGPV-190X400-CS Width W: 190 mm | Length L: 400 mm | Thickness T: 56 mm | Material: CS
LGPV-240X500-CS Width W: 240 mm | Length L: 500 mm | Thickness T: 56 mm | Material: CS
LGPV-240X630-CS Width W: 240 mm | Length L: 630 mm | Thickness T: 56 mm | Material: CS
Oilless Slide ComponentLuBo
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LGPV Guide Plates - VDI 3357 (Width 63-240 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (32)

LGPV-63X180-SP, LGPV-63X200-SP, LGPV-63X224-SP, LGPV-71X180-SP, LGPV-71X200-SP, LGPV-71X224-SP, LGPV-90X200-SP, LGPV-90X224-SP, LGPV-90X250-SP, LGPV-112X200-SP + 22 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LGPV-63X180-SPWidth W: 63 mm | Length L: 180 mm | Thickness T: 36 mm | Material: SP
LGPV-63X200-SPWidth W: 63 mm | Length L: 200 mm | Thickness T: 36 mm | Material: SP
LGPV-63X224-SPWidth W: 63 mm | Length L: 224 mm | Thickness T: 36 mm | Material: SP
LGPV-71X180-SPWidth W: 71 mm | Length L: 180 mm | Thickness T: 36 mm | Material: SP
LGPV-71X200-SPWidth W: 71 mm | Length L: 200 mm | Thickness T: 36 mm | Material: SP
LGPV-71X224-SPWidth W: 71 mm | Length L: 224 mm | Thickness T: 36 mm | Material: SP
LGPV-90X200-SPWidth W: 90 mm | Length L: 200 mm | Thickness T: 45 mm | Material: SP
LGPV-90X224-SPWidth W: 90 mm | Length L: 224 mm | Thickness T: 45 mm | Material: SP
LGPV-90X250-SPWidth W: 90 mm | Length L: 250 mm | Thickness T: 45 mm | Material: SP
LGPV-112X200-SPWidth W: 112 mm | Length L: 200 mm | Thickness T: 45 mm | Material: SP
LGPV-112X224-SPWidth W: 112 mm | Length L: 224 mm | Thickness T: 45 mm | Material: SP
LGPV-112X250-SPWidth W: 112 mm | Length L: 250 mm | Thickness T: 45 mm | Material: SP
LGPV-140X315-SPWidth W: 140 mm | Length L: 315 mm | Thickness T: 56 mm | Material: SP
LGPV-190X400-SPWidth W: 190 mm | Length L: 400 mm | Thickness T: 56 mm | Material: SP
LGPV-240X500-SPWidth W: 240 mm | Length L: 500 mm | Thickness T: 56 mm | Material: SP
LGPV-240X630-SPWidth W: 240 mm | Length L: 630 mm | Thickness T: 56 mm | Material: SP
LGPV-63X180-CSWidth W: 63 mm | Length L: 180 mm | Thickness T: 36 mm | Material: CS
LGPV-63X200-CSWidth W: 63 mm | Length L: 200 mm | Thickness T: 36 mm | Material: CS
LGPV-63X224-CSWidth W: 63 mm | Length L: 224 mm | Thickness T: 36 mm | Material: CS
LGPV-71X180-CSWidth W: 71 mm | Length L: 180 mm | Thickness T: 36 mm | Material: CS
LGPV-71X200-CSWidth W: 71 mm | Length L: 200 mm | Thickness T: 36 mm | Material: CS
LGPV-71X224-CSWidth W: 71 mm | Length L: 224 mm | Thickness T: 36 mm | Material: CS
LGPV-90X200-CSWidth W: 90 mm | Length L: 200 mm | Thickness T: 45 mm | Material: CS
LGPV-90X224-CSWidth W: 90 mm | Length L: 224 mm | Thickness T: 45 mm | Material: CS
LGPV-90X250-CSWidth W: 90 mm | Length L: 250 mm | Thickness T: 45 mm | Material: CS
LGPV-112X200-CSWidth W: 112 mm | Length L: 200 mm | Thickness T: 45 mm | Material: CS
LGPV-112X224-CSWidth W: 112 mm | Length L: 224 mm | Thickness T: 45 mm | Material: CS
LGPV-112X250-CSWidth W: 112 mm | Length L: 250 mm | Thickness T: 45 mm | Material: CS
LGPV-140X315-CSWidth W: 140 mm | Length L: 315 mm | Thickness T: 56 mm | Material: CS
LGPV-190X400-CSWidth W: 190 mm | Length L: 400 mm | Thickness T: 56 mm | Material: CS
LGPV-240X500-CSWidth W: 240 mm | Length L: 500 mm | Thickness T: 56 mm | Material: CS
LGPV-240X630-CSWidth W: 240 mm | Length L: 630 mm | Thickness T: 56 mm | Material: CS
