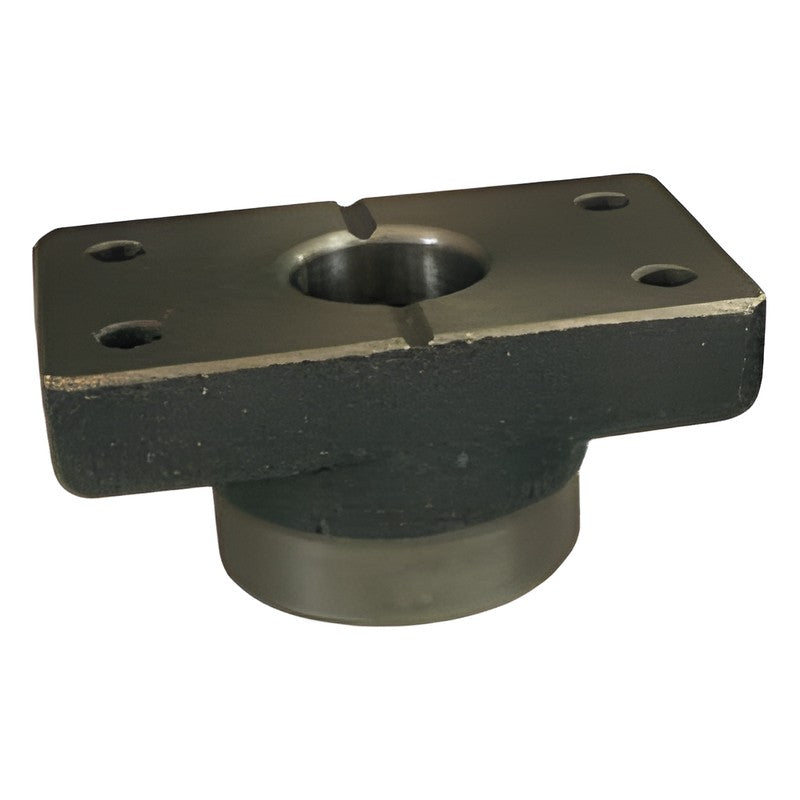

LuBo LHGB / LHGH Upper / Lower Guide Holders (Bore 25-80 mm)

LuBo LHGB / LHGH Upper / Lower Guide Holders (Bore 25-80 mm)

LuBo LHGB / LHGH Upper / Lower Guide Holders from the LuBo Guide Components catalogue, listed in 12 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Upper / Lower Guide Holders - series LHGB / LHGH
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • Material options: GC250

Specifications

Brand LuBo
Series LHGB / LHGH
Product Upper / Lower Guide Holders
Catalogue chapter Guide Components
Material GC250
Orderable codes 12
Size range Bore 25-80 mm
Code example LHGB-25
Row spec keys Bore D, Type, Material, Option
Source LuBo Guide Components catalogue
LHGB-25 Bore D: 25 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-32 Bore D: 32 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-38 Bore D: 38 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-50 Bore D: 50 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-60 Bore D: 60 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-80 Bore D: 80 mm | Type: Upper holder | Material: GC250 | Option: -
LHGH-25 Bore D: 25 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-32 Bore D: 32 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-38 Bore D: 38 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-50 Bore D: 50 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-60 Bore D: 60 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-80 Bore D: 80 mm | Type: Lower holder | Material: GC250 | Option: -S
Die Guide ComponentLuBo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LHGB / LHGH Upper / Lower Guide Holders (Bore 25-80 mm)

Brand LuBo·Die Guide Component

Available part numbers (12)

LHGB-25, LHGB-32, LHGB-38, LHGB-50, LHGB-60, LHGB-80, LHGH-25, LHGH-32, LHGH-38, LHGH-50 + 2 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LHGB-25Bore D: 25 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-32Bore D: 32 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-38Bore D: 38 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-50Bore D: 50 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-60Bore D: 60 mm | Type: Upper holder | Material: GC250 | Option: -
LHGB-80Bore D: 80 mm | Type: Upper holder | Material: GC250 | Option: -
LHGH-25Bore D: 25 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-32Bore D: 32 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-38Bore D: 38 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-50Bore D: 50 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-60Bore D: 60 mm | Type: Lower holder | Material: GC250 | Option: -S
LHGH-80Bore D: 80 mm | Type: Lower holder | Material: GC250 | Option: -S
