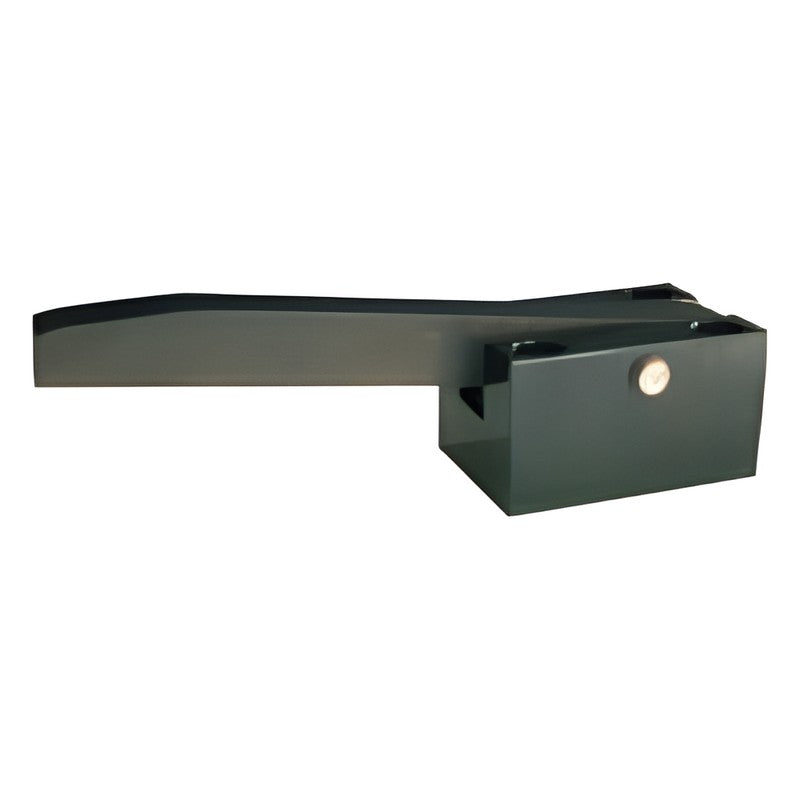

LuBo LLRB Bar Stock Lifter Sets (Length 250-350 mm)

LuBo LLRB / LLRBC / LLRBE / LLRBS / LLRBX Bar Stock Lifter Sets from the LuBo Scrap Control Components catalogue, listed in 15 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

Bar Stock Lifter Sets - series LLRB / LLRBC / LLRBE / LLRBS / LLRBX
Standard press die / mold component from LuBo
Sizes selected from the catalogue table
Dimensions per LuBo catalogue drawing
15 catalogue codes covering the full printed size range

Specifications

Brand	LuBo
Series	LLRB / LLRBC / LLRBE / LLRBS / LLRBX
Product	Bar Stock Lifter Sets
Catalogue chapter	Scrap Control Components
Orderable codes	15
Size range	Length 250-350 mm
Code example	LLRB-250-SS
Row spec keys	Length L, Stroke ST, Arm, Spring, Type
Source	LuBo Scrap Control Components catalogue

LLRB-250-SS		Length L: 250 mm \| Stroke ST: 26 mm \| Arm: SS400, inner (SS) \| Spring: - \| Type: -
LLRB-250-PP		Length L: 250 mm \| Stroke ST: 26 mm \| Arm: Brass, outer (PP) \| Spring: - \| Type: -
LLRB-350-SS		Length L: 350 mm \| Stroke ST: 42 mm \| Arm: SS400, inner (SS) \| Spring: - \| Type: -
LLRB-350-PP		Length L: 350 mm \| Stroke ST: 42 mm \| Arm: Brass, outer (PP) \| Spring: - \| Type: -
LLRBC-20-U		Length L: - \| Stroke ST: 20 mm \| Arm: - \| Spring: LCSU 17X50 \| Type: -
LLRBC-20-R		Length L: - \| Stroke ST: 20 mm \| Arm: - \| Spring: LCSR 17X50 \| Type: -
LLRBC-25-U		Length L: - \| Stroke ST: 25 mm \| Arm: - \| Spring: LCSU 17X50 \| Type: -
LLRBC-25-R		Length L: - \| Stroke ST: 25 mm \| Arm: - \| Spring: LCSR 17X50 \| Type: -
LLRBE-20-U		Length L: - \| Stroke ST: 20 mm \| Arm: - \| Spring: LCSU 17X50 \| Type: -
LLRBE-20-R		Length L: - \| Stroke ST: 20 mm \| Arm: - \| Spring: LCSR 17X50 \| Type: -
LLRBE-25-U		Length L: - \| Stroke ST: 25 mm \| Arm: - \| Spring: LCSU 17X50 \| Type: -
LLRBE-25-R		Length L: - \| Stroke ST: 25 mm \| Arm: - \| Spring: LCSR 17X50 \| Type: -
LLRBS-250		Length L: 250 mm \| Stroke ST: - \| Arm: - \| Spring: - \| Type: LLRBS
LLRBX-250		Length L: 250 mm \| Stroke ST: - \| Arm: - \| Spring: - \| Type: LLRBX
LLRBX-300		Length L: 300 mm \| Stroke ST: - \| Arm: - \| Spring: - \| Type: LLRBX

Stock & Scrap Handling ComponentLuBo

15 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LLRB Bar Stock Lifter Sets (Length 250-350 mm)

Brand LuBo·Stock & Scrap Handling Component

Available part numbers (15)

LLRB-250-SS, LLRB-250-PP, LLRB-350-SS, LLRB-350-PP, LLRBC-20-U, LLRBC-20-R, LLRBC-25-U, LLRBC-25-R, LLRBE-20-U, LLRBE-20-R + 5 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
