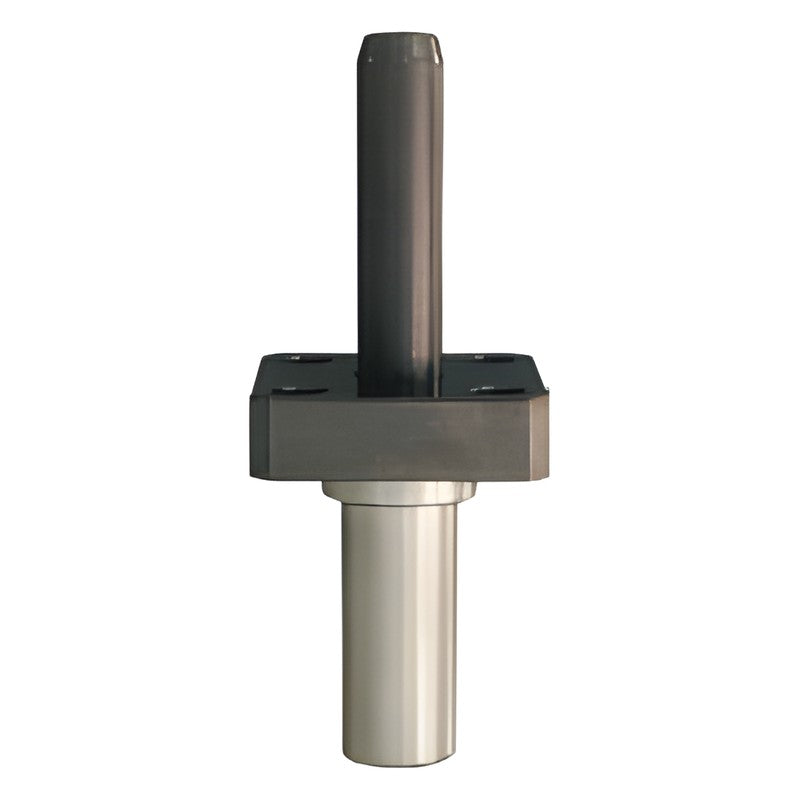

LuBo LNOB Panel Knock-Out Pin Set - Self Weight Type (21 sizes)

LuBo LNOB Panel Knock-Out Pin Set - Self Weight Type from the LuBo Knock-Out Pins of Panel catalogue, listed in 21 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

Panel Knock-Out Pin Set - Self Weight Type - series LNOB
Standard press die / mold component from LuBo
Sizes selected from the catalogue table
Dimensions per LuBo catalogue drawing
21 catalogue codes covering the full printed size range

Specifications

Brand	LuBo
Series	LNOB
Product	Panel Knock-Out Pin Set - Self Weight Type
Catalogue chapter	Knock-Out Pins of Panel
Orderable codes	21
Size range	Pin dia. d 20-40 mm
Code example	LNOB-20X20
Row spec keys	Pin dia. d, Stroke ST, Length l
Source	LuBo Knock-Out Pins of Panel catalogue

LNOB-20X20		Pin dia. d: 20 mm \| Stroke ST: 20 mm \| Length l: 60-125 mm
LNOB-20X30		Pin dia. d: 20 mm \| Stroke ST: 30 mm \| Length l: 70-125 mm
LNOB-20X40		Pin dia. d: 20 mm \| Stroke ST: 40 mm \| Length l: 80-125 mm
LNOB-20X50		Pin dia. d: 20 mm \| Stroke ST: 50 mm \| Length l: 90-125 mm
LNOB-20X60		Pin dia. d: 20 mm \| Stroke ST: 60 mm \| Length l: 100-125 mm
LNOB-20X75		Pin dia. d: 20 mm \| Stroke ST: 75 mm \| Length l: 115-125 mm
LNOB-20X85		Pin dia. d: 20 mm \| Stroke ST: 85 mm \| Length l: 125 mm
LNOB-30X20		Pin dia. d: 30 mm \| Stroke ST: 20 mm \| Length l: 60-125 mm
LNOB-30X30		Pin dia. d: 30 mm \| Stroke ST: 30 mm \| Length l: 70-125 mm
LNOB-30X40		Pin dia. d: 30 mm \| Stroke ST: 40 mm \| Length l: 80-125 mm
LNOB-30X50		Pin dia. d: 30 mm \| Stroke ST: 50 mm \| Length l: 90-125 mm
LNOB-30X60		Pin dia. d: 30 mm \| Stroke ST: 60 mm \| Length l: 100-125 mm
LNOB-30X75		Pin dia. d: 30 mm \| Stroke ST: 75 mm \| Length l: 115-125 mm
LNOB-30X85		Pin dia. d: 30 mm \| Stroke ST: 85 mm \| Length l: 125 mm
LNOB-40X20		Pin dia. d: 40 mm \| Stroke ST: 20 mm \| Length l: 60-125 mm
LNOB-40X30		Pin dia. d: 40 mm \| Stroke ST: 30 mm \| Length l: 70-125 mm
LNOB-40X40		Pin dia. d: 40 mm \| Stroke ST: 40 mm \| Length l: 80-125 mm
LNOB-40X50		Pin dia. d: 40 mm \| Stroke ST: 50 mm \| Length l: 90-125 mm
LNOB-40X60		Pin dia. d: 40 mm \| Stroke ST: 60 mm \| Length l: 100-125 mm
LNOB-40X75		Pin dia. d: 40 mm \| Stroke ST: 75 mm \| Length l: 115-125 mm
LNOB-40X85		Pin dia. d: 40 mm \| Stroke ST: 85 mm \| Length l: 125 mm

Panel Knock-Out ComponentLuBo

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LNOB Panel Knock-Out Pin Set - Self Weight Type (21 sizes)

Brand LuBo·Panel Knock-Out Component

Available part numbers (21)

LNOB-20X20, LNOB-20X30, LNOB-20X40, LNOB-20X50, LNOB-20X60, LNOB-20X75, LNOB-20X85, LNOB-30X20, LNOB-30X30, LNOB-30X40 + 11 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
