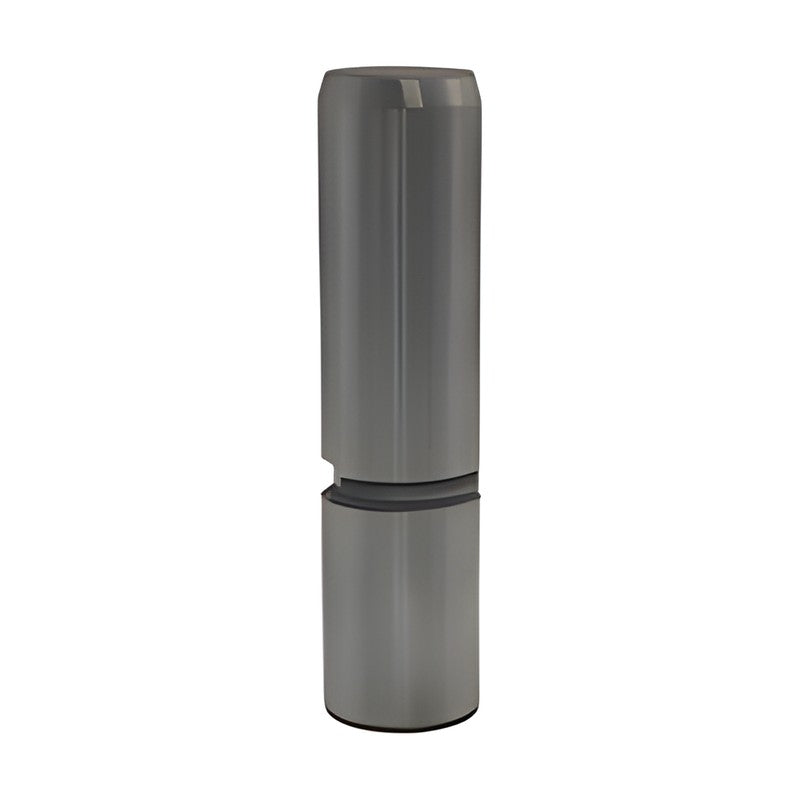

LuBo LPGF / LPGW Guide Post Pins (Dia. 25-160 mm)

LuBo LPGF / LPGW Guide Post Pins (Dia. 25-160 mm)

LuBo LPGF / LPGW Guide Post Pins from the LuBo Guide Components catalogue, listed in 104 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Post Pins - series LPGF / LPGW
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • 104 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LPGF / LPGW
Product Guide Post Pins
Catalogue chapter Guide Components
Orderable codes 104
Size range Dia. 25-160 mm
Code example LPGF-25X125
Row spec keys Dia. D1, Length L1, Type
Source LuBo Guide Components catalogue
LPGF-25X125 Dia. D1: 25 mm | Length L1: 125 mm | Type: LPGF
