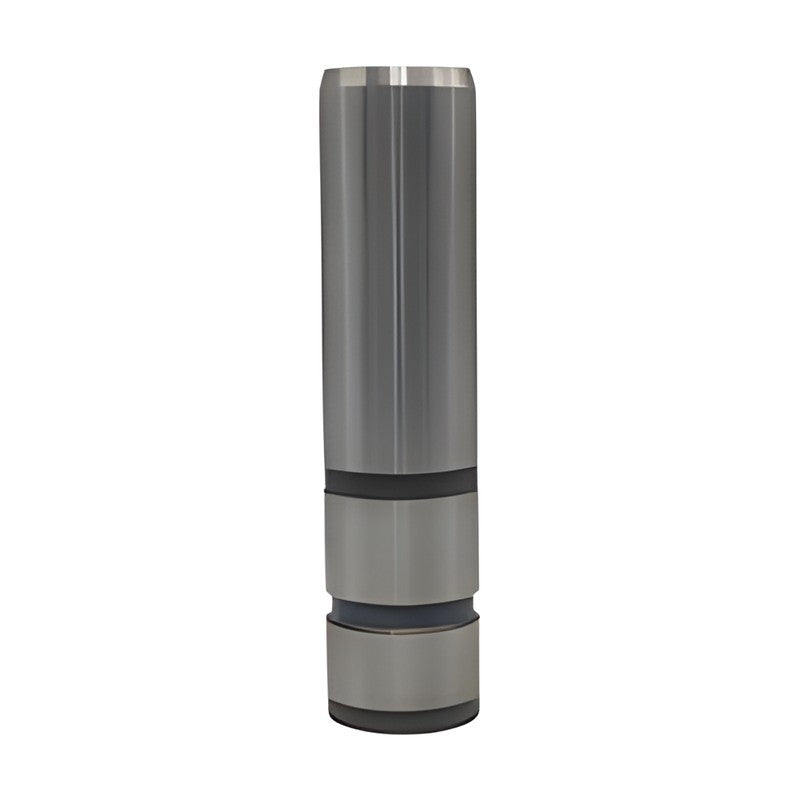

LuBo LPGP Guide Post Pins - Pad Guide (Dia. d 30-100 mm)

LuBo LPGP Guide Post Pins - Pad Guide (Dia. d 30-100 mm)

LuBo LPGP Guide Post Pins - Pad Guide from the LuBo Guide Components catalogue, listed in 24 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Guide Post Pins - Pad Guide - series LPGP
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • Material options: SM45C, HRC50+

Specifications

Brand LuBo
Series LPGP
Product Guide Post Pins - Pad Guide
Catalogue chapter Guide Components
Material SM45C, HRC50+
Orderable codes 24
Size range Dia. d 30-100 mm
Code example LPGP-30X130
Row spec keys Dia. d, Length L, Material
Source LuBo Guide Components catalogue
LPGP-30X130 Dia. d: 30 mm | Length L: 130 mm | Material: SM45C, HRC50+
LPGP-30X140 Dia. d: 30 mm | Length L: 140 mm | Material: SM45C, HRC50+
LPGP-30X160 Dia. d: 30 mm | Length L: 160 mm | Material: SM45C, HRC50+
LPGP-40X140 Dia. d: 40 mm | Length L: 140 mm | Material: SM45C, HRC50+
LPGP-40X150 Dia. d: 40 mm | Length L: 150 mm | Material: SM45C, HRC50+
LPGP-40X160 Dia. d: 40 mm | Length L: 160 mm | Material: SM45C, HRC50+
LPGP-40X180 Dia. d: 40 mm | Length L: 180 mm | Material: SM45C, HRC50+
LPGP-50X185 Dia. d: 50 mm | Length L: 185 mm | Material: SM45C, HRC50+
LPGP-50X200 Dia. d: 50 mm | Length L: 200 mm | Material: SM45C, HRC50+
LPGP-50X225 Dia. d: 50 mm | Length L: 225 mm | Material: SM45C, HRC50+
LPGP-60X190 Dia. d: 60 mm | Length L: 190 mm | Material: SM45C, HRC50+
LPGP-60X225 Dia. d: 60 mm | Length L: 225 mm | Material: SM45C, HRC50+
LPGP-60X250 Dia. d: 60 mm | Length L: 250 mm | Material: SM45C, HRC50+
LPGP-60X275 Dia. d: 60 mm | Length L: 275 mm | Material: SM45C, HRC50+
LPGP-60X300 Dia. d: 60 mm | Length L: 300 mm | Material: SM45C, HRC50+
LPGP-80X240 Dia. d: 80 mm | Length L: 240 mm | Material: SM45C, HRC50+
LPGP-80X280 Dia. d: 80 mm | Length L: 280 mm | Material: SM45C, HRC50+
LPGP-80X300 Dia. d: 80 mm | Length L: 300 mm | Material: SM45C, HRC50+
LPGP-80X325 Dia. d: 80 mm | Length L: 325 mm | Material: SM45C, HRC50+
LPGP-80X350 Dia. d: 80 mm | Length L: 350 mm | Material: SM45C, HRC50+
LPGP-100X290 Dia. d: 100 mm | Length L: 290 mm | Material: SM45C, HRC50+
LPGP-100X340 Dia. d: 100 mm | Length L: 340 mm | Material: SM45C, HRC50+
LPGP-100X350 Dia. d: 100 mm | Length L: 350 mm | Material: SM45C, HRC50+
LPGP-100X375 Dia. d: 100 mm | Length L: 375 mm | Material: SM45C, HRC50+
Die Guide ComponentLuBo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LPGP Guide Post Pins - Pad Guide (Dia. d 30-100 mm)

Brand LuBo·Die Guide Component

Available part numbers (24)

LPGP-30X130, LPGP-30X140, LPGP-30X160, LPGP-40X140, LPGP-40X150, LPGP-40X160, LPGP-40X180, LPGP-50X185, LPGP-50X200, LPGP-50X225 + 14 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPGP-30X130Dia. d: 30 mm | Length L: 130 mm | Material: SM45C, HRC50+
LPGP-30X140Dia. d: 30 mm | Length L: 140 mm | Material: SM45C, HRC50+
LPGP-30X160Dia. d: 30 mm | Length L: 160 mm | Material: SM45C, HRC50+
LPGP-40X140Dia. d: 40 mm | Length L: 140 mm | Material: SM45C, HRC50+
LPGP-40X150Dia. d: 40 mm | Length L: 150 mm | Material: SM45C, HRC50+
LPGP-40X160Dia. d: 40 mm | Length L: 160 mm | Material: SM45C, HRC50+
LPGP-40X180Dia. d: 40 mm | Length L: 180 mm | Material: SM45C, HRC50+
LPGP-50X185Dia. d: 50 mm | Length L: 185 mm | Material: SM45C, HRC50+
LPGP-50X200Dia. d: 50 mm | Length L: 200 mm | Material: SM45C, HRC50+
LPGP-50X225Dia. d: 50 mm | Length L: 225 mm | Material: SM45C, HRC50+
LPGP-60X190Dia. d: 60 mm | Length L: 190 mm | Material: SM45C, HRC50+
LPGP-60X225Dia. d: 60 mm | Length L: 225 mm | Material: SM45C, HRC50+
LPGP-60X250Dia. d: 60 mm | Length L: 250 mm | Material: SM45C, HRC50+
LPGP-60X275Dia. d: 60 mm | Length L: 275 mm | Material: SM45C, HRC50+
LPGP-60X300Dia. d: 60 mm | Length L: 300 mm | Material: SM45C, HRC50+
LPGP-80X240Dia. d: 80 mm | Length L: 240 mm | Material: SM45C, HRC50+
LPGP-80X280Dia. d: 80 mm | Length L: 280 mm | Material: SM45C, HRC50+
LPGP-80X300Dia. d: 80 mm | Length L: 300 mm | Material: SM45C, HRC50+
LPGP-80X325Dia. d: 80 mm | Length L: 325 mm | Material: SM45C, HRC50+
LPGP-80X350Dia. d: 80 mm | Length L: 350 mm | Material: SM45C, HRC50+
LPGP-100X290Dia. d: 100 mm | Length L: 290 mm | Material: SM45C, HRC50+
LPGP-100X340Dia. d: 100 mm | Length L: 340 mm | Material: SM45C, HRC50+
LPGP-100X350Dia. d: 100 mm | Length L: 350 mm | Material: SM45C, HRC50+
LPGP-100X375Dia. d: 100 mm | Length L: 375 mm | Material: SM45C, HRC50+
