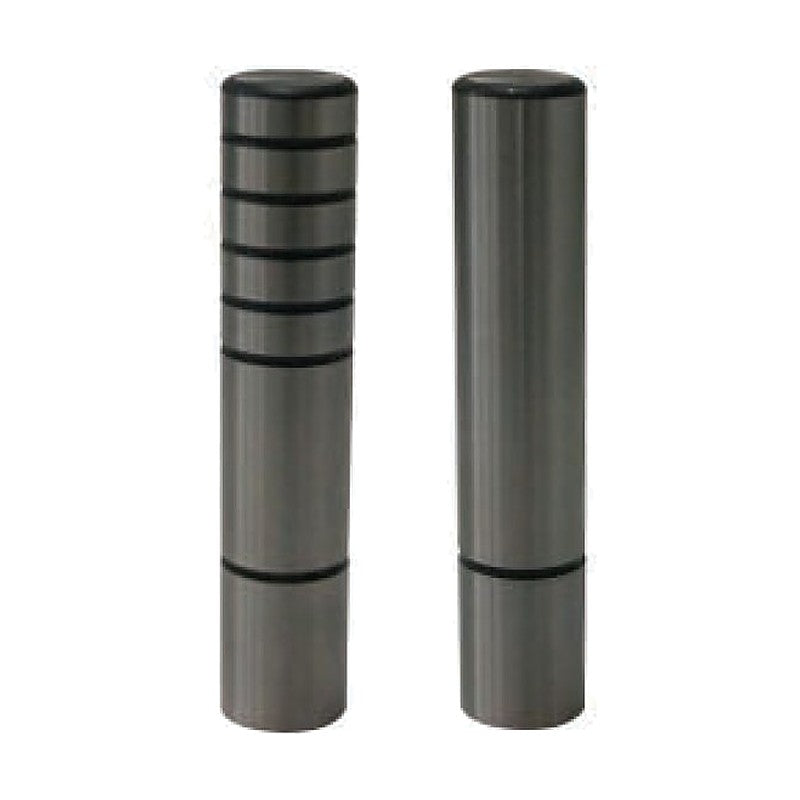

LuBo LPGS / LPGSG Stripper Guide Pins - Straight Type (Dia. 8-25 mm)

LuBo LPGS / LPGSG Stripper Guide Pins - Straight Type (Dia. 8-25 mm)

LuBo LPGS / LPGSG Stripper Guide Pins - Straight Type from the LuBo Guide Components catalogue, listed in 96 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Stripper Guide Pins - Straight Type - series LPGS / LPGSG
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • 96 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LPGS / LPGSG
Product Stripper Guide Pins - Straight Type
Catalogue chapter Guide Components
Orderable codes 96
Size range Dia. 8-25 mm
Code example LPGS-8X40
Row spec keys Dia. D, Length L, Type
Source LuBo Guide Components catalogue
LPGS-8X40 Dia. D: 8 mm | Length L: 40 mm | Type: Plain
LPGS-8X50 Dia. D: 8 mm | Length L: 50 mm | Type: Plain
LPGS-8X60 Dia. D: 8 mm | Length L: 60 mm | Type: Plain
LPGS-8X70 Dia. D: 8 mm | Length L: 70 mm | Type: Plain
LPGS-8X80 Dia. D: 8 mm | Length L: 80 mm | Type: Plain
LPGS-10X40 Dia. D: 10 mm | Length L: 40 mm | Type: Plain
LPGS-10X50 Dia. D: 10 mm | Length L: 50 mm | Type: Plain
LPGS-10X60 Dia. D: 10 mm | Length L: 60 mm | Type: Plain
LPGS-10X70 Dia. D: 10 mm | Length L: 70 mm | Type: Plain
LPGS-10X80 Dia. D: 10 mm | Length L: 80 mm | Type: Plain
LPGS-10X90 Dia. D: 10 mm | Length L: 90 mm | Type: Plain
LPGS-10X100 Dia. D: 10 mm | Length L: 100 mm | Type: Plain
LPGS-13X40 Dia. D: 13 mm | Length L: 40 mm | Type: Plain
LPGS-13X50 Dia. D: 13 mm | Length L: 50 mm | Type: Plain
LPGS-13X60 Dia. D: 13 mm | Length L: 60 mm | Type: Plain
LPGS-13X70 Dia. D: 13 mm | Length L: 70 mm | Type: Plain
LPGS-13X80 Dia. D: 13 mm | Length L: 80 mm | Type: Plain
LPGS-13X90 Dia. D: 13 mm | Length L: 90 mm | Type: Plain
LPGS-13X100 Dia. D: 13 mm | Length L: 100 mm | Type: Plain
LPGS-13X110 Dia. D: 13 mm | Length L: 110 mm | Type: Plain
LPGS-13X120 Dia. D: 13 mm | Length L: 120 mm | Type: Plain
LPGS-16X50 Dia. D: 16 mm | Length L: 50 mm | Type: Plain
LPGS-16X60 Dia. D: 16 mm | Length L: 60 mm | Type: Plain
LPGS-16X70 Dia. D: 16 mm | Length L: 70 mm | Type: Plain
LPGS-16X80 Dia. D: 16 mm | Length L: 80 mm | Type: Plain
LPGS-16X90 Dia. D: 16 mm | Length L: 90 mm | Type: Plain
LPGS-16X100 Dia. D: 16 mm | Length L: 100 mm | Type: Plain
LPGS-16X110 Dia. D: 16 mm | Length L: 110 mm | Type: Plain
LPGS-16X120 Dia. D: 16 mm | Length L: 120 mm | Type: Plain
LPGS-16X130 Dia. D: 16 mm | Length L: 130 mm | Type: Plain
LPGS-16X140 Dia. D: 16 mm | Length L: 140 mm | Type: Plain
LPGS-20X60 Dia. D: 20 mm | Length L: 60 mm | Type: Plain
LPGS-20X70 Dia. D: 20 mm | Length L: 70 mm | Type: Plain
LPGS-20X80 Dia. D: 20 mm | Length L: 80 mm | Type: Plain
LPGS-20X90 Dia. D: 20 mm | Length L: 90 mm | Type: Plain
LPGS-20X100 Dia. D: 20 mm | Length L: 100 mm | Type: Plain
LPGS-20X110 Dia. D: 20 mm | Length L: 110 mm | Type: Plain
LPGS-20X120 Dia. D: 20 mm | Length L: 120 mm | Type: Plain
LPGS-20X130 Dia. D: 20 mm | Length L: 130 mm | Type: Plain
LPGS-20X140 Dia. D: 20 mm | Length L: 140 mm | Type: Plain
LPGS-25X70 Dia. D: 25 mm | Length L: 70 mm | Type: Plain
LPGS-25X80 Dia. D: 25 mm | Length L: 80 mm | Type: Plain
LPGS-25X90 Dia. D: 25 mm | Length L: 90 mm | Type: Plain
LPGS-25X100 Dia. D: 25 mm | Length L: 100 mm | Type: Plain
LPGS-25X110 Dia. D: 25 mm | Length L: 110 mm | Type: Plain
LPGS-25X120 Dia. D: 25 mm | Length L: 120 mm | Type: Plain
LPGS-25X130 Dia. D: 25 mm | Length L: 130 mm | Type: Plain
LPGS-25X140 Dia. D: 25 mm | Length L: 140 mm | Type: Plain
LPGSG-8X40 Dia. D: 8 mm | Length L: 40 mm | Type: Oil-groove
LPGSG-8X50 Dia. D: 8 mm | Length L: 50 mm | Type: Oil-groove
LPGSG-8X60 Dia. D: 8 mm | Length L: 60 mm | Type: Oil-groove
LPGSG-8X70 Dia. D: 8 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-8X80 Dia. D: 8 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-10X40 Dia. D: 10 mm | Length L: 40 mm | Type: Oil-groove
LPGSG-10X50 Dia. D: 10 mm | Length L: 50 mm | Type: Oil-groove
LPGSG-10X60 Dia. D: 10 mm | Length L: 60 mm | Type: Oil-groove
LPGSG-10X70 Dia. D: 10 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-10X80 Dia. D: 10 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-10X90 Dia. D: 10 mm | Length L: 90 mm | Type: Oil-groove
LPGSG-10X100 Dia. D: 10 mm | Length L: 100 mm | Type: Oil-groove
LPGSG-13X40 Dia. D: 13 mm | Length L: 40 mm | Type: Oil-groove
LPGSG-13X50 Dia. D: 13 mm | Length L: 50 mm | Type: Oil-groove
LPGSG-13X60 Dia. D: 13 mm | Length L: 60 mm | Type: Oil-groove
LPGSG-13X70 Dia. D: 13 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-13X80 Dia. D: 13 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-13X90 Dia. D: 13 mm | Length L: 90 mm | Type: Oil-groove
LPGSG-13X100 Dia. D: 13 mm | Length L: 100 mm | Type: Oil-groove
LPGSG-13X110 Dia. D: 13 mm | Length L: 110 mm | Type: Oil-groove
LPGSG-13X120 Dia. D: 13 mm | Length L: 120 mm | Type: Oil-groove
LPGSG-16X50 Dia. D: 16 mm | Length L: 50 mm | Type: Oil-groove
LPGSG-16X60 Dia. D: 16 mm | Length L: 60 mm | Type: Oil-groove
LPGSG-16X70 Dia. D: 16 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-16X80 Dia. D: 16 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-16X90 Dia. D: 16 mm | Length L: 90 mm | Type: Oil-groove
LPGSG-16X100 Dia. D: 16 mm | Length L: 100 mm | Type: Oil-groove
LPGSG-16X110 Dia. D: 16 mm | Length L: 110 mm | Type: Oil-groove
LPGSG-16X120 Dia. D: 16 mm | Length L: 120 mm | Type: Oil-groove
LPGSG-16X130 Dia. D: 16 mm | Length L: 130 mm | Type: Oil-groove
LPGSG-16X140 Dia. D: 16 mm | Length L: 140 mm | Type: Oil-groove
LPGSG-20X60 Dia. D: 20 mm | Length L: 60 mm | Type: Oil-groove
LPGSG-20X70 Dia. D: 20 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-20X80 Dia. D: 20 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-20X90 Dia. D: 20 mm | Length L: 90 mm | Type: Oil-groove
LPGSG-20X100 Dia. D: 20 mm | Length L: 100 mm | Type: Oil-groove
LPGSG-20X110 Dia. D: 20 mm | Length L: 110 mm | Type: Oil-groove
LPGSG-20X120 Dia. D: 20 mm | Length L: 120 mm | Type: Oil-groove
LPGSG-20X130 Dia. D: 20 mm | Length L: 130 mm | Type: Oil-groove
LPGSG-20X140 Dia. D: 20 mm | Length L: 140 mm | Type: Oil-groove
LPGSG-25X70 Dia. D: 25 mm | Length L: 70 mm | Type: Oil-groove
LPGSG-25X80 Dia. D: 25 mm | Length L: 80 mm | Type: Oil-groove
LPGSG-25X90 Dia. D: 25 mm | Length L: 90 mm | Type: Oil-groove
LPGSG-25X100 Dia. D: 25 mm | Length L: 100 mm | Type: Oil-groove
LPGSG-25X110 Dia. D: 25 mm | Length L: 110 mm | Type: Oil-groove
LPGSG-25X120 Dia. D: 25 mm | Length L: 120 mm | Type: Oil-groove
LPGSG-25X130 Dia. D: 25 mm | Length L: 130 mm | Type: Oil-groove
LPGSG-25X140 Dia. D: 25 mm | Length L: 140 mm | Type: Oil-groove
Die Guide ComponentLuBo
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
