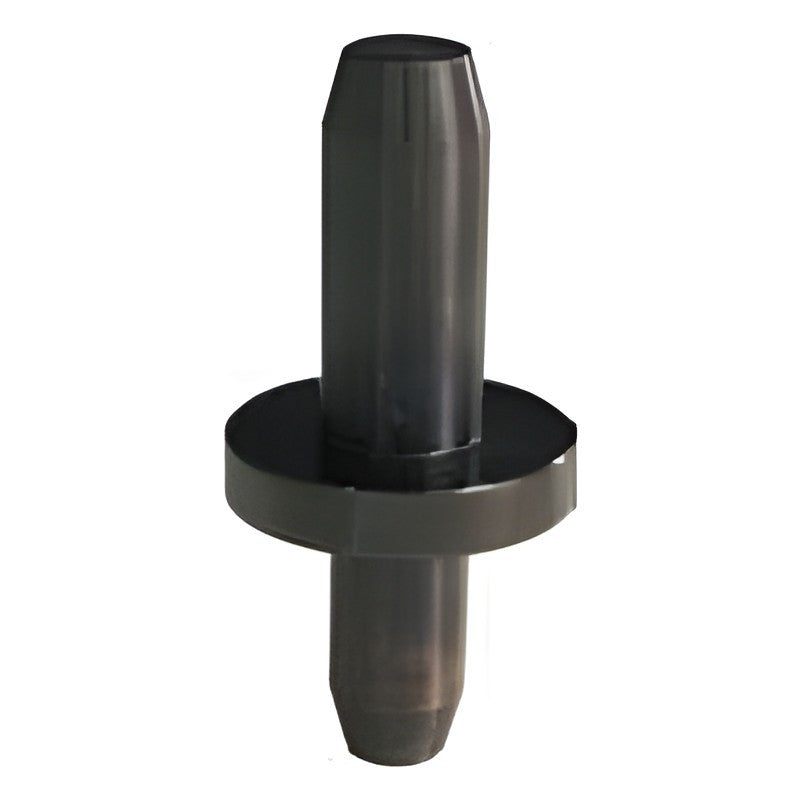

LuBo LPSF Spring Guide Pin (Flange Type)

LuBo LPSF Spring Guide Pin (Flange Type)

LuBo LPSF is a flanged guide pin that keeps heavy coil die springs aligned under compression.

Key features

  • SS400 steel, black oxide finish
  • Flange seats in the die plate
  • Guide length = spring free length + 30 mm
  • Pin diameter 14.5-32.5 mm, total length 100-370 mm
  • Matched to LuBo coil die spring inner diameters

Specifications

Series LPSF
Material SS400
Finish Black oxide
Guide length Spring free length + 30 mm
Order format LPSF - d x L (e.g. LPSF 15.5X110)
Lead time 7 days (catalogue)
Source LuBo Spring Units catalogue (Spring Guide Pins - Flange Type)
