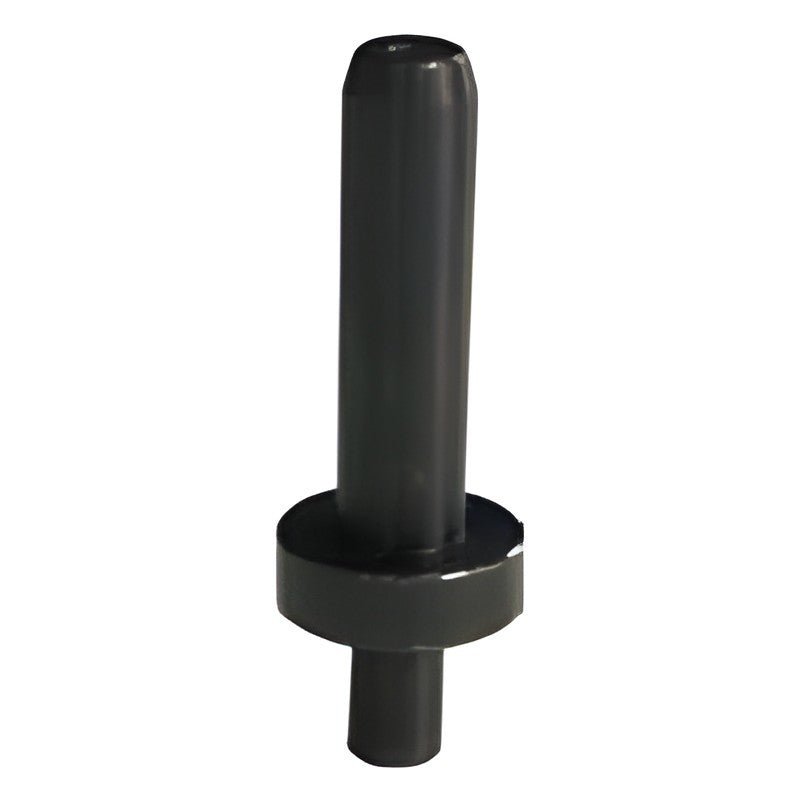

LuBo LPSFD Spring Guide Pin (Flange Type, Double Spring)

LuBo LPSFD Spring Guide Pin (Flange Type, Double Spring)

LuBo LPSFD is a flanged guide pin with a centre collar for guiding two coil die springs stacked in series.

Key features

  • Guides two springs in series via a centre collar
  • SS400 steel, black oxide finish
  • Guide length = (spring free length x 2) + 40 mm
  • Pin diameter 14.5-32.5 mm, total length 220-680 mm
  • Flange mounting

Specifications

Series LPSFD
Material SS400
Finish Black oxide
Guide length (Spring free length x 2) + 40 mm
Order format LPSFD - d x L (e.g. LPSFD 17X280)
Lead time 7 days (catalogue)
Source LuBo Spring Units catalogue (Spring Guide Pins - Flange Type)
LPSFD 14.5X220 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 14.5X240 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 14.5X260 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 14.5X280 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 14.5X330 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 14.5X380 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 14.5X430 Pin dia d: 14.5 mm | Flange D1: 30 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 15.5X220 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 15.5X240 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 15.5X260 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 15.5X280 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 15.5X330 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 15.5X380 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 15.5X430 Pin dia d: 15.5 mm | Flange D1: 30 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 17X220 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 17X240 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 17X260 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 17X280 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 17X330 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 17X380 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 17X430 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 17X480 Pin dia d: 17 mm | Flange D1: 35 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 18.5X220 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 18.5X240 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 18.5X260 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 18.5X280 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 18.5X330 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 18.5X380 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 18.5X430 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 18.5X480 Pin dia d: 18.5 mm | Flange D1: 35 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 19.5X220 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 19.5X240 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 19.5X260 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 19.5X280 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 19.5X330 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 19.5X380 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 19.5X430 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 19.5X480 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 19.5X580 Pin dia d: 19.5 mm | Flange D1: 40 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 21.5X220 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 21.5X240 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 21.5X260 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 21.5X280 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 21.5X330 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 21.5X380 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 21.5X430 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 21.5X480 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 21.5X580 Pin dia d: 21.5 mm | Flange D1: 40 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 24.5X220 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 24.5X240 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 24.5X260 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 24.5X280 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 24.5X330 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 24.5X380 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 24.5X430 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 24.5X480 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 24.5X580 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 24.5X680 Pin dia d: 24.5 mm | Flange D1: 50 mm | Total length: 680 mm | Spring free length: 300 mm x2
LPSFD 27X220 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 220 mm | Spring free length: 70 mm x2
LPSFD 27X240 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 240 mm | Spring free length: 80 mm x2
LPSFD 27X260 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 27X280 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 27X330 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 27X380 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 27X430 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 27X480 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 27X580 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 27X680 Pin dia d: 27 mm | Flange D1: 50 mm | Total length: 680 mm | Spring free length: 300 mm x2
LPSFD 29.5X260 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 29.5X280 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 29.5X330 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 29.5X380 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 29.5X430 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 29.5X480 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 29.5X580 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 29.5X680 Pin dia d: 29.5 mm | Flange D1: 60 mm | Total length: 680 mm | Spring free length: 300 mm x2
LPSFD 32.5X260 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 260 mm | Spring free length: 90 mm x2
LPSFD 32.5X280 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 280 mm | Spring free length: 100 mm x2
LPSFD 32.5X330 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 330 mm | Spring free length: 125 mm x2
LPSFD 32.5X380 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 380 mm | Spring free length: 150 mm x2
LPSFD 32.5X430 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 430 mm | Spring free length: 175 mm x2
LPSFD 32.5X480 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 480 mm | Spring free length: 200 mm x2
LPSFD 32.5X580 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 580 mm | Spring free length: 250 mm x2
LPSFD 32.5X680 Pin dia d: 32.5 mm | Flange D1: 60 mm | Total length: 680 mm | Spring free length: 300 mm x2
Spring Guide PinLuBo
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LPSFD Spring Guide Pin (Flange Type, Double Spring)

Brand LuBo·Spring Guide Pin

Available part numbers (84)

LPSFD 14.5X220, LPSFD 14.5X240, LPSFD 14.5X260, LPSFD 14.5X280, LPSFD 14.5X330, LPSFD 14.5X380, LPSFD 14.5X430, LPSFD 15.5X220, LPSFD 15.5X240, LPSFD 15.5X260 + 74 more — see full table ↓
