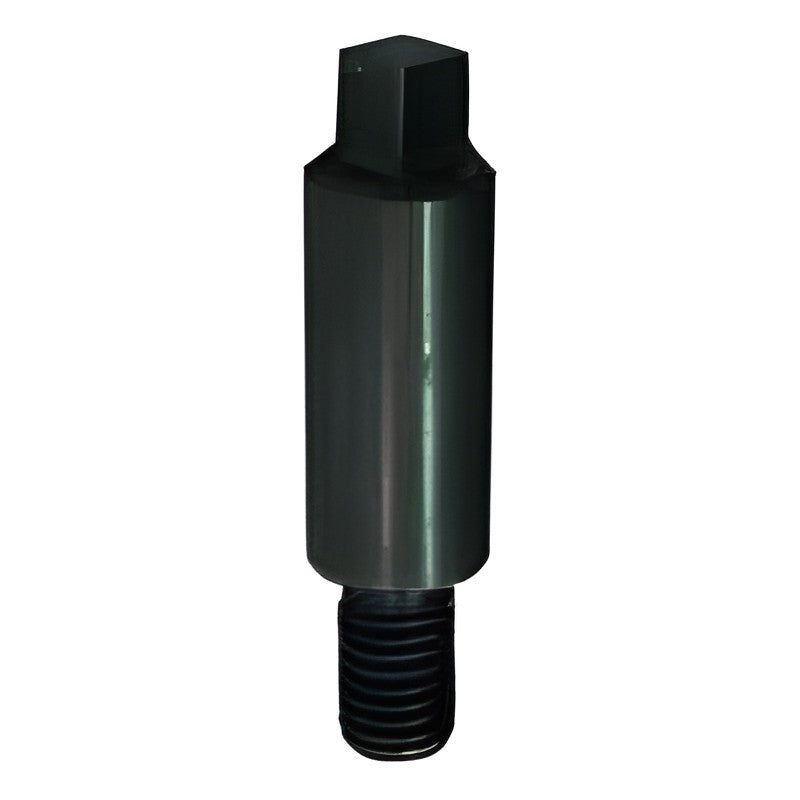

LuBo LPST Spring Guide Pin (Thread Type)

LuBo LPST Spring Guide Pin (Thread Type)

LuBo LPST is a threaded spring guide pin that screws into the die plate to locate coil die springs.

Key features

  • SS400 steel, black oxide finish
  • Thread M8-M20 with square drive end
  • Length L 30-230 mm in 5 mm steps
  • L = spring free length - working stroke (incl. preload) - 10 mm
  • Pin diameter 10.5-32.5 mm

Specifications

Series LPST
Material SS400
Finish Black oxide
Length L 30-230 mm, 5 mm steps
Order format LPST - d x L (e.g. LPST 19.5X125)
Lead time 7 days (catalogue)
Source LuBo Spring Units catalogue (Spring Guide Pins - Thread Type)
LPST 10.5 Pin dia d: 10.5 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 11 mm | L: 30-230 mm (5 mm steps)
LPST 12 Pin dia d: 12 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 12.5 mm | L: 30-230 mm (5 mm steps)
LPST 13 Pin dia d: 13 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 13.5 mm | L: 30-230 mm (5 mm steps)
LPST 14.5 Pin dia d: 14.5 mm | Thread: M10xP1.5 | Thread length h: 20 mm | Spring ID (ref.): 15 mm | L: 30-230 mm (5 mm steps)
LPST 15.5 Pin dia d: 15.5 mm | Thread: M10xP1.5 | Thread length h: 20 mm | Spring ID (ref.): 16 mm | L: 30-230 mm (5 mm steps)
LPST 17 Pin dia d: 17 mm | Thread: M12xP1.75 | Thread length h: 25 mm | Spring ID (ref.): 17.5 mm | L: 30-230 mm (5 mm steps)
LPST 18.5 Pin dia d: 18.5 mm | Thread: M12xP1.75 | Thread length h: 25 mm | Spring ID (ref.): 19 mm | L: 30-230 mm (5 mm steps)
LPST 19.5 Pin dia d: 19.5 mm | Thread: M16xP2 | Thread length h: 25 mm | Spring ID (ref.): 20 mm | L: 30-230 mm (5 mm steps)
LPST 21.5 Pin dia d: 21.5 mm | Thread: M16xP2 | Thread length h: 30 mm | Spring ID (ref.): 22 mm | L: 30-230 mm (5 mm steps)
LPST 24.5 Pin dia d: 24.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 25 mm | L: 30-230 mm (5 mm steps)
LPST 27 Pin dia d: 27 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 27.5 mm | L: 30-230 mm (5 mm steps)
LPST 29.5 Pin dia d: 29.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 30 mm | L: 30-230 mm (5 mm steps)
LPST 32.5 Pin dia d: 32.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 33 mm | L: 30-230 mm (5 mm steps)
Spring Guide PinLuBo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LPST Spring Guide Pin (Thread Type)

Brand LuBo·Spring Guide Pin

Available part numbers (13)

LPST 10.5, LPST 12, LPST 13, LPST 14.5, LPST 15.5, LPST 17, LPST 18.5, LPST 19.5, LPST 21.5, LPST 24.5 + 3 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LPST 10.5Pin dia d: 10.5 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 11 mm | L: 30-230 mm (5 mm steps)
LPST 12Pin dia d: 12 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 12.5 mm | L: 30-230 mm (5 mm steps)
LPST 13Pin dia d: 13 mm | Thread: M8xP1.25 | Thread length h: 15 mm | Spring ID (ref.): 13.5 mm | L: 30-230 mm (5 mm steps)
LPST 14.5Pin dia d: 14.5 mm | Thread: M10xP1.5 | Thread length h: 20 mm | Spring ID (ref.): 15 mm | L: 30-230 mm (5 mm steps)
LPST 15.5Pin dia d: 15.5 mm | Thread: M10xP1.5 | Thread length h: 20 mm | Spring ID (ref.): 16 mm | L: 30-230 mm (5 mm steps)
LPST 17Pin dia d: 17 mm | Thread: M12xP1.75 | Thread length h: 25 mm | Spring ID (ref.): 17.5 mm | L: 30-230 mm (5 mm steps)
LPST 18.5Pin dia d: 18.5 mm | Thread: M12xP1.75 | Thread length h: 25 mm | Spring ID (ref.): 19 mm | L: 30-230 mm (5 mm steps)
LPST 19.5Pin dia d: 19.5 mm | Thread: M16xP2 | Thread length h: 25 mm | Spring ID (ref.): 20 mm | L: 30-230 mm (5 mm steps)
LPST 21.5Pin dia d: 21.5 mm | Thread: M16xP2 | Thread length h: 30 mm | Spring ID (ref.): 22 mm | L: 30-230 mm (5 mm steps)
LPST 24.5Pin dia d: 24.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 25 mm | L: 30-230 mm (5 mm steps)
LPST 27Pin dia d: 27 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 27.5 mm | L: 30-230 mm (5 mm steps)
LPST 29.5Pin dia d: 29.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 30 mm | L: 30-230 mm (5 mm steps)
LPST 32.5Pin dia d: 32.5 mm | Thread: M20xP2.5 | Thread length h: 30 mm | Spring ID (ref.): 33 mm | L: 30-230 mm (5 mm steps)
