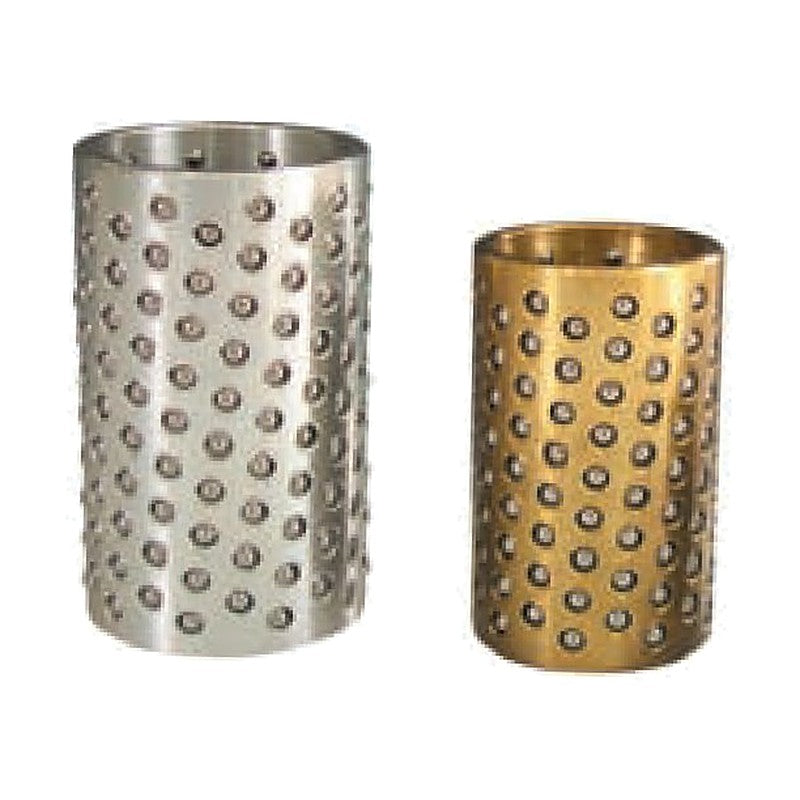

LuBo LRGB / LRGA Ball Retainers - Slider (Pin dia. 20-80 mm)

LuBo LRGB / LRGA Ball Retainers - Slider (Pin dia. 20-80 mm)

LuBo LRGB / LRGA Ball Retainers - Slider from the LuBo Guide Components catalogue, listed in 176 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Ball Retainers - Slider - series LRGB / LRGA
  • Guide component for die sets and press dies
  • Diameter and length selected from the catalogue table
  • Dimensions and tolerances per LuBo drawing
  • 176 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LRGB / LRGA
Product Ball Retainers - Slider
Catalogue chapter Guide Components
Orderable codes 176
Size range Pin dia. 20-80 mm
Code example LRGB-20X40-M
Row spec keys Pin dia., Length, Ball, Cage
Source LuBo Guide Components catalogue
LRGB-20X40-M Pin dia.: 20 mm | Length: 40 mm | Ball: 3 mm | Cage: Brass
LRGB-20X40-N Pin dia.: 20 mm | Length: 40 mm | Ball: 1/8" | Cage: Brass
LRGB-20X50-M Pin dia.: 20 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-20X50-N Pin dia.: 20 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-20X55-M Pin dia.: 20 mm | Length: 55 mm | Ball: 3 mm | Cage: Brass
LRGB-20X55-N Pin dia.: 20 mm | Length: 55 mm | Ball: 1/8" | Cage: Brass
LRGB-22X50-M Pin dia.: 22 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-22X50-N Pin dia.: 22 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-22X60-M Pin dia.: 22 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-22X60-N Pin dia.: 22 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-23X45-M Pin dia.: 23 mm | Length: 45 mm | Ball: 3 mm | Cage: Brass
LRGB-23X45-N Pin dia.: 23 mm | Length: 45 mm | Ball: 1/8" | Cage: Brass
LRGB-23X60-M Pin dia.: 23 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-23X60-N Pin dia.: 23 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-25X50-M Pin dia.: 25 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-25X50-N Pin dia.: 25 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-25X60-M Pin dia.: 25 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-25X60-N Pin dia.: 25 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-25X65-M Pin dia.: 25 mm | Length: 65 mm | Ball: 3 mm | Cage: Brass
LRGB-25X65-N Pin dia.: 25 mm | Length: 65 mm | Ball: 1/8" | Cage: Brass
LRGB-25X75-M Pin dia.: 25 mm | Length: 75 mm | Ball: 3 mm | Cage: Brass
LRGB-25X75-N Pin dia.: 25 mm | Length: 75 mm | Ball: 1/8" | Cage: Brass
LRGB-28X50-M Pin dia.: 28 mm | Length: 50 mm | Ball: 4 mm | Cage: Brass
LRGB-28X50-N Pin dia.: 28 mm | Length: 50 mm | Ball: 5/32" | Cage: Brass
LRGB-28X60-M Pin dia.: 28 mm | Length: 60 mm | Ball: 4 mm | Cage: Brass
LRGB-28X60-N Pin dia.: 28 mm | Length: 60 mm | Ball: 5/32" | Cage: Brass
LRGB-28X70-M Pin dia.: 28 mm | Length: 70 mm | Ball: 4 mm | Cage: Brass
LRGB-28X70-N Pin dia.: 28 mm | Length: 70 mm | Ball: 5/32" | Cage: Brass
LRGB-28X75-M Pin dia.: 28 mm | Length: 75 mm | Ball: 4 mm | Cage: Brass
LRGB-28X75-N Pin dia.: 28 mm | Length: 75 mm | Ball: 5/32" | Cage: Brass
LRGB-28X80-M Pin dia.: 28 mm | Length: 80 mm | Ball: 4 mm | Cage: Brass
LRGB-28X80-N Pin dia.: 28 mm | Length: 80 mm | Ball: 5/32" | Cage: Brass
LRGB-32X50-M Pin dia.: 32 mm | Length: 50 mm | Ball: 4 mm | Cage: Brass
LRGB-32X50-N Pin dia.: 32 mm | Length: 50 mm | Ball: 5/32" | Cage: Brass
LRGB-32X60-M Pin dia.: 32 mm | Length: 60 mm | Ball: 4 mm | Cage: Brass
LRGB-32X60-N Pin dia.: 32 mm | Length: 60 mm | Ball: 5/32" | Cage: Brass
LRGB-32X70-M Pin dia.: 32 mm | Length: 70 mm | Ball: 4 mm | Cage: Brass
LRGB-32X70-N Pin dia.: 32 mm | Length: 70 mm | Ball: 5/32" | Cage: Brass
LRGB-32X75-M Pin dia.: 32 mm | Length: 75 mm | Ball: 4 mm | Cage: Brass
LRGB-32X75-N Pin dia.: 32 mm | Length: 75 mm | Ball: 5/32" | Cage: Brass
LRGB-32X85-M Pin dia.: 32 mm | Length: 85 mm | Ball: 4 mm | Cage: Brass
LRGB-32X85-N Pin dia.: 32 mm | Length: 85 mm | Ball: 5/32" | Cage: Brass
LRGB-32X90-M Pin dia.: 32 mm | Length: 90 mm | Ball: 4 mm | Cage: Brass
LRGB-32X90-N Pin dia.: 32 mm | Length: 90 mm | Ball: 5/32" | Cage: Brass
LRGB-38X50-M Pin dia.: 38 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-38X50-N Pin dia.: 38 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-38X60-M Pin dia.: 38 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-38X60-N Pin dia.: 38 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-38X70-M Pin dia.: 38 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-38X70-N Pin dia.: 38 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-38X75-M Pin dia.: 38 mm | Length: 75 mm | Ball: 5 mm | Cage: Brass
LRGB-38X75-N Pin dia.: 38 mm | Length: 75 mm | Ball: 1/4" | Cage: Brass
LRGB-38X80-M Pin dia.: 38 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-38X80-N Pin dia.: 38 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-38X90-M Pin dia.: 38 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-38X90-N Pin dia.: 38 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-45X50-M Pin dia.: 45 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-45X50-N Pin dia.: 45 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-45X60-M Pin dia.: 45 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-45X60-N Pin dia.: 45 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-45X70-M Pin dia.: 45 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-45X70-N Pin dia.: 45 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-45X80-M Pin dia.: 45 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-45X80-N Pin dia.: 45 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-45X90-M Pin dia.: 45 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-45X90-N Pin dia.: 45 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-45X110-M Pin dia.: 45 mm | Length: 110 mm | Ball: 5 mm | Cage: Brass
LRGB-45X110-N Pin dia.: 45 mm | Length: 110 mm | Ball: 1/4" | Cage: Brass
LRGB-50X50-M Pin dia.: 50 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-50X50-N Pin dia.: 50 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-50X60-M Pin dia.: 50 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-50X60-N Pin dia.: 50 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-50X70-M Pin dia.: 50 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-50X70-N Pin dia.: 50 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-50X80-M Pin dia.: 50 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-50X80-N Pin dia.: 50 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-50X90-M Pin dia.: 50 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-50X90-N Pin dia.: 50 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-50X100-M Pin dia.: 50 mm | Length: 100 mm | Ball: 5 mm | Cage: Brass
LRGB-50X100-N Pin dia.: 50 mm | Length: 100 mm | Ball: 1/4" | Cage: Brass
LRGB-50X110-M Pin dia.: 50 mm | Length: 110 mm | Ball: 5 mm | Cage: Brass
LRGB-50X110-N Pin dia.: 50 mm | Length: 110 mm | Ball: 1/4" | Cage: Brass
LRGA-23X45-M Pin dia.: 23 mm | Length: 45 mm | Ball: 3 mm | Cage: Aluminum
LRGA-23X45-N Pin dia.: 23 mm | Length: 45 mm | Ball: 1/8" | Cage: Aluminum
LRGA-23X60-M Pin dia.: 23 mm | Length: 60 mm | Ball: 3 mm | Cage: Aluminum
LRGA-23X60-N Pin dia.: 23 mm | Length: 60 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X50-M Pin dia.: 25 mm | Length: 50 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X50-N Pin dia.: 25 mm | Length: 50 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X60-M Pin dia.: 25 mm | Length: 60 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X60-N Pin dia.: 25 mm | Length: 60 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X65-M Pin dia.: 25 mm | Length: 65 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X65-N Pin dia.: 25 mm | Length: 65 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X75-M Pin dia.: 25 mm | Length: 75 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X75-N Pin dia.: 25 mm | Length: 75 mm | Ball: 1/8" | Cage: Aluminum
LRGA-28X50-M Pin dia.: 28 mm | Length: 50 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X50-N Pin dia.: 28 mm | Length: 50 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X60-M Pin dia.: 28 mm | Length: 60 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X60-N Pin dia.: 28 mm | Length: 60 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X70-M Pin dia.: 28 mm | Length: 70 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X70-N Pin dia.: 28 mm | Length: 70 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X75-M Pin dia.: 28 mm | Length: 75 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X75-N Pin dia.: 28 mm | Length: 75 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X80-M Pin dia.: 28 mm | Length: 80 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X80-N Pin dia.: 28 mm | Length: 80 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X50-M Pin dia.: 32 mm | Length: 50 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X50-N Pin dia.: 32 mm | Length: 50 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X60-M Pin dia.: 32 mm | Length: 60 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X60-N Pin dia.: 32 mm | Length: 60 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X70-M Pin dia.: 32 mm | Length: 70 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X70-N Pin dia.: 32 mm | Length: 70 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X75-M Pin dia.: 32 mm | Length: 75 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X75-N Pin dia.: 32 mm | Length: 75 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X85-M Pin dia.: 32 mm | Length: 85 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X85-N Pin dia.: 32 mm | Length: 85 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X90-M Pin dia.: 32 mm | Length: 90 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X90-N Pin dia.: 32 mm | Length: 90 mm | Ball: 5/32" | Cage: Aluminum
LRGA-38X50-M Pin dia.: 38 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X50-N Pin dia.: 38 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X60-M Pin dia.: 38 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X60-N Pin dia.: 38 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X70-M Pin dia.: 38 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X70-N Pin dia.: 38 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X75-M Pin dia.: 38 mm | Length: 75 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X75-N Pin dia.: 38 mm | Length: 75 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X80-M Pin dia.: 38 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X80-N Pin dia.: 38 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X90-M Pin dia.: 38 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X90-N Pin dia.: 38 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X50-M Pin dia.: 45 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X50-N Pin dia.: 45 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X60-M Pin dia.: 45 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X60-N Pin dia.: 45 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X70-M Pin dia.: 45 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X70-N Pin dia.: 45 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X80-M Pin dia.: 45 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X80-N Pin dia.: 45 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X90-M Pin dia.: 45 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X90-N Pin dia.: 45 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X110-M Pin dia.: 45 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X110-N Pin dia.: 45 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X50-M Pin dia.: 50 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X50-N Pin dia.: 50 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X60-M Pin dia.: 50 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X60-N Pin dia.: 50 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X70-M Pin dia.: 50 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X70-N Pin dia.: 50 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X80-M Pin dia.: 50 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X80-N Pin dia.: 50 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X90-M Pin dia.: 50 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X90-N Pin dia.: 50 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X100-M Pin dia.: 50 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X100-N Pin dia.: 50 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X110-M Pin dia.: 50 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X110-N Pin dia.: 50 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X80-M Pin dia.: 60 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X80-N Pin dia.: 60 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X90-M Pin dia.: 60 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X90-N Pin dia.: 60 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X100-M Pin dia.: 60 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X100-N Pin dia.: 60 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X110-M Pin dia.: 60 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X110-N Pin dia.: 60 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X120-M Pin dia.: 60 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X120-N Pin dia.: 60 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X80-M Pin dia.: 70 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X80-N Pin dia.: 70 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X100-M Pin dia.: 70 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X100-N Pin dia.: 70 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X120-M Pin dia.: 70 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X120-N Pin dia.: 70 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X80-M Pin dia.: 80 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X80-N Pin dia.: 80 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X100-M Pin dia.: 80 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X100-N Pin dia.: 80 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X120-M Pin dia.: 80 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X120-N Pin dia.: 80 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum
Die Guide ComponentLuBo
176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LRGB / LRGA Ball Retainers - Slider (Pin dia. 20-80 mm)

Brand LuBo·Die Guide Component

Available part numbers (176)

LRGB-20X40-M, LRGB-20X40-N, LRGB-20X50-M, LRGB-20X50-N, LRGB-20X55-M, LRGB-20X55-N, LRGB-22X50-M, LRGB-22X50-N, LRGB-22X60-M, LRGB-22X60-N + 166 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LRGB-20X40-MPin dia.: 20 mm | Length: 40 mm | Ball: 3 mm | Cage: Brass
LRGB-20X40-NPin dia.: 20 mm | Length: 40 mm | Ball: 1/8" | Cage: Brass
LRGB-20X50-MPin dia.: 20 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-20X50-NPin dia.: 20 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-20X55-MPin dia.: 20 mm | Length: 55 mm | Ball: 3 mm | Cage: Brass
LRGB-20X55-NPin dia.: 20 mm | Length: 55 mm | Ball: 1/8" | Cage: Brass
LRGB-22X50-MPin dia.: 22 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-22X50-NPin dia.: 22 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-22X60-MPin dia.: 22 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-22X60-NPin dia.: 22 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-23X45-MPin dia.: 23 mm | Length: 45 mm | Ball: 3 mm | Cage: Brass
LRGB-23X45-NPin dia.: 23 mm | Length: 45 mm | Ball: 1/8" | Cage: Brass
LRGB-23X60-MPin dia.: 23 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-23X60-NPin dia.: 23 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-25X50-MPin dia.: 25 mm | Length: 50 mm | Ball: 3 mm | Cage: Brass
LRGB-25X50-NPin dia.: 25 mm | Length: 50 mm | Ball: 1/8" | Cage: Brass
LRGB-25X60-MPin dia.: 25 mm | Length: 60 mm | Ball: 3 mm | Cage: Brass
LRGB-25X60-NPin dia.: 25 mm | Length: 60 mm | Ball: 1/8" | Cage: Brass
LRGB-25X65-MPin dia.: 25 mm | Length: 65 mm | Ball: 3 mm | Cage: Brass
LRGB-25X65-NPin dia.: 25 mm | Length: 65 mm | Ball: 1/8" | Cage: Brass
LRGB-25X75-MPin dia.: 25 mm | Length: 75 mm | Ball: 3 mm | Cage: Brass
LRGB-25X75-NPin dia.: 25 mm | Length: 75 mm | Ball: 1/8" | Cage: Brass
LRGB-28X50-MPin dia.: 28 mm | Length: 50 mm | Ball: 4 mm | Cage: Brass
LRGB-28X50-NPin dia.: 28 mm | Length: 50 mm | Ball: 5/32" | Cage: Brass
LRGB-28X60-MPin dia.: 28 mm | Length: 60 mm | Ball: 4 mm | Cage: Brass
LRGB-28X60-NPin dia.: 28 mm | Length: 60 mm | Ball: 5/32" | Cage: Brass
LRGB-28X70-MPin dia.: 28 mm | Length: 70 mm | Ball: 4 mm | Cage: Brass
LRGB-28X70-NPin dia.: 28 mm | Length: 70 mm | Ball: 5/32" | Cage: Brass
LRGB-28X75-MPin dia.: 28 mm | Length: 75 mm | Ball: 4 mm | Cage: Brass
LRGB-28X75-NPin dia.: 28 mm | Length: 75 mm | Ball: 5/32" | Cage: Brass
LRGB-28X80-MPin dia.: 28 mm | Length: 80 mm | Ball: 4 mm | Cage: Brass
LRGB-28X80-NPin dia.: 28 mm | Length: 80 mm | Ball: 5/32" | Cage: Brass
LRGB-32X50-MPin dia.: 32 mm | Length: 50 mm | Ball: 4 mm | Cage: Brass
LRGB-32X50-NPin dia.: 32 mm | Length: 50 mm | Ball: 5/32" | Cage: Brass
LRGB-32X60-MPin dia.: 32 mm | Length: 60 mm | Ball: 4 mm | Cage: Brass
LRGB-32X60-NPin dia.: 32 mm | Length: 60 mm | Ball: 5/32" | Cage: Brass
LRGB-32X70-MPin dia.: 32 mm | Length: 70 mm | Ball: 4 mm | Cage: Brass
LRGB-32X70-NPin dia.: 32 mm | Length: 70 mm | Ball: 5/32" | Cage: Brass
LRGB-32X75-MPin dia.: 32 mm | Length: 75 mm | Ball: 4 mm | Cage: Brass
LRGB-32X75-NPin dia.: 32 mm | Length: 75 mm | Ball: 5/32" | Cage: Brass
LRGB-32X85-MPin dia.: 32 mm | Length: 85 mm | Ball: 4 mm | Cage: Brass
LRGB-32X85-NPin dia.: 32 mm | Length: 85 mm | Ball: 5/32" | Cage: Brass
LRGB-32X90-MPin dia.: 32 mm | Length: 90 mm | Ball: 4 mm | Cage: Brass
LRGB-32X90-NPin dia.: 32 mm | Length: 90 mm | Ball: 5/32" | Cage: Brass
LRGB-38X50-MPin dia.: 38 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-38X50-NPin dia.: 38 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-38X60-MPin dia.: 38 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-38X60-NPin dia.: 38 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-38X70-MPin dia.: 38 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-38X70-NPin dia.: 38 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-38X75-MPin dia.: 38 mm | Length: 75 mm | Ball: 5 mm | Cage: Brass
LRGB-38X75-NPin dia.: 38 mm | Length: 75 mm | Ball: 1/4" | Cage: Brass
LRGB-38X80-MPin dia.: 38 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-38X80-NPin dia.: 38 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-38X90-MPin dia.: 38 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-38X90-NPin dia.: 38 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-45X50-MPin dia.: 45 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-45X50-NPin dia.: 45 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-45X60-MPin dia.: 45 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-45X60-NPin dia.: 45 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-45X70-MPin dia.: 45 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-45X70-NPin dia.: 45 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-45X80-MPin dia.: 45 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-45X80-NPin dia.: 45 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-45X90-MPin dia.: 45 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-45X90-NPin dia.: 45 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-45X110-MPin dia.: 45 mm | Length: 110 mm | Ball: 5 mm | Cage: Brass
LRGB-45X110-NPin dia.: 45 mm | Length: 110 mm | Ball: 1/4" | Cage: Brass
LRGB-50X50-MPin dia.: 50 mm | Length: 50 mm | Ball: 5 mm | Cage: Brass
LRGB-50X50-NPin dia.: 50 mm | Length: 50 mm | Ball: 1/4" | Cage: Brass
LRGB-50X60-MPin dia.: 50 mm | Length: 60 mm | Ball: 5 mm | Cage: Brass
LRGB-50X60-NPin dia.: 50 mm | Length: 60 mm | Ball: 1/4" | Cage: Brass
LRGB-50X70-MPin dia.: 50 mm | Length: 70 mm | Ball: 5 mm | Cage: Brass
LRGB-50X70-NPin dia.: 50 mm | Length: 70 mm | Ball: 1/4" | Cage: Brass
LRGB-50X80-MPin dia.: 50 mm | Length: 80 mm | Ball: 5 mm | Cage: Brass
LRGB-50X80-NPin dia.: 50 mm | Length: 80 mm | Ball: 1/4" | Cage: Brass
LRGB-50X90-MPin dia.: 50 mm | Length: 90 mm | Ball: 5 mm | Cage: Brass
LRGB-50X90-NPin dia.: 50 mm | Length: 90 mm | Ball: 1/4" | Cage: Brass
LRGB-50X100-MPin dia.: 50 mm | Length: 100 mm | Ball: 5 mm | Cage: Brass
LRGB-50X100-NPin dia.: 50 mm | Length: 100 mm | Ball: 1/4" | Cage: Brass
LRGB-50X110-MPin dia.: 50 mm | Length: 110 mm | Ball: 5 mm | Cage: Brass
LRGB-50X110-NPin dia.: 50 mm | Length: 110 mm | Ball: 1/4" | Cage: Brass
LRGA-23X45-MPin dia.: 23 mm | Length: 45 mm | Ball: 3 mm | Cage: Aluminum
LRGA-23X45-NPin dia.: 23 mm | Length: 45 mm | Ball: 1/8" | Cage: Aluminum
LRGA-23X60-MPin dia.: 23 mm | Length: 60 mm | Ball: 3 mm | Cage: Aluminum
LRGA-23X60-NPin dia.: 23 mm | Length: 60 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X50-MPin dia.: 25 mm | Length: 50 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X50-NPin dia.: 25 mm | Length: 50 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X60-MPin dia.: 25 mm | Length: 60 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X60-NPin dia.: 25 mm | Length: 60 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X65-MPin dia.: 25 mm | Length: 65 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X65-NPin dia.: 25 mm | Length: 65 mm | Ball: 1/8" | Cage: Aluminum
LRGA-25X75-MPin dia.: 25 mm | Length: 75 mm | Ball: 3 mm | Cage: Aluminum
LRGA-25X75-NPin dia.: 25 mm | Length: 75 mm | Ball: 1/8" | Cage: Aluminum
LRGA-28X50-MPin dia.: 28 mm | Length: 50 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X50-NPin dia.: 28 mm | Length: 50 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X60-MPin dia.: 28 mm | Length: 60 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X60-NPin dia.: 28 mm | Length: 60 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X70-MPin dia.: 28 mm | Length: 70 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X70-NPin dia.: 28 mm | Length: 70 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X75-MPin dia.: 28 mm | Length: 75 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X75-NPin dia.: 28 mm | Length: 75 mm | Ball: 5/32" | Cage: Aluminum
LRGA-28X80-MPin dia.: 28 mm | Length: 80 mm | Ball: 4 mm | Cage: Aluminum
LRGA-28X80-NPin dia.: 28 mm | Length: 80 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X50-MPin dia.: 32 mm | Length: 50 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X50-NPin dia.: 32 mm | Length: 50 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X60-MPin dia.: 32 mm | Length: 60 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X60-NPin dia.: 32 mm | Length: 60 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X70-MPin dia.: 32 mm | Length: 70 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X70-NPin dia.: 32 mm | Length: 70 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X75-MPin dia.: 32 mm | Length: 75 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X75-NPin dia.: 32 mm | Length: 75 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X85-MPin dia.: 32 mm | Length: 85 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X85-NPin dia.: 32 mm | Length: 85 mm | Ball: 5/32" | Cage: Aluminum
LRGA-32X90-MPin dia.: 32 mm | Length: 90 mm | Ball: 4 mm | Cage: Aluminum
LRGA-32X90-NPin dia.: 32 mm | Length: 90 mm | Ball: 5/32" | Cage: Aluminum
LRGA-38X50-MPin dia.: 38 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X50-NPin dia.: 38 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X60-MPin dia.: 38 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X60-NPin dia.: 38 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X70-MPin dia.: 38 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X70-NPin dia.: 38 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X75-MPin dia.: 38 mm | Length: 75 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X75-NPin dia.: 38 mm | Length: 75 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X80-MPin dia.: 38 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X80-NPin dia.: 38 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-38X90-MPin dia.: 38 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-38X90-NPin dia.: 38 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X50-MPin dia.: 45 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X50-NPin dia.: 45 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X60-MPin dia.: 45 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X60-NPin dia.: 45 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X70-MPin dia.: 45 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X70-NPin dia.: 45 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X80-MPin dia.: 45 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X80-NPin dia.: 45 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X90-MPin dia.: 45 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X90-NPin dia.: 45 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-45X110-MPin dia.: 45 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-45X110-NPin dia.: 45 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X50-MPin dia.: 50 mm | Length: 50 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X50-NPin dia.: 50 mm | Length: 50 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X60-MPin dia.: 50 mm | Length: 60 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X60-NPin dia.: 50 mm | Length: 60 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X70-MPin dia.: 50 mm | Length: 70 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X70-NPin dia.: 50 mm | Length: 70 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X80-MPin dia.: 50 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X80-NPin dia.: 50 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X90-MPin dia.: 50 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X90-NPin dia.: 50 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X100-MPin dia.: 50 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X100-NPin dia.: 50 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-50X110-MPin dia.: 50 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-50X110-NPin dia.: 50 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X80-MPin dia.: 60 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X80-NPin dia.: 60 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X90-MPin dia.: 60 mm | Length: 90 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X90-NPin dia.: 60 mm | Length: 90 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X100-MPin dia.: 60 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X100-NPin dia.: 60 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X110-MPin dia.: 60 mm | Length: 110 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X110-NPin dia.: 60 mm | Length: 110 mm | Ball: 1/4" | Cage: Aluminum
LRGA-60X120-MPin dia.: 60 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-60X120-NPin dia.: 60 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X80-MPin dia.: 70 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X80-NPin dia.: 70 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X100-MPin dia.: 70 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X100-NPin dia.: 70 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-70X120-MPin dia.: 70 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-70X120-NPin dia.: 70 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X80-MPin dia.: 80 mm | Length: 80 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X80-NPin dia.: 80 mm | Length: 80 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X100-MPin dia.: 80 mm | Length: 100 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X100-NPin dia.: 80 mm | Length: 100 mm | Ball: 1/4" | Cage: Aluminum
LRGA-80X120-MPin dia.: 80 mm | Length: 120 mm | Ball: 5 mm | Cage: Aluminum
LRGA-80X120-NPin dia.: 80 mm | Length: 120 mm | Ball: 1/4" | Cage: Aluminum

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
