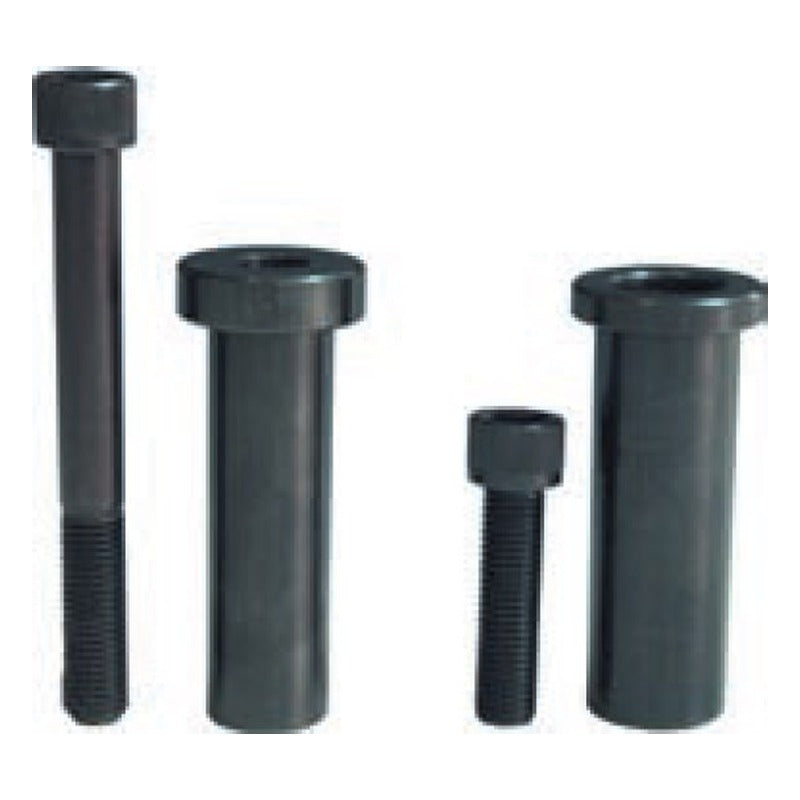

LuBo LRTH / LRTZ Spool Retainers - Thick / Spot-Facing (Dia. 18-44 mm)

LuBo LRTH / LRTZ Spool Retainers - Thick / Spot-Facing (Dia. 18-44 mm)

LuBo LRTH / LRTZ Spool Retainers - Thick / Spot-Facing from the LuBo Die Stock & Stroke Control Components catalogue, listed in 89 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Spool Retainers - Thick / Spot-Facing - series LRTH / LRTZ
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 89 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LRTH / LRTZ
Product Spool Retainers - Thick / Spot-Facing
Catalogue chapter Die Stock & Stroke Control Components
Orderable codes 89
Size range Dia. 18-44 mm
Code example LRTH-18X60
Row spec keys Dia. D, Length L, Type
Source LuBo Die Stock & Stroke Control Components catalogue
LRTH-18X60 Dia. D: 18 mm | Length L: 60 mm | Type: Thick head
LRTH-18X70 Dia. D: 18 mm | Length L: 70 mm | Type: Thick head
LRTH-18X80 Dia. D: 18 mm | Length L: 80 mm | Type: Thick head
LRTH-18X90 Dia. D: 18 mm | Length L: 90 mm | Type: Thick head
LRTH-18X100 Dia. D: 18 mm | Length L: 100 mm | Type: Thick head
LRTH-18X110 Dia. D: 18 mm | Length L: 110 mm | Type: Thick head
LRTH-18X120 Dia. D: 18 mm | Length L: 120 mm | Type: Thick head
LRTH-18X130 Dia. D: 18 mm | Length L: 130 mm | Type: Thick head
LRTH-18X140 Dia. D: 18 mm | Length L: 140 mm | Type: Thick head
LRTH-18X150 Dia. D: 18 mm | Length L: 150 mm | Type: Thick head
LRTH-22X60 Dia. D: 22 mm | Length L: 60 mm | Type: Thick head
LRTH-22X70 Dia. D: 22 mm | Length L: 70 mm | Type: Thick head
LRTH-22X80 Dia. D: 22 mm | Length L: 80 mm | Type: Thick head
LRTH-22X90 Dia. D: 22 mm | Length L: 90 mm | Type: Thick head
LRTH-22X100 Dia. D: 22 mm | Length L: 100 mm | Type: Thick head
LRTH-22X110 Dia. D: 22 mm | Length L: 110 mm | Type: Thick head
LRTH-22X120 Dia. D: 22 mm | Length L: 120 mm | Type: Thick head
LRTH-22X130 Dia. D: 22 mm | Length L: 130 mm | Type: Thick head
LRTH-22X140 Dia. D: 22 mm | Length L: 140 mm | Type: Thick head
LRTH-22X150 Dia. D: 22 mm | Length L: 150 mm | Type: Thick head
LRTH-30X60 Dia. D: 30 mm | Length L: 60 mm | Type: Thick head
LRTH-30X70 Dia. D: 30 mm | Length L: 70 mm | Type: Thick head
LRTH-30X80 Dia. D: 30 mm | Length L: 80 mm | Type: Thick head
LRTH-30X90 Dia. D: 30 mm | Length L: 90 mm | Type: Thick head
LRTH-30X100 Dia. D: 30 mm | Length L: 100 mm | Type: Thick head
LRTH-30X110 Dia. D: 30 mm | Length L: 110 mm | Type: Thick head
LRTH-30X120 Dia. D: 30 mm | Length L: 120 mm | Type: Thick head
LRTH-30X130 Dia. D: 30 mm | Length L: 130 mm | Type: Thick head
LRTH-30X140 Dia. D: 30 mm | Length L: 140 mm | Type: Thick head
LRTH-30X150 Dia. D: 30 mm | Length L: 150 mm | Type: Thick head
LRTH-30X160 Dia. D: 30 mm | Length L: 160 mm | Type: Thick head
LRTH-30X170 Dia. D: 30 mm | Length L: 170 mm | Type: Thick head
LRTH-30X180 Dia. D: 30 mm | Length L: 180 mm | Type: Thick head
LRTH-35X80 Dia. D: 35 mm | Length L: 80 mm | Type: Thick head
LRTH-35X90 Dia. D: 35 mm | Length L: 90 mm | Type: Thick head
LRTH-35X100 Dia. D: 35 mm | Length L: 100 mm | Type: Thick head
LRTH-35X110 Dia. D: 35 mm | Length L: 110 mm | Type: Thick head
LRTH-35X120 Dia. D: 35 mm | Length L: 120 mm | Type: Thick head
LRTH-35X130 Dia. D: 35 mm | Length L: 130 mm | Type: Thick head
LRTH-35X140 Dia. D: 35 mm | Length L: 140 mm | Type: Thick head
LRTH-35X150 Dia. D: 35 mm | Length L: 150 mm | Type: Thick head
LRTH-35X160 Dia. D: 35 mm | Length L: 160 mm | Type: Thick head
LRTH-35X170 Dia. D: 35 mm | Length L: 170 mm | Type: Thick head
LRTH-35X180 Dia. D: 35 mm | Length L: 180 mm | Type: Thick head
LRTH-44X80 Dia. D: 44 mm | Length L: 80 mm | Type: Thick head
LRTH-44X90 Dia. D: 44 mm | Length L: 90 mm | Type: Thick head
LRTH-44X100 Dia. D: 44 mm | Length L: 100 mm | Type: Thick head
LRTH-44X110 Dia. D: 44 mm | Length L: 110 mm | Type: Thick head
LRTH-44X120 Dia. D: 44 mm | Length L: 120 mm | Type: Thick head
LRTH-44X130 Dia. D: 44 mm | Length L: 130 mm | Type: Thick head
LRTH-44X140 Dia. D: 44 mm | Length L: 140 mm | Type: Thick head
LRTH-44X150 Dia. D: 44 mm | Length L: 150 mm | Type: Thick head
LRTH-44X160 Dia. D: 44 mm | Length L: 160 mm | Type: Thick head
LRTH-44X170 Dia. D: 44 mm | Length L: 170 mm | Type: Thick head
LRTH-44X180 Dia. D: 44 mm | Length L: 180 mm | Type: Thick head
LRTZ-20X40 Dia. D: 20 mm | Length L: 40 mm | Type: Spot-facing
LRTZ-20X50 Dia. D: 20 mm | Length L: 50 mm | Type: Spot-facing
LRTZ-20X60 Dia. D: 20 mm | Length L: 60 mm | Type: Spot-facing
LRTZ-20X70 Dia. D: 20 mm | Length L: 70 mm | Type: Spot-facing
LRTZ-20X80 Dia. D: 20 mm | Length L: 80 mm | Type: Spot-facing
LRTZ-20X90 Dia. D: 20 mm | Length L: 90 mm | Type: Spot-facing
LRTZ-24X50 Dia. D: 24 mm | Length L: 50 mm | Type: Spot-facing
LRTZ-24X60 Dia. D: 24 mm | Length L: 60 mm | Type: Spot-facing
LRTZ-24X70 Dia. D: 24 mm | Length L: 70 mm | Type: Spot-facing
LRTZ-24X80 Dia. D: 24 mm | Length L: 80 mm | Type: Spot-facing
LRTZ-24X90 Dia. D: 24 mm | Length L: 90 mm | Type: Spot-facing
LRTZ-24X100 Dia. D: 24 mm | Length L: 100 mm | Type: Spot-facing
LRTZ-28X50 Dia. D: 28 mm | Length L: 50 mm | Type: Spot-facing
LRTZ-28X60 Dia. D: 28 mm | Length L: 60 mm | Type: Spot-facing
LRTZ-28X70 Dia. D: 28 mm | Length L: 70 mm | Type: Spot-facing
LRTZ-28X80 Dia. D: 28 mm | Length L: 80 mm | Type: Spot-facing
LRTZ-28X90 Dia. D: 28 mm | Length L: 90 mm | Type: Spot-facing
LRTZ-28X100 Dia. D: 28 mm | Length L: 100 mm | Type: Spot-facing
LRTZ-28X110 Dia. D: 28 mm | Length L: 110 mm | Type: Spot-facing
LRTZ-35X60 Dia. D: 35 mm | Length L: 60 mm | Type: Spot-facing
LRTZ-35X70 Dia. D: 35 mm | Length L: 70 mm | Type: Spot-facing
LRTZ-35X80 Dia. D: 35 mm | Length L: 80 mm | Type: Spot-facing
LRTZ-35X90 Dia. D: 35 mm | Length L: 90 mm | Type: Spot-facing
LRTZ-35X100 Dia. D: 35 mm | Length L: 100 mm | Type: Spot-facing
LRTZ-35X110 Dia. D: 35 mm | Length L: 110 mm | Type: Spot-facing
LRTZ-35X120 Dia. D: 35 mm | Length L: 120 mm | Type: Spot-facing
LRTZ-35X130 Dia. D: 35 mm | Length L: 130 mm | Type: Spot-facing
LRTZ-44X70 Dia. D: 44 mm | Length L: 70 mm | Type: Spot-facing
LRTZ-44X80 Dia. D: 44 mm | Length L: 80 mm | Type: Spot-facing
LRTZ-44X90 Dia. D: 44 mm | Length L: 90 mm | Type: Spot-facing
LRTZ-44X100 Dia. D: 44 mm | Length L: 100 mm | Type: Spot-facing
LRTZ-44X110 Dia. D: 44 mm | Length L: 110 mm | Type: Spot-facing
LRTZ-44X120 Dia. D: 44 mm | Length L: 120 mm | Type: Spot-facing
LRTZ-44X130 Dia. D: 44 mm | Length L: 130 mm | Type: Spot-facing
Die Stock ComponentLuBo
89 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LRTH / LRTZ Spool Retainers - Thick / Spot-Facing (Dia. 18-44 mm)

Brand LuBo·Die Stock Component

Available part numbers (89)

LRTH-18X60, LRTH-18X70, LRTH-18X80, LRTH-18X90, LRTH-18X100, LRTH-18X110, LRTH-18X120, LRTH-18X130, LRTH-18X140, LRTH-18X150 + 79 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
