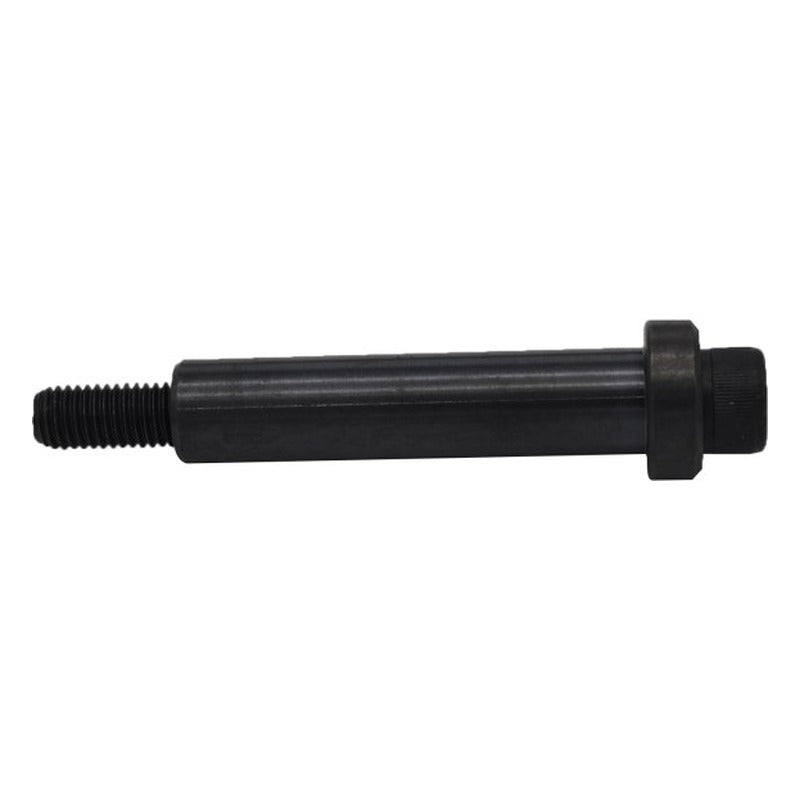

LuBo LRTM Spool Retainers (Dia. 10-32 mm)

LuBo LRTM Spool Retainers (Dia. 10-32 mm)

LuBo LRTM Spool Retainers from the LuBo Die Stock & Stroke Control Components catalogue, listed in 111 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Spool Retainers - series LRTM
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 111 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LRTM
Product Spool Retainers
Catalogue chapter Die Stock & Stroke Control Components
Orderable codes 111
Size range Dia. 10-32 mm
Code example LRTM-10X10
Row spec keys Dia. D, Length L, Thread
Source LuBo Die Stock & Stroke Control Components catalogue
LRTM-10X10 Dia. D: 10 mm | Length L: 10 mm | Thread: M6x1.0
LRTM-10X15 Dia. D: 10 mm | Length L: 15 mm | Thread: M6x1.0
LRTM-10X20 Dia. D: 10 mm | Length L: 20 mm | Thread: M6x1.0
LRTM-10X25 Dia. D: 10 mm | Length L: 25 mm | Thread: M6x1.0
LRTM-10X30 Dia. D: 10 mm | Length L: 30 mm | Thread: M6x1.0
LRTM-10X35 Dia. D: 10 mm | Length L: 35 mm | Thread: M6x1.0
LRTM-10X40 Dia. D: 10 mm | Length L: 40 mm | Thread: M6x1.0
LRTM-10X45 Dia. D: 10 mm | Length L: 45 mm | Thread: M6x1.0
LRTM-10X50 Dia. D: 10 mm | Length L: 50 mm | Thread: M6x1.0
LRTM-10X55 Dia. D: 10 mm | Length L: 55 mm | Thread: M6x1.0
LRTM-10X60 Dia. D: 10 mm | Length L: 60 mm | Thread: M6x1.0
LRTM-10X65 Dia. D: 10 mm | Length L: 65 mm | Thread: M6x1.0
LRTM-10X70 Dia. D: 10 mm | Length L: 70 mm | Thread: M6x1.0
LRTM-10X75 Dia. D: 10 mm | Length L: 75 mm | Thread: M6x1.0
LRTM-10X80 Dia. D: 10 mm | Length L: 80 mm | Thread: M6x1.0
LRTM-10X85 Dia. D: 10 mm | Length L: 85 mm | Thread: M6x1.0
LRTM-10X90 Dia. D: 10 mm | Length L: 90 mm | Thread: M6x1.0
LRTM-10X95 Dia. D: 10 mm | Length L: 95 mm | Thread: M6x1.0
LRTM-10X100 Dia. D: 10 mm | Length L: 100 mm | Thread: M6x1.0
LRTM-13X15 Dia. D: 13 mm | Length L: 15 mm | Thread: M8x1.25
LRTM-13X20 Dia. D: 13 mm | Length L: 20 mm | Thread: M8x1.25
LRTM-13X25 Dia. D: 13 mm | Length L: 25 mm | Thread: M8x1.25
LRTM-13X30 Dia. D: 13 mm | Length L: 30 mm | Thread: M8x1.25
LRTM-13X35 Dia. D: 13 mm | Length L: 35 mm | Thread: M8x1.25
LRTM-13X40 Dia. D: 13 mm | Length L: 40 mm | Thread: M8x1.25
LRTM-13X45 Dia. D: 13 mm | Length L: 45 mm | Thread: M8x1.25
LRTM-13X50 Dia. D: 13 mm | Length L: 50 mm | Thread: M8x1.25
LRTM-13X55 Dia. D: 13 mm | Length L: 55 mm | Thread: M8x1.25
LRTM-13X60 Dia. D: 13 mm | Length L: 60 mm | Thread: M8x1.25
LRTM-13X65 Dia. D: 13 mm | Length L: 65 mm | Thread: M8x1.25
LRTM-13X70 Dia. D: 13 mm | Length L: 70 mm | Thread: M8x1.25
LRTM-13X75 Dia. D: 13 mm | Length L: 75 mm | Thread: M8x1.25
LRTM-13X80 Dia. D: 13 mm | Length L: 80 mm | Thread: M8x1.25
LRTM-13X85 Dia. D: 13 mm | Length L: 85 mm | Thread: M8x1.25
LRTM-13X90 Dia. D: 13 mm | Length L: 90 mm | Thread: M8x1.25
LRTM-13X100 Dia. D: 13 mm | Length L: 100 mm | Thread: M8x1.25
LRTM-13X110 Dia. D: 13 mm | Length L: 110 mm | Thread: M8x1.25
LRTM-13X120 Dia. D: 13 mm | Length L: 120 mm | Thread: M8x1.25
LRTM-16X30 Dia. D: 16 mm | Length L: 30 mm | Thread: M10x1.5
LRTM-16X35 Dia. D: 16 mm | Length L: 35 mm | Thread: M10x1.5
LRTM-16X40 Dia. D: 16 mm | Length L: 40 mm | Thread: M10x1.5
LRTM-16X45 Dia. D: 16 mm | Length L: 45 mm | Thread: M10x1.5
LRTM-16X50 Dia. D: 16 mm | Length L: 50 mm | Thread: M10x1.5
LRTM-16X55 Dia. D: 16 mm | Length L: 55 mm | Thread: M10x1.5
LRTM-16X60 Dia. D: 16 mm | Length L: 60 mm | Thread: M10x1.5
LRTM-16X65 Dia. D: 16 mm | Length L: 65 mm | Thread: M10x1.5
LRTM-16X70 Dia. D: 16 mm | Length L: 70 mm | Thread: M10x1.5
LRTM-16X75 Dia. D: 16 mm | Length L: 75 mm | Thread: M10x1.5
LRTM-16X80 Dia. D: 16 mm | Length L: 80 mm | Thread: M10x1.5
LRTM-16X85 Dia. D: 16 mm | Length L: 85 mm | Thread: M10x1.5
LRTM-16X90 Dia. D: 16 mm | Length L: 90 mm | Thread: M10x1.5
LRTM-16X100 Dia. D: 16 mm | Length L: 100 mm | Thread: M10x1.5
LRTM-16X110 Dia. D: 16 mm | Length L: 110 mm | Thread: M10x1.5
LRTM-16X120 Dia. D: 16 mm | Length L: 120 mm | Thread: M10x1.5
LRTM-16X130 Dia. D: 16 mm | Length L: 130 mm | Thread: M10x1.5
LRTM-16X140 Dia. D: 16 mm | Length L: 140 mm | Thread: M10x1.5
LRTM-16X150 Dia. D: 16 mm | Length L: 150 mm | Thread: M10x1.5
LRTM-16X160 Dia. D: 16 mm | Length L: 160 mm | Thread: M10x1.5
LRTM-16X170 Dia. D: 16 mm | Length L: 170 mm | Thread: M10x1.5
LRTM-16X180 Dia. D: 16 mm | Length L: 180 mm | Thread: M10x1.5
LRTM-20X40 Dia. D: 20 mm | Length L: 40 mm | Thread: M12x1.75
LRTM-20X45 Dia. D: 20 mm | Length L: 45 mm | Thread: M12x1.75
LRTM-20X50 Dia. D: 20 mm | Length L: 50 mm | Thread: M12x1.75
LRTM-20X55 Dia. D: 20 mm | Length L: 55 mm | Thread: M12x1.75
LRTM-20X60 Dia. D: 20 mm | Length L: 60 mm | Thread: M12x1.75
LRTM-20X65 Dia. D: 20 mm | Length L: 65 mm | Thread: M12x1.75
LRTM-20X70 Dia. D: 20 mm | Length L: 70 mm | Thread: M12x1.75
LRTM-20X75 Dia. D: 20 mm | Length L: 75 mm | Thread: M12x1.75
LRTM-20X80 Dia. D: 20 mm | Length L: 80 mm | Thread: M12x1.75
LRTM-20X85 Dia. D: 20 mm | Length L: 85 mm | Thread: M12x1.75
LRTM-20X90 Dia. D: 20 mm | Length L: 90 mm | Thread: M12x1.75
LRTM-20X100 Dia. D: 20 mm | Length L: 100 mm | Thread: M12x1.75
LRTM-20X110 Dia. D: 20 mm | Length L: 110 mm | Thread: M12x1.75
LRTM-20X120 Dia. D: 20 mm | Length L: 120 mm | Thread: M12x1.75
LRTM-20X130 Dia. D: 20 mm | Length L: 130 mm | Thread: M12x1.75
LRTM-20X140 Dia. D: 20 mm | Length L: 140 mm | Thread: M12x1.75
LRTM-20X150 Dia. D: 20 mm | Length L: 150 mm | Thread: M12x1.75
LRTM-20X160 Dia. D: 20 mm | Length L: 160 mm | Thread: M12x1.75
LRTM-20X170 Dia. D: 20 mm | Length L: 170 mm | Thread: M12x1.75
LRTM-20X180 Dia. D: 20 mm | Length L: 180 mm | Thread: M12x1.75
LRTM-25X50 Dia. D: 25 mm | Length L: 50 mm | Thread: M16x2.0
LRTM-25X55 Dia. D: 25 mm | Length L: 55 mm | Thread: M16x2.0
LRTM-25X60 Dia. D: 25 mm | Length L: 60 mm | Thread: M16x2.0
LRTM-25X65 Dia. D: 25 mm | Length L: 65 mm | Thread: M16x2.0
LRTM-25X70 Dia. D: 25 mm | Length L: 70 mm | Thread: M16x2.0
LRTM-25X75 Dia. D: 25 mm | Length L: 75 mm | Thread: M16x2.0
LRTM-25X80 Dia. D: 25 mm | Length L: 80 mm | Thread: M16x2.0
LRTM-25X85 Dia. D: 25 mm | Length L: 85 mm | Thread: M16x2.0
LRTM-25X90 Dia. D: 25 mm | Length L: 90 mm | Thread: M16x2.0
LRTM-25X100 Dia. D: 25 mm | Length L: 100 mm | Thread: M16x2.0
LRTM-25X110 Dia. D: 25 mm | Length L: 110 mm | Thread: M16x2.0
LRTM-25X120 Dia. D: 25 mm | Length L: 120 mm | Thread: M16x2.0
LRTM-25X130 Dia. D: 25 mm | Length L: 130 mm | Thread: M16x2.0
LRTM-25X140 Dia. D: 25 mm | Length L: 140 mm | Thread: M16x2.0
LRTM-25X150 Dia. D: 25 mm | Length L: 150 mm | Thread: M16x2.0
LRTM-25X160 Dia. D: 25 mm | Length L: 160 mm | Thread: M16x2.0
LRTM-25X170 Dia. D: 25 mm | Length L: 170 mm | Thread: M16x2.0
LRTM-25X180 Dia. D: 25 mm | Length L: 180 mm | Thread: M16x2.0
LRTM-32X60 Dia. D: 32 mm | Length L: 60 mm | Thread: M20x2.5
LRTM-32X70 Dia. D: 32 mm | Length L: 70 mm | Thread: M20x2.5
LRTM-32X80 Dia. D: 32 mm | Length L: 80 mm | Thread: M20x2.5
LRTM-32X90 Dia. D: 32 mm | Length L: 90 mm | Thread: M20x2.5
LRTM-32X100 Dia. D: 32 mm | Length L: 100 mm | Thread: M20x2.5
LRTM-32X110 Dia. D: 32 mm | Length L: 110 mm | Thread: M20x2.5
LRTM-32X120 Dia. D: 32 mm | Length L: 120 mm | Thread: M20x2.5
LRTM-32X130 Dia. D: 32 mm | Length L: 130 mm | Thread: M20x2.5
LRTM-32X140 Dia. D: 32 mm | Length L: 140 mm | Thread: M20x2.5
LRTM-32X150 Dia. D: 32 mm | Length L: 150 mm | Thread: M20x2.5
LRTM-32X160 Dia. D: 32 mm | Length L: 160 mm | Thread: M20x2.5
LRTM-32X170 Dia. D: 32 mm | Length L: 170 mm | Thread: M20x2.5
LRTM-32X180 Dia. D: 32 mm | Length L: 180 mm | Thread: M20x2.5
Die Stock ComponentLuBo
111 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LRTM Spool Retainers (Dia. 10-32 mm)

Brand LuBo·Die Stock Component

Available part numbers (111)

LRTM-10X10, LRTM-10X15, LRTM-10X20, LRTM-10X25, LRTM-10X30, LRTM-10X35, LRTM-10X40, LRTM-10X45, LRTM-10X50, LRTM-10X55 + 101 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
