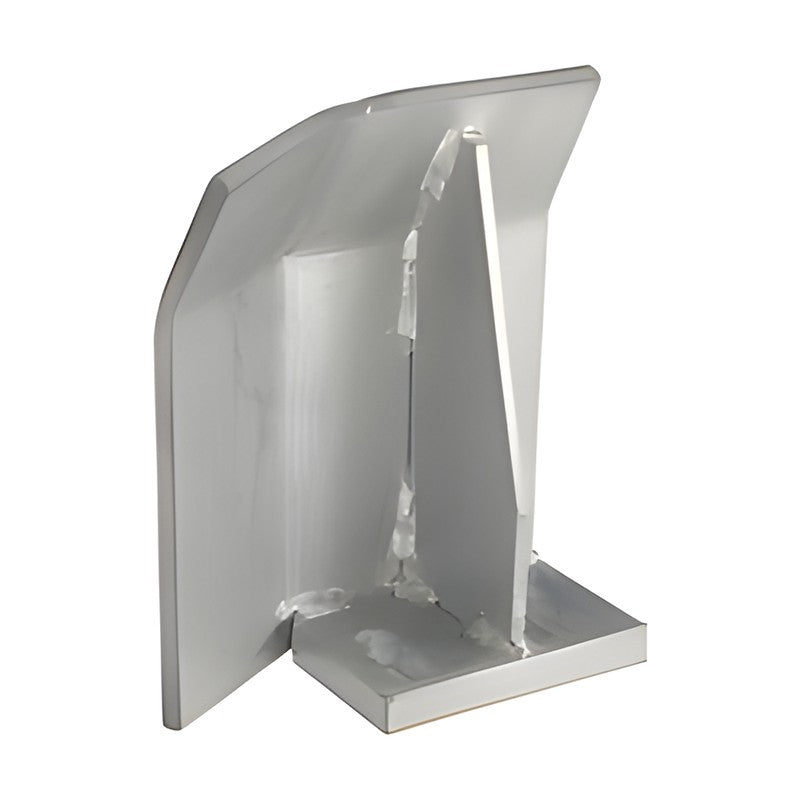

LuBo LSAH / LSAK Side Gauges - Fixed Type (Height 25-200 mm)

LuBo LSAH / LSAK Side Gauges - Fixed Type (Height 25-200 mm)

LuBo LSAH / LSAK Side Gauges - Fixed Type from the LuBo Locating & Checking Components catalogue, listed in 16 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Side Gauges - Fixed Type - series LSAH / LSAK
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 16 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LSAH / LSAK
Product Side Gauges - Fixed Type
Catalogue chapter Locating & Checking Components
Orderable codes 16
Size range Height 25-200 mm
Code example LSAH-25
Row spec keys Height H, h, Shape, Type
Source LuBo Locating & Checking Components catalogue
LSAH-25 Height H: 25 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-50 Height H: 50 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-75 Height H: 75 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-100 Height H: 100 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-125 Height H: 125 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-150 Height H: 150 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-175 Height H: 175 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAH-200 Height H: 200 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAH
LSAK-25 Height H: 25 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-50 Height H: 50 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-75 Height H: 75 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-100 Height H: 100 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-125 Height H: 125 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-150 Height H: 150 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-175 Height H: 175 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
LSAK-200 Height H: 200 mm | h: 30-110 mm (10 mm steps) | Shape: L or R | Type: LSAK
Panel Locating GaugeLuBo
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSAH / LSAK Side Gauges - Fixed Type (Height 25-200 mm)

Brand LuBo·Panel Locating Gauge

Available part numbers (16)

LSAH-25, LSAH-50, LSAH-75, LSAH-100, LSAH-125, LSAH-150, LSAH-175, LSAH-200, LSAK-25, LSAK-50 + 6 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
