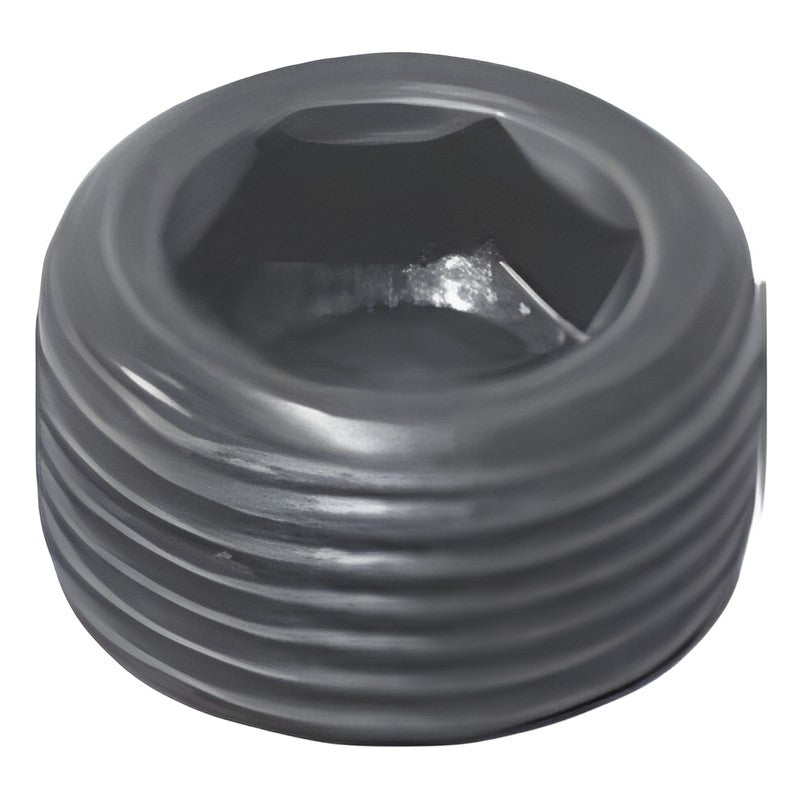

LuBo LSEM Screw Plugs (Thread 10-45)

LuBo LSEM Screw Plugs (Thread 10-45)

LuBo LSEM Screw Plugs from the LuBo Elements catalogue, listed in 19 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Screw Plugs - series LSEM
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • Material options: SM45C/SM435

Specifications

Brand LuBo
Series LSEM
Product Screw Plugs
Catalogue chapter Elements
Material SM45C/SM435
Orderable codes 19
Size range Thread 10-45
Code example LSEM-10
Row spec keys Thread, Length L, Material
Source LuBo Elements catalogue
LSEM-10 Thread: M10x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-12 Thread: M12x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-14 Thread: M14x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-16 Thread: M16x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-18 Thread: M18x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-20 Thread: M20x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-22 Thread: M22x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-24 Thread: M24x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-25 Thread: M25x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-26 Thread: M26x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-27 Thread: M27x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-28 Thread: M28x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-30 Thread: M30x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-33 Thread: M33x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-36 Thread: M36x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-38 Thread: M38x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-40 Thread: M40x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-42 Thread: M42x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-45 Thread: M45x1.5 | Length L: 18 mm | Material: SM45C/SM435
Die ElementLuBo
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSEM Screw Plugs (Thread 10-45)

Brand LuBo·Die Element

Available part numbers (19)

LSEM-10, LSEM-12, LSEM-14, LSEM-16, LSEM-18, LSEM-20, LSEM-22, LSEM-24, LSEM-25, LSEM-26 + 9 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSEM-10Thread: M10x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-12Thread: M12x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-14Thread: M14x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-16Thread: M16x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-18Thread: M18x1.5 | Length L: 10 mm | Material: SM45C/SM435
LSEM-20Thread: M20x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-22Thread: M22x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-24Thread: M24x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-25Thread: M25x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-26Thread: M26x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-27Thread: M27x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-28Thread: M28x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-30Thread: M30x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-33Thread: M33x1.5 | Length L: 12 mm | Material: SM45C/SM435
LSEM-36Thread: M36x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-38Thread: M38x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-40Thread: M40x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-42Thread: M42x1.5 | Length L: 18 mm | Material: SM45C/SM435
LSEM-45Thread: M45x1.5 | Length L: 18 mm | Material: SM45C/SM435
