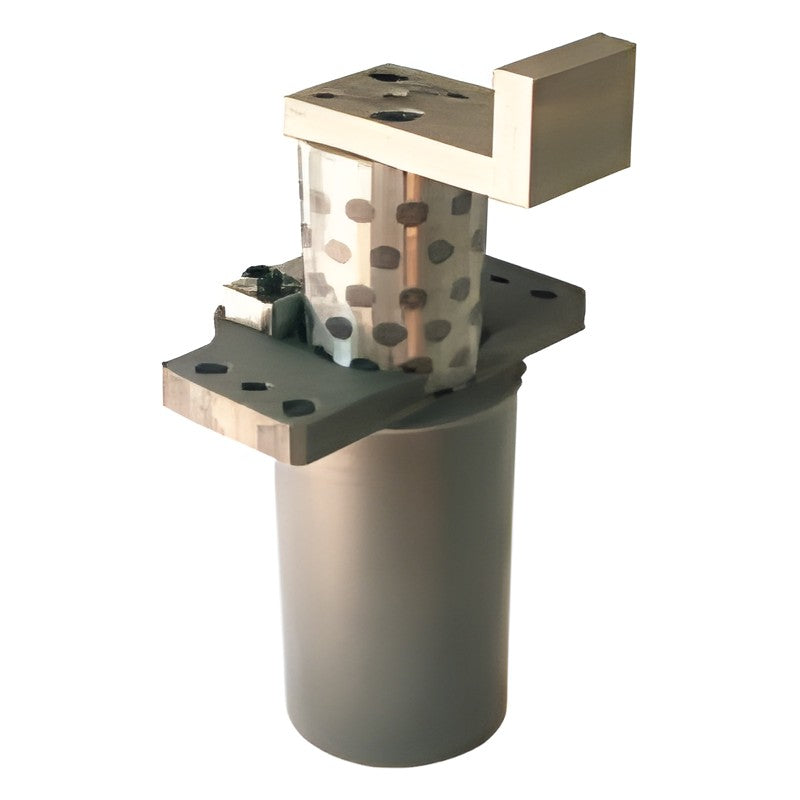

LuBo LSL Side Lifter Units (Stroke ST 50-110 mm)

LuBo LSL Side Lifter Units (Stroke ST 50-110 mm)

LuBo LSL Side Lifter Units from the LuBo Lifters catalogue, listed in 13 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Side Lifter Units - series LSL
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 13 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LSL
Product Side Lifter Units
Catalogue chapter Lifters
Orderable codes 13
Size range Stroke ST 50-110 mm
Code example LSL-50
Row spec keys Stroke ST, Spring, Spring qty
Source LuBo Lifters catalogue
LSL-50 Stroke ST: 50 mm | Spring: LCSL 50X175 | Spring qty: 1
LSL-55 Stroke ST: 55 mm | Spring: LCSL 50X200 | Spring qty: 1
LSL-60 Stroke ST: 60 mm | Spring: LCSL 50X200 | Spring qty: 1
LSL-65 Stroke ST: 65 mm | Spring: LCSL 50X250 | Spring qty: 1
LSL-70 Stroke ST: 70 mm | Spring: LCSL 50X250 | Spring qty: 1
LSL-75 Stroke ST: 75 mm | Spring: LCSL 50X125 | Spring qty: 2
LSL-80 Stroke ST: 80 mm | Spring: LCSL 50X125 | Spring qty: 2
LSL-85 Stroke ST: 85 mm | Spring: LCSL 50X300 | Spring qty: 1
LSL-90 Stroke ST: 90 mm | Spring: LCSL 50X300 | Spring qty: 1
LSL-95 Stroke ST: 95 mm | Spring: LCSL 50X150 | Spring qty: 2
LSL-100 Stroke ST: 100 mm | Spring: LCSL 50X150 | Spring qty: 2
LSL-105 Stroke ST: 105 mm | Spring: LCSL 50X175 | Spring qty: 2
LSL-110 Stroke ST: 110 mm | Spring: LCSL 50X175 | Spring qty: 2
Die LifterLuBo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSL Side Lifter Units (Stroke ST 50-110 mm)

Brand LuBo·Die Lifter

Available part numbers (13)

LSL-50, LSL-55, LSL-60, LSL-65, LSL-70, LSL-75, LSL-80, LSL-85, LSL-90, LSL-95 + 3 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSL-50Stroke ST: 50 mm | Spring: LCSL 50X175 | Spring qty: 1
LSL-55Stroke ST: 55 mm | Spring: LCSL 50X200 | Spring qty: 1
LSL-60Stroke ST: 60 mm | Spring: LCSL 50X200 | Spring qty: 1
LSL-65Stroke ST: 65 mm | Spring: LCSL 50X250 | Spring qty: 1
LSL-70Stroke ST: 70 mm | Spring: LCSL 50X250 | Spring qty: 1
LSL-75Stroke ST: 75 mm | Spring: LCSL 50X125 | Spring qty: 2
LSL-80Stroke ST: 80 mm | Spring: LCSL 50X125 | Spring qty: 2
LSL-85Stroke ST: 85 mm | Spring: LCSL 50X300 | Spring qty: 1
LSL-90Stroke ST: 90 mm | Spring: LCSL 50X300 | Spring qty: 1
LSL-95Stroke ST: 95 mm | Spring: LCSL 50X150 | Spring qty: 2
LSL-100Stroke ST: 100 mm | Spring: LCSL 50X150 | Spring qty: 2
LSL-105Stroke ST: 105 mm | Spring: LCSL 50X175 | Spring qty: 2
LSL-110Stroke ST: 110 mm | Spring: LCSL 50X175 | Spring qty: 2
