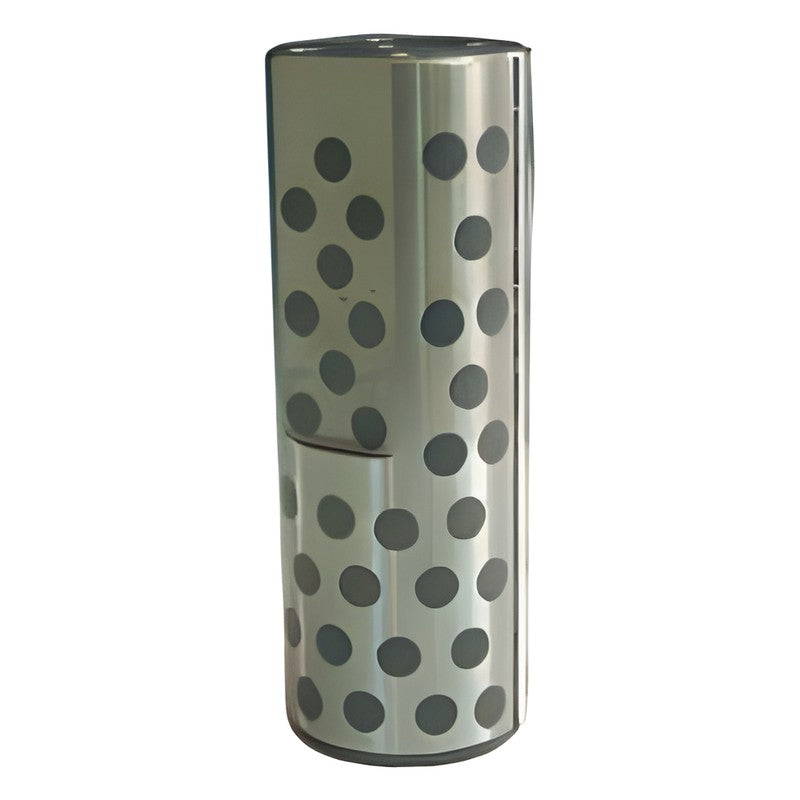

• LuBo LSLP Oilless Slide Pins (Stroke ST 50-110 mm)
1 1

LuBo LSLP Oilless Slide Pins (Stroke ST 50-110 mm)

LuBo LSLP Oilless Slide Pins (Stroke ST 50-110 mm)

LuBo LSLP Oilless Slide Pins from the LuBo Lifters catalogue, listed in 13 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Oilless Slide Pins - series LSLP
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • Material options: #500CS

Specifications

Brand LuBo
Series LSLP
Product Oilless Slide Pins
Catalogue chapter Lifters
Material #500CS
Orderable codes 13
Size range Stroke ST 50-110 mm
Code example LSLP-50
Row spec keys Stroke ST, Height H, Material
Source LuBo Lifters catalogue
LSLP-50 Stroke ST: 50 mm | Height H: 130 mm | Material: #500CS
LSLP-55 Stroke ST: 55 mm | Height H: 145 mm | Material: #500CS
LSLP-60 Stroke ST: 60 mm | Height H: 145 mm | Material: #500CS
LSLP-65 Stroke ST: 65 mm | Height H: 165 mm | Material: #500CS
LSLP-70 Stroke ST: 70 mm | Height H: 165 mm | Material: #500CS
LSLP-75 Stroke ST: 75 mm | Height H: 175 mm | Material: #500CS
LSLP-80 Stroke ST: 80 mm | Height H: 175 mm | Material: #500CS
LSLP-85 Stroke ST: 85 mm | Height H: 195 mm | Material: #500CS
LSLP-90 Stroke ST: 90 mm | Height H: 195 mm | Material: #500CS
LSLP-95 Stroke ST: 95 mm | Height H: 205 mm | Material: #500CS
LSLP-100 Stroke ST: 100 mm | Height H: 205 mm | Material: #500CS
LSLP-105 Stroke ST: 105 mm | Height H: 225 mm | Material: #500CS
LSLP-110 Stroke ST: 110 mm | Height H: 225 mm | Material: #500CS
Die LifterLuBo
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSLP Oilless Slide Pins (Stroke ST 50-110 mm)

Brand LuBo·Die Lifter

Available part numbers (13)

LSLP-50, LSLP-55, LSLP-60, LSLP-65, LSLP-70, LSLP-75, LSLP-80, LSLP-85, LSLP-90, LSLP-95 + 3 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSLP-50Stroke ST: 50 mm | Height H: 130 mm | Material: #500CS
LSLP-55Stroke ST: 55 mm | Height H: 145 mm | Material: #500CS
LSLP-60Stroke ST: 60 mm | Height H: 145 mm | Material: #500CS
LSLP-65Stroke ST: 65 mm | Height H: 165 mm | Material: #500CS
LSLP-70Stroke ST: 70 mm | Height H: 165 mm | Material: #500CS
LSLP-75Stroke ST: 75 mm | Height H: 175 mm | Material: #500CS
LSLP-80Stroke ST: 80 mm | Height H: 175 mm | Material: #500CS
LSLP-85Stroke ST: 85 mm | Height H: 195 mm | Material: #500CS
LSLP-90Stroke ST: 90 mm | Height H: 195 mm | Material: #500CS
LSLP-95Stroke ST: 95 mm | Height H: 205 mm | Material: #500CS
LSLP-100Stroke ST: 100 mm | Height H: 205 mm | Material: #500CS
LSLP-105Stroke ST: 105 mm | Height H: 225 mm | Material: #500CS
LSLP-110Stroke ST: 110 mm | Height H: 225 mm | Material: #500CS
