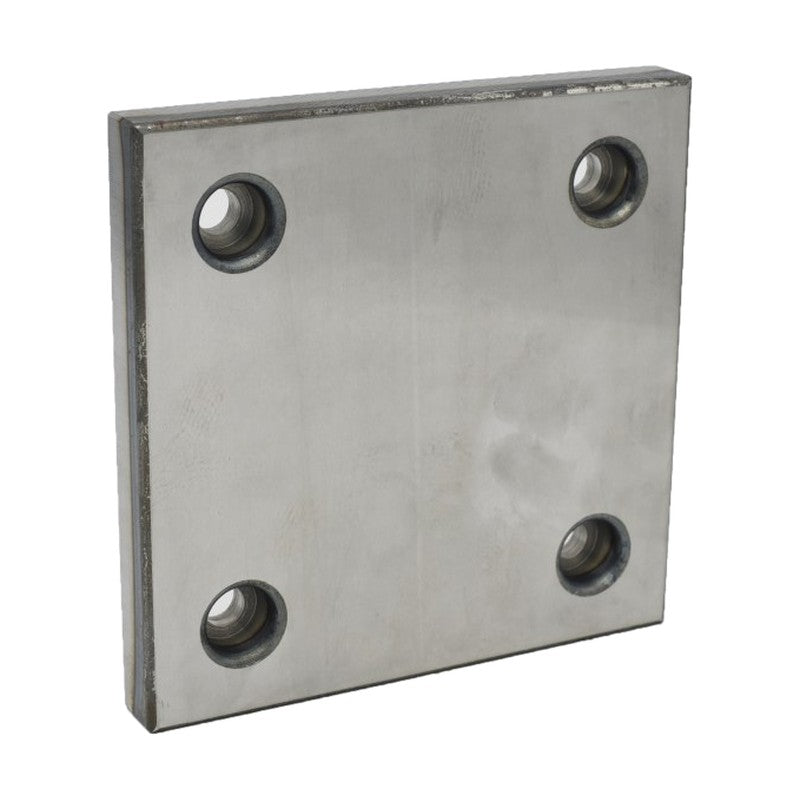

LuBo LSP / LSPL Cam Lower Slide Plates (Width 28-150 mm)

LuBo LSP / LSPL Cam Lower Slide Plates (Width 28-150 mm)

LuBo LSP / LSPL Cam Lower Slide Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 48 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Lower Slide Plates - series LSP / LSPL
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: -, SM45C
  • Hyundai-standard sizes (in brackets) ordered with suffix -H.

Specifications

Brand LuBo
Series LSP / LSPL
Product Cam Lower Slide Plates
Catalogue chapter Oilless Bushings & Plates
Material -, SM45C
Orderable codes 48
Size range Width 28-150 mm
Code example LSP-28X75
Row spec keys Width W, Length L, Material, Type, Thickness T
Source LuBo Oilless Bushings & Plates catalogue
LSP-28X75 Width W: 28 mm | Length L: 75 mm | Material: SM45C | Type: A | Thickness T: -
LSP-28X100 Width W: 28 mm | Length L: 100 mm | Material: SM45C | Type: A | Thickness T: -
LSP-28X150 Width W: 28 mm | Length L: 150 mm | Material: SM45C | Type: A | Thickness T: -
LSP-38X75 Width W: 38 mm | Length L: 75 mm | Material: SM45C | Type: A | Thickness T: -
LSP-38X100 Width W: 38 mm | Length L: 100 mm | Material: SM45C | Type: A | Thickness T: -
LSP-38X150 Width W: 38 mm | Length L: 150 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X75 Width W: 48 mm | Length L: 75 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X100 Width W: 48 mm | Length L: 100 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X125 Width W: 48 mm | Length L: 125 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X150 Width W: 48 mm | Length L: 150 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X200 Width W: 48 mm | Length L: 200 mm | Material: SM45C | Type: A | Thickness T: -
LSP-48X250 Width W: 48 mm | Length L: 250 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X75 Width W: 58 mm | Length L: 75 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X100 Width W: 58 mm | Length L: 100 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X125 Width W: 58 mm | Length L: 125 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X150 Width W: 58 mm | Length L: 150 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X200 Width W: 58 mm | Length L: 200 mm | Material: SM45C | Type: A | Thickness T: -
LSP-58X250 Width W: 58 mm | Length L: 250 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X75 Width W: 75 mm | Length L: 75 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X100 Width W: 75 mm | Length L: 100 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X125 Width W: 75 mm | Length L: 125 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X150 Width W: 75 mm | Length L: 150 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X200 Width W: 75 mm | Length L: 200 mm | Material: SM45C | Type: A | Thickness T: -
LSP-75X250 Width W: 75 mm | Length L: 250 mm | Material: SM45C | Type: A | Thickness T: -
LSP-100X100 Width W: 100 mm | Length L: 100 mm | Material: SM45C | Type: B | Thickness T: -
LSP-100X125 Width W: 100 mm | Length L: 125 mm | Material: SM45C | Type: B | Thickness T: -
LSP-100X150 Width W: 100 mm | Length L: 150 mm | Material: SM45C | Type: B | Thickness T: -
LSP-100X200 Width W: 100 mm | Length L: 200 mm | Material: SM45C | Type: B | Thickness T: -
LSP-100X250 Width W: 100 mm | Length L: 250 mm | Material: SM45C | Type: B | Thickness T: -
LSP-100X300 Width W: 100 mm | Length L: 300 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X125 Width W: 125 mm | Length L: 125 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X150 Width W: 125 mm | Length L: 150 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X200 Width W: 125 mm | Length L: 200 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X250 Width W: 125 mm | Length L: 250 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X300 Width W: 125 mm | Length L: 300 mm | Material: SM45C | Type: B | Thickness T: -
LSP-125X350 Width W: 125 mm | Length L: 350 mm | Material: SM45C | Type: B | Thickness T: -
LSP-150X150 Width W: 150 mm | Length L: 150 mm | Material: SM45C | Type: B | Thickness T: -
LSP-150X200 Width W: 150 mm | Length L: 200 mm | Material: SM45C | Type: B | Thickness T: -
LSP-150X250 Width W: 150 mm | Length L: 250 mm | Material: SM45C | Type: B | Thickness T: -
LSPL-55X150X20 Width W: 55 mm | Length L: 150 mm | Material: - | Type: A | Thickness T: 20 mm
LSPL-55X200X20 Width W: 55 mm | Length L: 200 mm | Material: - | Type: A | Thickness T: 20 mm
LSPL-55X250X20 Width W: 55 mm | Length L: 250 mm | Material: - | Type: B | Thickness T: 20 mm
LSPL-80X150X35 Width W: 80 mm | Length L: 150 mm | Material: - | Type: A | Thickness T: 35 mm
LSPL-80X200X35 Width W: 80 mm | Length L: 200 mm | Material: - | Type: A | Thickness T: 35 mm
LSPL-80X250X35 Width W: 80 mm | Length L: 250 mm | Material: - | Type: B | Thickness T: 35 mm
LSPL-95X150X50 Width W: 95 mm | Length L: 150 mm | Material: - | Type: A | Thickness T: 50 mm
LSPL-95X200X50 Width W: 95 mm | Length L: 200 mm | Material: - | Type: A | Thickness T: 50 mm
LSPL-95X250X50 Width W: 95 mm | Length L: 250 mm | Material: - | Type: B | Thickness T: 50 mm
Oilless Slide ComponentLuBo
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSP / LSPL Cam Lower Slide Plates (Width 28-150 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (48)

LSP-28X75, LSP-28X100, LSP-28X150, LSP-38X75, LSP-38X100, LSP-38X150, LSP-48X75, LSP-48X100, LSP-48X125, LSP-48X150 + 38 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
