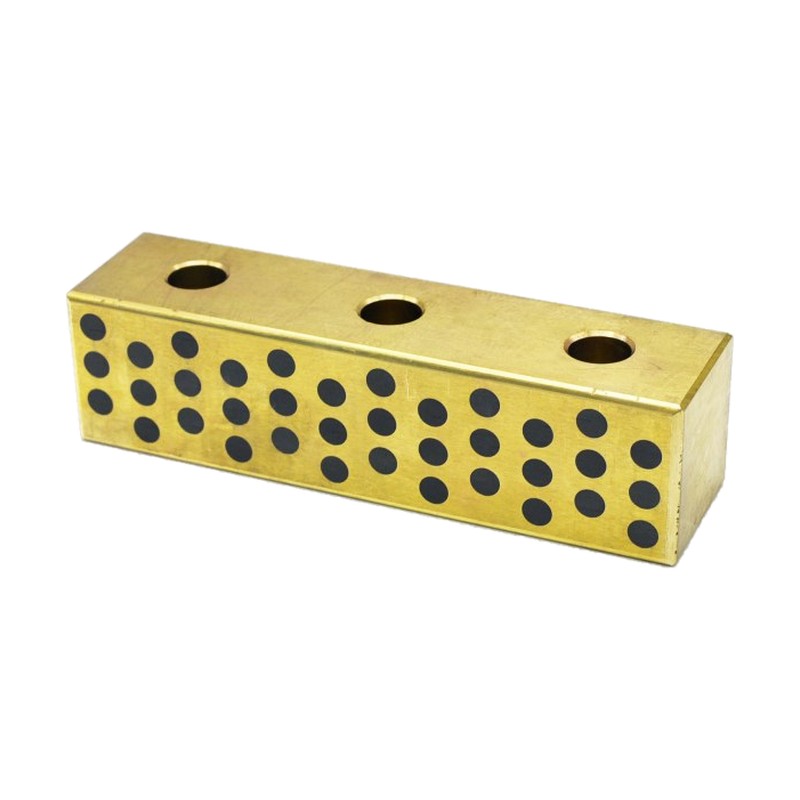

LuBo LSPB / LSPM Cam Side Blocks (Width 25-50 mm)

LuBo LSPB / LSPM Cam Side Blocks from the LuBo Oilless Bushings & Plates catalogue, listed in 28 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

Cam Side Blocks - series LSPB / LSPM
Oilless sliding component for press dies and cam slides
Graphite-plugged or steel versions as listed per series
Sizes selected from the LuBo standard table
Material options: F, F (LSPM), SP
LSPB thickness T cells span the L=200 row; both adjacent T values listed for L=200.

Specifications

Brand	LuBo
Series	LSPB / LSPM
Product	Cam Side Blocks
Catalogue chapter	Oilless Bushings & Plates
Material	F, F (LSPM), SP
Orderable codes	28
Size range	Width 25-50 mm
Code example	LSPB-40X150X30-SP
Row spec keys	Width W, Length L, Thickness T, Material
Source	LuBo Oilless Bushings & Plates catalogue

LSPB-40X150X30-SP		Width W: 40 mm \| Length L: 150 mm \| Thickness T: 30 mm \| Material: SP
LSPB-40X200X30-SP		Width W: 40 mm \| Length L: 200 mm \| Thickness T: 30 mm \| Material: SP
LSPB-40X200X40-SP		Width W: 40 mm \| Length L: 200 mm \| Thickness T: 40 mm \| Material: SP
LSPB-40X250X40-SP		Width W: 40 mm \| Length L: 250 mm \| Thickness T: 40 mm \| Material: SP
LSPB-50X150X45-SP		Width W: 50 mm \| Length L: 150 mm \| Thickness T: 45 mm \| Material: SP
LSPB-50X200X45-SP		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 45 mm \| Material: SP
LSPB-50X200X55-SP		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 55 mm \| Material: SP
LSPB-50X250X55-SP		Width W: 50 mm \| Length L: 250 mm \| Thickness T: 55 mm \| Material: SP
LSPB-50X150X60-SP		Width W: 50 mm \| Length L: 150 mm \| Thickness T: 60 mm \| Material: SP
LSPB-50X200X60-SP		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 60 mm \| Material: SP
LSPB-50X200X70-SP		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 70 mm \| Material: SP
LSPB-50X250X70-SP		Width W: 50 mm \| Length L: 250 mm \| Thickness T: 70 mm \| Material: SP
LSPB-40X150X30-F		Width W: 40 mm \| Length L: 150 mm \| Thickness T: 30 mm \| Material: F
LSPB-40X200X30-F		Width W: 40 mm \| Length L: 200 mm \| Thickness T: 30 mm \| Material: F
LSPB-40X200X40-F		Width W: 40 mm \| Length L: 200 mm \| Thickness T: 40 mm \| Material: F
LSPB-40X250X40-F		Width W: 40 mm \| Length L: 250 mm \| Thickness T: 40 mm \| Material: F
LSPB-50X150X45-F		Width W: 50 mm \| Length L: 150 mm \| Thickness T: 45 mm \| Material: F
LSPB-50X200X45-F		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 45 mm \| Material: F
LSPB-50X200X55-F		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 55 mm \| Material: F
LSPB-50X250X55-F		Width W: 50 mm \| Length L: 250 mm \| Thickness T: 55 mm \| Material: F
LSPB-50X150X60-F		Width W: 50 mm \| Length L: 150 mm \| Thickness T: 60 mm \| Material: F
LSPB-50X200X60-F		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 60 mm \| Material: F
LSPB-50X200X70-F		Width W: 50 mm \| Length L: 200 mm \| Thickness T: 70 mm \| Material: F
LSPB-50X250X70-F		Width W: 50 mm \| Length L: 250 mm \| Thickness T: 70 mm \| Material: F
LSPM-25X75		Width W: 25 mm \| Length L: 75 mm \| Thickness T: 25 mm \| Material: F (LSPM)
LSPM-25X100		Width W: 25 mm \| Length L: 100 mm \| Thickness T: 25 mm \| Material: F (LSPM)
LSPM-25X125		Width W: 25 mm \| Length L: 125 mm \| Thickness T: 25 mm \| Material: F (LSPM)
LSPM-25X150		Width W: 25 mm \| Length L: 150 mm \| Thickness T: 25 mm \| Material: F (LSPM)

Oilless Slide ComponentLuBo

28 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSPB / LSPM Cam Side Blocks (Width 25-50 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (28)

LSPB-40X150X30-SP, LSPB-40X200X30-SP, LSPB-40X200X40-SP, LSPB-40X250X40-SP, LSPB-50X150X45-SP, LSPB-50X200X45-SP, LSPB-50X200X55-SP, LSPB-50X250X55-SP, LSPB-50X150X60-SP, LSPB-50X200X60-SP + 18 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LSPB-40X150X30-SP	Width W: 40 mm \| Length L: 150 mm \| Thickness T: 30 mm \| Material: SP
	LSPB-40X200X30-SP	Width W: 40 mm \| Length L: 200 mm \| Thickness T: 30 mm \| Material: SP
	LSPB-40X200X40-SP	Width W: 40 mm \| Length L: 200 mm \| Thickness T: 40 mm \| Material: SP
	LSPB-40X250X40-SP	Width W: 40 mm \| Length L: 250 mm \| Thickness T: 40 mm \| Material: SP
	LSPB-50X150X45-SP	Width W: 50 mm \| Length L: 150 mm \| Thickness T: 45 mm \| Material: SP
	LSPB-50X200X45-SP	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 45 mm \| Material: SP
	LSPB-50X200X55-SP	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 55 mm \| Material: SP
	LSPB-50X250X55-SP	Width W: 50 mm \| Length L: 250 mm \| Thickness T: 55 mm \| Material: SP
	LSPB-50X150X60-SP	Width W: 50 mm \| Length L: 150 mm \| Thickness T: 60 mm \| Material: SP
	LSPB-50X200X60-SP	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 60 mm \| Material: SP
	LSPB-50X200X70-SP	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 70 mm \| Material: SP
	LSPB-50X250X70-SP	Width W: 50 mm \| Length L: 250 mm \| Thickness T: 70 mm \| Material: SP
	LSPB-40X150X30-F	Width W: 40 mm \| Length L: 150 mm \| Thickness T: 30 mm \| Material: F
	LSPB-40X200X30-F	Width W: 40 mm \| Length L: 200 mm \| Thickness T: 30 mm \| Material: F
	LSPB-40X200X40-F	Width W: 40 mm \| Length L: 200 mm \| Thickness T: 40 mm \| Material: F
	LSPB-40X250X40-F	Width W: 40 mm \| Length L: 250 mm \| Thickness T: 40 mm \| Material: F
	LSPB-50X150X45-F	Width W: 50 mm \| Length L: 150 mm \| Thickness T: 45 mm \| Material: F
	LSPB-50X200X45-F	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 45 mm \| Material: F
	LSPB-50X200X55-F	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 55 mm \| Material: F
	LSPB-50X250X55-F	Width W: 50 mm \| Length L: 250 mm \| Thickness T: 55 mm \| Material: F
	LSPB-50X150X60-F	Width W: 50 mm \| Length L: 150 mm \| Thickness T: 60 mm \| Material: F
	LSPB-50X200X60-F	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 60 mm \| Material: F
	LSPB-50X200X70-F	Width W: 50 mm \| Length L: 200 mm \| Thickness T: 70 mm \| Material: F
	LSPB-50X250X70-F	Width W: 50 mm \| Length L: 250 mm \| Thickness T: 70 mm \| Material: F
	LSPM-25X75	Width W: 25 mm \| Length L: 75 mm \| Thickness T: 25 mm \| Material: F (LSPM)
	LSPM-25X100	Width W: 25 mm \| Length L: 100 mm \| Thickness T: 25 mm \| Material: F (LSPM)
	LSPM-25X125	Width W: 25 mm \| Length L: 125 mm \| Thickness T: 25 mm \| Material: F (LSPM)
	LSPM-25X150	Width W: 25 mm \| Length L: 150 mm \| Thickness T: 25 mm \| Material: F (LSPM)
