• LuBo LSPP Cam Side Plates (Width 50-75 mm)
1 1

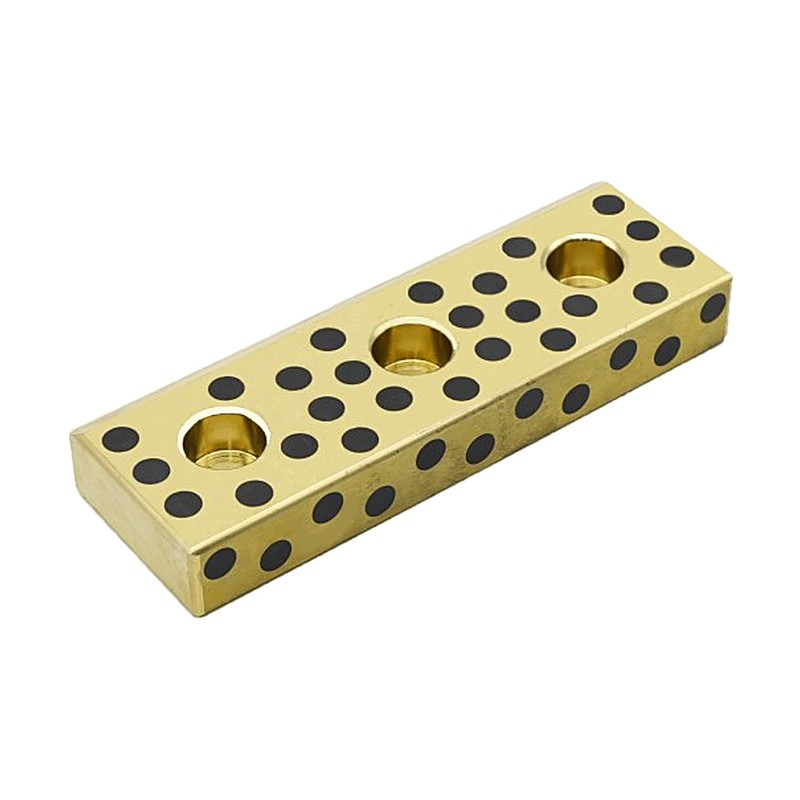

LuBo LSPP Cam Side Plates (Width 50-75 mm)

LuBo LSPP Cam Side Plates (Width 50-75 mm)

LuBo LSPP Cam Side Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 12 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Side Plates - series LSPP
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 12 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LSPP
Product Cam Side Plates
Catalogue chapter Oilless Bushings & Plates
Orderable codes 12
Size range Width 50-75 mm
Code example LSPP-50X150X20
Row spec keys Width W, Length L, Thickness T, Type
Source LuBo Oilless Bushings & Plates catalogue
LSPP-50X150X20 Width W: 50 mm | Length L: 150 mm | Thickness T: 20 mm | Type: A
LSPP-50X200X20 Width W: 50 mm | Length L: 200 mm | Thickness T: 20 mm | Type: A
LSPP-50X250X20 Width W: 50 mm | Length L: 250 mm | Thickness T: 20 mm | Type: B
LSPP-75X150X20 Width W: 75 mm | Length L: 150 mm | Thickness T: 20 mm | Type: A
LSPP-75X200X20 Width W: 75 mm | Length L: 200 mm | Thickness T: 20 mm | Type: A
LSPP-75X250X20 Width W: 75 mm | Length L: 250 mm | Thickness T: 20 mm | Type: B
LSPP-50X150X35 Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Type: A
LSPP-50X200X35 Width W: 50 mm | Length L: 200 mm | Thickness T: 35 mm | Type: A
LSPP-50X250X35 Width W: 50 mm | Length L: 250 mm | Thickness T: 35 mm | Type: B
LSPP-75X150X35 Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Type: A
LSPP-75X200X35 Width W: 75 mm | Length L: 200 mm | Thickness T: 35 mm | Type: A
LSPP-75X250X35 Width W: 75 mm | Length L: 250 mm | Thickness T: 35 mm | Type: B
Oilless Slide ComponentLuBo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSPP Cam Side Plates (Width 50-75 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (12)

LSPP-50X150X20, LSPP-50X200X20, LSPP-50X250X20, LSPP-75X150X20, LSPP-75X200X20, LSPP-75X250X20, LSPP-50X150X35, LSPP-50X200X35, LSPP-50X250X35, LSPP-75X150X35 + 2 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSPP-50X150X20Width W: 50 mm | Length L: 150 mm | Thickness T: 20 mm | Type: A
LSPP-50X200X20Width W: 50 mm | Length L: 200 mm | Thickness T: 20 mm | Type: A
LSPP-50X250X20Width W: 50 mm | Length L: 250 mm | Thickness T: 20 mm | Type: B
LSPP-75X150X20Width W: 75 mm | Length L: 150 mm | Thickness T: 20 mm | Type: A
LSPP-75X200X20Width W: 75 mm | Length L: 200 mm | Thickness T: 20 mm | Type: A
LSPP-75X250X20Width W: 75 mm | Length L: 250 mm | Thickness T: 20 mm | Type: B
LSPP-50X150X35Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Type: A
LSPP-50X200X35Width W: 50 mm | Length L: 200 mm | Thickness T: 35 mm | Type: A
LSPP-50X250X35Width W: 50 mm | Length L: 250 mm | Thickness T: 35 mm | Type: B
LSPP-75X150X35Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Type: A
LSPP-75X200X35Width W: 75 mm | Length L: 200 mm | Thickness T: 35 mm | Type: A
LSPP-75X250X35Width W: 75 mm | Length L: 250 mm | Thickness T: 35 mm | Type: B
