• LuBo LSPR Rotary Cam Slide Plates (Width 58-200 mm)
1 1

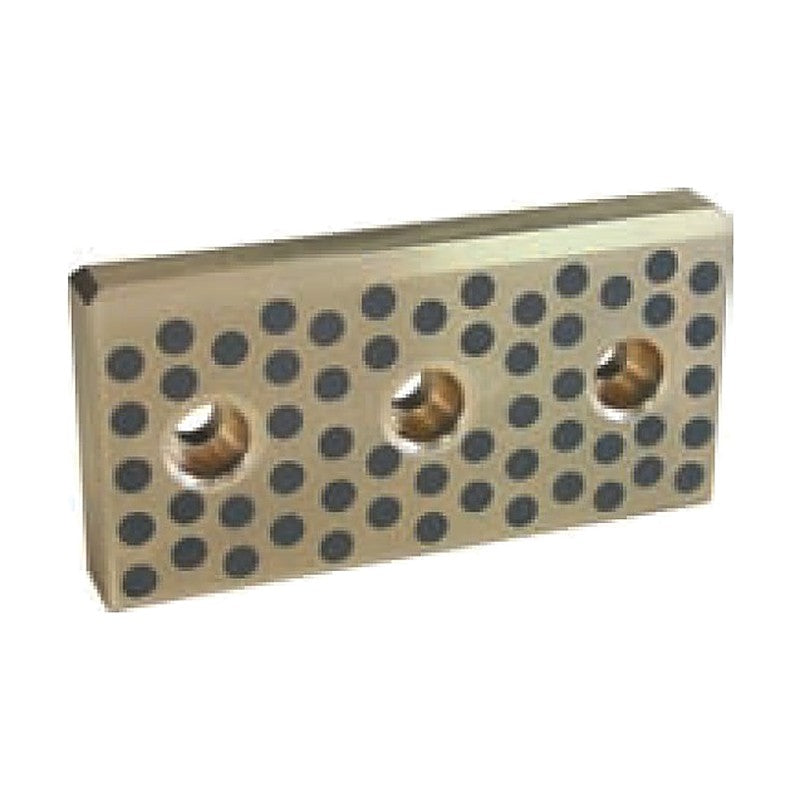

LuBo LSPR Rotary Cam Slide Plates (Width 58-200 mm)

LuBo LSPR Rotary Cam Slide Plates (Width 58-200 mm)

LuBo LSPR Rotary Cam Slide Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 6 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Rotary Cam Slide Plates - series LSPR
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 6 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LSPR
Product Rotary Cam Slide Plates
Catalogue chapter Oilless Bushings & Plates
Orderable codes 6
Size range Width 58-200 mm
Code example LSPR-58
Row spec keys Width W, Length L, L1, Type
Source LuBo Oilless Bushings & Plates catalogue
LSPR-58 Width W: 58 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: A
LSPR-75 Width W: 75 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: A
LSPR-100 Width W: 100 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-125 Width W: 125 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-150 Width W: 150 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-200 Width W: 200 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
Oilless Slide ComponentLuBo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSPR Rotary Cam Slide Plates (Width 58-200 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (6)

LSPR-58, LSPR-75, LSPR-100, LSPR-125, LSPR-150, LSPR-200

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSPR-58Width W: 58 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: A
LSPR-75Width W: 75 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: A
LSPR-100Width W: 100 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-125Width W: 125 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-150Width W: 150 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
LSPR-200Width W: 200 mm | Length L: 125-300 mm | L1: 25 or 35 mm | Type: B
