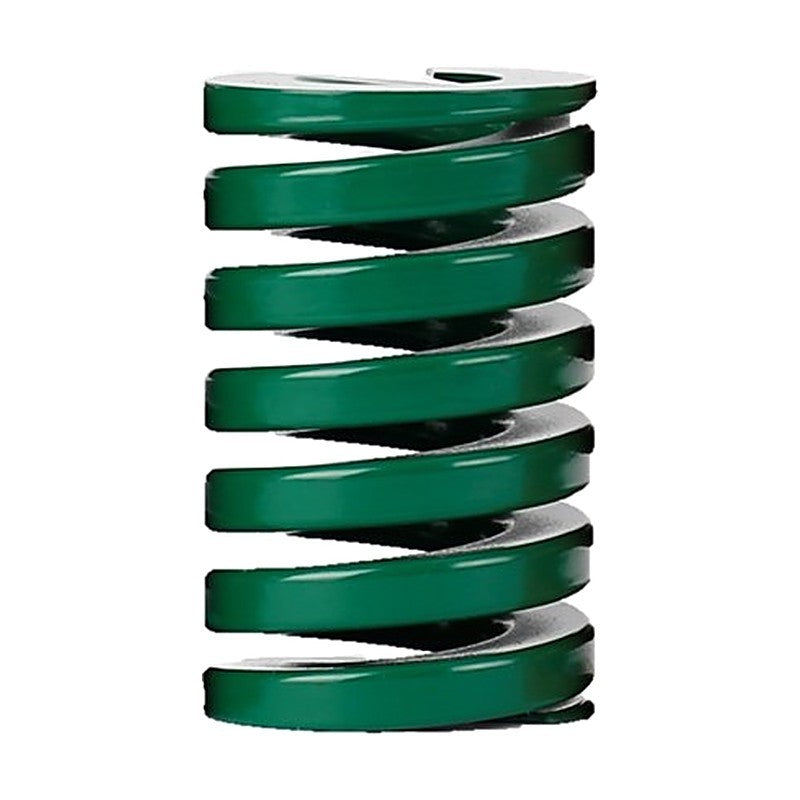

LuBo LSSH Die Spring (Heavy Load, Green)

LuBo LSSH Die Spring (Heavy Load, Green)

LuBo LSSH is a heavy load rectangular-wire coil die spring, colour-coded green, for press dies and moulds. Codes give outer diameter x free length in mm.

Key features

  • Colour-coded green for heavy load identification
  • Rated deflection 24% of free length for 300,000 cycles
  • Outer diameter 8-70 mm, free length 10-350 mm
  • Catalogue also lists deflection for 500,000 and 1,000,000 cycles
  • Ordered by product code, outer diameter and free length

Specifications

Series LSSH
Load class Heavy Load (Green)
Max deflection (300,000 cycles) 24% of free length
Load tolerance +/-10%
Squareness 2 deg or less
Free length tolerance +/-0.5 mm (50 mm or less), +/-1% (55 mm or more)
Order format LSSH - D x L (e.g. LSSH 25X30)
Lead time 1 day (catalogue)
Source LuBo Springs catalogue (Heavy Load)
LSSH 8X10 OD: 8 mm | ID: 4 mm | Free length: 10 mm | Spring rate: 8.80 kgf/mm | Max deflection: 2.4 mm
LSSH 8X15 OD: 8 mm | ID: 4 mm | Free length: 15 mm | Spring rate: 5.66 kgf/mm | Max deflection: 3.6 mm
LSSH 8X20 OD: 8 mm | ID: 4 mm | Free length: 20 mm | Spring rate: 4.40 kgf/mm | Max deflection: 4.8 mm
LSSH 8X25 OD: 8 mm | ID: 4 mm | Free length: 25 mm | Spring rate: 3.52 kgf/mm | Max deflection: 6 mm
LSSH 8X30 OD: 8 mm | ID: 4 mm | Free length: 30 mm | Spring rate: 2.93 kgf/mm | Max deflection: 7.2 mm
LSSH 8X35 OD: 8 mm | ID: 4 mm | Free length: 35 mm | Spring rate: 2.51 kgf/mm | Max deflection: 8.4 mm
LSSH 8X40 OD: 8 mm | ID: 4 mm | Free length: 40 mm | Spring rate: 2.20 kgf/mm | Max deflection: 9.6 mm
LSSH 8X45 OD: 8 mm | ID: 4 mm | Free length: 45 mm | Spring rate: 1.95 kgf/mm | Max deflection: 10.8 mm
LSSH 8X50 OD: 8 mm | ID: 4 mm | Free length: 50 mm | Spring rate: 1.76 kgf/mm | Max deflection: 12 mm
LSSH 8X55 OD: 8 mm | ID: 4 mm | Free length: 55 mm | Spring rate: 1.60 kgf/mm | Max deflection: 13.2 mm
LSSH 8X60 OD: 8 mm | ID: 4 mm | Free length: 60 mm | Spring rate: 1.47 kgf/mm | Max deflection: 14.4 mm
LSSH 8X65 OD: 8 mm | ID: 4 mm | Free length: 65 mm | Spring rate: 1.35 kgf/mm | Max deflection: 15.6 mm
LSSH 8X70 OD: 8 mm | ID: 4 mm | Free length: 70 mm | Spring rate: 1.26 kgf/mm | Max deflection: 16.8 mm
LSSH 8X75 OD: 8 mm | ID: 4 mm | Free length: 75 mm | Spring rate: 1.17 kgf/mm | Max deflection: 18 mm
LSSH 8X80 OD: 8 mm | ID: 4 mm | Free length: 80 mm | Spring rate: 1.10 kgf/mm | Max deflection: 19.2 mm
LSSH 8X90 OD: 8 mm | ID: 4 mm | Free length: 90 mm | Spring rate: 0.98 kgf/mm | Max deflection: 21.6 mm
LSSH 10X10 OD: 10 mm | ID: 5 mm | Free length: 10 mm | Spring rate: 12.27 kgf/mm | Max deflection: 2.4 mm
LSSH 10X15 OD: 10 mm | ID: 5 mm | Free length: 15 mm | Spring rate: 8.18 kgf/mm | Max deflection: 3.6 mm
LSSH 10X20 OD: 10 mm | ID: 5 mm | Free length: 20 mm | Spring rate: 6.25 kgf/mm | Max deflection: 4.8 mm
LSSH 10X25 OD: 10 mm | ID: 5 mm | Free length: 25 mm | Spring rate: 5.00 kgf/mm | Max deflection: 6 mm
LSSH 10X30 OD: 10 mm | ID: 5 mm | Free length: 30 mm | Spring rate: 4.16 kgf/mm | Max deflection: 7.2 mm
LSSH 10X35 OD: 10 mm | ID: 5 mm | Free length: 35 mm | Spring rate: 3.57 kgf/mm | Max deflection: 8.4 mm
LSSH 10X40 OD: 10 mm | ID: 5 mm | Free length: 40 mm | Spring rate: 3.15 kgf/mm | Max deflection: 9.6 mm
LSSH 10X45 OD: 10 mm | ID: 5 mm | Free length: 45 mm | Spring rate: 2.77 kgf/mm | Max deflection: 10.8 mm
LSSH 10X50 OD: 10 mm | ID: 5 mm | Free length: 50 mm | Spring rate: 2.50 kgf/mm | Max deflection: 12 mm
LSSH 10X55 OD: 10 mm | ID: 5 mm | Free length: 55 mm | Spring rate: 2.27 kgf/mm | Max deflection: 13.2 mm
LSSH 10X60 OD: 10 mm | ID: 5 mm | Free length: 60 mm | Spring rate: 2.08 kgf/mm | Max deflection: 14.4 mm
LSSH 10X65 OD: 10 mm | ID: 5 mm | Free length: 65 mm | Spring rate: 1.92 kgf/mm | Max deflection: 15.6 mm
LSSH 10X70 OD: 10 mm | ID: 5 mm | Free length: 70 mm | Spring rate: 1.79 kgf/mm | Max deflection: 16.8 mm
LSSH 10X75 OD: 10 mm | ID: 5 mm | Free length: 75 mm | Spring rate: 1.67 kgf/mm | Max deflection: 18 mm
LSSH 10X80 OD: 10 mm | ID: 5 mm | Free length: 80 mm | Spring rate: 1.56 kgf/mm | Max deflection: 19.2 mm
LSSH 10X90 OD: 10 mm | ID: 5 mm | Free length: 90 mm | Spring rate: 1.39 kgf/mm | Max deflection: 21.6 mm
LSSH 10X100 OD: 10 mm | ID: 5 mm | Free length: 100 mm | Spring rate: 1.25 kgf/mm | Max deflection: 24 mm
LSSH 12X20 OD: 12 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 8.90 kgf/mm | Max deflection: 4.8 mm
LSSH 12X25 OD: 12 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 7.10 kgf/mm | Max deflection: 6 mm
LSSH 12X30 OD: 12 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 5.97 kgf/mm | Max deflection: 7.2 mm
LSSH 12X35 OD: 12 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 5.11 kgf/mm | Max deflection: 8.4 mm
LSSH 12X40 OD: 12 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 4.47 kgf/mm | Max deflection: 9.6 mm
LSSH 12X45 OD: 12 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 3.98 kgf/mm | Max deflection: 10.8 mm
LSSH 12X50 OD: 12 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 3.58 kgf/mm | Max deflection: 12 mm
LSSH 12X55 OD: 12 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 3.25 kgf/mm | Max deflection: 13.2 mm
LSSH 12X60 OD: 12 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 2.98 kgf/mm | Max deflection: 14.4 mm
LSSH 12X65 OD: 12 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 2.74 kgf/mm | Max deflection: 15.6 mm
LSSH 12X70 OD: 12 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 2.54 kgf/mm | Max deflection: 16.8 mm
LSSH 12X75 OD: 12 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 2.37 kgf/mm | Max deflection: 18 mm
LSSH 12X80 OD: 12 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 2.21 kgf/mm | Max deflection: 19.2 mm
LSSH 12X90 OD: 12 mm | ID: 6 mm | Free length: 90 mm | Spring rate: 1.98 kgf/mm | Max deflection: 21.6 mm
LSSH 12X100 OD: 12 mm | ID: 6 mm | Free length: 100 mm | Spring rate: 1.78 kgf/mm | Max deflection: 24 mm
LSSH 14X20 OD: 14 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 12.05 kgf/mm | Max deflection: 4.8 mm
LSSH 14X25 OD: 14 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 9.83 kgf/mm | Max deflection: 6 mm
LSSH 14X30 OD: 14 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 8.19 kgf/mm | Max deflection: 7.2 mm
LSSH 14X35 OD: 14 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 7.02 kgf/mm | Max deflection: 8.4 mm
LSSH 14X40 OD: 14 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 6.14 kgf/mm | Max deflection: 9.6 mm
LSSH 14X45 OD: 14 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 5.46 kgf/mm | Max deflection: 10.8 mm
LSSH 14X50 OD: 14 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 4.91 kgf/mm | Max deflection: 12 mm
LSSH 14X55 OD: 14 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 4.46 kgf/mm | Max deflection: 13.2 mm
LSSH 14X60 OD: 14 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 4.09 kgf/mm | Max deflection: 14.4 mm
LSSH 14X65 OD: 14 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 3.78 kgf/mm | Max deflection: 15.6 mm
LSSH 14X70 OD: 14 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 3.51 kgf/mm | Max deflection: 16.8 mm
LSSH 14X75 OD: 14 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 3.27 kgf/mm | Max deflection: 18 mm
LSSH 14X80 OD: 14 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 3.07 kgf/mm | Max deflection: 19.2 mm
LSSH 14X90 OD: 14 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 2.72 kgf/mm | Max deflection: 21.6 mm
LSSH 14X100 OD: 14 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 2.46 kgf/mm | Max deflection: 24 mm
LSSH 14X125 OD: 14 mm | ID: 7 mm | Free length: 125 mm | Spring rate: 1.97 kgf/mm | Max deflection: 30 mm
LSSH 16X20 OD: 16 mm | ID: 8 mm | Free length: 20 mm | Spring rate: 15.68 kgf/mm | Max deflection: 4.8 mm
LSSH 16X25 OD: 16 mm | ID: 8 mm | Free length: 25 mm | Spring rate: 12.83 kgf/mm | Max deflection: 6 mm
LSSH 16X30 OD: 16 mm | ID: 8 mm | Free length: 30 mm | Spring rate: 10.69 kgf/mm | Max deflection: 7.2 mm
LSSH 16X35 OD: 16 mm | ID: 8 mm | Free length: 35 mm | Spring rate: 9.16 kgf/mm | Max deflection: 8.4 mm
LSSH 16X40 OD: 16 mm | ID: 8 mm | Free length: 40 mm | Spring rate: 8.02 kgf/mm | Max deflection: 9.6 mm
LSSH 16X45 OD: 16 mm | ID: 8 mm | Free length: 45 mm | Spring rate: 7.12 kgf/mm | Max deflection: 10.8 mm
LSSH 16X50 OD: 16 mm | ID: 8 mm | Free length: 50 mm | Spring rate: 6.41 kgf/mm | Max deflection: 12 mm
LSSH 16X55 OD: 16 mm | ID: 8 mm | Free length: 55 mm | Spring rate: 5.83 kgf/mm | Max deflection: 13.2 mm
LSSH 16X60 OD: 16 mm | ID: 8 mm | Free length: 60 mm | Spring rate: 5.34 kgf/mm | Max deflection: 14.4 mm
LSSH 16X65 OD: 16 mm | ID: 8 mm | Free length: 65 mm | Spring rate: 4.93 kgf/mm | Max deflection: 15.6 mm
LSSH 16X70 OD: 16 mm | ID: 8 mm | Free length: 70 mm | Spring rate: 4.58 kgf/mm | Max deflection: 16.8 mm
LSSH 16X75 OD: 16 mm | ID: 8 mm | Free length: 75 mm | Spring rate: 4.28 kgf/mm | Max deflection: 18 mm
LSSH 16X80 OD: 16 mm | ID: 8 mm | Free length: 80 mm | Spring rate: 4.01 kgf/mm | Max deflection: 19.2 mm
LSSH 16X90 OD: 16 mm | ID: 8 mm | Free length: 90 mm | Spring rate: 3.57 kgf/mm | Max deflection: 21.6 mm
LSSH 16X100 OD: 16 mm | ID: 8 mm | Free length: 100 mm | Spring rate: 3.21 kgf/mm | Max deflection: 24 mm
LSSH 16X125 OD: 16 mm | ID: 8 mm | Free length: 125 mm | Spring rate: 2.57 kgf/mm | Max deflection: 30 mm
LSSH 18X20 OD: 18 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 19.77 kgf/mm | Max deflection: 4.8 mm
LSSH 18X25 OD: 18 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 16.16 kgf/mm | Max deflection: 6 mm
LSSH 18X30 OD: 18 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 13.47 kgf/mm | Max deflection: 7.2 mm
LSSH 18X35 OD: 18 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 11.54 kgf/mm | Max deflection: 8.4 mm
LSSH 18X40 OD: 18 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 10.10 kgf/mm | Max deflection: 9.6 mm
LSSH 18X45 OD: 18 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 8.98 kgf/mm | Max deflection: 10.8 mm
LSSH 18X50 OD: 18 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 8.08 kgf/mm | Max deflection: 12 mm
LSSH 18X55 OD: 18 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 7.34 kgf/mm | Max deflection: 13.2 mm
LSSH 18X60 OD: 18 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 6.73 kgf/mm | Max deflection: 14.4 mm
LSSH 18X65 OD: 18 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 6.21 kgf/mm | Max deflection: 15.6 mm
LSSH 18X70 OD: 18 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 5.77 kgf/mm | Max deflection: 16.8 mm
LSSH 18X75 OD: 18 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 5.39 kgf/mm | Max deflection: 18 mm
LSSH 18X80 OD: 18 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 5.05 kgf/mm | Max deflection: 19.2 mm
LSSH 18X90 OD: 18 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 4.50 kgf/mm | Max deflection: 21.6 mm
LSSH 18X100 OD: 18 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 4.04 kgf/mm | Max deflection: 24 mm
LSSH 18X125 OD: 18 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 3.23 kgf/mm | Max deflection: 30 mm
LSSH 20X20 OD: 20 mm | ID: 10 mm | Free length: 20 mm | Spring rate: 24.55 kgf/mm | Max deflection: 4.8 mm
LSSH 20X25 OD: 20 mm | ID: 10 mm | Free length: 25 mm | Spring rate: 20.00 kgf/mm | Max deflection: 6 mm
LSSH 20X30 OD: 20 mm | ID: 10 mm | Free length: 30 mm | Spring rate: 16.66 kgf/mm | Max deflection: 7.2 mm
LSSH 20X35 OD: 20 mm | ID: 10 mm | Free length: 35 mm | Spring rate: 14.28 kgf/mm | Max deflection: 8.4 mm
LSSH 20X40 OD: 20 mm | ID: 10 mm | Free length: 40 mm | Spring rate: 12.50 kgf/mm | Max deflection: 9.6 mm
LSSH 20X45 OD: 20 mm | ID: 10 mm | Free length: 45 mm | Spring rate: 11.44 kgf/mm | Max deflection: 10.8 mm
LSSH 20X50 OD: 20 mm | ID: 10 mm | Free length: 50 mm | Spring rate: 10.00 kgf/mm | Max deflection: 12 mm
LSSH 20X55 OD: 20 mm | ID: 10 mm | Free length: 55 mm | Spring rate: 9.09 kgf/mm | Max deflection: 13.2 mm
LSSH 20X60 OD: 20 mm | ID: 10 mm | Free length: 60 mm | Spring rate: 8.33 kgf/mm | Max deflection: 14.4 mm
LSSH 20X65 OD: 20 mm | ID: 10 mm | Free length: 65 mm | Spring rate: 7.69 kgf/mm | Max deflection: 15.6 mm
LSSH 20X70 OD: 20 mm | ID: 10 mm | Free length: 70 mm | Spring rate: 7.14 kgf/mm | Max deflection: 16.8 mm
LSSH 20X75 OD: 20 mm | ID: 10 mm | Free length: 75 mm | Spring rate: 6.67 kgf/mm | Max deflection: 18 mm
LSSH 20X80 OD: 20 mm | ID: 10 mm | Free length: 80 mm | Spring rate: 6.25 kgf/mm | Max deflection: 19.2 mm
LSSH 20X90 OD: 20 mm | ID: 10 mm | Free length: 90 mm | Spring rate: 5.55 kgf/mm | Max deflection: 21.6 mm
LSSH 20X100 OD: 20 mm | ID: 10 mm | Free length: 100 mm | Spring rate: 5.00 kgf/mm | Max deflection: 24 mm
LSSH 20X125 OD: 20 mm | ID: 10 mm | Free length: 125 mm | Spring rate: 4.00 kgf/mm | Max deflection: 30 mm
LSSH 20X150 OD: 20 mm | ID: 10 mm | Free length: 150 mm | Spring rate: 3.33 kgf/mm | Max deflection: 36 mm
LSSH 20X175 OD: 20 mm | ID: 10 mm | Free length: 175 mm | Spring rate: 2.86 kgf/mm | Max deflection: 42 mm
LSSH 22X25 OD: 22 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 24.16 kgf/mm | Max deflection: 6 mm
LSSH 22X30 OD: 22 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 20.13 kgf/mm | Max deflection: 7.2 mm
LSSH 22X35 OD: 22 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 17.30 kgf/mm | Max deflection: 8.4 mm
LSSH 22X40 OD: 22 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 15.10 kgf/mm | Max deflection: 9.6 mm
LSSH 22X45 OD: 22 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 13.40 kgf/mm | Max deflection: 10.8 mm
LSSH 22X50 OD: 22 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 12.08 kgf/mm | Max deflection: 12 mm
LSSH 22X55 OD: 22 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 10.94 kgf/mm | Max deflection: 13.2 mm
LSSH 22X60 OD: 22 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 10.06 kgf/mm | Max deflection: 14.4 mm
LSSH 22X65 OD: 22 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 9.28 kgf/mm | Max deflection: 15.6 mm
LSSH 22X70 OD: 22 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 8.63 kgf/mm | Max deflection: 16.8 mm
LSSH 22X75 OD: 22 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 8.04 kgf/mm | Max deflection: 18 mm
LSSH 22X80 OD: 22 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 7.55 kgf/mm | Max deflection: 19.2 mm
LSSH 22X90 OD: 22 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 6.71 kgf/mm | Max deflection: 21.6 mm
LSSH 22X100 OD: 22 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 6.04 kgf/mm | Max deflection: 24 mm
LSSH 22X125 OD: 22 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 4.83 kgf/mm | Max deflection: 30 mm
LSSH 22X150 OD: 22 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 4.02 kgf/mm | Max deflection: 36 mm
LSSH 22X175 OD: 22 mm | ID: 11 mm | Free length: 175 mm | Spring rate: 3.45 kgf/mm | Max deflection: 42 mm
LSSH 25X25 OD: 25 mm | ID: 12.5 mm | Free length: 25 mm | Spring rate: 31.20 kgf/mm | Max deflection: 6 mm
LSSH 25X30 OD: 25 mm | ID: 12.5 mm | Free length: 30 mm | Spring rate: 25.97 kgf/mm | Max deflection: 7.2 mm
LSSH 25X35 OD: 25 mm | ID: 12.5 mm | Free length: 35 mm | Spring rate: 22.38 kgf/mm | Max deflection: 8.4 mm
LSSH 25X40 OD: 25 mm | ID: 12.5 mm | Free length: 40 mm | Spring rate: 19.47 kgf/mm | Max deflection: 9.6 mm
LSSH 25X45 OD: 25 mm | ID: 12.5 mm | Free length: 45 mm | Spring rate: 17.40 kgf/mm | Max deflection: 10.8 mm
LSSH 25X50 OD: 25 mm | ID: 12.5 mm | Free length: 50 mm | Spring rate: 15.58 kgf/mm | Max deflection: 12 mm
LSSH 25X55 OD: 25 mm | ID: 12.5 mm | Free length: 55 mm | Spring rate: 14.20 kgf/mm | Max deflection: 13.2 mm
LSSH 25X60 OD: 25 mm | ID: 12.5 mm | Free length: 60 mm | Spring rate: 12.98 kgf/mm | Max deflection: 14.4 mm
LSSH 25X65 OD: 25 mm | ID: 12.5 mm | Free length: 65 mm | Spring rate: 12.00 kgf/mm | Max deflection: 15.6 mm
LSSH 25X70 OD: 25 mm | ID: 12.5 mm | Free length: 70 mm | Spring rate: 11.13 kgf/mm | Max deflection: 16.8 mm
LSSH 25X75 OD: 25 mm | ID: 12.5 mm | Free length: 75 mm | Spring rate: 10.40 kgf/mm | Max deflection: 18 mm
LSSH 25X80 OD: 25 mm | ID: 12.5 mm | Free length: 80 mm | Spring rate: 9.73 kgf/mm | Max deflection: 19.2 mm
LSSH 25X90 OD: 25 mm | ID: 12.5 mm | Free length: 90 mm | Spring rate: 8.65 kgf/mm | Max deflection: 21.6 mm
LSSH 25X100 OD: 25 mm | ID: 12.5 mm | Free length: 100 mm | Spring rate: 7.79 kgf/mm | Max deflection: 24 mm
LSSH 25X125 OD: 25 mm | ID: 12.5 mm | Free length: 125 mm | Spring rate: 6.23 kgf/mm | Max deflection: 30 mm
LSSH 25X150 OD: 25 mm | ID: 12.5 mm | Free length: 150 mm | Spring rate: 5.20 kgf/mm | Max deflection: 36 mm
LSSH 25X175 OD: 25 mm | ID: 12.5 mm | Free length: 175 mm | Spring rate: 4.46 kgf/mm | Max deflection: 42 mm
LSSH 25X200 OD: 25 mm | ID: 12.5 mm | Free length: 200 mm | Spring rate: 3.90 kgf/mm | Max deflection: 48 mm
LSSH 27X25 OD: 27 mm | ID: 13.5 mm | Free length: 25 mm | Spring rate: 36.40 kgf/mm | Max deflection: 6 mm
LSSH 27X30 OD: 27 mm | ID: 13.5 mm | Free length: 30 mm | Spring rate: 30.41 kgf/mm | Max deflection: 7.2 mm
LSSH 27X35 OD: 27 mm | ID: 13.5 mm | Free length: 35 mm | Spring rate: 26.20 kgf/mm | Max deflection: 8.4 mm
LSSH 27X40 OD: 27 mm | ID: 13.5 mm | Free length: 40 mm | Spring rate: 22.81 kgf/mm | Max deflection: 9.6 mm
LSSH 27X45 OD: 27 mm | ID: 13.5 mm | Free length: 45 mm | Spring rate: 20.30 kgf/mm | Max deflection: 10.8 mm
LSSH 27X50 OD: 27 mm | ID: 13.5 mm | Free length: 50 mm | Spring rate: 18.25 kgf/mm | Max deflection: 12 mm
LSSH 27X55 OD: 27 mm | ID: 13.5 mm | Free length: 55 mm | Spring rate: 16.50 kgf/mm | Max deflection: 13.2 mm
LSSH 27X60 OD: 27 mm | ID: 13.5 mm | Free length: 60 mm | Spring rate: 15.20 kgf/mm | Max deflection: 14.4 mm
LSSH 27X65 OD: 27 mm | ID: 13.5 mm | Free length: 65 mm | Spring rate: 14.00 kgf/mm | Max deflection: 15.6 mm
LSSH 27X70 OD: 27 mm | ID: 13.5 mm | Free length: 70 mm | Spring rate: 13.03 kgf/mm | Max deflection: 16.8 mm
LSSH 27X75 OD: 27 mm | ID: 13.5 mm | Free length: 75 mm | Spring rate: 12.10 kgf/mm | Max deflection: 18 mm
LSSH 27X80 OD: 27 mm | ID: 13.5 mm | Free length: 80 mm | Spring rate: 11.40 kgf/mm | Max deflection: 19.2 mm
LSSH 27X90 OD: 27 mm | ID: 13.5 mm | Free length: 90 mm | Spring rate: 10.13 kgf/mm | Max deflection: 21.6 mm
LSSH 27X100 OD: 27 mm | ID: 13.5 mm | Free length: 100 mm | Spring rate: 6.12 kgf/mm | Max deflection: 24 mm
LSSH 27X125 OD: 27 mm | ID: 13.5 mm | Free length: 125 mm | Spring rate: 7.30 kgf/mm | Max deflection: 30 mm
LSSH 27X150 OD: 27 mm | ID: 13.5 mm | Free length: 150 mm | Spring rate: 6.08 kgf/mm | Max deflection: 36 mm
LSSH 27X175 OD: 27 mm | ID: 13.5 mm | Free length: 175 mm | Spring rate: 5.21 kgf/mm | Max deflection: 42 mm
LSSH 27X200 OD: 27 mm | ID: 13.5 mm | Free length: 200 mm | Spring rate: 4.56 kgf/mm | Max deflection: 48 mm
LSSH 30X25 OD: 30 mm | ID: 15 mm | Free length: 25 mm | Spring rate: 45.00 kgf/mm | Max deflection: 6 mm
LSSH 30X30 OD: 30 mm | ID: 15 mm | Free length: 30 mm | Spring rate: 37.50 kgf/mm | Max deflection: 7.2 mm
LSSH 30X35 OD: 30 mm | ID: 15 mm | Free length: 35 mm | Spring rate: 32.26 kgf/mm | Max deflection: 8.4 mm
LSSH 30X40 OD: 30 mm | ID: 15 mm | Free length: 40 mm | Spring rate: 28.12 kgf/mm | Max deflection: 9.6 mm
LSSH 30X45 OD: 30 mm | ID: 15 mm | Free length: 45 mm | Spring rate: 25.00 kgf/mm | Max deflection: 10.8 mm
LSSH 30X50 OD: 30 mm | ID: 15 mm | Free length: 50 mm | Spring rate: 22.50 kgf/mm | Max deflection: 12 mm
LSSH 30X55 OD: 30 mm | ID: 15 mm | Free length: 55 mm | Spring rate: 20.40 kgf/mm | Max deflection: 13.2 mm
LSSH 30X60 OD: 30 mm | ID: 15 mm | Free length: 60 mm | Spring rate: 18.75 kgf/mm | Max deflection: 14.4 mm
LSSH 30X65 OD: 30 mm | ID: 15 mm | Free length: 65 mm | Spring rate: 17.30 kgf/mm | Max deflection: 15.6 mm
LSSH 30X70 OD: 30 mm | ID: 15 mm | Free length: 70 mm | Spring rate: 16.07 kgf/mm | Max deflection: 16.8 mm
LSSH 30X75 OD: 30 mm | ID: 15 mm | Free length: 75 mm | Spring rate: 15.00 kgf/mm | Max deflection: 18 mm
LSSH 30X80 OD: 30 mm | ID: 15 mm | Free length: 80 mm | Spring rate: 14.06 kgf/mm | Max deflection: 19.2 mm
LSSH 30X90 OD: 30 mm | ID: 15 mm | Free length: 90 mm | Spring rate: 12.50 kgf/mm | Max deflection: 21.6 mm
LSSH 30X100 OD: 30 mm | ID: 15 mm | Free length: 100 mm | Spring rate: 11.25 kgf/mm | Max deflection: 24 mm
LSSH 30X125 OD: 30 mm | ID: 15 mm | Free length: 125 mm | Spring rate: 9.00 kgf/mm | Max deflection: 30 mm
LSSH 30X150 OD: 30 mm | ID: 15 mm | Free length: 150 mm | Spring rate: 7.50 kgf/mm | Max deflection: 36 mm
LSSH 30X175 OD: 30 mm | ID: 15 mm | Free length: 175 mm | Spring rate: 6.42 kgf/mm | Max deflection: 42 mm
LSSH 30X200 OD: 30 mm | ID: 15 mm | Free length: 200 mm | Spring rate: 5.62 kgf/mm | Max deflection: 48 mm
LSSH 35X35 OD: 35 mm | ID: 17.5 mm | Free length: 35 mm | Spring rate: 43.68 kgf/mm | Max deflection: 8.4 mm
LSSH 35X40 OD: 35 mm | ID: 17.5 mm | Free length: 40 mm | Spring rate: 38.22 kgf/mm | Max deflection: 9.6 mm
LSSH 35X45 OD: 35 mm | ID: 17.5 mm | Free length: 45 mm | Spring rate: 33.98 kgf/mm | Max deflection: 10.8 mm
LSSH 35X50 OD: 35 mm | ID: 17.5 mm | Free length: 50 mm | Spring rate: 30.58 kgf/mm | Max deflection: 12 mm
LSSH 35X55 OD: 35 mm | ID: 17.5 mm | Free length: 55 mm | Spring rate: 27.80 kgf/mm | Max deflection: 13.2 mm
LSSH 35X60 OD: 35 mm | ID: 17.5 mm | Free length: 60 mm | Spring rate: 25.48 kgf/mm | Max deflection: 14.4 mm
LSSH 35X65 OD: 35 mm | ID: 17.5 mm | Free length: 65 mm | Spring rate: 23.53 kgf/mm | Max deflection: 15.6 mm
LSSH 35X70 OD: 35 mm | ID: 17.5 mm | Free length: 70 mm | Spring rate: 21.84 kgf/mm | Max deflection: 16.8 mm
LSSH 35X75 OD: 35 mm | ID: 17.5 mm | Free length: 75 mm | Spring rate: 20.39 kgf/mm | Max deflection: 18 mm
LSSH 35X80 OD: 35 mm | ID: 17.5 mm | Free length: 80 mm | Spring rate: 19.11 kgf/mm | Max deflection: 19.2 mm
LSSH 35X90 OD: 35 mm | ID: 17.5 mm | Free length: 90 mm | Spring rate: 16.99 kgf/mm | Max deflection: 21.6 mm
LSSH 35X100 OD: 35 mm | ID: 17.5 mm | Free length: 100 mm | Spring rate: 15.29 kgf/mm | Max deflection: 24 mm
LSSH 35X125 OD: 35 mm | ID: 17.5 mm | Free length: 125 mm | Spring rate: 12.23 kgf/mm | Max deflection: 30 mm
LSSH 35X150 OD: 35 mm | ID: 17.5 mm | Free length: 150 mm | Spring rate: 10.19 kgf/mm | Max deflection: 36 mm
LSSH 35X175 OD: 35 mm | ID: 17.5 mm | Free length: 175 mm | Spring rate: 8.73 kgf/mm | Max deflection: 42 mm
LSSH 35X200 OD: 35 mm | ID: 17.5 mm | Free length: 200 mm | Spring rate: 7.64 kgf/mm | Max deflection: 48 mm
LSSH 40X40 OD: 40 mm | ID: 20 mm | Free length: 40 mm | Spring rate: 50.00 kgf/mm | Max deflection: 9.6 mm
LSSH 40X45 OD: 40 mm | ID: 20 mm | Free length: 45 mm | Spring rate: 44.44 kgf/mm | Max deflection: 10.8 mm
LSSH 40X50 OD: 40 mm | ID: 20 mm | Free length: 50 mm | Spring rate: 40.00 kgf/mm | Max deflection: 12 mm
LSSH 40X55 OD: 40 mm | ID: 20 mm | Free length: 55 mm | Spring rate: 36.36 kgf/mm | Max deflection: 13.2 mm
LSSH 40X60 OD: 40 mm | ID: 20 mm | Free length: 60 mm | Spring rate: 33.93 kgf/mm | Max deflection: 14.4 mm
LSSH 40X65 OD: 40 mm | ID: 20 mm | Free length: 65 mm | Spring rate: 30.77 kgf/mm | Max deflection: 15.6 mm
LSSH 40X70 OD: 40 mm | ID: 20 mm | Free length: 70 mm | Spring rate: 28.57 kgf/mm | Max deflection: 16.8 mm
LSSH 40X75 OD: 40 mm | ID: 20 mm | Free length: 75 mm | Spring rate: 26.67 kgf/mm | Max deflection: 18 mm
LSSH 40X80 OD: 40 mm | ID: 20 mm | Free length: 80 mm | Spring rate: 25.00 kgf/mm | Max deflection: 19.2 mm
LSSH 40X90 OD: 40 mm | ID: 20 mm | Free length: 90 mm | Spring rate: 22.22 kgf/mm | Max deflection: 21.6 mm
LSSH 40X100 OD: 40 mm | ID: 20 mm | Free length: 100 mm | Spring rate: 20.00 kgf/mm | Max deflection: 24 mm
LSSH 40X125 OD: 40 mm | ID: 20 mm | Free length: 125 mm | Spring rate: 16.00 kgf/mm | Max deflection: 30 mm
LSSH 40X150 OD: 40 mm | ID: 20 mm | Free length: 150 mm | Spring rate: 13.33 kgf/mm | Max deflection: 36 mm
LSSH 40X175 OD: 40 mm | ID: 20 mm | Free length: 175 mm | Spring rate: 11.42 kgf/mm | Max deflection: 42 mm
LSSH 40X200 OD: 40 mm | ID: 20 mm | Free length: 200 mm | Spring rate: 10.00 kgf/mm | Max deflection: 48 mm
LSSH 40X225 OD: 40 mm | ID: 20 mm | Free length: 225 mm | Spring rate: 8.89 kgf/mm | Max deflection: 54 mm
LSSH 40X250 OD: 40 mm | ID: 20 mm | Free length: 250 mm | Spring rate: 8.00 kgf/mm | Max deflection: 60 mm
LSSH 40X275 OD: 40 mm | ID: 20 mm | Free length: 275 mm | Spring rate: 7.27 kgf/mm | Max deflection: 66 mm
LSSH 40X300 OD: 40 mm | ID: 20 mm | Free length: 300 mm | Spring rate: 6.67 kgf/mm | Max deflection: 72 mm
LSSH 50X50 OD: 50 mm | ID: 25 mm | Free length: 50 mm | Spring rate: 62.50 kgf/mm | Max deflection: 12 mm
LSSH 50X55 OD: 50 mm | ID: 25 mm | Free length: 55 mm | Spring rate: 56.82 kgf/mm | Max deflection: 13.2 mm
LSSH 50X60 OD: 50 mm | ID: 25 mm | Free length: 60 mm | Spring rate: 52.08 kgf/mm | Max deflection: 14.4 mm
LSSH 50X65 OD: 50 mm | ID: 25 mm | Free length: 65 mm | Spring rate: 48.08 kgf/mm | Max deflection: 15.6 mm
LSSH 50X70 OD: 50 mm | ID: 25 mm | Free length: 70 mm | Spring rate: 44.64 kgf/mm | Max deflection: 16.8 mm
LSSH 50X75 OD: 50 mm | ID: 25 mm | Free length: 75 mm | Spring rate: 41.67 kgf/mm | Max deflection: 18 mm
LSSH 50X80 OD: 50 mm | ID: 25 mm | Free length: 80 mm | Spring rate: 39.06 kgf/mm | Max deflection: 19.2 mm
LSSH 50X90 OD: 50 mm | ID: 25 mm | Free length: 90 mm | Spring rate: 34.72 kgf/mm | Max deflection: 21.6 mm
LSSH 50X100 OD: 50 mm | ID: 25 mm | Free length: 100 mm | Spring rate: 31.25 kgf/mm | Max deflection: 24 mm
LSSH 50X125 OD: 50 mm | ID: 25 mm | Free length: 125 mm | Spring rate: 25.00 kgf/mm | Max deflection: 30 mm
LSSH 50X150 OD: 50 mm | ID: 25 mm | Free length: 150 mm | Spring rate: 20.83 kgf/mm | Max deflection: 36 mm
LSSH 50X175 OD: 50 mm | ID: 25 mm | Free length: 175 mm | Spring rate: 17.85 kgf/mm | Max deflection: 42 mm
LSSH 50X200 OD: 50 mm | ID: 25 mm | Free length: 200 mm | Spring rate: 15.62 kgf/mm | Max deflection: 48 mm
LSSH 50X225 OD: 50 mm | ID: 25 mm | Free length: 225 mm | Spring rate: 13.89 kgf/mm | Max deflection: 54 mm
LSSH 50X250 OD: 50 mm | ID: 25 mm | Free length: 250 mm | Spring rate: 12.50 kgf/mm | Max deflection: 60 mm
LSSH 50X275 OD: 50 mm | ID: 25 mm | Free length: 275 mm | Spring rate: 11.36 kgf/mm | Max deflection: 66 mm
LSSH 50X300 OD: 50 mm | ID: 25 mm | Free length: 300 mm | Spring rate: 10.41 kgf/mm | Max deflection: 72 mm
LSSH 50X350 OD: 50 mm | ID: 25 mm | Free length: 350 mm | Spring rate: 8.93 kgf/mm | Max deflection: 84 mm
LSSH 60X60 OD: 60 mm | ID: 30 mm | Free length: 60 mm | Spring rate: 75.00 kgf/mm | Max deflection: 14.4 mm
LSSH 60X70 OD: 60 mm | ID: 30 mm | Free length: 70 mm | Spring rate: 64.28 kgf/mm | Max deflection: 16.8 mm
LSSH 60X80 OD: 60 mm | ID: 30 mm | Free length: 80 mm | Spring rate: 56.25 kgf/mm | Max deflection: 19.2 mm
LSSH 60X90 OD: 60 mm | ID: 30 mm | Free length: 90 mm | Spring rate: 50.00 kgf/mm | Max deflection: 21.6 mm
LSSH 60X100 OD: 60 mm | ID: 30 mm | Free length: 100 mm | Spring rate: 45.00 kgf/mm | Max deflection: 24 mm
LSSH 60X125 OD: 60 mm | ID: 30 mm | Free length: 125 mm | Spring rate: 36.00 kgf/mm | Max deflection: 30 mm
LSSH 60X150 OD: 60 mm | ID: 30 mm | Free length: 150 mm | Spring rate: 30.00 kgf/mm | Max deflection: 36 mm
LSSH 60X175 OD: 60 mm | ID: 30 mm | Free length: 175 mm | Spring rate: 25.71 kgf/mm | Max deflection: 42 mm
LSSH 60X200 OD: 60 mm | ID: 30 mm | Free length: 200 mm | Spring rate: 22.50 kgf/mm | Max deflection: 48 mm
LSSH 60X225 OD: 60 mm | ID: 30 mm | Free length: 225 mm | Spring rate: 20.00 kgf/mm | Max deflection: 54 mm
LSSH 60X250 OD: 60 mm | ID: 30 mm | Free length: 250 mm | Spring rate: 18.00 kgf/mm | Max deflection: 60 mm
LSSH 60X275 OD: 60 mm | ID: 30 mm | Free length: 275 mm | Spring rate: 16.36 kgf/mm | Max deflection: 66 mm
LSSH 60X300 OD: 60 mm | ID: 30 mm | Free length: 300 mm | Spring rate: 15.00 kgf/mm | Max deflection: 72 mm
LSSH 60X350 OD: 60 mm | ID: 30 mm | Free length: 350 mm | Spring rate: 12.86 kgf/mm | Max deflection: 84 mm
LSSH 70X70 OD: 70 mm | ID: 38.5 mm | Free length: 70 mm | Spring rate: 83.33 kgf/mm | Max deflection: 16.8 mm
LSSH 70X80 OD: 70 mm | ID: 38.5 mm | Free length: 80 mm | Spring rate: 72.92 kgf/mm | Max deflection: 19.2 mm
LSSH 70X90 OD: 70 mm | ID: 38.5 mm | Free length: 90 mm | Spring rate: 64.81 kgf/mm | Max deflection: 21.6 mm
LSSH 70X100 OD: 70 mm | ID: 38.5 mm | Free length: 100 mm | Spring rate: 58.33 kgf/mm | Max deflection: 24 mm
LSSH 70X125 OD: 70 mm | ID: 38.5 mm | Free length: 125 mm | Spring rate: 46.67 kgf/mm | Max deflection: 30 mm
LSSH 70X150 OD: 70 mm | ID: 38.5 mm | Free length: 150 mm | Spring rate: 38.89 kgf/mm | Max deflection: 36 mm
LSSH 70X175 OD: 70 mm | ID: 38.5 mm | Free length: 175 mm | Spring rate: 33.33 kgf/mm | Max deflection: 42 mm
LSSH 70X200 OD: 70 mm | ID: 38.5 mm | Free length: 200 mm | Spring rate: 29.17 kgf/mm | Max deflection: 48 mm
LSSH 70X225 OD: 70 mm | ID: 38.5 mm | Free length: 225 mm | Spring rate: 25.93 kgf/mm | Max deflection: 54 mm
LSSH 70X250 OD: 70 mm | ID: 38.5 mm | Free length: 250 mm | Spring rate: 23.33 kgf/mm | Max deflection: 60 mm
LSSH 70X275 OD: 70 mm | ID: 38.5 mm | Free length: 275 mm | Spring rate: 21.21 kgf/mm | Max deflection: 66 mm
LSSH 70X300 OD: 70 mm | ID: 38.5 mm | Free length: 300 mm | Spring rate: 19.44 kgf/mm | Max deflection: 72 mm
LSSH 70X350 OD: 70 mm | ID: 38.5 mm | Free length: 350 mm | Spring rate: 16.67 kgf/mm | Max deflection: 84 mm
Die SpringLuBo
265 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSSH Die Spring (Heavy Load, Green)

Brand LuBo·Die Spring

Available part numbers (265)

LSSH 8X10, LSSH 8X15, LSSH 8X20, LSSH 8X25, LSSH 8X30, LSSH 8X35, LSSH 8X40, LSSH 8X45, LSSH 8X50, LSSH 8X55 + 255 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSSH 8X10OD: 8 mm | ID: 4 mm | Free length: 10 mm | Spring rate: 8.80 kgf/mm | Max deflection: 2.4 mm
LSSH 8X15OD: 8 mm | ID: 4 mm | Free length: 15 mm | Spring rate: 5.66 kgf/mm | Max deflection: 3.6 mm
LSSH 8X20OD: 8 mm | ID: 4 mm | Free length: 20 mm | Spring rate: 4.40 kgf/mm | Max deflection: 4.8 mm
LSSH 8X25OD: 8 mm | ID: 4 mm | Free length: 25 mm | Spring rate: 3.52 kgf/mm | Max deflection: 6 mm
LSSH 8X30OD: 8 mm | ID: 4 mm | Free length: 30 mm | Spring rate: 2.93 kgf/mm | Max deflection: 7.2 mm
LSSH 8X35OD: 8 mm | ID: 4 mm | Free length: 35 mm | Spring rate: 2.51 kgf/mm | Max deflection: 8.4 mm
LSSH 8X40OD: 8 mm | ID: 4 mm | Free length: 40 mm | Spring rate: 2.20 kgf/mm | Max deflection: 9.6 mm
LSSH 8X45OD: 8 mm | ID: 4 mm | Free length: 45 mm | Spring rate: 1.95 kgf/mm | Max deflection: 10.8 mm
LSSH 8X50OD: 8 mm | ID: 4 mm | Free length: 50 mm | Spring rate: 1.76 kgf/mm | Max deflection: 12 mm
LSSH 8X55OD: 8 mm | ID: 4 mm | Free length: 55 mm | Spring rate: 1.60 kgf/mm | Max deflection: 13.2 mm
LSSH 8X60OD: 8 mm | ID: 4 mm | Free length: 60 mm | Spring rate: 1.47 kgf/mm | Max deflection: 14.4 mm
LSSH 8X65OD: 8 mm | ID: 4 mm | Free length: 65 mm | Spring rate: 1.35 kgf/mm | Max deflection: 15.6 mm
LSSH 8X70OD: 8 mm | ID: 4 mm | Free length: 70 mm | Spring rate: 1.26 kgf/mm | Max deflection: 16.8 mm
LSSH 8X75OD: 8 mm | ID: 4 mm | Free length: 75 mm | Spring rate: 1.17 kgf/mm | Max deflection: 18 mm
LSSH 8X80OD: 8 mm | ID: 4 mm | Free length: 80 mm | Spring rate: 1.10 kgf/mm | Max deflection: 19.2 mm
LSSH 8X90OD: 8 mm | ID: 4 mm | Free length: 90 mm | Spring rate: 0.98 kgf/mm | Max deflection: 21.6 mm
LSSH 10X10OD: 10 mm | ID: 5 mm | Free length: 10 mm | Spring rate: 12.27 kgf/mm | Max deflection: 2.4 mm
LSSH 10X15OD: 10 mm | ID: 5 mm | Free length: 15 mm | Spring rate: 8.18 kgf/mm | Max deflection: 3.6 mm
LSSH 10X20OD: 10 mm | ID: 5 mm | Free length: 20 mm | Spring rate: 6.25 kgf/mm | Max deflection: 4.8 mm
LSSH 10X25OD: 10 mm | ID: 5 mm | Free length: 25 mm | Spring rate: 5.00 kgf/mm | Max deflection: 6 mm
LSSH 10X30OD: 10 mm | ID: 5 mm | Free length: 30 mm | Spring rate: 4.16 kgf/mm | Max deflection: 7.2 mm
LSSH 10X35OD: 10 mm | ID: 5 mm | Free length: 35 mm | Spring rate: 3.57 kgf/mm | Max deflection: 8.4 mm
LSSH 10X40OD: 10 mm | ID: 5 mm | Free length: 40 mm | Spring rate: 3.15 kgf/mm | Max deflection: 9.6 mm
LSSH 10X45OD: 10 mm | ID: 5 mm | Free length: 45 mm | Spring rate: 2.77 kgf/mm | Max deflection: 10.8 mm
LSSH 10X50OD: 10 mm | ID: 5 mm | Free length: 50 mm | Spring rate: 2.50 kgf/mm | Max deflection: 12 mm
LSSH 10X55OD: 10 mm | ID: 5 mm | Free length: 55 mm | Spring rate: 2.27 kgf/mm | Max deflection: 13.2 mm
LSSH 10X60OD: 10 mm | ID: 5 mm | Free length: 60 mm | Spring rate: 2.08 kgf/mm | Max deflection: 14.4 mm
LSSH 10X65OD: 10 mm | ID: 5 mm | Free length: 65 mm | Spring rate: 1.92 kgf/mm | Max deflection: 15.6 mm
LSSH 10X70OD: 10 mm | ID: 5 mm | Free length: 70 mm | Spring rate: 1.79 kgf/mm | Max deflection: 16.8 mm
LSSH 10X75OD: 10 mm | ID: 5 mm | Free length: 75 mm | Spring rate: 1.67 kgf/mm | Max deflection: 18 mm
LSSH 10X80OD: 10 mm | ID: 5 mm | Free length: 80 mm | Spring rate: 1.56 kgf/mm | Max deflection: 19.2 mm
LSSH 10X90OD: 10 mm | ID: 5 mm | Free length: 90 mm | Spring rate: 1.39 kgf/mm | Max deflection: 21.6 mm
LSSH 10X100OD: 10 mm | ID: 5 mm | Free length: 100 mm | Spring rate: 1.25 kgf/mm | Max deflection: 24 mm
LSSH 12X20OD: 12 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 8.90 kgf/mm | Max deflection: 4.8 mm
LSSH 12X25OD: 12 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 7.10 kgf/mm | Max deflection: 6 mm
LSSH 12X30OD: 12 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 5.97 kgf/mm | Max deflection: 7.2 mm
LSSH 12X35OD: 12 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 5.11 kgf/mm | Max deflection: 8.4 mm
LSSH 12X40OD: 12 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 4.47 kgf/mm | Max deflection: 9.6 mm
LSSH 12X45OD: 12 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 3.98 kgf/mm | Max deflection: 10.8 mm
LSSH 12X50OD: 12 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 3.58 kgf/mm | Max deflection: 12 mm
LSSH 12X55OD: 12 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 3.25 kgf/mm | Max deflection: 13.2 mm
LSSH 12X60OD: 12 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 2.98 kgf/mm | Max deflection: 14.4 mm
LSSH 12X65OD: 12 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 2.74 kgf/mm | Max deflection: 15.6 mm
LSSH 12X70OD: 12 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 2.54 kgf/mm | Max deflection: 16.8 mm
LSSH 12X75OD: 12 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 2.37 kgf/mm | Max deflection: 18 mm
LSSH 12X80OD: 12 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 2.21 kgf/mm | Max deflection: 19.2 mm
LSSH 12X90OD: 12 mm | ID: 6 mm | Free length: 90 mm | Spring rate: 1.98 kgf/mm | Max deflection: 21.6 mm
LSSH 12X100OD: 12 mm | ID: 6 mm | Free length: 100 mm | Spring rate: 1.78 kgf/mm | Max deflection: 24 mm
LSSH 14X20OD: 14 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 12.05 kgf/mm | Max deflection: 4.8 mm
LSSH 14X25OD: 14 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 9.83 kgf/mm | Max deflection: 6 mm
LSSH 14X30OD: 14 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 8.19 kgf/mm | Max deflection: 7.2 mm
LSSH 14X35OD: 14 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 7.02 kgf/mm | Max deflection: 8.4 mm
LSSH 14X40OD: 14 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 6.14 kgf/mm | Max deflection: 9.6 mm
LSSH 14X45OD: 14 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 5.46 kgf/mm | Max deflection: 10.8 mm
LSSH 14X50OD: 14 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 4.91 kgf/mm | Max deflection: 12 mm
LSSH 14X55OD: 14 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 4.46 kgf/mm | Max deflection: 13.2 mm
LSSH 14X60OD: 14 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 4.09 kgf/mm | Max deflection: 14.4 mm
LSSH 14X65OD: 14 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 3.78 kgf/mm | Max deflection: 15.6 mm
LSSH 14X70OD: 14 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 3.51 kgf/mm | Max deflection: 16.8 mm
LSSH 14X75OD: 14 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 3.27 kgf/mm | Max deflection: 18 mm
LSSH 14X80OD: 14 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 3.07 kgf/mm | Max deflection: 19.2 mm
LSSH 14X90OD: 14 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 2.72 kgf/mm | Max deflection: 21.6 mm
LSSH 14X100OD: 14 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 2.46 kgf/mm | Max deflection: 24 mm
LSSH 14X125OD: 14 mm | ID: 7 mm | Free length: 125 mm | Spring rate: 1.97 kgf/mm | Max deflection: 30 mm
LSSH 16X20OD: 16 mm | ID: 8 mm | Free length: 20 mm | Spring rate: 15.68 kgf/mm | Max deflection: 4.8 mm
LSSH 16X25OD: 16 mm | ID: 8 mm | Free length: 25 mm | Spring rate: 12.83 kgf/mm | Max deflection: 6 mm
LSSH 16X30OD: 16 mm | ID: 8 mm | Free length: 30 mm | Spring rate: 10.69 kgf/mm | Max deflection: 7.2 mm
LSSH 16X35OD: 16 mm | ID: 8 mm | Free length: 35 mm | Spring rate: 9.16 kgf/mm | Max deflection: 8.4 mm
LSSH 16X40OD: 16 mm | ID: 8 mm | Free length: 40 mm | Spring rate: 8.02 kgf/mm | Max deflection: 9.6 mm
LSSH 16X45OD: 16 mm | ID: 8 mm | Free length: 45 mm | Spring rate: 7.12 kgf/mm | Max deflection: 10.8 mm
LSSH 16X50OD: 16 mm | ID: 8 mm | Free length: 50 mm | Spring rate: 6.41 kgf/mm | Max deflection: 12 mm
LSSH 16X55OD: 16 mm | ID: 8 mm | Free length: 55 mm | Spring rate: 5.83 kgf/mm | Max deflection: 13.2 mm
LSSH 16X60OD: 16 mm | ID: 8 mm | Free length: 60 mm | Spring rate: 5.34 kgf/mm | Max deflection: 14.4 mm
LSSH 16X65OD: 16 mm | ID: 8 mm | Free length: 65 mm | Spring rate: 4.93 kgf/mm | Max deflection: 15.6 mm
LSSH 16X70OD: 16 mm | ID: 8 mm | Free length: 70 mm | Spring rate: 4.58 kgf/mm | Max deflection: 16.8 mm
LSSH 16X75OD: 16 mm | ID: 8 mm | Free length: 75 mm | Spring rate: 4.28 kgf/mm | Max deflection: 18 mm
LSSH 16X80OD: 16 mm | ID: 8 mm | Free length: 80 mm | Spring rate: 4.01 kgf/mm | Max deflection: 19.2 mm
LSSH 16X90OD: 16 mm | ID: 8 mm | Free length: 90 mm | Spring rate: 3.57 kgf/mm | Max deflection: 21.6 mm
LSSH 16X100OD: 16 mm | ID: 8 mm | Free length: 100 mm | Spring rate: 3.21 kgf/mm | Max deflection: 24 mm
LSSH 16X125OD: 16 mm | ID: 8 mm | Free length: 125 mm | Spring rate: 2.57 kgf/mm | Max deflection: 30 mm
LSSH 18X20OD: 18 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 19.77 kgf/mm | Max deflection: 4.8 mm
LSSH 18X25OD: 18 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 16.16 kgf/mm | Max deflection: 6 mm
LSSH 18X30OD: 18 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 13.47 kgf/mm | Max deflection: 7.2 mm
LSSH 18X35OD: 18 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 11.54 kgf/mm | Max deflection: 8.4 mm
LSSH 18X40OD: 18 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 10.10 kgf/mm | Max deflection: 9.6 mm
LSSH 18X45OD: 18 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 8.98 kgf/mm | Max deflection: 10.8 mm
LSSH 18X50OD: 18 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 8.08 kgf/mm | Max deflection: 12 mm
LSSH 18X55OD: 18 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 7.34 kgf/mm | Max deflection: 13.2 mm
LSSH 18X60OD: 18 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 6.73 kgf/mm | Max deflection: 14.4 mm
LSSH 18X65OD: 18 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 6.21 kgf/mm | Max deflection: 15.6 mm
LSSH 18X70OD: 18 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 5.77 kgf/mm | Max deflection: 16.8 mm
LSSH 18X75OD: 18 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 5.39 kgf/mm | Max deflection: 18 mm
LSSH 18X80OD: 18 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 5.05 kgf/mm | Max deflection: 19.2 mm
LSSH 18X90OD: 18 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 4.50 kgf/mm | Max deflection: 21.6 mm
LSSH 18X100OD: 18 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 4.04 kgf/mm | Max deflection: 24 mm
LSSH 18X125OD: 18 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 3.23 kgf/mm | Max deflection: 30 mm
LSSH 20X20OD: 20 mm | ID: 10 mm | Free length: 20 mm | Spring rate: 24.55 kgf/mm | Max deflection: 4.8 mm
LSSH 20X25OD: 20 mm | ID: 10 mm | Free length: 25 mm | Spring rate: 20.00 kgf/mm | Max deflection: 6 mm
LSSH 20X30OD: 20 mm | ID: 10 mm | Free length: 30 mm | Spring rate: 16.66 kgf/mm | Max deflection: 7.2 mm
LSSH 20X35OD: 20 mm | ID: 10 mm | Free length: 35 mm | Spring rate: 14.28 kgf/mm | Max deflection: 8.4 mm
LSSH 20X40OD: 20 mm | ID: 10 mm | Free length: 40 mm | Spring rate: 12.50 kgf/mm | Max deflection: 9.6 mm
LSSH 20X45OD: 20 mm | ID: 10 mm | Free length: 45 mm | Spring rate: 11.44 kgf/mm | Max deflection: 10.8 mm
LSSH 20X50OD: 20 mm | ID: 10 mm | Free length: 50 mm | Spring rate: 10.00 kgf/mm | Max deflection: 12 mm
LSSH 20X55OD: 20 mm | ID: 10 mm | Free length: 55 mm | Spring rate: 9.09 kgf/mm | Max deflection: 13.2 mm
LSSH 20X60OD: 20 mm | ID: 10 mm | Free length: 60 mm | Spring rate: 8.33 kgf/mm | Max deflection: 14.4 mm
LSSH 20X65OD: 20 mm | ID: 10 mm | Free length: 65 mm | Spring rate: 7.69 kgf/mm | Max deflection: 15.6 mm
LSSH 20X70OD: 20 mm | ID: 10 mm | Free length: 70 mm | Spring rate: 7.14 kgf/mm | Max deflection: 16.8 mm
LSSH 20X75OD: 20 mm | ID: 10 mm | Free length: 75 mm | Spring rate: 6.67 kgf/mm | Max deflection: 18 mm
LSSH 20X80OD: 20 mm | ID: 10 mm | Free length: 80 mm | Spring rate: 6.25 kgf/mm | Max deflection: 19.2 mm
LSSH 20X90OD: 20 mm | ID: 10 mm | Free length: 90 mm | Spring rate: 5.55 kgf/mm | Max deflection: 21.6 mm
LSSH 20X100OD: 20 mm | ID: 10 mm | Free length: 100 mm | Spring rate: 5.00 kgf/mm | Max deflection: 24 mm
LSSH 20X125OD: 20 mm | ID: 10 mm | Free length: 125 mm | Spring rate: 4.00 kgf/mm | Max deflection: 30 mm
LSSH 20X150OD: 20 mm | ID: 10 mm | Free length: 150 mm | Spring rate: 3.33 kgf/mm | Max deflection: 36 mm
LSSH 20X175OD: 20 mm | ID: 10 mm | Free length: 175 mm | Spring rate: 2.86 kgf/mm | Max deflection: 42 mm
LSSH 22X25OD: 22 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 24.16 kgf/mm | Max deflection: 6 mm
LSSH 22X30OD: 22 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 20.13 kgf/mm | Max deflection: 7.2 mm
LSSH 22X35OD: 22 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 17.30 kgf/mm | Max deflection: 8.4 mm
LSSH 22X40OD: 22 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 15.10 kgf/mm | Max deflection: 9.6 mm
LSSH 22X45OD: 22 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 13.40 kgf/mm | Max deflection: 10.8 mm
LSSH 22X50OD: 22 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 12.08 kgf/mm | Max deflection: 12 mm
LSSH 22X55OD: 22 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 10.94 kgf/mm | Max deflection: 13.2 mm
LSSH 22X60OD: 22 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 10.06 kgf/mm | Max deflection: 14.4 mm
LSSH 22X65OD: 22 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 9.28 kgf/mm | Max deflection: 15.6 mm
LSSH 22X70OD: 22 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 8.63 kgf/mm | Max deflection: 16.8 mm
LSSH 22X75OD: 22 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 8.04 kgf/mm | Max deflection: 18 mm
LSSH 22X80OD: 22 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 7.55 kgf/mm | Max deflection: 19.2 mm
LSSH 22X90OD: 22 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 6.71 kgf/mm | Max deflection: 21.6 mm
LSSH 22X100OD: 22 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 6.04 kgf/mm | Max deflection: 24 mm
LSSH 22X125OD: 22 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 4.83 kgf/mm | Max deflection: 30 mm
LSSH 22X150OD: 22 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 4.02 kgf/mm | Max deflection: 36 mm
LSSH 22X175OD: 22 mm | ID: 11 mm | Free length: 175 mm | Spring rate: 3.45 kgf/mm | Max deflection: 42 mm
LSSH 25X25OD: 25 mm | ID: 12.5 mm | Free length: 25 mm | Spring rate: 31.20 kgf/mm | Max deflection: 6 mm
LSSH 25X30OD: 25 mm | ID: 12.5 mm | Free length: 30 mm | Spring rate: 25.97 kgf/mm | Max deflection: 7.2 mm
LSSH 25X35OD: 25 mm | ID: 12.5 mm | Free length: 35 mm | Spring rate: 22.38 kgf/mm | Max deflection: 8.4 mm
LSSH 25X40OD: 25 mm | ID: 12.5 mm | Free length: 40 mm | Spring rate: 19.47 kgf/mm | Max deflection: 9.6 mm
LSSH 25X45OD: 25 mm | ID: 12.5 mm | Free length: 45 mm | Spring rate: 17.40 kgf/mm | Max deflection: 10.8 mm
LSSH 25X50OD: 25 mm | ID: 12.5 mm | Free length: 50 mm | Spring rate: 15.58 kgf/mm | Max deflection: 12 mm
LSSH 25X55OD: 25 mm | ID: 12.5 mm | Free length: 55 mm | Spring rate: 14.20 kgf/mm | Max deflection: 13.2 mm
LSSH 25X60OD: 25 mm | ID: 12.5 mm | Free length: 60 mm | Spring rate: 12.98 kgf/mm | Max deflection: 14.4 mm
LSSH 25X65OD: 25 mm | ID: 12.5 mm | Free length: 65 mm | Spring rate: 12.00 kgf/mm | Max deflection: 15.6 mm
LSSH 25X70OD: 25 mm | ID: 12.5 mm | Free length: 70 mm | Spring rate: 11.13 kgf/mm | Max deflection: 16.8 mm
LSSH 25X75OD: 25 mm | ID: 12.5 mm | Free length: 75 mm | Spring rate: 10.40 kgf/mm | Max deflection: 18 mm
LSSH 25X80OD: 25 mm | ID: 12.5 mm | Free length: 80 mm | Spring rate: 9.73 kgf/mm | Max deflection: 19.2 mm
LSSH 25X90OD: 25 mm | ID: 12.5 mm | Free length: 90 mm | Spring rate: 8.65 kgf/mm | Max deflection: 21.6 mm
LSSH 25X100OD: 25 mm | ID: 12.5 mm | Free length: 100 mm | Spring rate: 7.79 kgf/mm | Max deflection: 24 mm
LSSH 25X125OD: 25 mm | ID: 12.5 mm | Free length: 125 mm | Spring rate: 6.23 kgf/mm | Max deflection: 30 mm
LSSH 25X150OD: 25 mm | ID: 12.5 mm | Free length: 150 mm | Spring rate: 5.20 kgf/mm | Max deflection: 36 mm
LSSH 25X175OD: 25 mm | ID: 12.5 mm | Free length: 175 mm | Spring rate: 4.46 kgf/mm | Max deflection: 42 mm
LSSH 25X200OD: 25 mm | ID: 12.5 mm | Free length: 200 mm | Spring rate: 3.90 kgf/mm | Max deflection: 48 mm
LSSH 27X25OD: 27 mm | ID: 13.5 mm | Free length: 25 mm | Spring rate: 36.40 kgf/mm | Max deflection: 6 mm
LSSH 27X30OD: 27 mm | ID: 13.5 mm | Free length: 30 mm | Spring rate: 30.41 kgf/mm | Max deflection: 7.2 mm
LSSH 27X35OD: 27 mm | ID: 13.5 mm | Free length: 35 mm | Spring rate: 26.20 kgf/mm | Max deflection: 8.4 mm
LSSH 27X40OD: 27 mm | ID: 13.5 mm | Free length: 40 mm | Spring rate: 22.81 kgf/mm | Max deflection: 9.6 mm
LSSH 27X45OD: 27 mm | ID: 13.5 mm | Free length: 45 mm | Spring rate: 20.30 kgf/mm | Max deflection: 10.8 mm
LSSH 27X50OD: 27 mm | ID: 13.5 mm | Free length: 50 mm | Spring rate: 18.25 kgf/mm | Max deflection: 12 mm
LSSH 27X55OD: 27 mm | ID: 13.5 mm | Free length: 55 mm | Spring rate: 16.50 kgf/mm | Max deflection: 13.2 mm
LSSH 27X60OD: 27 mm | ID: 13.5 mm | Free length: 60 mm | Spring rate: 15.20 kgf/mm | Max deflection: 14.4 mm
LSSH 27X65OD: 27 mm | ID: 13.5 mm | Free length: 65 mm | Spring rate: 14.00 kgf/mm | Max deflection: 15.6 mm
LSSH 27X70OD: 27 mm | ID: 13.5 mm | Free length: 70 mm | Spring rate: 13.03 kgf/mm | Max deflection: 16.8 mm
LSSH 27X75OD: 27 mm | ID: 13.5 mm | Free length: 75 mm | Spring rate: 12.10 kgf/mm | Max deflection: 18 mm
LSSH 27X80OD: 27 mm | ID: 13.5 mm | Free length: 80 mm | Spring rate: 11.40 kgf/mm | Max deflection: 19.2 mm
LSSH 27X90OD: 27 mm | ID: 13.5 mm | Free length: 90 mm | Spring rate: 10.13 kgf/mm | Max deflection: 21.6 mm
LSSH 27X100OD: 27 mm | ID: 13.5 mm | Free length: 100 mm | Spring rate: 6.12 kgf/mm | Max deflection: 24 mm
LSSH 27X125OD: 27 mm | ID: 13.5 mm | Free length: 125 mm | Spring rate: 7.30 kgf/mm | Max deflection: 30 mm
LSSH 27X150OD: 27 mm | ID: 13.5 mm | Free length: 150 mm | Spring rate: 6.08 kgf/mm | Max deflection: 36 mm
LSSH 27X175OD: 27 mm | ID: 13.5 mm | Free length: 175 mm | Spring rate: 5.21 kgf/mm | Max deflection: 42 mm
LSSH 27X200OD: 27 mm | ID: 13.5 mm | Free length: 200 mm | Spring rate: 4.56 kgf/mm | Max deflection: 48 mm
LSSH 30X25OD: 30 mm | ID: 15 mm | Free length: 25 mm | Spring rate: 45.00 kgf/mm | Max deflection: 6 mm
LSSH 30X30OD: 30 mm | ID: 15 mm | Free length: 30 mm | Spring rate: 37.50 kgf/mm | Max deflection: 7.2 mm
LSSH 30X35OD: 30 mm | ID: 15 mm | Free length: 35 mm | Spring rate: 32.26 kgf/mm | Max deflection: 8.4 mm
LSSH 30X40OD: 30 mm | ID: 15 mm | Free length: 40 mm | Spring rate: 28.12 kgf/mm | Max deflection: 9.6 mm
LSSH 30X45OD: 30 mm | ID: 15 mm | Free length: 45 mm | Spring rate: 25.00 kgf/mm | Max deflection: 10.8 mm
LSSH 30X50OD: 30 mm | ID: 15 mm | Free length: 50 mm | Spring rate: 22.50 kgf/mm | Max deflection: 12 mm
LSSH 30X55OD: 30 mm | ID: 15 mm | Free length: 55 mm | Spring rate: 20.40 kgf/mm | Max deflection: 13.2 mm
LSSH 30X60OD: 30 mm | ID: 15 mm | Free length: 60 mm | Spring rate: 18.75 kgf/mm | Max deflection: 14.4 mm
LSSH 30X65OD: 30 mm | ID: 15 mm | Free length: 65 mm | Spring rate: 17.30 kgf/mm | Max deflection: 15.6 mm
LSSH 30X70OD: 30 mm | ID: 15 mm | Free length: 70 mm | Spring rate: 16.07 kgf/mm | Max deflection: 16.8 mm
LSSH 30X75OD: 30 mm | ID: 15 mm | Free length: 75 mm | Spring rate: 15.00 kgf/mm | Max deflection: 18 mm
LSSH 30X80OD: 30 mm | ID: 15 mm | Free length: 80 mm | Spring rate: 14.06 kgf/mm | Max deflection: 19.2 mm
LSSH 30X90OD: 30 mm | ID: 15 mm | Free length: 90 mm | Spring rate: 12.50 kgf/mm | Max deflection: 21.6 mm
LSSH 30X100OD: 30 mm | ID: 15 mm | Free length: 100 mm | Spring rate: 11.25 kgf/mm | Max deflection: 24 mm
LSSH 30X125OD: 30 mm | ID: 15 mm | Free length: 125 mm | Spring rate: 9.00 kgf/mm | Max deflection: 30 mm
LSSH 30X150OD: 30 mm | ID: 15 mm | Free length: 150 mm | Spring rate: 7.50 kgf/mm | Max deflection: 36 mm
LSSH 30X175OD: 30 mm | ID: 15 mm | Free length: 175 mm | Spring rate: 6.42 kgf/mm | Max deflection: 42 mm
LSSH 30X200OD: 30 mm | ID: 15 mm | Free length: 200 mm | Spring rate: 5.62 kgf/mm | Max deflection: 48 mm
LSSH 35X35OD: 35 mm | ID: 17.5 mm | Free length: 35 mm | Spring rate: 43.68 kgf/mm | Max deflection: 8.4 mm
LSSH 35X40OD: 35 mm | ID: 17.5 mm | Free length: 40 mm | Spring rate: 38.22 kgf/mm | Max deflection: 9.6 mm
LSSH 35X45OD: 35 mm | ID: 17.5 mm | Free length: 45 mm | Spring rate: 33.98 kgf/mm | Max deflection: 10.8 mm
LSSH 35X50OD: 35 mm | ID: 17.5 mm | Free length: 50 mm | Spring rate: 30.58 kgf/mm | Max deflection: 12 mm
LSSH 35X55OD: 35 mm | ID: 17.5 mm | Free length: 55 mm | Spring rate: 27.80 kgf/mm | Max deflection: 13.2 mm
LSSH 35X60OD: 35 mm | ID: 17.5 mm | Free length: 60 mm | Spring rate: 25.48 kgf/mm | Max deflection: 14.4 mm
LSSH 35X65OD: 35 mm | ID: 17.5 mm | Free length: 65 mm | Spring rate: 23.53 kgf/mm | Max deflection: 15.6 mm
LSSH 35X70OD: 35 mm | ID: 17.5 mm | Free length: 70 mm | Spring rate: 21.84 kgf/mm | Max deflection: 16.8 mm
LSSH 35X75OD: 35 mm | ID: 17.5 mm | Free length: 75 mm | Spring rate: 20.39 kgf/mm | Max deflection: 18 mm
LSSH 35X80OD: 35 mm | ID: 17.5 mm | Free length: 80 mm | Spring rate: 19.11 kgf/mm | Max deflection: 19.2 mm
LSSH 35X90OD: 35 mm | ID: 17.5 mm | Free length: 90 mm | Spring rate: 16.99 kgf/mm | Max deflection: 21.6 mm
LSSH 35X100OD: 35 mm | ID: 17.5 mm | Free length: 100 mm | Spring rate: 15.29 kgf/mm | Max deflection: 24 mm
LSSH 35X125OD: 35 mm | ID: 17.5 mm | Free length: 125 mm | Spring rate: 12.23 kgf/mm | Max deflection: 30 mm
LSSH 35X150OD: 35 mm | ID: 17.5 mm | Free length: 150 mm | Spring rate: 10.19 kgf/mm | Max deflection: 36 mm
LSSH 35X175OD: 35 mm | ID: 17.5 mm | Free length: 175 mm | Spring rate: 8.73 kgf/mm | Max deflection: 42 mm
LSSH 35X200OD: 35 mm | ID: 17.5 mm | Free length: 200 mm | Spring rate: 7.64 kgf/mm | Max deflection: 48 mm
LSSH 40X40OD: 40 mm | ID: 20 mm | Free length: 40 mm | Spring rate: 50.00 kgf/mm | Max deflection: 9.6 mm
LSSH 40X45OD: 40 mm | ID: 20 mm | Free length: 45 mm | Spring rate: 44.44 kgf/mm | Max deflection: 10.8 mm
LSSH 40X50OD: 40 mm | ID: 20 mm | Free length: 50 mm | Spring rate: 40.00 kgf/mm | Max deflection: 12 mm
LSSH 40X55OD: 40 mm | ID: 20 mm | Free length: 55 mm | Spring rate: 36.36 kgf/mm | Max deflection: 13.2 mm
LSSH 40X60OD: 40 mm | ID: 20 mm | Free length: 60 mm | Spring rate: 33.93 kgf/mm | Max deflection: 14.4 mm
LSSH 40X65OD: 40 mm | ID: 20 mm | Free length: 65 mm | Spring rate: 30.77 kgf/mm | Max deflection: 15.6 mm
LSSH 40X70OD: 40 mm | ID: 20 mm | Free length: 70 mm | Spring rate: 28.57 kgf/mm | Max deflection: 16.8 mm
LSSH 40X75OD: 40 mm | ID: 20 mm | Free length: 75 mm | Spring rate: 26.67 kgf/mm | Max deflection: 18 mm
LSSH 40X80OD: 40 mm | ID: 20 mm | Free length: 80 mm | Spring rate: 25.00 kgf/mm | Max deflection: 19.2 mm
LSSH 40X90OD: 40 mm | ID: 20 mm | Free length: 90 mm | Spring rate: 22.22 kgf/mm | Max deflection: 21.6 mm
LSSH 40X100OD: 40 mm | ID: 20 mm | Free length: 100 mm | Spring rate: 20.00 kgf/mm | Max deflection: 24 mm
LSSH 40X125OD: 40 mm | ID: 20 mm | Free length: 125 mm | Spring rate: 16.00 kgf/mm | Max deflection: 30 mm
LSSH 40X150OD: 40 mm | ID: 20 mm | Free length: 150 mm | Spring rate: 13.33 kgf/mm | Max deflection: 36 mm
LSSH 40X175OD: 40 mm | ID: 20 mm | Free length: 175 mm | Spring rate: 11.42 kgf/mm | Max deflection: 42 mm
LSSH 40X200OD: 40 mm | ID: 20 mm | Free length: 200 mm | Spring rate: 10.00 kgf/mm | Max deflection: 48 mm
LSSH 40X225OD: 40 mm | ID: 20 mm | Free length: 225 mm | Spring rate: 8.89 kgf/mm | Max deflection: 54 mm
LSSH 40X250OD: 40 mm | ID: 20 mm | Free length: 250 mm | Spring rate: 8.00 kgf/mm | Max deflection: 60 mm
LSSH 40X275OD: 40 mm | ID: 20 mm | Free length: 275 mm | Spring rate: 7.27 kgf/mm | Max deflection: 66 mm
LSSH 40X300OD: 40 mm | ID: 20 mm | Free length: 300 mm | Spring rate: 6.67 kgf/mm | Max deflection: 72 mm
LSSH 50X50OD: 50 mm | ID: 25 mm | Free length: 50 mm | Spring rate: 62.50 kgf/mm | Max deflection: 12 mm
LSSH 50X55OD: 50 mm | ID: 25 mm | Free length: 55 mm | Spring rate: 56.82 kgf/mm | Max deflection: 13.2 mm
LSSH 50X60OD: 50 mm | ID: 25 mm | Free length: 60 mm | Spring rate: 52.08 kgf/mm | Max deflection: 14.4 mm
LSSH 50X65OD: 50 mm | ID: 25 mm | Free length: 65 mm | Spring rate: 48.08 kgf/mm | Max deflection: 15.6 mm
LSSH 50X70OD: 50 mm | ID: 25 mm | Free length: 70 mm | Spring rate: 44.64 kgf/mm | Max deflection: 16.8 mm
LSSH 50X75OD: 50 mm | ID: 25 mm | Free length: 75 mm | Spring rate: 41.67 kgf/mm | Max deflection: 18 mm
LSSH 50X80OD: 50 mm | ID: 25 mm | Free length: 80 mm | Spring rate: 39.06 kgf/mm | Max deflection: 19.2 mm
LSSH 50X90OD: 50 mm | ID: 25 mm | Free length: 90 mm | Spring rate: 34.72 kgf/mm | Max deflection: 21.6 mm
LSSH 50X100OD: 50 mm | ID: 25 mm | Free length: 100 mm | Spring rate: 31.25 kgf/mm | Max deflection: 24 mm
LSSH 50X125OD: 50 mm | ID: 25 mm | Free length: 125 mm | Spring rate: 25.00 kgf/mm | Max deflection: 30 mm
LSSH 50X150OD: 50 mm | ID: 25 mm | Free length: 150 mm | Spring rate: 20.83 kgf/mm | Max deflection: 36 mm
LSSH 50X175OD: 50 mm | ID: 25 mm | Free length: 175 mm | Spring rate: 17.85 kgf/mm | Max deflection: 42 mm
LSSH 50X200OD: 50 mm | ID: 25 mm | Free length: 200 mm | Spring rate: 15.62 kgf/mm | Max deflection: 48 mm
LSSH 50X225OD: 50 mm | ID: 25 mm | Free length: 225 mm | Spring rate: 13.89 kgf/mm | Max deflection: 54 mm
LSSH 50X250OD: 50 mm | ID: 25 mm | Free length: 250 mm | Spring rate: 12.50 kgf/mm | Max deflection: 60 mm
LSSH 50X275OD: 50 mm | ID: 25 mm | Free length: 275 mm | Spring rate: 11.36 kgf/mm | Max deflection: 66 mm
LSSH 50X300OD: 50 mm | ID: 25 mm | Free length: 300 mm | Spring rate: 10.41 kgf/mm | Max deflection: 72 mm
LSSH 50X350OD: 50 mm | ID: 25 mm | Free length: 350 mm | Spring rate: 8.93 kgf/mm | Max deflection: 84 mm
LSSH 60X60OD: 60 mm | ID: 30 mm | Free length: 60 mm | Spring rate: 75.00 kgf/mm | Max deflection: 14.4 mm
LSSH 60X70OD: 60 mm | ID: 30 mm | Free length: 70 mm | Spring rate: 64.28 kgf/mm | Max deflection: 16.8 mm
LSSH 60X80OD: 60 mm | ID: 30 mm | Free length: 80 mm | Spring rate: 56.25 kgf/mm | Max deflection: 19.2 mm
LSSH 60X90OD: 60 mm | ID: 30 mm | Free length: 90 mm | Spring rate: 50.00 kgf/mm | Max deflection: 21.6 mm
LSSH 60X100OD: 60 mm | ID: 30 mm | Free length: 100 mm | Spring rate: 45.00 kgf/mm | Max deflection: 24 mm
LSSH 60X125OD: 60 mm | ID: 30 mm | Free length: 125 mm | Spring rate: 36.00 kgf/mm | Max deflection: 30 mm
LSSH 60X150OD: 60 mm | ID: 30 mm | Free length: 150 mm | Spring rate: 30.00 kgf/mm | Max deflection: 36 mm
LSSH 60X175OD: 60 mm | ID: 30 mm | Free length: 175 mm | Spring rate: 25.71 kgf/mm | Max deflection: 42 mm
LSSH 60X200OD: 60 mm | ID: 30 mm | Free length: 200 mm | Spring rate: 22.50 kgf/mm | Max deflection: 48 mm
LSSH 60X225OD: 60 mm | ID: 30 mm | Free length: 225 mm | Spring rate: 20.00 kgf/mm | Max deflection: 54 mm
LSSH 60X250OD: 60 mm | ID: 30 mm | Free length: 250 mm | Spring rate: 18.00 kgf/mm | Max deflection: 60 mm
LSSH 60X275OD: 60 mm | ID: 30 mm | Free length: 275 mm | Spring rate: 16.36 kgf/mm | Max deflection: 66 mm
LSSH 60X300OD: 60 mm | ID: 30 mm | Free length: 300 mm | Spring rate: 15.00 kgf/mm | Max deflection: 72 mm
LSSH 60X350OD: 60 mm | ID: 30 mm | Free length: 350 mm | Spring rate: 12.86 kgf/mm | Max deflection: 84 mm
LSSH 70X70OD: 70 mm | ID: 38.5 mm | Free length: 70 mm | Spring rate: 83.33 kgf/mm | Max deflection: 16.8 mm
LSSH 70X80OD: 70 mm | ID: 38.5 mm | Free length: 80 mm | Spring rate: 72.92 kgf/mm | Max deflection: 19.2 mm
LSSH 70X90OD: 70 mm | ID: 38.5 mm | Free length: 90 mm | Spring rate: 64.81 kgf/mm | Max deflection: 21.6 mm
LSSH 70X100OD: 70 mm | ID: 38.5 mm | Free length: 100 mm | Spring rate: 58.33 kgf/mm | Max deflection: 24 mm
LSSH 70X125OD: 70 mm | ID: 38.5 mm | Free length: 125 mm | Spring rate: 46.67 kgf/mm | Max deflection: 30 mm
LSSH 70X150OD: 70 mm | ID: 38.5 mm | Free length: 150 mm | Spring rate: 38.89 kgf/mm | Max deflection: 36 mm
LSSH 70X175OD: 70 mm | ID: 38.5 mm | Free length: 175 mm | Spring rate: 33.33 kgf/mm | Max deflection: 42 mm
LSSH 70X200OD: 70 mm | ID: 38.5 mm | Free length: 200 mm | Spring rate: 29.17 kgf/mm | Max deflection: 48 mm
LSSH 70X225OD: 70 mm | ID: 38.5 mm | Free length: 225 mm | Spring rate: 25.93 kgf/mm | Max deflection: 54 mm
LSSH 70X250OD: 70 mm | ID: 38.5 mm | Free length: 250 mm | Spring rate: 23.33 kgf/mm | Max deflection: 60 mm
LSSH 70X275OD: 70 mm | ID: 38.5 mm | Free length: 275 mm | Spring rate: 21.21 kgf/mm | Max deflection: 66 mm
LSSH 70X300OD: 70 mm | ID: 38.5 mm | Free length: 300 mm | Spring rate: 19.44 kgf/mm | Max deflection: 72 mm
LSSH 70X350OD: 70 mm | ID: 38.5 mm | Free length: 350 mm | Spring rate: 16.67 kgf/mm | Max deflection: 84 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
