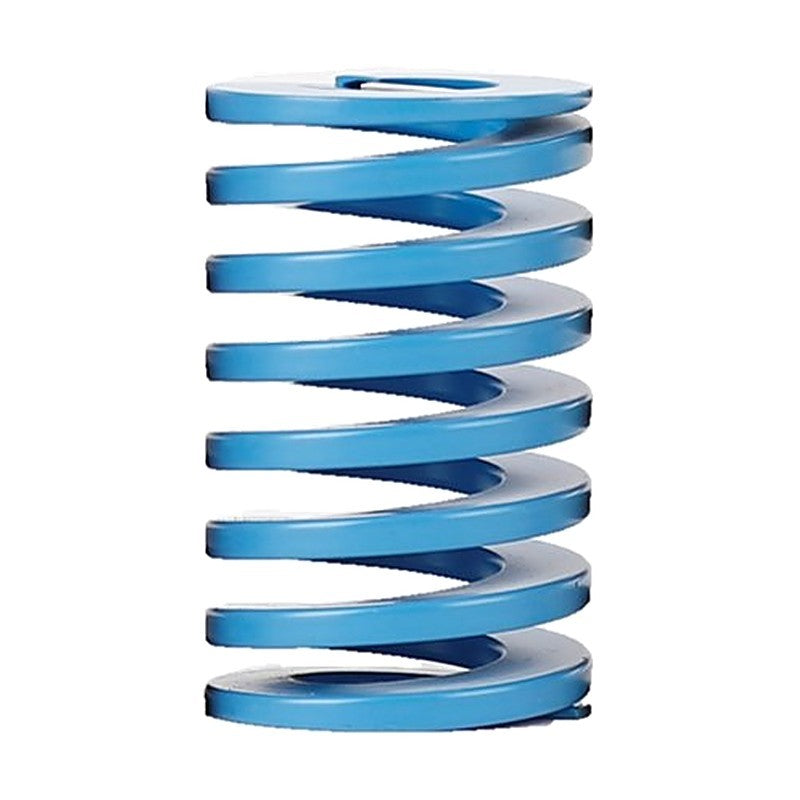

LuBo LSSL Die Spring (Light Load, Blue)

LuBo LSSL Die Spring (Light Load, Blue)

LuBo LSSL is a light load rectangular-wire coil die spring, colour-coded blue, for press dies and moulds. Codes give outer diameter x free length in mm.

Key features

  • Colour-coded blue for light load identification
  • Rated deflection 40% of free length for 300,000 cycles
  • Outer diameter 8-70 mm, free length 10-500 mm
  • Catalogue also lists deflection for 500,000 and 1,000,000 cycles
  • Ordered by product code, outer diameter and free length

Specifications

Series LSSL
Load class Light Load (Blue)
Max deflection (300,000 cycles) 40% of free length
Load tolerance +/-10%
Squareness 2 deg or less
Free length tolerance +/-0.5 mm (50 mm or less), +/-1% (55 mm or more)
Order format LSSL - D x L (e.g. LSSL 25X45)
Lead time 1 day (catalogue)
Source LuBo Springs catalogue (Light Load)
LSSL 8X10 OD: 8 mm | ID: 4 mm | Free length: 10 mm | Spring rate: 2.50 kgf/mm | Max deflection: 4 mm
LSSL 8X15 OD: 8 mm | ID: 4 mm | Free length: 15 mm | Spring rate: 1.67 kgf/mm | Max deflection: 6 mm
LSSL 8X20 OD: 8 mm | ID: 4 mm | Free length: 20 mm | Spring rate: 1.25 kgf/mm | Max deflection: 8 mm
LSSL 8X25 OD: 8 mm | ID: 4 mm | Free length: 25 mm | Spring rate: 1.00 kgf/mm | Max deflection: 10 mm
LSSL 8X30 OD: 8 mm | ID: 4 mm | Free length: 30 mm | Spring rate: 0.83 kgf/mm | Max deflection: 12 mm
LSSL 8X35 OD: 8 mm | ID: 4 mm | Free length: 35 mm | Spring rate: 0.71 kgf/mm | Max deflection: 14 mm
LSSL 8X40 OD: 8 mm | ID: 4 mm | Free length: 40 mm | Spring rate: 0.63 kgf/mm | Max deflection: 16 mm
LSSL 8X45 OD: 8 mm | ID: 4 mm | Free length: 45 mm | Spring rate: 0.56 kgf/mm | Max deflection: 18 mm
LSSL 8X50 OD: 8 mm | ID: 4 mm | Free length: 50 mm | Spring rate: 0.50 kgf/mm | Max deflection: 20 mm
LSSL 8X55 OD: 8 mm | ID: 4 mm | Free length: 55 mm | Spring rate: 0.46 kgf/mm | Max deflection: 22 mm
LSSL 8X60 OD: 8 mm | ID: 4 mm | Free length: 60 mm | Spring rate: 0.42 kgf/mm | Max deflection: 24 mm
LSSL 8X65 OD: 8 mm | ID: 4 mm | Free length: 65 mm | Spring rate: 0.38 kgf/mm | Max deflection: 26 mm
LSSL 8X70 OD: 8 mm | ID: 4 mm | Free length: 70 mm | Spring rate: 0.36 kgf/mm | Max deflection: 28 mm
LSSL 8X75 OD: 8 mm | ID: 4 mm | Free length: 75 mm | Spring rate: 0.33 kgf/mm | Max deflection: 30 mm
LSSL 8X80 OD: 8 mm | ID: 4 mm | Free length: 80 mm | Spring rate: 0.31 kgf/mm | Max deflection: 32 mm
LSSL 8X90 OD: 8 mm | ID: 4 mm | Free length: 90 mm | Spring rate: 0.28 kgf/mm | Max deflection: 36 mm
LSSL 10X10 OD: 10 mm | ID: 5 mm | Free length: 10 mm | Spring rate: 3.61 kgf/mm | Max deflection: 4 mm
LSSL 10X15 OD: 10 mm | ID: 5 mm | Free length: 15 mm | Spring rate: 2.41 kgf/mm | Max deflection: 6 mm
LSSL 10X20 OD: 10 mm | ID: 5 mm | Free length: 20 mm | Spring rate: 1.81 kgf/mm | Max deflection: 8 mm
LSSL 10X25 OD: 10 mm | ID: 5 mm | Free length: 25 mm | Spring rate: 1.45 kgf/mm | Max deflection: 10 mm
LSSL 10X30 OD: 10 mm | ID: 5 mm | Free length: 30 mm | Spring rate: 1.21 kgf/mm | Max deflection: 12 mm
LSSL 10X35 OD: 10 mm | ID: 5 mm | Free length: 35 mm | Spring rate: 1.03 kgf/mm | Max deflection: 14 mm
LSSL 10X40 OD: 10 mm | ID: 5 mm | Free length: 40 mm | Spring rate: 0.90 kgf/mm | Max deflection: 16 mm
LSSL 10X45 OD: 10 mm | ID: 5 mm | Free length: 45 mm | Spring rate: 0.80 kgf/mm | Max deflection: 18 mm
LSSL 10X50 OD: 10 mm | ID: 5 mm | Free length: 50 mm | Spring rate: 0.73 kgf/mm | Max deflection: 20 mm
LSSL 10X55 OD: 10 mm | ID: 5 mm | Free length: 55 mm | Spring rate: 0.66 kgf/mm | Max deflection: 22 mm
LSSL 10X60 OD: 10 mm | ID: 5 mm | Free length: 60 mm | Spring rate: 0.60 kgf/mm | Max deflection: 24 mm
LSSL 10X65 OD: 10 mm | ID: 5 mm | Free length: 65 mm | Spring rate: 0.55 kgf/mm | Max deflection: 26 mm
LSSL 10X70 OD: 10 mm | ID: 5 mm | Free length: 70 mm | Spring rate: 0.51 kgf/mm | Max deflection: 28 mm
LSSL 10X75 OD: 10 mm | ID: 5 mm | Free length: 75 mm | Spring rate: 0.48 kgf/mm | Max deflection: 30 mm
LSSL 10X80 OD: 10 mm | ID: 5 mm | Free length: 80 mm | Spring rate: 0.45 kgf/mm | Max deflection: 32 mm
LSSL 10X90 OD: 10 mm | ID: 5 mm | Free length: 90 mm | Spring rate: 0.40 kgf/mm | Max deflection: 36 mm
LSSL 10X100 OD: 10 mm | ID: 5 mm | Free length: 100 mm | Spring rate: 0.36 kgf/mm | Max deflection: 40 mm
LSSL 12X20 OD: 12 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 2.63 kgf/mm | Max deflection: 8 mm
LSSL 12X25 OD: 12 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 2.10 kgf/mm | Max deflection: 10 mm
LSSL 12X30 OD: 12 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 1.75 kgf/mm | Max deflection: 12 mm
LSSL 12X35 OD: 12 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 1.50 kgf/mm | Max deflection: 14 mm
LSSL 12X40 OD: 12 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 1.32 kgf/mm | Max deflection: 16 mm
LSSL 12X45 OD: 12 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 1.17 kgf/mm | Max deflection: 18 mm
LSSL 12X50 OD: 12 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 1.05 kgf/mm | Max deflection: 20 mm
LSSL 12X55 OD: 12 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.96 kgf/mm | Max deflection: 22 mm
LSSL 12X60 OD: 12 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.88 kgf/mm | Max deflection: 24 mm
LSSL 12X65 OD: 12 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.81 kgf/mm | Max deflection: 26 mm
LSSL 12X70 OD: 12 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.75 kgf/mm | Max deflection: 28 mm
LSSL 12X75 OD: 12 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.70 kgf/mm | Max deflection: 30 mm
LSSL 12X80 OD: 12 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.66 kgf/mm | Max deflection: 32 mm
LSSL 12X90 OD: 12 mm | ID: 6 mm | Free length: 90 mm | Spring rate: 0.58 kgf/mm | Max deflection: 36 mm
LSSL 12X100 OD: 12 mm | ID: 6 mm | Free length: 100 mm | Spring rate: 0.53 kgf/mm | Max deflection: 40 mm
LSSL 14X20 OD: 14 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 3.47 kgf/mm | Max deflection: 8 mm
LSSL 14X25 OD: 14 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 2.80 kgf/mm | Max deflection: 10 mm
LSSL 14X30 OD: 14 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 2.34 kgf/mm | Max deflection: 12 mm
LSSL 14X35 OD: 14 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 2.00 kgf/mm | Max deflection: 14 mm
LSSL 14X40 OD: 14 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 1.75 kgf/mm | Max deflection: 16 mm
LSSL 14X45 OD: 14 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 1.56 kgf/mm | Max deflection: 18 mm
LSSL 14X50 OD: 14 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 1.40 kgf/mm | Max deflection: 20 mm
LSSL 14X55 OD: 14 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 1.27 kgf/mm | Max deflection: 22 mm
LSSL 14X60 OD: 14 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 1.17 kgf/mm | Max deflection: 24 mm
LSSL 14X65 OD: 14 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 1.08 kgf/mm | Max deflection: 26 mm
LSSL 14X70 OD: 14 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 1.00 kgf/mm | Max deflection: 28 mm
LSSL 14X75 OD: 14 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.93 kgf/mm | Max deflection: 30 mm
LSSL 14X80 OD: 14 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.87 kgf/mm | Max deflection: 32 mm
LSSL 14X90 OD: 14 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.77 kgf/mm | Max deflection: 36 mm
LSSL 14X100 OD: 14 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.70 kgf/mm | Max deflection: 40 mm
LSSL 14X125 OD: 14 mm | ID: 7 mm | Free length: 125 mm | Spring rate: 0.56 kgf/mm | Max deflection: 50 mm
LSSL 16X20 OD: 16 mm | ID: 8 mm | Free length: 20 mm | Spring rate: 4.44 kgf/mm | Max deflection: 8 mm
LSSL 16X25 OD: 16 mm | ID: 8 mm | Free length: 25 mm | Spring rate: 3.50 kgf/mm | Max deflection: 10 mm
LSSL 16X30 OD: 16 mm | ID: 8 mm | Free length: 30 mm | Spring rate: 2.92 kgf/mm | Max deflection: 12 mm
LSSL 16X35 OD: 16 mm | ID: 8 mm | Free length: 35 mm | Spring rate: 2.50 kgf/mm | Max deflection: 14 mm
LSSL 16X40 OD: 16 mm | ID: 8 mm | Free length: 40 mm | Spring rate: 2.19 kgf/mm | Max deflection: 16 mm
LSSL 16X45 OD: 16 mm | ID: 8 mm | Free length: 45 mm | Spring rate: 1.95 kgf/mm | Max deflection: 18 mm
LSSL 16X50 OD: 16 mm | ID: 8 mm | Free length: 50 mm | Spring rate: 1.75 kgf/mm | Max deflection: 20 mm
LSSL 16X55 OD: 16 mm | ID: 8 mm | Free length: 55 mm | Spring rate: 1.60 kgf/mm | Max deflection: 22 mm
LSSL 16X60 OD: 16 mm | ID: 8 mm | Free length: 60 mm | Spring rate: 1.46 kgf/mm | Max deflection: 24 mm
LSSL 16X65 OD: 16 mm | ID: 8 mm | Free length: 65 mm | Spring rate: 1.35 kgf/mm | Max deflection: 26 mm
LSSL 16X70 OD: 16 mm | ID: 8 mm | Free length: 70 mm | Spring rate: 1.25 kgf/mm | Max deflection: 28 mm
LSSL 16X75 OD: 16 mm | ID: 8 mm | Free length: 75 mm | Spring rate: 1.17 kgf/mm | Max deflection: 30 mm
LSSL 16X80 OD: 16 mm | ID: 8 mm | Free length: 80 mm | Spring rate: 1.10 kgf/mm | Max deflection: 32 mm
LSSL 16X90 OD: 16 mm | ID: 8 mm | Free length: 90 mm | Spring rate: 0.98 kgf/mm | Max deflection: 36 mm
LSSL 16X100 OD: 16 mm | ID: 8 mm | Free length: 100 mm | Spring rate: 0.88 kgf/mm | Max deflection: 40 mm
LSSL 16X125 OD: 16 mm | ID: 8 mm | Free length: 125 mm | Spring rate: 0.70 kgf/mm | Max deflection: 50 mm
LSSL 18X20 OD: 18 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 5.42 kgf/mm | Max deflection: 8 mm
LSSL 18X25 OD: 18 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 4.30 kgf/mm | Max deflection: 10 mm
LSSL 18X30 OD: 18 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 3.58 kgf/mm | Max deflection: 12 mm
LSSL 18X35 OD: 18 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 3.07 kgf/mm | Max deflection: 14 mm
LSSL 18X40 OD: 18 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 2.69 kgf/mm | Max deflection: 16 mm
LSSL 18X45 OD: 18 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 2.39 kgf/mm | Max deflection: 18 mm
LSSL 18X50 OD: 18 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 2.15 kgf/mm | Max deflection: 20 mm
LSSL 18X55 OD: 18 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 1.96 kgf/mm | Max deflection: 22 mm
LSSL 18X60 OD: 18 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 1.79 kgf/mm | Max deflection: 24 mm
LSSL 18X65 OD: 18 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 1.66 kgf/mm | Max deflection: 26 mm
LSSL 18X70 OD: 18 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 1.54 kgf/mm | Max deflection: 28 mm
LSSL 18X75 OD: 18 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 1.44 kgf/mm | Max deflection: 30 mm
LSSL 18X80 OD: 18 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 1.35 kgf/mm | Max deflection: 32 mm
LSSL 18X90 OD: 18 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 1.20 kgf/mm | Max deflection: 36 mm
LSSL 18X100 OD: 18 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 1.07 kgf/mm | Max deflection: 40 mm
LSSL 18X125 OD: 18 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.86 kgf/mm | Max deflection: 50 mm
LSSL 20X20 OD: 20 mm | ID: 10 mm | Free length: 20 mm | Spring rate: 6.81 kgf/mm | Max deflection: 8 mm
LSSL 20X25 OD: 20 mm | ID: 10 mm | Free length: 25 mm | Spring rate: 5.40 kgf/mm | Max deflection: 10 mm
LSSL 20X30 OD: 20 mm | ID: 10 mm | Free length: 30 mm | Spring rate: 4.50 kgf/mm | Max deflection: 12 mm
LSSL 20X35 OD: 20 mm | ID: 10 mm | Free length: 35 mm | Spring rate: 3.86 kgf/mm | Max deflection: 14 mm
LSSL 20X40 OD: 20 mm | ID: 10 mm | Free length: 40 mm | Spring rate: 3.38 kgf/mm | Max deflection: 16 mm
LSSL 20X45 OD: 20 mm | ID: 10 mm | Free length: 45 mm | Spring rate: 3.00 kgf/mm | Max deflection: 18 mm
LSSL 20X50 OD: 20 mm | ID: 10 mm | Free length: 50 mm | Spring rate: 2.70 kgf/mm | Max deflection: 20 mm
LSSL 20X55 OD: 20 mm | ID: 10 mm | Free length: 55 mm | Spring rate: 2.45 kgf/mm | Max deflection: 22 mm
LSSL 20X60 OD: 20 mm | ID: 10 mm | Free length: 60 mm | Spring rate: 2.25 kgf/mm | Max deflection: 24 mm
LSSL 20X65 OD: 20 mm | ID: 10 mm | Free length: 65 mm | Spring rate: 2.08 kgf/mm | Max deflection: 26 mm
LSSL 20X70 OD: 20 mm | ID: 10 mm | Free length: 70 mm | Spring rate: 1.93 kgf/mm | Max deflection: 28 mm
LSSL 20X75 OD: 20 mm | ID: 10 mm | Free length: 75 mm | Spring rate: 1.80 kgf/mm | Max deflection: 30 mm
LSSL 20X80 OD: 20 mm | ID: 10 mm | Free length: 80 mm | Spring rate: 1.69 kgf/mm | Max deflection: 32 mm
LSSL 20X90 OD: 20 mm | ID: 10 mm | Free length: 90 mm | Spring rate: 1.50 kgf/mm | Max deflection: 36 mm
LSSL 20X100 OD: 20 mm | ID: 10 mm | Free length: 100 mm | Spring rate: 1.35 kgf/mm | Max deflection: 40 mm
LSSL 20X125 OD: 20 mm | ID: 10 mm | Free length: 125 mm | Spring rate: 1.08 kgf/mm | Max deflection: 50 mm
LSSL 20X150 OD: 20 mm | ID: 10 mm | Free length: 150 mm | Spring rate: 0.90 kgf/mm | Max deflection: 60 mm
LSSL 20X175 OD: 20 mm | ID: 10 mm | Free length: 175 mm | Spring rate: 0.71 kgf/mm | Max deflection: 70 mm
LSSL 22X25 OD: 22 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 6.70 kgf/mm | Max deflection: 10 mm
LSSL 22X30 OD: 22 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 5.60 kgf/mm | Max deflection: 12 mm
LSSL 22X35 OD: 22 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 4.80 kgf/mm | Max deflection: 14 mm
LSSL 22X40 OD: 22 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 4.20 kgf/mm | Max deflection: 16 mm
LSSL 22X45 OD: 22 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 3.72 kgf/mm | Max deflection: 18 mm
LSSL 22X50 OD: 22 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 3.35 kgf/mm | Max deflection: 20 mm
LSSL 22X55 OD: 22 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 3.05 kgf/mm | Max deflection: 22 mm
LSSL 22X60 OD: 22 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 2.80 kgf/mm | Max deflection: 24 mm
LSSL 22X65 OD: 22 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 2.58 kgf/mm | Max deflection: 26 mm
LSSL 22X70 OD: 22 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 2.40 kgf/mm | Max deflection: 28 mm
LSSL 22X75 OD: 22 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 2.23 kgf/mm | Max deflection: 30 mm
LSSL 22X80 OD: 22 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 2.10 kgf/mm | Max deflection: 32 mm
LSSL 22X90 OD: 22 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 1.86 kgf/mm | Max deflection: 36 mm
LSSL 22X100 OD: 22 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 1.68 kgf/mm | Max deflection: 40 mm
LSSL 22X125 OD: 22 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 1.34 kgf/mm | Max deflection: 50 mm
LSSL 22X150 OD: 22 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 1.12 kgf/mm | Max deflection: 60 mm
LSSL 22X175 OD: 22 mm | ID: 11 mm | Free length: 175 mm | Spring rate: 0.96 kgf/mm | Max deflection: 70 mm
LSSL 25X25 OD: 25 mm | ID: 12.5 mm | Free length: 25 mm | Spring rate: 8.40 kgf/mm | Max deflection: 10 mm
LSSL 25X30 OD: 25 mm | ID: 12.5 mm | Free length: 30 mm | Spring rate: 7.00 kgf/mm | Max deflection: 12 mm
LSSL 25X35 OD: 25 mm | ID: 12.5 mm | Free length: 35 mm | Spring rate: 6.00 kgf/mm | Max deflection: 14 mm
LSSL 25X40 OD: 25 mm | ID: 12.5 mm | Free length: 40 mm | Spring rate: 5.25 kgf/mm | Max deflection: 16 mm
LSSL 25X45 OD: 25 mm | ID: 12.5 mm | Free length: 45 mm | Spring rate: 4.67 kgf/mm | Max deflection: 18 mm
LSSL 25X50 OD: 25 mm | ID: 12.5 mm | Free length: 50 mm | Spring rate: 4.20 kgf/mm | Max deflection: 20 mm
LSSL 25X55 OD: 25 mm | ID: 12.5 mm | Free length: 55 mm | Spring rate: 3.82 kgf/mm | Max deflection: 22 mm
LSSL 25X60 OD: 25 mm | ID: 12.5 mm | Free length: 60 mm | Spring rate: 3.50 kgf/mm | Max deflection: 24 mm
LSSL 25X65 OD: 25 mm | ID: 12.5 mm | Free length: 65 mm | Spring rate: 3.23 kgf/mm | Max deflection: 26 mm
LSSL 25X70 OD: 25 mm | ID: 12.5 mm | Free length: 70 mm | Spring rate: 3.00 kgf/mm | Max deflection: 28 mm
LSSL 25X75 OD: 25 mm | ID: 12.5 mm | Free length: 75 mm | Spring rate: 2.80 kgf/mm | Max deflection: 30 mm
LSSL 25X80 OD: 25 mm | ID: 12.5 mm | Free length: 80 mm | Spring rate: 2.63 kgf/mm | Max deflection: 32 mm
LSSL 25X90 OD: 25 mm | ID: 12.5 mm | Free length: 90 mm | Spring rate: 2.33 kgf/mm | Max deflection: 36 mm
LSSL 25X100 OD: 25 mm | ID: 12.5 mm | Free length: 100 mm | Spring rate: 2.10 kgf/mm | Max deflection: 40 mm
LSSL 25X125 OD: 25 mm | ID: 12.5 mm | Free length: 125 mm | Spring rate: 1.68 kgf/mm | Max deflection: 50 mm
LSSL 25X150 OD: 25 mm | ID: 12.5 mm | Free length: 150 mm | Spring rate: 1.40 kgf/mm | Max deflection: 60 mm
LSSL 25X175 OD: 25 mm | ID: 12.5 mm | Free length: 175 mm | Spring rate: 1.20 kgf/mm | Max deflection: 70 mm
LSSL 25X200 OD: 25 mm | ID: 12.5 mm | Free length: 200 mm | Spring rate: 1.05 kgf/mm | Max deflection: 80 mm
LSSL 27X25 OD: 27 mm | ID: 13.5 mm | Free length: 25 mm | Spring rate: 10.00 kgf/mm | Max deflection: 10 mm
LSSL 27X30 OD: 27 mm | ID: 13.5 mm | Free length: 30 mm | Spring rate: 8.33 kgf/mm | Max deflection: 12 mm
LSSL 27X35 OD: 27 mm | ID: 13.5 mm | Free length: 35 mm | Spring rate: 7.14 kgf/mm | Max deflection: 14 mm
LSSL 27X40 OD: 27 mm | ID: 13.5 mm | Free length: 40 mm | Spring rate: 6.25 kgf/mm | Max deflection: 16 mm
LSSL 27X45 OD: 27 mm | ID: 13.5 mm | Free length: 45 mm | Spring rate: 5.56 kgf/mm | Max deflection: 18 mm
LSSL 27X50 OD: 27 mm | ID: 13.5 mm | Free length: 50 mm | Spring rate: 5.00 kgf/mm | Max deflection: 20 mm
LSSL 27X55 OD: 27 mm | ID: 13.5 mm | Free length: 55 mm | Spring rate: 4.55 kgf/mm | Max deflection: 22 mm
LSSL 27X60 OD: 27 mm | ID: 13.5 mm | Free length: 60 mm | Spring rate: 4.17 kgf/mm | Max deflection: 24 mm
LSSL 27X65 OD: 27 mm | ID: 13.5 mm | Free length: 65 mm | Spring rate: 3.85 kgf/mm | Max deflection: 26 mm
LSSL 27X70 OD: 27 mm | ID: 13.5 mm | Free length: 70 mm | Spring rate: 3.57 kgf/mm | Max deflection: 28 mm
LSSL 27X75 OD: 27 mm | ID: 13.5 mm | Free length: 75 mm | Spring rate: 3.33 kgf/mm | Max deflection: 30 mm
LSSL 27X80 OD: 27 mm | ID: 13.5 mm | Free length: 80 mm | Spring rate: 3.13 kgf/mm | Max deflection: 32 mm
LSSL 27X90 OD: 27 mm | ID: 13.5 mm | Free length: 90 mm | Spring rate: 2.78 kgf/mm | Max deflection: 36 mm
LSSL 27X100 OD: 27 mm | ID: 13.5 mm | Free length: 100 mm | Spring rate: 2.50 kgf/mm | Max deflection: 40 mm
LSSL 27X125 OD: 27 mm | ID: 13.5 mm | Free length: 125 mm | Spring rate: 2.00 kgf/mm | Max deflection: 50 mm
LSSL 27X150 OD: 27 mm | ID: 13.5 mm | Free length: 150 mm | Spring rate: 1.67 kgf/mm | Max deflection: 60 mm
LSSL 27X175 OD: 27 mm | ID: 13.5 mm | Free length: 175 mm | Spring rate: 1.43 kgf/mm | Max deflection: 70 mm
LSSL 27X200 OD: 27 mm | ID: 13.5 mm | Free length: 200 mm | Spring rate: 1.25 kgf/mm | Max deflection: 80 mm
LSSL 30X25 OD: 30 mm | ID: 15 mm | Free length: 25 mm | Spring rate: 12.11 kgf/mm | Max deflection: 10 mm
LSSL 30X30 OD: 30 mm | ID: 15 mm | Free length: 30 mm | Spring rate: 10.08 kgf/mm | Max deflection: 12 mm
LSSL 30X35 OD: 30 mm | ID: 15 mm | Free length: 35 mm | Spring rate: 8.65 kgf/mm | Max deflection: 14 mm
LSSL 30X40 OD: 30 mm | ID: 15 mm | Free length: 40 mm | Spring rate: 7.56 kgf/mm | Max deflection: 16 mm
LSSL 30X45 OD: 30 mm | ID: 15 mm | Free length: 45 mm | Spring rate: 6.73 kgf/mm | Max deflection: 18 mm
LSSL 30X50 OD: 30 mm | ID: 15 mm | Free length: 50 mm | Spring rate: 6.05 kgf/mm | Max deflection: 20 mm
LSSL 30X55 OD: 30 mm | ID: 15 mm | Free length: 55 mm | Spring rate: 5.50 kgf/mm | Max deflection: 22 mm
LSSL 30X60 OD: 30 mm | ID: 15 mm | Free length: 60 mm | Spring rate: 5.04 kgf/mm | Max deflection: 24 mm
LSSL 30X65 OD: 30 mm | ID: 15 mm | Free length: 65 mm | Spring rate: 4.65 kgf/mm | Max deflection: 26 mm
LSSL 30X70 OD: 30 mm | ID: 15 mm | Free length: 70 mm | Spring rate: 4.32 kgf/mm | Max deflection: 28 mm
LSSL 30X75 OD: 30 mm | ID: 15 mm | Free length: 75 mm | Spring rate: 4.03 kgf/mm | Max deflection: 30 mm
LSSL 30X80 OD: 30 mm | ID: 15 mm | Free length: 80 mm | Spring rate: 3.78 kgf/mm | Max deflection: 32 mm
LSSL 30X90 OD: 30 mm | ID: 15 mm | Free length: 90 mm | Spring rate: 3.36 kgf/mm | Max deflection: 36 mm
LSSL 30X100 OD: 30 mm | ID: 15 mm | Free length: 100 mm | Spring rate: 3.02 kgf/mm | Max deflection: 40 mm
LSSL 30X125 OD: 30 mm | ID: 15 mm | Free length: 125 mm | Spring rate: 42.42 kgf/mm | Max deflection: 50 mm
LSSL 30X150 OD: 30 mm | ID: 15 mm | Free length: 150 mm | Spring rate: 2.01 kgf/mm | Max deflection: 60 mm
LSSL 30X175 OD: 30 mm | ID: 15 mm | Free length: 175 mm | Spring rate: 1.72 kgf/mm | Max deflection: 70 mm
LSSL 30X200 OD: 30 mm | ID: 15 mm | Free length: 200 mm | Spring rate: 1.51 kgf/mm | Max deflection: 80 mm
LSSL 35X35 OD: 35 mm | ID: 17.5 mm | Free length: 35 mm | Spring rate: 11.78 kgf/mm | Max deflection: 14 mm
LSSL 35X40 OD: 35 mm | ID: 17.5 mm | Free length: 40 mm | Spring rate: 10.31 kgf/mm | Max deflection: 16 mm
LSSL 35X45 OD: 35 mm | ID: 17.5 mm | Free length: 45 mm | Spring rate: 9.17 kgf/mm | Max deflection: 18 mm
LSSL 35X50 OD: 35 mm | ID: 17.5 mm | Free length: 50 mm | Spring rate: 8.25 kgf/mm | Max deflection: 20 mm
LSSL 35X55 OD: 35 mm | ID: 17.5 mm | Free length: 55 mm | Spring rate: 7.50 kgf/mm | Max deflection: 22 mm
LSSL 35X60 OD: 35 mm | ID: 17.5 mm | Free length: 60 mm | Spring rate: 6.87 kgf/mm | Max deflection: 24 mm
LSSL 35X65 OD: 35 mm | ID: 17.5 mm | Free length: 65 mm | Spring rate: 6.35 kgf/mm | Max deflection: 26 mm
LSSL 35X70 OD: 35 mm | ID: 17.5 mm | Free length: 70 mm | Spring rate: 5.89 kgf/mm | Max deflection: 28 mm
LSSL 35X75 OD: 35 mm | ID: 17.5 mm | Free length: 75 mm | Spring rate: 5.50 kgf/mm | Max deflection: 30 mm
LSSL 35X80 OD: 35 mm | ID: 17.5 mm | Free length: 80 mm | Spring rate: 5.15 kgf/mm | Max deflection: 32 mm
LSSL 35X90 OD: 35 mm | ID: 17.5 mm | Free length: 90 mm | Spring rate: 4.58 kgf/mm | Max deflection: 36 mm
LSSL 35X100 OD: 35 mm | ID: 17.5 mm | Free length: 100 mm | Spring rate: 4.12 kgf/mm | Max deflection: 40 mm
LSSL 35X125 OD: 35 mm | ID: 17.5 mm | Free length: 125 mm | Spring rate: 3.30 kgf/mm | Max deflection: 50 mm
LSSL 35X150 OD: 35 mm | ID: 17.5 mm | Free length: 150 mm | Spring rate: 2.75 kgf/mm | Max deflection: 60 mm
LSSL 35X175 OD: 35 mm | ID: 17.5 mm | Free length: 175 mm | Spring rate: 2.35 kgf/mm | Max deflection: 70 mm
LSSL 35X200 OD: 35 mm | ID: 17.5 mm | Free length: 200 mm | Spring rate: 2.06 kgf/mm | Max deflection: 80 mm
LSSL 40X40 OD: 40 mm | ID: 20 mm | Free length: 40 mm | Spring rate: 13.50 kgf/mm | Max deflection: 16 mm
LSSL 40X45 OD: 40 mm | ID: 20 mm | Free length: 45 mm | Spring rate: 12.00 kgf/mm | Max deflection: 18 mm
LSSL 40X50 OD: 40 mm | ID: 20 mm | Free length: 50 mm | Spring rate: 10.80 kgf/mm | Max deflection: 20 mm
LSSL 40X55 OD: 40 mm | ID: 20 mm | Free length: 55 mm | Spring rate: 9.82 kgf/mm | Max deflection: 22 mm
LSSL 40X60 OD: 40 mm | ID: 20 mm | Free length: 60 mm | Spring rate: 9.00 kgf/mm | Max deflection: 24 mm
LSSL 40X65 OD: 40 mm | ID: 20 mm | Free length: 65 mm | Spring rate: 8.31 kgf/mm | Max deflection: 26 mm
LSSL 40X70 OD: 40 mm | ID: 20 mm | Free length: 70 mm | Spring rate: 7.71 kgf/mm | Max deflection: 28 mm
LSSL 40X75 OD: 40 mm | ID: 20 mm | Free length: 75 mm | Spring rate: 7.20 kgf/mm | Max deflection: 30 mm
LSSL 40X80 OD: 40 mm | ID: 20 mm | Free length: 80 mm | Spring rate: 6.75 kgf/mm | Max deflection: 32 mm
LSSL 40X90 OD: 40 mm | ID: 20 mm | Free length: 90 mm | Spring rate: 6.00 kgf/mm | Max deflection: 36 mm
LSSL 40X100 OD: 40 mm | ID: 20 mm | Free length: 100 mm | Spring rate: 5.40 kgf/mm | Max deflection: 40 mm
LSSL 40X125 OD: 40 mm | ID: 20 mm | Free length: 125 mm | Spring rate: 4.32 kgf/mm | Max deflection: 50 mm
LSSL 40X150 OD: 40 mm | ID: 20 mm | Free length: 150 mm | Spring rate: 3.60 kgf/mm | Max deflection: 60 mm
LSSL 40X175 OD: 40 mm | ID: 20 mm | Free length: 175 mm | Spring rate: 3.08 kgf/mm | Max deflection: 70 mm
LSSL 40X200 OD: 40 mm | ID: 20 mm | Free length: 200 mm | Spring rate: 2.70 kgf/mm | Max deflection: 80 mm
LSSL 40X225 OD: 40 mm | ID: 20 mm | Free length: 225 mm | Spring rate: 2.40 kgf/mm | Max deflection: 90 mm
LSSL 40X250 OD: 40 mm | ID: 20 mm | Free length: 250 mm | Spring rate: 2.16 kgf/mm | Max deflection: 100 mm
LSSL 40X275 OD: 40 mm | ID: 20 mm | Free length: 275 mm | Spring rate: 1.96 kgf/mm | Max deflection: 110 mm
LSSL 40X300 OD: 40 mm | ID: 20 mm | Free length: 300 mm | Spring rate: 1.80 kgf/mm | Max deflection: 120 mm
LSSL 50X50 OD: 50 mm | ID: 25 mm | Free length: 50 mm | Spring rate: 16.89 kgf/mm | Max deflection: 20 mm
LSSL 50X55 OD: 50 mm | ID: 25 mm | Free length: 55 mm | Spring rate: 15.35 kgf/mm | Max deflection: 22 mm
LSSL 50X60 OD: 50 mm | ID: 25 mm | Free length: 60 mm | Spring rate: 14.08 kgf/mm | Max deflection: 24 mm
LSSL 50X65 OD: 50 mm | ID: 25 mm | Free length: 65 mm | Spring rate: 12.99 kgf/mm | Max deflection: 26 mm
LSSL 50X70 OD: 50 mm | ID: 25 mm | Free length: 70 mm | Spring rate: 12.07 kgf/mm | Max deflection: 28 mm
LSSL 50X75 OD: 50 mm | ID: 25 mm | Free length: 75 mm | Spring rate: 11.26 kgf/mm | Max deflection: 30 mm
LSSL 50X80 OD: 50 mm | ID: 25 mm | Free length: 80 mm | Spring rate: 10.56 kgf/mm | Max deflection: 32 mm
LSSL 50X90 OD: 50 mm | ID: 25 mm | Free length: 90 mm | Spring rate: 9.38 kgf/mm | Max deflection: 36 mm
LSSL 50X100 OD: 50 mm | ID: 25 mm | Free length: 100 mm | Spring rate: 8.45 kgf/mm | Max deflection: 40 mm
LSSL 50X125 OD: 50 mm | ID: 25 mm | Free length: 125 mm | Spring rate: 6.76 kgf/mm | Max deflection: 50 mm
LSSL 50X150 OD: 50 mm | ID: 25 mm | Free length: 150 mm | Spring rate: 5.63 kgf/mm | Max deflection: 60 mm
LSSL 50X175 OD: 50 mm | ID: 25 mm | Free length: 175 mm | Spring rate: 4.82 kgf/mm | Max deflection: 70 mm
LSSL 50X200 OD: 50 mm | ID: 25 mm | Free length: 200 mm | Spring rate: 4.22 kgf/mm | Max deflection: 80 mm
LSSL 50X225 OD: 50 mm | ID: 25 mm | Free length: 225 mm | Spring rate: 3.75 kgf/mm | Max deflection: 90 mm
LSSL 50X250 OD: 50 mm | ID: 25 mm | Free length: 250 mm | Spring rate: 3.38 kgf/mm | Max deflection: 100 mm
LSSL 50X275 OD: 50 mm | ID: 25 mm | Free length: 275 mm | Spring rate: 3.07 kgf/mm | Max deflection: 110 mm
LSSL 50X300 OD: 50 mm | ID: 25 mm | Free length: 300 mm | Spring rate: 2.81 kgf/mm | Max deflection: 120 mm
LSSL 50X350 OD: 50 mm | ID: 25 mm | Free length: 350 mm | Spring rate: 2.41 kgf/mm | Max deflection: 140 mm
LSSL 50X400 OD: 50 mm | ID: 25 mm | Free length: 400 mm | Spring rate: 2.11 kgf/mm | Max deflection: 160 mm
LSSL 50X450 OD: 50 mm | ID: 25 mm | Free length: 450 mm | Spring rate: 1.88 kgf/mm | Max deflection: 180 mm
LSSL 50X500 OD: 50 mm | ID: 25 mm | Free length: 500 mm | Spring rate: 1.69 kgf/mm | Max deflection: 200 mm
LSSL 60X60 OD: 60 mm | ID: 30 mm | Free length: 60 mm | Spring rate: 20.25 kgf/mm | Max deflection: 24 mm
LSSL 60X70 OD: 60 mm | ID: 30 mm | Free length: 70 mm | Spring rate: 17.35 kgf/mm | Max deflection: 28 mm
LSSL 60X80 OD: 60 mm | ID: 30 mm | Free length: 80 mm | Spring rate: 15.18 kgf/mm | Max deflection: 32 mm
LSSL 60X90 OD: 60 mm | ID: 30 mm | Free length: 90 mm | Spring rate: 13.50 kgf/mm | Max deflection: 36 mm
LSSL 60X100 OD: 60 mm | ID: 30 mm | Free length: 100 mm | Spring rate: 12.15 kgf/mm | Max deflection: 40 mm
LSSL 60X125 OD: 60 mm | ID: 30 mm | Free length: 125 mm | Spring rate: 9.72 kgf/mm | Max deflection: 50 mm
LSSL 60X150 OD: 60 mm | ID: 30 mm | Free length: 150 mm | Spring rate: 8.10 kgf/mm | Max deflection: 60 mm
LSSL 60X175 OD: 60 mm | ID: 30 mm | Free length: 175 mm | Spring rate: 6.94 kgf/mm | Max deflection: 70 mm
LSSL 60X200 OD: 60 mm | ID: 30 mm | Free length: 200 mm | Spring rate: 6.07 kgf/mm | Max deflection: 80 mm
LSSL 60X225 OD: 60 mm | ID: 30 mm | Free length: 225 mm | Spring rate: 5.40 kgf/mm | Max deflection: 90 mm
LSSL 60X250 OD: 60 mm | ID: 30 mm | Free length: 250 mm | Spring rate: 4.86 kgf/mm | Max deflection: 100 mm
LSSL 60X275 OD: 60 mm | ID: 30 mm | Free length: 275 mm | Spring rate: 4.42 kgf/mm | Max deflection: 110 mm
LSSL 60X300 OD: 60 mm | ID: 30 mm | Free length: 300 mm | Spring rate: 4.05 kgf/mm | Max deflection: 120 mm
LSSL 60X350 OD: 60 mm | ID: 30 mm | Free length: 350 mm | Spring rate: 3.47 kgf/mm | Max deflection: 140 mm
LSSL 60X400 OD: 60 mm | ID: 30 mm | Free length: 400 mm | Spring rate: 3.04 kgf/mm | Max deflection: 160 mm
LSSL 60X450 OD: 60 mm | ID: 30 mm | Free length: 450 mm | Spring rate: 2.70 kgf/mm | Max deflection: 180 mm
LSSL 60X500 OD: 60 mm | ID: 30 mm | Free length: 500 mm | Spring rate: 2.43 kgf/mm | Max deflection: 200 mm
LSSL 70X70 OD: 70 mm | ID: 38.5 mm | Free length: 70 mm | Spring rate: 21.79 kgf/mm | Max deflection: 28 mm
LSSL 70X80 OD: 70 mm | ID: 38.5 mm | Free length: 80 mm | Spring rate: 19.06 kgf/mm | Max deflection: 32 mm
LSSL 70X90 OD: 70 mm | ID: 38.5 mm | Free length: 90 mm | Spring rate: 16.94 kgf/mm | Max deflection: 36 mm
LSSL 70X100 OD: 70 mm | ID: 38.5 mm | Free length: 100 mm | Spring rate: 15.25 kgf/mm | Max deflection: 40 mm
LSSL 70X125 OD: 70 mm | ID: 38.5 mm | Free length: 125 mm | Spring rate: 12.20 kgf/mm | Max deflection: 50 mm
LSSL 70X150 OD: 70 mm | ID: 38.5 mm | Free length: 150 mm | Spring rate: 10.17 kgf/mm | Max deflection: 60 mm
LSSL 70X175 OD: 70 mm | ID: 38.5 mm | Free length: 175 mm | Spring rate: 8.71 kgf/mm | Max deflection: 70 mm
LSSL 70X200 OD: 70 mm | ID: 38.5 mm | Free length: 200 mm | Spring rate: 7.62 kgf/mm | Max deflection: 80 mm
LSSL 70X225 OD: 70 mm | ID: 38.5 mm | Free length: 225 mm | Spring rate: 6.78 kgf/mm | Max deflection: 90 mm
LSSL 70X250 OD: 70 mm | ID: 38.5 mm | Free length: 250 mm | Spring rate: 6.10 kgf/mm | Max deflection: 100 mm
LSSL 70X275 OD: 70 mm | ID: 38.5 mm | Free length: 275 mm | Spring rate: 5.55 kgf/mm | Max deflection: 110 mm
LSSL 70X300 OD: 70 mm | ID: 38.5 mm | Free length: 300 mm | Spring rate: 5.08 kgf/mm | Max deflection: 120 mm
LSSL 70X350 OD: 70 mm | ID: 38.5 mm | Free length: 350 mm | Spring rate: 4.36 kgf/mm | Max deflection: 140 mm
Die SpringLuBo
271 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSSL Die Spring (Light Load, Blue)

Brand LuBo·Die Spring

Available part numbers (271)

LSSL 8X10, LSSL 8X15, LSSL 8X20, LSSL 8X25, LSSL 8X30, LSSL 8X35, LSSL 8X40, LSSL 8X45, LSSL 8X50, LSSL 8X55 + 261 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSSL 8X10OD: 8 mm | ID: 4 mm | Free length: 10 mm | Spring rate: 2.50 kgf/mm | Max deflection: 4 mm
LSSL 8X15OD: 8 mm | ID: 4 mm | Free length: 15 mm | Spring rate: 1.67 kgf/mm | Max deflection: 6 mm
LSSL 8X20OD: 8 mm | ID: 4 mm | Free length: 20 mm | Spring rate: 1.25 kgf/mm | Max deflection: 8 mm
LSSL 8X25OD: 8 mm | ID: 4 mm | Free length: 25 mm | Spring rate: 1.00 kgf/mm | Max deflection: 10 mm
LSSL 8X30OD: 8 mm | ID: 4 mm | Free length: 30 mm | Spring rate: 0.83 kgf/mm | Max deflection: 12 mm
LSSL 8X35OD: 8 mm | ID: 4 mm | Free length: 35 mm | Spring rate: 0.71 kgf/mm | Max deflection: 14 mm
LSSL 8X40OD: 8 mm | ID: 4 mm | Free length: 40 mm | Spring rate: 0.63 kgf/mm | Max deflection: 16 mm
LSSL 8X45OD: 8 mm | ID: 4 mm | Free length: 45 mm | Spring rate: 0.56 kgf/mm | Max deflection: 18 mm
LSSL 8X50OD: 8 mm | ID: 4 mm | Free length: 50 mm | Spring rate: 0.50 kgf/mm | Max deflection: 20 mm
LSSL 8X55OD: 8 mm | ID: 4 mm | Free length: 55 mm | Spring rate: 0.46 kgf/mm | Max deflection: 22 mm
LSSL 8X60OD: 8 mm | ID: 4 mm | Free length: 60 mm | Spring rate: 0.42 kgf/mm | Max deflection: 24 mm
LSSL 8X65OD: 8 mm | ID: 4 mm | Free length: 65 mm | Spring rate: 0.38 kgf/mm | Max deflection: 26 mm
LSSL 8X70OD: 8 mm | ID: 4 mm | Free length: 70 mm | Spring rate: 0.36 kgf/mm | Max deflection: 28 mm
LSSL 8X75OD: 8 mm | ID: 4 mm | Free length: 75 mm | Spring rate: 0.33 kgf/mm | Max deflection: 30 mm
LSSL 8X80OD: 8 mm | ID: 4 mm | Free length: 80 mm | Spring rate: 0.31 kgf/mm | Max deflection: 32 mm
LSSL 8X90OD: 8 mm | ID: 4 mm | Free length: 90 mm | Spring rate: 0.28 kgf/mm | Max deflection: 36 mm
LSSL 10X10OD: 10 mm | ID: 5 mm | Free length: 10 mm | Spring rate: 3.61 kgf/mm | Max deflection: 4 mm
LSSL 10X15OD: 10 mm | ID: 5 mm | Free length: 15 mm | Spring rate: 2.41 kgf/mm | Max deflection: 6 mm
LSSL 10X20OD: 10 mm | ID: 5 mm | Free length: 20 mm | Spring rate: 1.81 kgf/mm | Max deflection: 8 mm
LSSL 10X25OD: 10 mm | ID: 5 mm | Free length: 25 mm | Spring rate: 1.45 kgf/mm | Max deflection: 10 mm
LSSL 10X30OD: 10 mm | ID: 5 mm | Free length: 30 mm | Spring rate: 1.21 kgf/mm | Max deflection: 12 mm
LSSL 10X35OD: 10 mm | ID: 5 mm | Free length: 35 mm | Spring rate: 1.03 kgf/mm | Max deflection: 14 mm
LSSL 10X40OD: 10 mm | ID: 5 mm | Free length: 40 mm | Spring rate: 0.90 kgf/mm | Max deflection: 16 mm
LSSL 10X45OD: 10 mm | ID: 5 mm | Free length: 45 mm | Spring rate: 0.80 kgf/mm | Max deflection: 18 mm
LSSL 10X50OD: 10 mm | ID: 5 mm | Free length: 50 mm | Spring rate: 0.73 kgf/mm | Max deflection: 20 mm
LSSL 10X55OD: 10 mm | ID: 5 mm | Free length: 55 mm | Spring rate: 0.66 kgf/mm | Max deflection: 22 mm
LSSL 10X60OD: 10 mm | ID: 5 mm | Free length: 60 mm | Spring rate: 0.60 kgf/mm | Max deflection: 24 mm
LSSL 10X65OD: 10 mm | ID: 5 mm | Free length: 65 mm | Spring rate: 0.55 kgf/mm | Max deflection: 26 mm
LSSL 10X70OD: 10 mm | ID: 5 mm | Free length: 70 mm | Spring rate: 0.51 kgf/mm | Max deflection: 28 mm
LSSL 10X75OD: 10 mm | ID: 5 mm | Free length: 75 mm | Spring rate: 0.48 kgf/mm | Max deflection: 30 mm
LSSL 10X80OD: 10 mm | ID: 5 mm | Free length: 80 mm | Spring rate: 0.45 kgf/mm | Max deflection: 32 mm
LSSL 10X90OD: 10 mm | ID: 5 mm | Free length: 90 mm | Spring rate: 0.40 kgf/mm | Max deflection: 36 mm
LSSL 10X100OD: 10 mm | ID: 5 mm | Free length: 100 mm | Spring rate: 0.36 kgf/mm | Max deflection: 40 mm
LSSL 12X20OD: 12 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 2.63 kgf/mm | Max deflection: 8 mm
LSSL 12X25OD: 12 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 2.10 kgf/mm | Max deflection: 10 mm
LSSL 12X30OD: 12 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 1.75 kgf/mm | Max deflection: 12 mm
LSSL 12X35OD: 12 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 1.50 kgf/mm | Max deflection: 14 mm
LSSL 12X40OD: 12 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 1.32 kgf/mm | Max deflection: 16 mm
LSSL 12X45OD: 12 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 1.17 kgf/mm | Max deflection: 18 mm
LSSL 12X50OD: 12 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 1.05 kgf/mm | Max deflection: 20 mm
LSSL 12X55OD: 12 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.96 kgf/mm | Max deflection: 22 mm
LSSL 12X60OD: 12 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.88 kgf/mm | Max deflection: 24 mm
LSSL 12X65OD: 12 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.81 kgf/mm | Max deflection: 26 mm
LSSL 12X70OD: 12 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.75 kgf/mm | Max deflection: 28 mm
LSSL 12X75OD: 12 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.70 kgf/mm | Max deflection: 30 mm
LSSL 12X80OD: 12 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.66 kgf/mm | Max deflection: 32 mm
LSSL 12X90OD: 12 mm | ID: 6 mm | Free length: 90 mm | Spring rate: 0.58 kgf/mm | Max deflection: 36 mm
LSSL 12X100OD: 12 mm | ID: 6 mm | Free length: 100 mm | Spring rate: 0.53 kgf/mm | Max deflection: 40 mm
LSSL 14X20OD: 14 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 3.47 kgf/mm | Max deflection: 8 mm
LSSL 14X25OD: 14 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 2.80 kgf/mm | Max deflection: 10 mm
LSSL 14X30OD: 14 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 2.34 kgf/mm | Max deflection: 12 mm
LSSL 14X35OD: 14 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 2.00 kgf/mm | Max deflection: 14 mm
LSSL 14X40OD: 14 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 1.75 kgf/mm | Max deflection: 16 mm
LSSL 14X45OD: 14 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 1.56 kgf/mm | Max deflection: 18 mm
LSSL 14X50OD: 14 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 1.40 kgf/mm | Max deflection: 20 mm
LSSL 14X55OD: 14 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 1.27 kgf/mm | Max deflection: 22 mm
LSSL 14X60OD: 14 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 1.17 kgf/mm | Max deflection: 24 mm
LSSL 14X65OD: 14 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 1.08 kgf/mm | Max deflection: 26 mm
LSSL 14X70OD: 14 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 1.00 kgf/mm | Max deflection: 28 mm
LSSL 14X75OD: 14 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.93 kgf/mm | Max deflection: 30 mm
LSSL 14X80OD: 14 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.87 kgf/mm | Max deflection: 32 mm
LSSL 14X90OD: 14 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.77 kgf/mm | Max deflection: 36 mm
LSSL 14X100OD: 14 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.70 kgf/mm | Max deflection: 40 mm
LSSL 14X125OD: 14 mm | ID: 7 mm | Free length: 125 mm | Spring rate: 0.56 kgf/mm | Max deflection: 50 mm
LSSL 16X20OD: 16 mm | ID: 8 mm | Free length: 20 mm | Spring rate: 4.44 kgf/mm | Max deflection: 8 mm
LSSL 16X25OD: 16 mm | ID: 8 mm | Free length: 25 mm | Spring rate: 3.50 kgf/mm | Max deflection: 10 mm
LSSL 16X30OD: 16 mm | ID: 8 mm | Free length: 30 mm | Spring rate: 2.92 kgf/mm | Max deflection: 12 mm
LSSL 16X35OD: 16 mm | ID: 8 mm | Free length: 35 mm | Spring rate: 2.50 kgf/mm | Max deflection: 14 mm
LSSL 16X40OD: 16 mm | ID: 8 mm | Free length: 40 mm | Spring rate: 2.19 kgf/mm | Max deflection: 16 mm
LSSL 16X45OD: 16 mm | ID: 8 mm | Free length: 45 mm | Spring rate: 1.95 kgf/mm | Max deflection: 18 mm
LSSL 16X50OD: 16 mm | ID: 8 mm | Free length: 50 mm | Spring rate: 1.75 kgf/mm | Max deflection: 20 mm
LSSL 16X55OD: 16 mm | ID: 8 mm | Free length: 55 mm | Spring rate: 1.60 kgf/mm | Max deflection: 22 mm
LSSL 16X60OD: 16 mm | ID: 8 mm | Free length: 60 mm | Spring rate: 1.46 kgf/mm | Max deflection: 24 mm
LSSL 16X65OD: 16 mm | ID: 8 mm | Free length: 65 mm | Spring rate: 1.35 kgf/mm | Max deflection: 26 mm
LSSL 16X70OD: 16 mm | ID: 8 mm | Free length: 70 mm | Spring rate: 1.25 kgf/mm | Max deflection: 28 mm
LSSL 16X75OD: 16 mm | ID: 8 mm | Free length: 75 mm | Spring rate: 1.17 kgf/mm | Max deflection: 30 mm
LSSL 16X80OD: 16 mm | ID: 8 mm | Free length: 80 mm | Spring rate: 1.10 kgf/mm | Max deflection: 32 mm
LSSL 16X90OD: 16 mm | ID: 8 mm | Free length: 90 mm | Spring rate: 0.98 kgf/mm | Max deflection: 36 mm
LSSL 16X100OD: 16 mm | ID: 8 mm | Free length: 100 mm | Spring rate: 0.88 kgf/mm | Max deflection: 40 mm
LSSL 16X125OD: 16 mm | ID: 8 mm | Free length: 125 mm | Spring rate: 0.70 kgf/mm | Max deflection: 50 mm
LSSL 18X20OD: 18 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 5.42 kgf/mm | Max deflection: 8 mm
LSSL 18X25OD: 18 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 4.30 kgf/mm | Max deflection: 10 mm
LSSL 18X30OD: 18 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 3.58 kgf/mm | Max deflection: 12 mm
LSSL 18X35OD: 18 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 3.07 kgf/mm | Max deflection: 14 mm
LSSL 18X40OD: 18 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 2.69 kgf/mm | Max deflection: 16 mm
LSSL 18X45OD: 18 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 2.39 kgf/mm | Max deflection: 18 mm
LSSL 18X50OD: 18 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 2.15 kgf/mm | Max deflection: 20 mm
LSSL 18X55OD: 18 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 1.96 kgf/mm | Max deflection: 22 mm
LSSL 18X60OD: 18 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 1.79 kgf/mm | Max deflection: 24 mm
LSSL 18X65OD: 18 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 1.66 kgf/mm | Max deflection: 26 mm
LSSL 18X70OD: 18 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 1.54 kgf/mm | Max deflection: 28 mm
LSSL 18X75OD: 18 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 1.44 kgf/mm | Max deflection: 30 mm
LSSL 18X80OD: 18 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 1.35 kgf/mm | Max deflection: 32 mm
LSSL 18X90OD: 18 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 1.20 kgf/mm | Max deflection: 36 mm
LSSL 18X100OD: 18 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 1.07 kgf/mm | Max deflection: 40 mm
LSSL 18X125OD: 18 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.86 kgf/mm | Max deflection: 50 mm
LSSL 20X20OD: 20 mm | ID: 10 mm | Free length: 20 mm | Spring rate: 6.81 kgf/mm | Max deflection: 8 mm
LSSL 20X25OD: 20 mm | ID: 10 mm | Free length: 25 mm | Spring rate: 5.40 kgf/mm | Max deflection: 10 mm
LSSL 20X30OD: 20 mm | ID: 10 mm | Free length: 30 mm | Spring rate: 4.50 kgf/mm | Max deflection: 12 mm
LSSL 20X35OD: 20 mm | ID: 10 mm | Free length: 35 mm | Spring rate: 3.86 kgf/mm | Max deflection: 14 mm
LSSL 20X40OD: 20 mm | ID: 10 mm | Free length: 40 mm | Spring rate: 3.38 kgf/mm | Max deflection: 16 mm
LSSL 20X45OD: 20 mm | ID: 10 mm | Free length: 45 mm | Spring rate: 3.00 kgf/mm | Max deflection: 18 mm
LSSL 20X50OD: 20 mm | ID: 10 mm | Free length: 50 mm | Spring rate: 2.70 kgf/mm | Max deflection: 20 mm
LSSL 20X55OD: 20 mm | ID: 10 mm | Free length: 55 mm | Spring rate: 2.45 kgf/mm | Max deflection: 22 mm
LSSL 20X60OD: 20 mm | ID: 10 mm | Free length: 60 mm | Spring rate: 2.25 kgf/mm | Max deflection: 24 mm
LSSL 20X65OD: 20 mm | ID: 10 mm | Free length: 65 mm | Spring rate: 2.08 kgf/mm | Max deflection: 26 mm
LSSL 20X70OD: 20 mm | ID: 10 mm | Free length: 70 mm | Spring rate: 1.93 kgf/mm | Max deflection: 28 mm
LSSL 20X75OD: 20 mm | ID: 10 mm | Free length: 75 mm | Spring rate: 1.80 kgf/mm | Max deflection: 30 mm
LSSL 20X80OD: 20 mm | ID: 10 mm | Free length: 80 mm | Spring rate: 1.69 kgf/mm | Max deflection: 32 mm
LSSL 20X90OD: 20 mm | ID: 10 mm | Free length: 90 mm | Spring rate: 1.50 kgf/mm | Max deflection: 36 mm
LSSL 20X100OD: 20 mm | ID: 10 mm | Free length: 100 mm | Spring rate: 1.35 kgf/mm | Max deflection: 40 mm
LSSL 20X125OD: 20 mm | ID: 10 mm | Free length: 125 mm | Spring rate: 1.08 kgf/mm | Max deflection: 50 mm
LSSL 20X150OD: 20 mm | ID: 10 mm | Free length: 150 mm | Spring rate: 0.90 kgf/mm | Max deflection: 60 mm
LSSL 20X175OD: 20 mm | ID: 10 mm | Free length: 175 mm | Spring rate: 0.71 kgf/mm | Max deflection: 70 mm
LSSL 22X25OD: 22 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 6.70 kgf/mm | Max deflection: 10 mm
LSSL 22X30OD: 22 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 5.60 kgf/mm | Max deflection: 12 mm
LSSL 22X35OD: 22 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 4.80 kgf/mm | Max deflection: 14 mm
LSSL 22X40OD: 22 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 4.20 kgf/mm | Max deflection: 16 mm
LSSL 22X45OD: 22 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 3.72 kgf/mm | Max deflection: 18 mm
LSSL 22X50OD: 22 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 3.35 kgf/mm | Max deflection: 20 mm
LSSL 22X55OD: 22 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 3.05 kgf/mm | Max deflection: 22 mm
LSSL 22X60OD: 22 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 2.80 kgf/mm | Max deflection: 24 mm
LSSL 22X65OD: 22 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 2.58 kgf/mm | Max deflection: 26 mm
LSSL 22X70OD: 22 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 2.40 kgf/mm | Max deflection: 28 mm
LSSL 22X75OD: 22 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 2.23 kgf/mm | Max deflection: 30 mm
LSSL 22X80OD: 22 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 2.10 kgf/mm | Max deflection: 32 mm
LSSL 22X90OD: 22 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 1.86 kgf/mm | Max deflection: 36 mm
LSSL 22X100OD: 22 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 1.68 kgf/mm | Max deflection: 40 mm
LSSL 22X125OD: 22 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 1.34 kgf/mm | Max deflection: 50 mm
LSSL 22X150OD: 22 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 1.12 kgf/mm | Max deflection: 60 mm
LSSL 22X175OD: 22 mm | ID: 11 mm | Free length: 175 mm | Spring rate: 0.96 kgf/mm | Max deflection: 70 mm
LSSL 25X25OD: 25 mm | ID: 12.5 mm | Free length: 25 mm | Spring rate: 8.40 kgf/mm | Max deflection: 10 mm
LSSL 25X30OD: 25 mm | ID: 12.5 mm | Free length: 30 mm | Spring rate: 7.00 kgf/mm | Max deflection: 12 mm
LSSL 25X35OD: 25 mm | ID: 12.5 mm | Free length: 35 mm | Spring rate: 6.00 kgf/mm | Max deflection: 14 mm
LSSL 25X40OD: 25 mm | ID: 12.5 mm | Free length: 40 mm | Spring rate: 5.25 kgf/mm | Max deflection: 16 mm
LSSL 25X45OD: 25 mm | ID: 12.5 mm | Free length: 45 mm | Spring rate: 4.67 kgf/mm | Max deflection: 18 mm
LSSL 25X50OD: 25 mm | ID: 12.5 mm | Free length: 50 mm | Spring rate: 4.20 kgf/mm | Max deflection: 20 mm
LSSL 25X55OD: 25 mm | ID: 12.5 mm | Free length: 55 mm | Spring rate: 3.82 kgf/mm | Max deflection: 22 mm
LSSL 25X60OD: 25 mm | ID: 12.5 mm | Free length: 60 mm | Spring rate: 3.50 kgf/mm | Max deflection: 24 mm
LSSL 25X65OD: 25 mm | ID: 12.5 mm | Free length: 65 mm | Spring rate: 3.23 kgf/mm | Max deflection: 26 mm
LSSL 25X70OD: 25 mm | ID: 12.5 mm | Free length: 70 mm | Spring rate: 3.00 kgf/mm | Max deflection: 28 mm
LSSL 25X75OD: 25 mm | ID: 12.5 mm | Free length: 75 mm | Spring rate: 2.80 kgf/mm | Max deflection: 30 mm
LSSL 25X80OD: 25 mm | ID: 12.5 mm | Free length: 80 mm | Spring rate: 2.63 kgf/mm | Max deflection: 32 mm
LSSL 25X90OD: 25 mm | ID: 12.5 mm | Free length: 90 mm | Spring rate: 2.33 kgf/mm | Max deflection: 36 mm
LSSL 25X100OD: 25 mm | ID: 12.5 mm | Free length: 100 mm | Spring rate: 2.10 kgf/mm | Max deflection: 40 mm
LSSL 25X125OD: 25 mm | ID: 12.5 mm | Free length: 125 mm | Spring rate: 1.68 kgf/mm | Max deflection: 50 mm
LSSL 25X150OD: 25 mm | ID: 12.5 mm | Free length: 150 mm | Spring rate: 1.40 kgf/mm | Max deflection: 60 mm
LSSL 25X175OD: 25 mm | ID: 12.5 mm | Free length: 175 mm | Spring rate: 1.20 kgf/mm | Max deflection: 70 mm
LSSL 25X200OD: 25 mm | ID: 12.5 mm | Free length: 200 mm | Spring rate: 1.05 kgf/mm | Max deflection: 80 mm
LSSL 27X25OD: 27 mm | ID: 13.5 mm | Free length: 25 mm | Spring rate: 10.00 kgf/mm | Max deflection: 10 mm
LSSL 27X30OD: 27 mm | ID: 13.5 mm | Free length: 30 mm | Spring rate: 8.33 kgf/mm | Max deflection: 12 mm
LSSL 27X35OD: 27 mm | ID: 13.5 mm | Free length: 35 mm | Spring rate: 7.14 kgf/mm | Max deflection: 14 mm
LSSL 27X40OD: 27 mm | ID: 13.5 mm | Free length: 40 mm | Spring rate: 6.25 kgf/mm | Max deflection: 16 mm
LSSL 27X45OD: 27 mm | ID: 13.5 mm | Free length: 45 mm | Spring rate: 5.56 kgf/mm | Max deflection: 18 mm
LSSL 27X50OD: 27 mm | ID: 13.5 mm | Free length: 50 mm | Spring rate: 5.00 kgf/mm | Max deflection: 20 mm
LSSL 27X55OD: 27 mm | ID: 13.5 mm | Free length: 55 mm | Spring rate: 4.55 kgf/mm | Max deflection: 22 mm
LSSL 27X60OD: 27 mm | ID: 13.5 mm | Free length: 60 mm | Spring rate: 4.17 kgf/mm | Max deflection: 24 mm
LSSL 27X65OD: 27 mm | ID: 13.5 mm | Free length: 65 mm | Spring rate: 3.85 kgf/mm | Max deflection: 26 mm
LSSL 27X70OD: 27 mm | ID: 13.5 mm | Free length: 70 mm | Spring rate: 3.57 kgf/mm | Max deflection: 28 mm
LSSL 27X75OD: 27 mm | ID: 13.5 mm | Free length: 75 mm | Spring rate: 3.33 kgf/mm | Max deflection: 30 mm
LSSL 27X80OD: 27 mm | ID: 13.5 mm | Free length: 80 mm | Spring rate: 3.13 kgf/mm | Max deflection: 32 mm
LSSL 27X90OD: 27 mm | ID: 13.5 mm | Free length: 90 mm | Spring rate: 2.78 kgf/mm | Max deflection: 36 mm
LSSL 27X100OD: 27 mm | ID: 13.5 mm | Free length: 100 mm | Spring rate: 2.50 kgf/mm | Max deflection: 40 mm
LSSL 27X125OD: 27 mm | ID: 13.5 mm | Free length: 125 mm | Spring rate: 2.00 kgf/mm | Max deflection: 50 mm
LSSL 27X150OD: 27 mm | ID: 13.5 mm | Free length: 150 mm | Spring rate: 1.67 kgf/mm | Max deflection: 60 mm
LSSL 27X175OD: 27 mm | ID: 13.5 mm | Free length: 175 mm | Spring rate: 1.43 kgf/mm | Max deflection: 70 mm
LSSL 27X200OD: 27 mm | ID: 13.5 mm | Free length: 200 mm | Spring rate: 1.25 kgf/mm | Max deflection: 80 mm
LSSL 30X25OD: 30 mm | ID: 15 mm | Free length: 25 mm | Spring rate: 12.11 kgf/mm | Max deflection: 10 mm
LSSL 30X30OD: 30 mm | ID: 15 mm | Free length: 30 mm | Spring rate: 10.08 kgf/mm | Max deflection: 12 mm
LSSL 30X35OD: 30 mm | ID: 15 mm | Free length: 35 mm | Spring rate: 8.65 kgf/mm | Max deflection: 14 mm
LSSL 30X40OD: 30 mm | ID: 15 mm | Free length: 40 mm | Spring rate: 7.56 kgf/mm | Max deflection: 16 mm
LSSL 30X45OD: 30 mm | ID: 15 mm | Free length: 45 mm | Spring rate: 6.73 kgf/mm | Max deflection: 18 mm
LSSL 30X50OD: 30 mm | ID: 15 mm | Free length: 50 mm | Spring rate: 6.05 kgf/mm | Max deflection: 20 mm
LSSL 30X55OD: 30 mm | ID: 15 mm | Free length: 55 mm | Spring rate: 5.50 kgf/mm | Max deflection: 22 mm
LSSL 30X60OD: 30 mm | ID: 15 mm | Free length: 60 mm | Spring rate: 5.04 kgf/mm | Max deflection: 24 mm
LSSL 30X65OD: 30 mm | ID: 15 mm | Free length: 65 mm | Spring rate: 4.65 kgf/mm | Max deflection: 26 mm
LSSL 30X70OD: 30 mm | ID: 15 mm | Free length: 70 mm | Spring rate: 4.32 kgf/mm | Max deflection: 28 mm
LSSL 30X75OD: 30 mm | ID: 15 mm | Free length: 75 mm | Spring rate: 4.03 kgf/mm | Max deflection: 30 mm
LSSL 30X80OD: 30 mm | ID: 15 mm | Free length: 80 mm | Spring rate: 3.78 kgf/mm | Max deflection: 32 mm
LSSL 30X90OD: 30 mm | ID: 15 mm | Free length: 90 mm | Spring rate: 3.36 kgf/mm | Max deflection: 36 mm
LSSL 30X100OD: 30 mm | ID: 15 mm | Free length: 100 mm | Spring rate: 3.02 kgf/mm | Max deflection: 40 mm
LSSL 30X125OD: 30 mm | ID: 15 mm | Free length: 125 mm | Spring rate: 42.42 kgf/mm | Max deflection: 50 mm
LSSL 30X150OD: 30 mm | ID: 15 mm | Free length: 150 mm | Spring rate: 2.01 kgf/mm | Max deflection: 60 mm
LSSL 30X175OD: 30 mm | ID: 15 mm | Free length: 175 mm | Spring rate: 1.72 kgf/mm | Max deflection: 70 mm
LSSL 30X200OD: 30 mm | ID: 15 mm | Free length: 200 mm | Spring rate: 1.51 kgf/mm | Max deflection: 80 mm
LSSL 35X35OD: 35 mm | ID: 17.5 mm | Free length: 35 mm | Spring rate: 11.78 kgf/mm | Max deflection: 14 mm
LSSL 35X40OD: 35 mm | ID: 17.5 mm | Free length: 40 mm | Spring rate: 10.31 kgf/mm | Max deflection: 16 mm
LSSL 35X45OD: 35 mm | ID: 17.5 mm | Free length: 45 mm | Spring rate: 9.17 kgf/mm | Max deflection: 18 mm
LSSL 35X50OD: 35 mm | ID: 17.5 mm | Free length: 50 mm | Spring rate: 8.25 kgf/mm | Max deflection: 20 mm
LSSL 35X55OD: 35 mm | ID: 17.5 mm | Free length: 55 mm | Spring rate: 7.50 kgf/mm | Max deflection: 22 mm
LSSL 35X60OD: 35 mm | ID: 17.5 mm | Free length: 60 mm | Spring rate: 6.87 kgf/mm | Max deflection: 24 mm
LSSL 35X65OD: 35 mm | ID: 17.5 mm | Free length: 65 mm | Spring rate: 6.35 kgf/mm | Max deflection: 26 mm
LSSL 35X70OD: 35 mm | ID: 17.5 mm | Free length: 70 mm | Spring rate: 5.89 kgf/mm | Max deflection: 28 mm
LSSL 35X75OD: 35 mm | ID: 17.5 mm | Free length: 75 mm | Spring rate: 5.50 kgf/mm | Max deflection: 30 mm
LSSL 35X80OD: 35 mm | ID: 17.5 mm | Free length: 80 mm | Spring rate: 5.15 kgf/mm | Max deflection: 32 mm
LSSL 35X90OD: 35 mm | ID: 17.5 mm | Free length: 90 mm | Spring rate: 4.58 kgf/mm | Max deflection: 36 mm
LSSL 35X100OD: 35 mm | ID: 17.5 mm | Free length: 100 mm | Spring rate: 4.12 kgf/mm | Max deflection: 40 mm
LSSL 35X125OD: 35 mm | ID: 17.5 mm | Free length: 125 mm | Spring rate: 3.30 kgf/mm | Max deflection: 50 mm
LSSL 35X150OD: 35 mm | ID: 17.5 mm | Free length: 150 mm | Spring rate: 2.75 kgf/mm | Max deflection: 60 mm
LSSL 35X175OD: 35 mm | ID: 17.5 mm | Free length: 175 mm | Spring rate: 2.35 kgf/mm | Max deflection: 70 mm
LSSL 35X200OD: 35 mm | ID: 17.5 mm | Free length: 200 mm | Spring rate: 2.06 kgf/mm | Max deflection: 80 mm
LSSL 40X40OD: 40 mm | ID: 20 mm | Free length: 40 mm | Spring rate: 13.50 kgf/mm | Max deflection: 16 mm
LSSL 40X45OD: 40 mm | ID: 20 mm | Free length: 45 mm | Spring rate: 12.00 kgf/mm | Max deflection: 18 mm
LSSL 40X50OD: 40 mm | ID: 20 mm | Free length: 50 mm | Spring rate: 10.80 kgf/mm | Max deflection: 20 mm
LSSL 40X55OD: 40 mm | ID: 20 mm | Free length: 55 mm | Spring rate: 9.82 kgf/mm | Max deflection: 22 mm
LSSL 40X60OD: 40 mm | ID: 20 mm | Free length: 60 mm | Spring rate: 9.00 kgf/mm | Max deflection: 24 mm
LSSL 40X65OD: 40 mm | ID: 20 mm | Free length: 65 mm | Spring rate: 8.31 kgf/mm | Max deflection: 26 mm
LSSL 40X70OD: 40 mm | ID: 20 mm | Free length: 70 mm | Spring rate: 7.71 kgf/mm | Max deflection: 28 mm
LSSL 40X75OD: 40 mm | ID: 20 mm | Free length: 75 mm | Spring rate: 7.20 kgf/mm | Max deflection: 30 mm
LSSL 40X80OD: 40 mm | ID: 20 mm | Free length: 80 mm | Spring rate: 6.75 kgf/mm | Max deflection: 32 mm
LSSL 40X90OD: 40 mm | ID: 20 mm | Free length: 90 mm | Spring rate: 6.00 kgf/mm | Max deflection: 36 mm
LSSL 40X100OD: 40 mm | ID: 20 mm | Free length: 100 mm | Spring rate: 5.40 kgf/mm | Max deflection: 40 mm
LSSL 40X125OD: 40 mm | ID: 20 mm | Free length: 125 mm | Spring rate: 4.32 kgf/mm | Max deflection: 50 mm
LSSL 40X150OD: 40 mm | ID: 20 mm | Free length: 150 mm | Spring rate: 3.60 kgf/mm | Max deflection: 60 mm
LSSL 40X175OD: 40 mm | ID: 20 mm | Free length: 175 mm | Spring rate: 3.08 kgf/mm | Max deflection: 70 mm
LSSL 40X200OD: 40 mm | ID: 20 mm | Free length: 200 mm | Spring rate: 2.70 kgf/mm | Max deflection: 80 mm
LSSL 40X225OD: 40 mm | ID: 20 mm | Free length: 225 mm | Spring rate: 2.40 kgf/mm | Max deflection: 90 mm
LSSL 40X250OD: 40 mm | ID: 20 mm | Free length: 250 mm | Spring rate: 2.16 kgf/mm | Max deflection: 100 mm
LSSL 40X275OD: 40 mm | ID: 20 mm | Free length: 275 mm | Spring rate: 1.96 kgf/mm | Max deflection: 110 mm
LSSL 40X300OD: 40 mm | ID: 20 mm | Free length: 300 mm | Spring rate: 1.80 kgf/mm | Max deflection: 120 mm
LSSL 50X50OD: 50 mm | ID: 25 mm | Free length: 50 mm | Spring rate: 16.89 kgf/mm | Max deflection: 20 mm
LSSL 50X55OD: 50 mm | ID: 25 mm | Free length: 55 mm | Spring rate: 15.35 kgf/mm | Max deflection: 22 mm
LSSL 50X60OD: 50 mm | ID: 25 mm | Free length: 60 mm | Spring rate: 14.08 kgf/mm | Max deflection: 24 mm
LSSL 50X65OD: 50 mm | ID: 25 mm | Free length: 65 mm | Spring rate: 12.99 kgf/mm | Max deflection: 26 mm
LSSL 50X70OD: 50 mm | ID: 25 mm | Free length: 70 mm | Spring rate: 12.07 kgf/mm | Max deflection: 28 mm
LSSL 50X75OD: 50 mm | ID: 25 mm | Free length: 75 mm | Spring rate: 11.26 kgf/mm | Max deflection: 30 mm
LSSL 50X80OD: 50 mm | ID: 25 mm | Free length: 80 mm | Spring rate: 10.56 kgf/mm | Max deflection: 32 mm
LSSL 50X90OD: 50 mm | ID: 25 mm | Free length: 90 mm | Spring rate: 9.38 kgf/mm | Max deflection: 36 mm
LSSL 50X100OD: 50 mm | ID: 25 mm | Free length: 100 mm | Spring rate: 8.45 kgf/mm | Max deflection: 40 mm
LSSL 50X125OD: 50 mm | ID: 25 mm | Free length: 125 mm | Spring rate: 6.76 kgf/mm | Max deflection: 50 mm
LSSL 50X150OD: 50 mm | ID: 25 mm | Free length: 150 mm | Spring rate: 5.63 kgf/mm | Max deflection: 60 mm
LSSL 50X175OD: 50 mm | ID: 25 mm | Free length: 175 mm | Spring rate: 4.82 kgf/mm | Max deflection: 70 mm
LSSL 50X200OD: 50 mm | ID: 25 mm | Free length: 200 mm | Spring rate: 4.22 kgf/mm | Max deflection: 80 mm
LSSL 50X225OD: 50 mm | ID: 25 mm | Free length: 225 mm | Spring rate: 3.75 kgf/mm | Max deflection: 90 mm
LSSL 50X250OD: 50 mm | ID: 25 mm | Free length: 250 mm | Spring rate: 3.38 kgf/mm | Max deflection: 100 mm
LSSL 50X275OD: 50 mm | ID: 25 mm | Free length: 275 mm | Spring rate: 3.07 kgf/mm | Max deflection: 110 mm
LSSL 50X300OD: 50 mm | ID: 25 mm | Free length: 300 mm | Spring rate: 2.81 kgf/mm | Max deflection: 120 mm
LSSL 50X350OD: 50 mm | ID: 25 mm | Free length: 350 mm | Spring rate: 2.41 kgf/mm | Max deflection: 140 mm
LSSL 50X400OD: 50 mm | ID: 25 mm | Free length: 400 mm | Spring rate: 2.11 kgf/mm | Max deflection: 160 mm
LSSL 50X450OD: 50 mm | ID: 25 mm | Free length: 450 mm | Spring rate: 1.88 kgf/mm | Max deflection: 180 mm
LSSL 50X500OD: 50 mm | ID: 25 mm | Free length: 500 mm | Spring rate: 1.69 kgf/mm | Max deflection: 200 mm
LSSL 60X60OD: 60 mm | ID: 30 mm | Free length: 60 mm | Spring rate: 20.25 kgf/mm | Max deflection: 24 mm
LSSL 60X70OD: 60 mm | ID: 30 mm | Free length: 70 mm | Spring rate: 17.35 kgf/mm | Max deflection: 28 mm
LSSL 60X80OD: 60 mm | ID: 30 mm | Free length: 80 mm | Spring rate: 15.18 kgf/mm | Max deflection: 32 mm
LSSL 60X90OD: 60 mm | ID: 30 mm | Free length: 90 mm | Spring rate: 13.50 kgf/mm | Max deflection: 36 mm
LSSL 60X100OD: 60 mm | ID: 30 mm | Free length: 100 mm | Spring rate: 12.15 kgf/mm | Max deflection: 40 mm
LSSL 60X125OD: 60 mm | ID: 30 mm | Free length: 125 mm | Spring rate: 9.72 kgf/mm | Max deflection: 50 mm
LSSL 60X150OD: 60 mm | ID: 30 mm | Free length: 150 mm | Spring rate: 8.10 kgf/mm | Max deflection: 60 mm
LSSL 60X175OD: 60 mm | ID: 30 mm | Free length: 175 mm | Spring rate: 6.94 kgf/mm | Max deflection: 70 mm
LSSL 60X200OD: 60 mm | ID: 30 mm | Free length: 200 mm | Spring rate: 6.07 kgf/mm | Max deflection: 80 mm
LSSL 60X225OD: 60 mm | ID: 30 mm | Free length: 225 mm | Spring rate: 5.40 kgf/mm | Max deflection: 90 mm
LSSL 60X250OD: 60 mm | ID: 30 mm | Free length: 250 mm | Spring rate: 4.86 kgf/mm | Max deflection: 100 mm
LSSL 60X275OD: 60 mm | ID: 30 mm | Free length: 275 mm | Spring rate: 4.42 kgf/mm | Max deflection: 110 mm
LSSL 60X300OD: 60 mm | ID: 30 mm | Free length: 300 mm | Spring rate: 4.05 kgf/mm | Max deflection: 120 mm
LSSL 60X350OD: 60 mm | ID: 30 mm | Free length: 350 mm | Spring rate: 3.47 kgf/mm | Max deflection: 140 mm
LSSL 60X400OD: 60 mm | ID: 30 mm | Free length: 400 mm | Spring rate: 3.04 kgf/mm | Max deflection: 160 mm
LSSL 60X450OD: 60 mm | ID: 30 mm | Free length: 450 mm | Spring rate: 2.70 kgf/mm | Max deflection: 180 mm
LSSL 60X500OD: 60 mm | ID: 30 mm | Free length: 500 mm | Spring rate: 2.43 kgf/mm | Max deflection: 200 mm
LSSL 70X70OD: 70 mm | ID: 38.5 mm | Free length: 70 mm | Spring rate: 21.79 kgf/mm | Max deflection: 28 mm
LSSL 70X80OD: 70 mm | ID: 38.5 mm | Free length: 80 mm | Spring rate: 19.06 kgf/mm | Max deflection: 32 mm
LSSL 70X90OD: 70 mm | ID: 38.5 mm | Free length: 90 mm | Spring rate: 16.94 kgf/mm | Max deflection: 36 mm
LSSL 70X100OD: 70 mm | ID: 38.5 mm | Free length: 100 mm | Spring rate: 15.25 kgf/mm | Max deflection: 40 mm
LSSL 70X125OD: 70 mm | ID: 38.5 mm | Free length: 125 mm | Spring rate: 12.20 kgf/mm | Max deflection: 50 mm
LSSL 70X150OD: 70 mm | ID: 38.5 mm | Free length: 150 mm | Spring rate: 10.17 kgf/mm | Max deflection: 60 mm
LSSL 70X175OD: 70 mm | ID: 38.5 mm | Free length: 175 mm | Spring rate: 8.71 kgf/mm | Max deflection: 70 mm
LSSL 70X200OD: 70 mm | ID: 38.5 mm | Free length: 200 mm | Spring rate: 7.62 kgf/mm | Max deflection: 80 mm
LSSL 70X225OD: 70 mm | ID: 38.5 mm | Free length: 225 mm | Spring rate: 6.78 kgf/mm | Max deflection: 90 mm
LSSL 70X250OD: 70 mm | ID: 38.5 mm | Free length: 250 mm | Spring rate: 6.10 kgf/mm | Max deflection: 100 mm
LSSL 70X275OD: 70 mm | ID: 38.5 mm | Free length: 275 mm | Spring rate: 5.55 kgf/mm | Max deflection: 110 mm
LSSL 70X300OD: 70 mm | ID: 38.5 mm | Free length: 300 mm | Spring rate: 5.08 kgf/mm | Max deflection: 120 mm
LSSL 70X350OD: 70 mm | ID: 38.5 mm | Free length: 350 mm | Spring rate: 4.36 kgf/mm | Max deflection: 140 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
