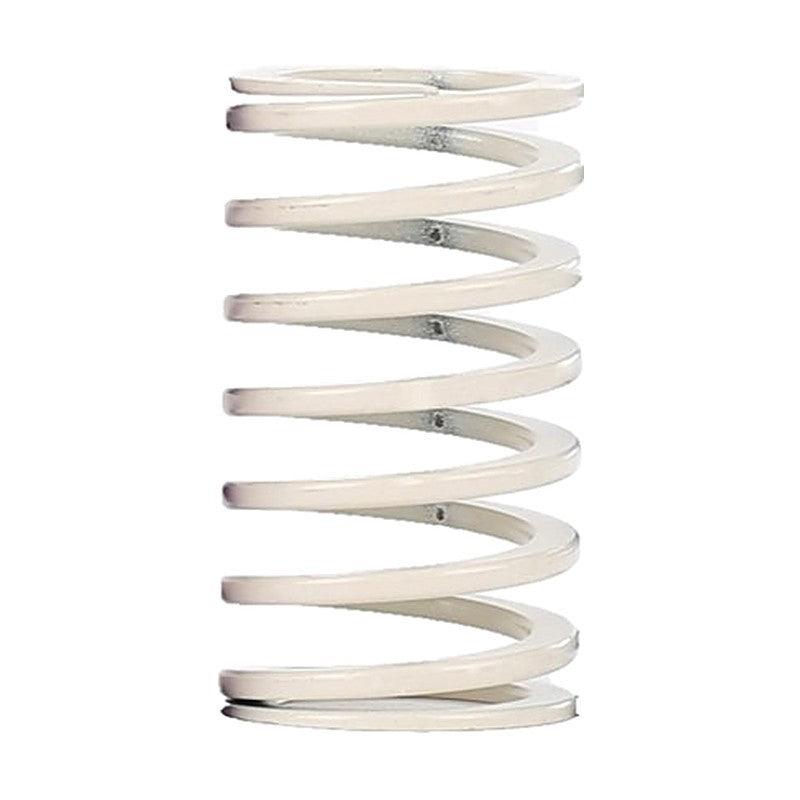

LuBo LSSR Die Spring (High Deflection, White)

LuBo LSSR Die Spring (High Deflection, White)

LuBo LSSR is a high deflection rectangular-wire coil die spring, colour-coded white, for press dies and moulds. Codes give outer diameter x free length in mm.

Key features

  • Colour-coded white for high deflection identification
  • Rated deflection 50% of free length for 300,000 cycles
  • Outer diameter 10.5-46 mm, free length 15-300 mm
  • Catalogue also lists deflection for 500,000 and 1,000,000 cycles
  • Ordered by product code, outer diameter and free length

Specifications

Series LSSR
Load class High Deflection (White)
Max deflection (300,000 cycles) 50% of free length
Load tolerance +/-10%
Squareness 2 deg or less
Free length tolerance +/-0.5 mm (50 mm or less), +/-1% (55 mm or more)
Order format LSSR - D x L (e.g. LSSR 21X90)
Lead time 1 day (catalogue)
Source LuBo Springs catalogue (High Deflection)
LSSR 10X15 OD: 10.5 mm | ID: 6 mm | Free length: 15 mm | Spring rate: 1.07 kgf/mm | Max deflection: 7.5 mm
LSSR 10X20 OD: 10.5 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 0.80 kgf/mm | Max deflection: 10 mm
LSSR 10X25 OD: 10.5 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 0.64 kgf/mm | Max deflection: 12.5 mm
LSSR 10X30 OD: 10.5 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 0.53 kgf/mm | Max deflection: 15 mm
LSSR 10X35 OD: 10.5 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 0.46 kgf/mm | Max deflection: 17.5 mm
LSSR 10X40 OD: 10.5 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 0.40 kgf/mm | Max deflection: 20 mm
LSSR 10X45 OD: 10.5 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 0.36 kgf/mm | Max deflection: 22.5 mm
LSSR 10X50 OD: 10.5 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 0.32 kgf/mm | Max deflection: 25 mm
LSSR 10X55 OD: 10.5 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.29 kgf/mm | Max deflection: 27.5 mm
LSSR 10X60 OD: 10.5 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.27 kgf/mm | Max deflection: 30 mm
LSSR 10X65 OD: 10.5 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.25 kgf/mm | Max deflection: 32.5 mm
LSSR 10X70 OD: 10.5 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.23 kgf/mm | Max deflection: 35 mm
LSSR 10X75 OD: 10.5 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.21 kgf/mm | Max deflection: 37.5 mm
LSSR 10X80 OD: 10.5 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.20 kgf/mm | Max deflection: 40 mm
LSSR 12.5X15 OD: 12.5 mm | ID: 7 mm | Free length: 15 mm | Spring rate: 1.20 kgf/mm | Max deflection: 7.5 mm
LSSR 12.5X20 OD: 12.5 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 0.90 kgf/mm | Max deflection: 10 mm
LSSR 12.5X25 OD: 12.5 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 0.72 kgf/mm | Max deflection: 12.5 mm
LSSR 12.5X30 OD: 12.5 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 0.60 kgf/mm | Max deflection: 15 mm
LSSR 12.5X35 OD: 12.5 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 0.51 kgf/mm | Max deflection: 17.5 mm
LSSR 12.5X40 OD: 12.5 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 0.45 kgf/mm | Max deflection: 20 mm
LSSR 12.5X45 OD: 12.5 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 0.40 kgf/mm | Max deflection: 22.5 mm
LSSR 12.5X50 OD: 12.5 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 0.36 kgf/mm | Max deflection: 25 mm
LSSR 12.5X55 OD: 12.5 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 0.33 kgf/mm | Max deflection: 27.5 mm
LSSR 12.5X60 OD: 12.5 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 0.30 kgf/mm | Max deflection: 30 mm
LSSR 12.5X65 OD: 12.5 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 0.28 kgf/mm | Max deflection: 32.5 mm
LSSR 12.5X70 OD: 12.5 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 0.26 kgf/mm | Max deflection: 35 mm
LSSR 12.5X75 OD: 12.5 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.24 kgf/mm | Max deflection: 37.5 mm
LSSR 12.5X80 OD: 12.5 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.23 kgf/mm | Max deflection: 40 mm
LSSR 12.5X90 OD: 12.5 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.20 kgf/mm | Max deflection: 45 mm
LSSR 12.5X100 OD: 12.5 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.18 kgf/mm | Max deflection: 50 mm
LSSR 14.5X20 OD: 14.5 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 1.14 kgf/mm | Max deflection: 10 mm
LSSR 14.5X25 OD: 14.5 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 0.89 kgf/mm | Max deflection: 12.5 mm
LSSR 14.5X30 OD: 14.5 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 0.74 kgf/mm | Max deflection: 15 mm
LSSR 14.5X35 OD: 14.5 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 0.64 kgf/mm | Max deflection: 17.5 mm
LSSR 14.5X40 OD: 14.5 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 0.56 kgf/mm | Max deflection: 20 mm
LSSR 14.5X45 OD: 14.5 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 0.49 kgf/mm | Max deflection: 22.5 mm
LSSR 14.5X50 OD: 14.5 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 0.44 kgf/mm | Max deflection: 25 mm
LSSR 14.5X55 OD: 14.5 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 0.40 kgf/mm | Max deflection: 27.5 mm
LSSR 14.5X60 OD: 14.5 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 0.37 kgf/mm | Max deflection: 30 mm
LSSR 14.5X65 OD: 14.5 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 0.34 kgf/mm | Max deflection: 32.5 mm
LSSR 14.5X70 OD: 14.5 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 0.32 kgf/mm | Max deflection: 35 mm
LSSR 14.5X75 OD: 14.5 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 0.30 kgf/mm | Max deflection: 37.5 mm
LSSR 14.5X80 OD: 14.5 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 0.28 kgf/mm | Max deflection: 40 mm
LSSR 14.5X90 OD: 14.5 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 0.25 kgf/mm | Max deflection: 45 mm
LSSR 14.5X100 OD: 14.5 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 0.22 kgf/mm | Max deflection: 50 mm
LSSR 14.5X125 OD: 14.5 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.18 kgf/mm | Max deflection: 62.5 mm
LSSR 17X25 OD: 17 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 1.51 kgf/mm | Max deflection: 12.5 mm
LSSR 17X30 OD: 17 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 1.26 kgf/mm | Max deflection: 15 mm
LSSR 17X35 OD: 17 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 1.08 kgf/mm | Max deflection: 17.5 mm
LSSR 17X40 OD: 17 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 0.94 kgf/mm | Max deflection: 20 mm
LSSR 17X45 OD: 17 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 0.84 kgf/mm | Max deflection: 22.5 mm
LSSR 17X50 OD: 17 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 0.76 kgf/mm | Max deflection: 25 mm
LSSR 17X55 OD: 17 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 0.69 kgf/mm | Max deflection: 27.5 mm
LSSR 17X60 OD: 17 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 0.63 kgf/mm | Max deflection: 30 mm
LSSR 17X65 OD: 17 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 0.58 kgf/mm | Max deflection: 32.5 mm
LSSR 17X70 OD: 17 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 0.54 kgf/mm | Max deflection: 35 mm
LSSR 17X75 OD: 17 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 0.50 kgf/mm | Max deflection: 37.5 mm
LSSR 17X80 OD: 17 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 0.47 kgf/mm | Max deflection: 40 mm
LSSR 17X90 OD: 17 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 0.42 kgf/mm | Max deflection: 45 mm
LSSR 17X100 OD: 17 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 0.38 kgf/mm | Max deflection: 50 mm
LSSR 17X125 OD: 17 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 0.30 kgf/mm | Max deflection: 62.5 mm
LSSR 17X150 OD: 17 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 0.25 kgf/mm | Max deflection: 75 mm
LSSR 21X30 OD: 21 mm | ID: 13 mm | Free length: 30 mm | Spring rate: 2.00 kgf/mm | Max deflection: 15 mm
LSSR 21X35 OD: 21 mm | ID: 13 mm | Free length: 35 mm | Spring rate: 1.71 kgf/mm | Max deflection: 17.5 mm
LSSR 21X40 OD: 21 mm | ID: 13 mm | Free length: 40 mm | Spring rate: 1.50 kgf/mm | Max deflection: 20 mm
LSSR 21X45 OD: 21 mm | ID: 13 mm | Free length: 45 mm | Spring rate: 1.33 kgf/mm | Max deflection: 22.5 mm
LSSR 21X50 OD: 21 mm | ID: 13 mm | Free length: 50 mm | Spring rate: 1.20 kgf/mm | Max deflection: 25 mm
LSSR 21X55 OD: 21 mm | ID: 13 mm | Free length: 55 mm | Spring rate: 1.09 kgf/mm | Max deflection: 27.5 mm
LSSR 21X60 OD: 21 mm | ID: 13 mm | Free length: 60 mm | Spring rate: 1.00 kgf/mm | Max deflection: 30 mm
LSSR 21X65 OD: 21 mm | ID: 13 mm | Free length: 65 mm | Spring rate: 0.92 kgf/mm | Max deflection: 32.5 mm
LSSR 21X70 OD: 21 mm | ID: 13 mm | Free length: 70 mm | Spring rate: 0.86 kgf/mm | Max deflection: 35 mm
LSSR 21X75 OD: 21 mm | ID: 13 mm | Free length: 75 mm | Spring rate: 0.80 kgf/mm | Max deflection: 37.5 mm
LSSR 21X80 OD: 21 mm | ID: 13 mm | Free length: 80 mm | Spring rate: 0.75 kgf/mm | Max deflection: 40 mm
LSSR 21X90 OD: 21 mm | ID: 13 mm | Free length: 90 mm | Spring rate: 0.67 kgf/mm | Max deflection: 45 mm
LSSR 21X100 OD: 21 mm | ID: 13 mm | Free length: 100 mm | Spring rate: 0.60 kgf/mm | Max deflection: 50 mm
LSSR 21X125 OD: 21 mm | ID: 13 mm | Free length: 125 mm | Spring rate: 0.48 kgf/mm | Max deflection: 62.5 mm
LSSR 21X150 OD: 21 mm | ID: 13 mm | Free length: 150 mm | Spring rate: 0.40 kgf/mm | Max deflection: 75 mm
LSSR 26X30 OD: 26 mm | ID: 16.5 mm | Free length: 30 mm | Spring rate: 2.74 kgf/mm | Max deflection: 15 mm
LSSR 26X35 OD: 26 mm | ID: 16.5 mm | Free length: 35 mm | Spring rate: 2.35 kgf/mm | Max deflection: 17.5 mm
LSSR 26X40 OD: 26 mm | ID: 16.5 mm | Free length: 40 mm | Spring rate: 2.06 kgf/mm | Max deflection: 20 mm
LSSR 26X45 OD: 26 mm | ID: 16.5 mm | Free length: 45 mm | Spring rate: 1.83 kgf/mm | Max deflection: 22.5 mm
LSSR 26X50 OD: 26 mm | ID: 16.5 mm | Free length: 50 mm | Spring rate: 1.64 kgf/mm | Max deflection: 25 mm
LSSR 26X55 OD: 26 mm | ID: 16.5 mm | Free length: 55 mm | Spring rate: 1.49 kgf/mm | Max deflection: 27.5 mm
LSSR 26X60 OD: 26 mm | ID: 16.5 mm | Free length: 60 mm | Spring rate: 1.37 kgf/mm | Max deflection: 30 mm
LSSR 26X65 OD: 26 mm | ID: 16.5 mm | Free length: 65 mm | Spring rate: 1.26 kgf/mm | Max deflection: 32.5 mm
LSSR 26X70 OD: 26 mm | ID: 16.5 mm | Free length: 70 mm | Spring rate: 1.17 kgf/mm | Max deflection: 35 mm
LSSR 26X75 OD: 26 mm | ID: 16.5 mm | Free length: 75 mm | Spring rate: 1.10 kgf/mm | Max deflection: 37.5 mm
LSSR 26X80 OD: 26 mm | ID: 16.5 mm | Free length: 80 mm | Spring rate: 1.03 kgf/mm | Max deflection: 40 mm
LSSR 26X90 OD: 26 mm | ID: 16.5 mm | Free length: 90 mm | Spring rate: 0.91 kgf/mm | Max deflection: 45 mm
LSSR 26X100 OD: 26 mm | ID: 16.5 mm | Free length: 100 mm | Spring rate: 0.82 kgf/mm | Max deflection: 50 mm
LSSR 26X110 OD: 26 mm | ID: 16.5 mm | Free length: 110 mm | Spring rate: 0.75 kgf/mm | Max deflection: 55 mm
LSSR 26X125 OD: 26 mm | ID: 16.5 mm | Free length: 125 mm | Spring rate: 0.66 kgf/mm | Max deflection: 62.5 mm
LSSR 26X150 OD: 26 mm | ID: 16.5 mm | Free length: 150 mm | Spring rate: 0.55 kgf/mm | Max deflection: 75 mm
LSSR 26X175 OD: 26 mm | ID: 16.5 mm | Free length: 175 mm | Spring rate: 0.47 kgf/mm | Max deflection: 87.5 mm
LSSR 26X200 OD: 26 mm | ID: 16.5 mm | Free length: 200 mm | Spring rate: 0.41 kgf/mm | Max deflection: 100 mm
LSSR 31X40 OD: 31 mm | ID: 21 mm | Free length: 40 mm | Spring rate: 2.56 kgf/mm | Max deflection: 20 mm
LSSR 31X45 OD: 31 mm | ID: 21 mm | Free length: 45 mm | Spring rate: 2.27 kgf/mm | Max deflection: 22.5 mm
LSSR 31X50 OD: 31 mm | ID: 21 mm | Free length: 50 mm | Spring rate: 2.04 kgf/mm | Max deflection: 25 mm
LSSR 31X55 OD: 31 mm | ID: 21 mm | Free length: 55 mm | Spring rate: 1.85 kgf/mm | Max deflection: 27.5 mm
LSSR 31X60 OD: 31 mm | ID: 21 mm | Free length: 60 mm | Spring rate: 1.70 kgf/mm | Max deflection: 30 mm
LSSR 31X65 OD: 31 mm | ID: 21 mm | Free length: 65 mm | Spring rate: 1.57 kgf/mm | Max deflection: 32.5 mm
LSSR 31X70 OD: 31 mm | ID: 21 mm | Free length: 70 mm | Spring rate: 1.46 kgf/mm | Max deflection: 35 mm
LSSR 31X75 OD: 31 mm | ID: 21 mm | Free length: 75 mm | Spring rate: 1.36 kgf/mm | Max deflection: 37.5 mm
LSSR 31X80 OD: 31 mm | ID: 21 mm | Free length: 80 mm | Spring rate: 1.28 kgf/mm | Max deflection: 40 mm
LSSR 31X90 OD: 31 mm | ID: 21 mm | Free length: 90 mm | Spring rate: 1.14 kgf/mm | Max deflection: 45 mm
LSSR 31X100 OD: 31 mm | ID: 21 mm | Free length: 100 mm | Spring rate: 1.02 kgf/mm | Max deflection: 50 mm
LSSR 31X110 OD: 31 mm | ID: 21 mm | Free length: 110 mm | Spring rate: 0.93 kgf/mm | Max deflection: 55 mm
LSSR 31X125 OD: 31 mm | ID: 21 mm | Free length: 125 mm | Spring rate: 0.82 kgf/mm | Max deflection: 62.5 mm
LSSR 31X150 OD: 31 mm | ID: 21 mm | Free length: 150 mm | Spring rate: 0.68 kgf/mm | Max deflection: 75 mm
LSSR 31X175 OD: 31 mm | ID: 21 mm | Free length: 175 mm | Spring rate: 0.58 kgf/mm | Max deflection: 87.5 mm
LSSR 31X200 OD: 31 mm | ID: 21 mm | Free length: 200 mm | Spring rate: 0.51 kgf/mm | Max deflection: 100 mm
LSSR 31X250 OD: 31 mm | ID: 21 mm | Free length: 250 mm | Spring rate: 0.41 kgf/mm | Max deflection: 125 mm
LSSR 31X300 OD: 31 mm | ID: 21 mm | Free length: 300 mm | Spring rate: 0.34 kgf/mm | Max deflection: 150 mm
LSSR 39X40 OD: 39 mm | ID: 26 mm | Free length: 40 mm | Spring rate: 2.78 kgf/mm | Max deflection: 20 mm
LSSR 39X45 OD: 39 mm | ID: 26 mm | Free length: 45 mm | Spring rate: 2.47 kgf/mm | Max deflection: 22.5 mm
LSSR 39X50 OD: 39 mm | ID: 26 mm | Free length: 50 mm | Spring rate: 2.22 kgf/mm | Max deflection: 25 mm
LSSR 39X55 OD: 39 mm | ID: 26 mm | Free length: 55 mm | Spring rate: 2.02 kgf/mm | Max deflection: 27.5 mm
LSSR 39X60 OD: 39 mm | ID: 26 mm | Free length: 60 mm | Spring rate: 1.85 kgf/mm | Max deflection: 30 mm
LSSR 39X65 OD: 39 mm | ID: 26 mm | Free length: 65 mm | Spring rate: 1.71 kgf/mm | Max deflection: 32.5 mm
LSSR 39X70 OD: 39 mm | ID: 26 mm | Free length: 70 mm | Spring rate: 1.59 kgf/mm | Max deflection: 35 mm
LSSR 39X75 OD: 39 mm | ID: 26 mm | Free length: 75 mm | Spring rate: 1.48 kgf/mm | Max deflection: 37.5 mm
LSSR 39X80 OD: 39 mm | ID: 26 mm | Free length: 80 mm | Spring rate: 1.39 kgf/mm | Max deflection: 40 mm
LSSR 39X90 OD: 39 mm | ID: 26 mm | Free length: 90 mm | Spring rate: 1.23 kgf/mm | Max deflection: 45 mm
LSSR 39X100 OD: 39 mm | ID: 26 mm | Free length: 100 mm | Spring rate: 1.11 kgf/mm | Max deflection: 50 mm
LSSR 39X110 OD: 39 mm | ID: 26 mm | Free length: 110 mm | Spring rate: 1.01 kgf/mm | Max deflection: 55 mm
LSSR 39X125 OD: 39 mm | ID: 26 mm | Free length: 125 mm | Spring rate: 0.89 kgf/mm | Max deflection: 62.5 mm
LSSR 39X150 OD: 39 mm | ID: 26 mm | Free length: 150 mm | Spring rate: 0.74 kgf/mm | Max deflection: 75 mm
LSSR 39X175 OD: 39 mm | ID: 26 mm | Free length: 175 mm | Spring rate: 0.63 kgf/mm | Max deflection: 87.5 mm
LSSR 39X200 OD: 39 mm | ID: 26 mm | Free length: 200 mm | Spring rate: 0.56 kgf/mm | Max deflection: 100 mm
LSSR 39X250 OD: 39 mm | ID: 26 mm | Free length: 250 mm | Spring rate: 0.44 kgf/mm | Max deflection: 125 mm
LSSR 39X300 OD: 39 mm | ID: 26 mm | Free length: 300 mm | Spring rate: 0.37 kgf/mm | Max deflection: 150 mm
LSSR 46X50 OD: 46 mm | ID: 32 mm | Free length: 50 mm | Spring rate: 2.49 kgf/mm | Max deflection: 25 mm
LSSR 46X55 OD: 46 mm | ID: 32 mm | Free length: 55 mm | Spring rate: 2.26 kgf/mm | Max deflection: 27.5 mm
LSSR 46X60 OD: 46 mm | ID: 32 mm | Free length: 60 mm | Spring rate: 2.07 kgf/mm | Max deflection: 30 mm
LSSR 46X65 OD: 46 mm | ID: 32 mm | Free length: 65 mm | Spring rate: 1.92 kgf/mm | Max deflection: 32.5 mm
LSSR 46X70 OD: 46 mm | ID: 32 mm | Free length: 70 mm | Spring rate: 1.78 kgf/mm | Max deflection: 35 mm
LSSR 46X75 OD: 46 mm | ID: 32 mm | Free length: 75 mm | Spring rate: 1.66 kgf/mm | Max deflection: 37.5 mm
LSSR 46X80 OD: 46 mm | ID: 32 mm | Free length: 80 mm | Spring rate: 1.56 kgf/mm | Max deflection: 40 mm
LSSR 46X90 OD: 46 mm | ID: 32 mm | Free length: 90 mm | Spring rate: 1.38 kgf/mm | Max deflection: 45 mm
LSSR 46X100 OD: 46 mm | ID: 32 mm | Free length: 100 mm | Spring rate: 1.24 kgf/mm | Max deflection: 50 mm
LSSR 46X110 OD: 46 mm | ID: 32 mm | Free length: 110 mm | Spring rate: 1.13 kgf/mm | Max deflection: 55 mm
LSSR 46X125 OD: 46 mm | ID: 32 mm | Free length: 125 mm | Spring rate: 1.00 kgf/mm | Max deflection: 62.5 mm
LSSR 46X150 OD: 46 mm | ID: 32 mm | Free length: 150 mm | Spring rate: 0.83 kgf/mm | Max deflection: 75 mm
LSSR 46X175 OD: 46 mm | ID: 32 mm | Free length: 175 mm | Spring rate: 0.71 kgf/mm | Max deflection: 87.5 mm
LSSR 46X200 OD: 46 mm | ID: 32 mm | Free length: 200 mm | Spring rate: 0.62 kgf/mm | Max deflection: 100 mm
LSSR 46X250 OD: 46 mm | ID: 32 mm | Free length: 250 mm | Spring rate: 0.50 kgf/mm | Max deflection: 125 mm
LSSR 46X300 OD: 46 mm | ID: 32 mm | Free length: 300 mm | Spring rate: 0.41 kgf/mm | Max deflection: 150 mm
Die SpringLuBo
147 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSSR Die Spring (High Deflection, White)

Brand LuBo·Die Spring

Available part numbers (147)

LSSR 10X15, LSSR 10X20, LSSR 10X25, LSSR 10X30, LSSR 10X35, LSSR 10X40, LSSR 10X45, LSSR 10X50, LSSR 10X55, LSSR 10X60 + 137 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSSR 10X15OD: 10.5 mm | ID: 6 mm | Free length: 15 mm | Spring rate: 1.07 kgf/mm | Max deflection: 7.5 mm
LSSR 10X20OD: 10.5 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 0.80 kgf/mm | Max deflection: 10 mm
LSSR 10X25OD: 10.5 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 0.64 kgf/mm | Max deflection: 12.5 mm
LSSR 10X30OD: 10.5 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 0.53 kgf/mm | Max deflection: 15 mm
LSSR 10X35OD: 10.5 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 0.46 kgf/mm | Max deflection: 17.5 mm
LSSR 10X40OD: 10.5 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 0.40 kgf/mm | Max deflection: 20 mm
LSSR 10X45OD: 10.5 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 0.36 kgf/mm | Max deflection: 22.5 mm
LSSR 10X50OD: 10.5 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 0.32 kgf/mm | Max deflection: 25 mm
LSSR 10X55OD: 10.5 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.29 kgf/mm | Max deflection: 27.5 mm
LSSR 10X60OD: 10.5 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.27 kgf/mm | Max deflection: 30 mm
LSSR 10X65OD: 10.5 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.25 kgf/mm | Max deflection: 32.5 mm
LSSR 10X70OD: 10.5 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.23 kgf/mm | Max deflection: 35 mm
LSSR 10X75OD: 10.5 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.21 kgf/mm | Max deflection: 37.5 mm
LSSR 10X80OD: 10.5 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.20 kgf/mm | Max deflection: 40 mm
LSSR 12.5X15OD: 12.5 mm | ID: 7 mm | Free length: 15 mm | Spring rate: 1.20 kgf/mm | Max deflection: 7.5 mm
LSSR 12.5X20OD: 12.5 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 0.90 kgf/mm | Max deflection: 10 mm
LSSR 12.5X25OD: 12.5 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 0.72 kgf/mm | Max deflection: 12.5 mm
LSSR 12.5X30OD: 12.5 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 0.60 kgf/mm | Max deflection: 15 mm
LSSR 12.5X35OD: 12.5 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 0.51 kgf/mm | Max deflection: 17.5 mm
LSSR 12.5X40OD: 12.5 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 0.45 kgf/mm | Max deflection: 20 mm
LSSR 12.5X45OD: 12.5 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 0.40 kgf/mm | Max deflection: 22.5 mm
LSSR 12.5X50OD: 12.5 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 0.36 kgf/mm | Max deflection: 25 mm
LSSR 12.5X55OD: 12.5 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 0.33 kgf/mm | Max deflection: 27.5 mm
LSSR 12.5X60OD: 12.5 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 0.30 kgf/mm | Max deflection: 30 mm
LSSR 12.5X65OD: 12.5 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 0.28 kgf/mm | Max deflection: 32.5 mm
LSSR 12.5X70OD: 12.5 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 0.26 kgf/mm | Max deflection: 35 mm
LSSR 12.5X75OD: 12.5 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.24 kgf/mm | Max deflection: 37.5 mm
LSSR 12.5X80OD: 12.5 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.23 kgf/mm | Max deflection: 40 mm
LSSR 12.5X90OD: 12.5 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.20 kgf/mm | Max deflection: 45 mm
LSSR 12.5X100OD: 12.5 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.18 kgf/mm | Max deflection: 50 mm
LSSR 14.5X20OD: 14.5 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 1.14 kgf/mm | Max deflection: 10 mm
LSSR 14.5X25OD: 14.5 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 0.89 kgf/mm | Max deflection: 12.5 mm
LSSR 14.5X30OD: 14.5 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 0.74 kgf/mm | Max deflection: 15 mm
LSSR 14.5X35OD: 14.5 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 0.64 kgf/mm | Max deflection: 17.5 mm
LSSR 14.5X40OD: 14.5 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 0.56 kgf/mm | Max deflection: 20 mm
LSSR 14.5X45OD: 14.5 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 0.49 kgf/mm | Max deflection: 22.5 mm
LSSR 14.5X50OD: 14.5 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 0.44 kgf/mm | Max deflection: 25 mm
LSSR 14.5X55OD: 14.5 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 0.40 kgf/mm | Max deflection: 27.5 mm
LSSR 14.5X60OD: 14.5 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 0.37 kgf/mm | Max deflection: 30 mm
LSSR 14.5X65OD: 14.5 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 0.34 kgf/mm | Max deflection: 32.5 mm
LSSR 14.5X70OD: 14.5 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 0.32 kgf/mm | Max deflection: 35 mm
LSSR 14.5X75OD: 14.5 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 0.30 kgf/mm | Max deflection: 37.5 mm
LSSR 14.5X80OD: 14.5 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 0.28 kgf/mm | Max deflection: 40 mm
LSSR 14.5X90OD: 14.5 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 0.25 kgf/mm | Max deflection: 45 mm
LSSR 14.5X100OD: 14.5 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 0.22 kgf/mm | Max deflection: 50 mm
LSSR 14.5X125OD: 14.5 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.18 kgf/mm | Max deflection: 62.5 mm
LSSR 17X25OD: 17 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 1.51 kgf/mm | Max deflection: 12.5 mm
LSSR 17X30OD: 17 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 1.26 kgf/mm | Max deflection: 15 mm
LSSR 17X35OD: 17 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 1.08 kgf/mm | Max deflection: 17.5 mm
LSSR 17X40OD: 17 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 0.94 kgf/mm | Max deflection: 20 mm
LSSR 17X45OD: 17 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 0.84 kgf/mm | Max deflection: 22.5 mm
LSSR 17X50OD: 17 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 0.76 kgf/mm | Max deflection: 25 mm
LSSR 17X55OD: 17 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 0.69 kgf/mm | Max deflection: 27.5 mm
LSSR 17X60OD: 17 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 0.63 kgf/mm | Max deflection: 30 mm
LSSR 17X65OD: 17 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 0.58 kgf/mm | Max deflection: 32.5 mm
LSSR 17X70OD: 17 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 0.54 kgf/mm | Max deflection: 35 mm
LSSR 17X75OD: 17 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 0.50 kgf/mm | Max deflection: 37.5 mm
LSSR 17X80OD: 17 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 0.47 kgf/mm | Max deflection: 40 mm
LSSR 17X90OD: 17 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 0.42 kgf/mm | Max deflection: 45 mm
LSSR 17X100OD: 17 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 0.38 kgf/mm | Max deflection: 50 mm
LSSR 17X125OD: 17 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 0.30 kgf/mm | Max deflection: 62.5 mm
LSSR 17X150OD: 17 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 0.25 kgf/mm | Max deflection: 75 mm
LSSR 21X30OD: 21 mm | ID: 13 mm | Free length: 30 mm | Spring rate: 2.00 kgf/mm | Max deflection: 15 mm
LSSR 21X35OD: 21 mm | ID: 13 mm | Free length: 35 mm | Spring rate: 1.71 kgf/mm | Max deflection: 17.5 mm
LSSR 21X40OD: 21 mm | ID: 13 mm | Free length: 40 mm | Spring rate: 1.50 kgf/mm | Max deflection: 20 mm
LSSR 21X45OD: 21 mm | ID: 13 mm | Free length: 45 mm | Spring rate: 1.33 kgf/mm | Max deflection: 22.5 mm
LSSR 21X50OD: 21 mm | ID: 13 mm | Free length: 50 mm | Spring rate: 1.20 kgf/mm | Max deflection: 25 mm
LSSR 21X55OD: 21 mm | ID: 13 mm | Free length: 55 mm | Spring rate: 1.09 kgf/mm | Max deflection: 27.5 mm
LSSR 21X60OD: 21 mm | ID: 13 mm | Free length: 60 mm | Spring rate: 1.00 kgf/mm | Max deflection: 30 mm
LSSR 21X65OD: 21 mm | ID: 13 mm | Free length: 65 mm | Spring rate: 0.92 kgf/mm | Max deflection: 32.5 mm
LSSR 21X70OD: 21 mm | ID: 13 mm | Free length: 70 mm | Spring rate: 0.86 kgf/mm | Max deflection: 35 mm
LSSR 21X75OD: 21 mm | ID: 13 mm | Free length: 75 mm | Spring rate: 0.80 kgf/mm | Max deflection: 37.5 mm
LSSR 21X80OD: 21 mm | ID: 13 mm | Free length: 80 mm | Spring rate: 0.75 kgf/mm | Max deflection: 40 mm
LSSR 21X90OD: 21 mm | ID: 13 mm | Free length: 90 mm | Spring rate: 0.67 kgf/mm | Max deflection: 45 mm
LSSR 21X100OD: 21 mm | ID: 13 mm | Free length: 100 mm | Spring rate: 0.60 kgf/mm | Max deflection: 50 mm
LSSR 21X125OD: 21 mm | ID: 13 mm | Free length: 125 mm | Spring rate: 0.48 kgf/mm | Max deflection: 62.5 mm
LSSR 21X150OD: 21 mm | ID: 13 mm | Free length: 150 mm | Spring rate: 0.40 kgf/mm | Max deflection: 75 mm
LSSR 26X30OD: 26 mm | ID: 16.5 mm | Free length: 30 mm | Spring rate: 2.74 kgf/mm | Max deflection: 15 mm
LSSR 26X35OD: 26 mm | ID: 16.5 mm | Free length: 35 mm | Spring rate: 2.35 kgf/mm | Max deflection: 17.5 mm
LSSR 26X40OD: 26 mm | ID: 16.5 mm | Free length: 40 mm | Spring rate: 2.06 kgf/mm | Max deflection: 20 mm
LSSR 26X45OD: 26 mm | ID: 16.5 mm | Free length: 45 mm | Spring rate: 1.83 kgf/mm | Max deflection: 22.5 mm
LSSR 26X50OD: 26 mm | ID: 16.5 mm | Free length: 50 mm | Spring rate: 1.64 kgf/mm | Max deflection: 25 mm
LSSR 26X55OD: 26 mm | ID: 16.5 mm | Free length: 55 mm | Spring rate: 1.49 kgf/mm | Max deflection: 27.5 mm
LSSR 26X60OD: 26 mm | ID: 16.5 mm | Free length: 60 mm | Spring rate: 1.37 kgf/mm | Max deflection: 30 mm
LSSR 26X65OD: 26 mm | ID: 16.5 mm | Free length: 65 mm | Spring rate: 1.26 kgf/mm | Max deflection: 32.5 mm
LSSR 26X70OD: 26 mm | ID: 16.5 mm | Free length: 70 mm | Spring rate: 1.17 kgf/mm | Max deflection: 35 mm
LSSR 26X75OD: 26 mm | ID: 16.5 mm | Free length: 75 mm | Spring rate: 1.10 kgf/mm | Max deflection: 37.5 mm
LSSR 26X80OD: 26 mm | ID: 16.5 mm | Free length: 80 mm | Spring rate: 1.03 kgf/mm | Max deflection: 40 mm
LSSR 26X90OD: 26 mm | ID: 16.5 mm | Free length: 90 mm | Spring rate: 0.91 kgf/mm | Max deflection: 45 mm
LSSR 26X100OD: 26 mm | ID: 16.5 mm | Free length: 100 mm | Spring rate: 0.82 kgf/mm | Max deflection: 50 mm
LSSR 26X110OD: 26 mm | ID: 16.5 mm | Free length: 110 mm | Spring rate: 0.75 kgf/mm | Max deflection: 55 mm
LSSR 26X125OD: 26 mm | ID: 16.5 mm | Free length: 125 mm | Spring rate: 0.66 kgf/mm | Max deflection: 62.5 mm
LSSR 26X150OD: 26 mm | ID: 16.5 mm | Free length: 150 mm | Spring rate: 0.55 kgf/mm | Max deflection: 75 mm
LSSR 26X175OD: 26 mm | ID: 16.5 mm | Free length: 175 mm | Spring rate: 0.47 kgf/mm | Max deflection: 87.5 mm
LSSR 26X200OD: 26 mm | ID: 16.5 mm | Free length: 200 mm | Spring rate: 0.41 kgf/mm | Max deflection: 100 mm
LSSR 31X40OD: 31 mm | ID: 21 mm | Free length: 40 mm | Spring rate: 2.56 kgf/mm | Max deflection: 20 mm
LSSR 31X45OD: 31 mm | ID: 21 mm | Free length: 45 mm | Spring rate: 2.27 kgf/mm | Max deflection: 22.5 mm
LSSR 31X50OD: 31 mm | ID: 21 mm | Free length: 50 mm | Spring rate: 2.04 kgf/mm | Max deflection: 25 mm
LSSR 31X55OD: 31 mm | ID: 21 mm | Free length: 55 mm | Spring rate: 1.85 kgf/mm | Max deflection: 27.5 mm
LSSR 31X60OD: 31 mm | ID: 21 mm | Free length: 60 mm | Spring rate: 1.70 kgf/mm | Max deflection: 30 mm
LSSR 31X65OD: 31 mm | ID: 21 mm | Free length: 65 mm | Spring rate: 1.57 kgf/mm | Max deflection: 32.5 mm
LSSR 31X70OD: 31 mm | ID: 21 mm | Free length: 70 mm | Spring rate: 1.46 kgf/mm | Max deflection: 35 mm
LSSR 31X75OD: 31 mm | ID: 21 mm | Free length: 75 mm | Spring rate: 1.36 kgf/mm | Max deflection: 37.5 mm
LSSR 31X80OD: 31 mm | ID: 21 mm | Free length: 80 mm | Spring rate: 1.28 kgf/mm | Max deflection: 40 mm
LSSR 31X90OD: 31 mm | ID: 21 mm | Free length: 90 mm | Spring rate: 1.14 kgf/mm | Max deflection: 45 mm
LSSR 31X100OD: 31 mm | ID: 21 mm | Free length: 100 mm | Spring rate: 1.02 kgf/mm | Max deflection: 50 mm
LSSR 31X110OD: 31 mm | ID: 21 mm | Free length: 110 mm | Spring rate: 0.93 kgf/mm | Max deflection: 55 mm
LSSR 31X125OD: 31 mm | ID: 21 mm | Free length: 125 mm | Spring rate: 0.82 kgf/mm | Max deflection: 62.5 mm
LSSR 31X150OD: 31 mm | ID: 21 mm | Free length: 150 mm | Spring rate: 0.68 kgf/mm | Max deflection: 75 mm
LSSR 31X175OD: 31 mm | ID: 21 mm | Free length: 175 mm | Spring rate: 0.58 kgf/mm | Max deflection: 87.5 mm
LSSR 31X200OD: 31 mm | ID: 21 mm | Free length: 200 mm | Spring rate: 0.51 kgf/mm | Max deflection: 100 mm
LSSR 31X250OD: 31 mm | ID: 21 mm | Free length: 250 mm | Spring rate: 0.41 kgf/mm | Max deflection: 125 mm
LSSR 31X300OD: 31 mm | ID: 21 mm | Free length: 300 mm | Spring rate: 0.34 kgf/mm | Max deflection: 150 mm
LSSR 39X40OD: 39 mm | ID: 26 mm | Free length: 40 mm | Spring rate: 2.78 kgf/mm | Max deflection: 20 mm
LSSR 39X45OD: 39 mm | ID: 26 mm | Free length: 45 mm | Spring rate: 2.47 kgf/mm | Max deflection: 22.5 mm
LSSR 39X50OD: 39 mm | ID: 26 mm | Free length: 50 mm | Spring rate: 2.22 kgf/mm | Max deflection: 25 mm
LSSR 39X55OD: 39 mm | ID: 26 mm | Free length: 55 mm | Spring rate: 2.02 kgf/mm | Max deflection: 27.5 mm
LSSR 39X60OD: 39 mm | ID: 26 mm | Free length: 60 mm | Spring rate: 1.85 kgf/mm | Max deflection: 30 mm
LSSR 39X65OD: 39 mm | ID: 26 mm | Free length: 65 mm | Spring rate: 1.71 kgf/mm | Max deflection: 32.5 mm
LSSR 39X70OD: 39 mm | ID: 26 mm | Free length: 70 mm | Spring rate: 1.59 kgf/mm | Max deflection: 35 mm
LSSR 39X75OD: 39 mm | ID: 26 mm | Free length: 75 mm | Spring rate: 1.48 kgf/mm | Max deflection: 37.5 mm
LSSR 39X80OD: 39 mm | ID: 26 mm | Free length: 80 mm | Spring rate: 1.39 kgf/mm | Max deflection: 40 mm
LSSR 39X90OD: 39 mm | ID: 26 mm | Free length: 90 mm | Spring rate: 1.23 kgf/mm | Max deflection: 45 mm
LSSR 39X100OD: 39 mm | ID: 26 mm | Free length: 100 mm | Spring rate: 1.11 kgf/mm | Max deflection: 50 mm
LSSR 39X110OD: 39 mm | ID: 26 mm | Free length: 110 mm | Spring rate: 1.01 kgf/mm | Max deflection: 55 mm
LSSR 39X125OD: 39 mm | ID: 26 mm | Free length: 125 mm | Spring rate: 0.89 kgf/mm | Max deflection: 62.5 mm
LSSR 39X150OD: 39 mm | ID: 26 mm | Free length: 150 mm | Spring rate: 0.74 kgf/mm | Max deflection: 75 mm
LSSR 39X175OD: 39 mm | ID: 26 mm | Free length: 175 mm | Spring rate: 0.63 kgf/mm | Max deflection: 87.5 mm
LSSR 39X200OD: 39 mm | ID: 26 mm | Free length: 200 mm | Spring rate: 0.56 kgf/mm | Max deflection: 100 mm
LSSR 39X250OD: 39 mm | ID: 26 mm | Free length: 250 mm | Spring rate: 0.44 kgf/mm | Max deflection: 125 mm
LSSR 39X300OD: 39 mm | ID: 26 mm | Free length: 300 mm | Spring rate: 0.37 kgf/mm | Max deflection: 150 mm
LSSR 46X50OD: 46 mm | ID: 32 mm | Free length: 50 mm | Spring rate: 2.49 kgf/mm | Max deflection: 25 mm
LSSR 46X55OD: 46 mm | ID: 32 mm | Free length: 55 mm | Spring rate: 2.26 kgf/mm | Max deflection: 27.5 mm
LSSR 46X60OD: 46 mm | ID: 32 mm | Free length: 60 mm | Spring rate: 2.07 kgf/mm | Max deflection: 30 mm
LSSR 46X65OD: 46 mm | ID: 32 mm | Free length: 65 mm | Spring rate: 1.92 kgf/mm | Max deflection: 32.5 mm
LSSR 46X70OD: 46 mm | ID: 32 mm | Free length: 70 mm | Spring rate: 1.78 kgf/mm | Max deflection: 35 mm
LSSR 46X75OD: 46 mm | ID: 32 mm | Free length: 75 mm | Spring rate: 1.66 kgf/mm | Max deflection: 37.5 mm
LSSR 46X80OD: 46 mm | ID: 32 mm | Free length: 80 mm | Spring rate: 1.56 kgf/mm | Max deflection: 40 mm
LSSR 46X90OD: 46 mm | ID: 32 mm | Free length: 90 mm | Spring rate: 1.38 kgf/mm | Max deflection: 45 mm
LSSR 46X100OD: 46 mm | ID: 32 mm | Free length: 100 mm | Spring rate: 1.24 kgf/mm | Max deflection: 50 mm
LSSR 46X110OD: 46 mm | ID: 32 mm | Free length: 110 mm | Spring rate: 1.13 kgf/mm | Max deflection: 55 mm
LSSR 46X125OD: 46 mm | ID: 32 mm | Free length: 125 mm | Spring rate: 1.00 kgf/mm | Max deflection: 62.5 mm
LSSR 46X150OD: 46 mm | ID: 32 mm | Free length: 150 mm | Spring rate: 0.83 kgf/mm | Max deflection: 75 mm
LSSR 46X175OD: 46 mm | ID: 32 mm | Free length: 175 mm | Spring rate: 0.71 kgf/mm | Max deflection: 87.5 mm
LSSR 46X200OD: 46 mm | ID: 32 mm | Free length: 200 mm | Spring rate: 0.62 kgf/mm | Max deflection: 100 mm
LSSR 46X250OD: 46 mm | ID: 32 mm | Free length: 250 mm | Spring rate: 0.50 kgf/mm | Max deflection: 125 mm
LSSR 46X300OD: 46 mm | ID: 32 mm | Free length: 300 mm | Spring rate: 0.41 kgf/mm | Max deflection: 150 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
