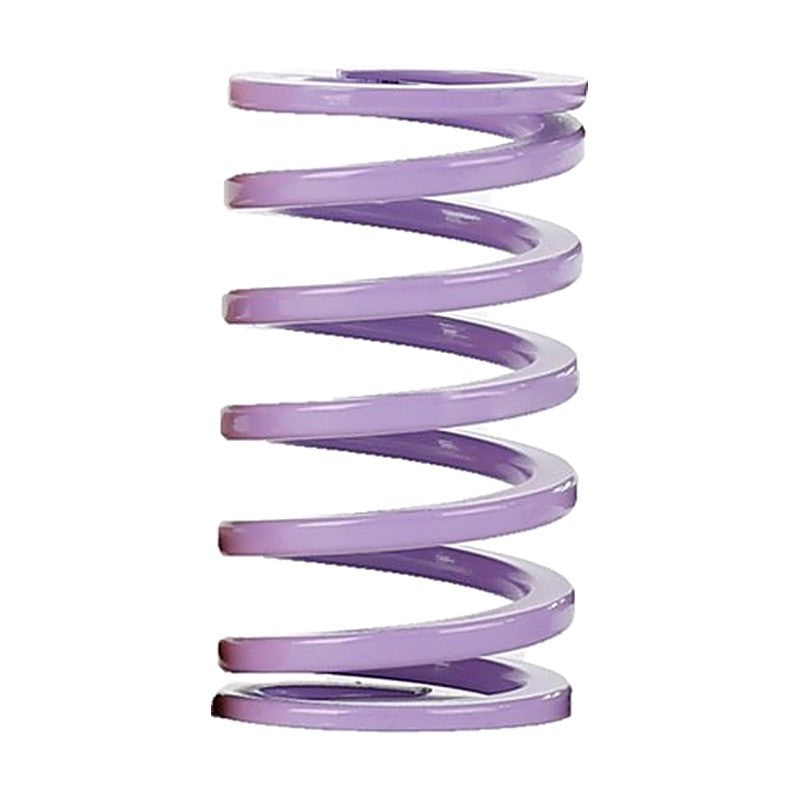

LuBo LSSY Die Spring (Middle Deflection, Purple)

LuBo LSSY Die Spring (Middle Deflection, Purple)

LuBo LSSY is a middle deflection rectangular-wire coil die spring, colour-coded purple, for press dies and moulds. Codes give outer diameter x free length in mm.

Key features

  • Colour-coded purple for middle deflection identification
  • Rated deflection 50% of free length for 300,000 cycles
  • Outer diameter 10.5-52 mm, free length 15-350 mm
  • Catalogue also lists deflection for 500,000 and 1,000,000 cycles
  • Ordered by product code, outer diameter and free length

Specifications

Series LSSY
Load class Middle Deflection (Purple)
Max deflection (300,000 cycles) 50% of free length
Load tolerance +/-10%
Squareness 2 deg or less
Free length tolerance +/-0.5 mm (50 mm or less), +/-1% (55 mm or more)
Order format LSSY - D x L (e.g. LSSY 26X45)
Lead time 1 day (catalogue)
Source LuBo Springs catalogue (Middle Deflection)
LSSY 10.5X15 OD: 10.5 mm | ID: 6 mm | Free length: 15 mm | Spring rate: 1.33 kgf/mm | Max deflection: 7.5 mm
LSSY 10.5X20 OD: 10.5 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 1.00 kgf/mm | Max deflection: 10 mm
LSSY 10.5X25 OD: 10.5 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 0.80 kgf/mm | Max deflection: 12.5 mm
LSSY 10.5X30 OD: 10.5 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 0.67 kgf/mm | Max deflection: 15 mm
LSSY 10.5X35 OD: 10.5 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 0.57 kgf/mm | Max deflection: 17.5 mm
LSSY 10.5X40 OD: 10.5 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 0.50 kgf/mm | Max deflection: 20 mm
LSSY 10.5X45 OD: 10.5 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 0.44 kgf/mm | Max deflection: 22.5 mm
LSSY 10.5X50 OD: 10.5 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 0.40 kgf/mm | Max deflection: 25 mm
LSSY 10.5X55 OD: 10.5 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.36 kgf/mm | Max deflection: 27.5 mm
LSSY 10.5X60 OD: 10.5 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.33 kgf/mm | Max deflection: 30 mm
LSSY 10.5X65 OD: 10.5 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.31 kgf/mm | Max deflection: 32.5 mm
LSSY 10.5X70 OD: 10.5 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.29 kgf/mm | Max deflection: 35 mm
LSSY 10.5X75 OD: 10.5 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.27 kgf/mm | Max deflection: 37.5 mm
LSSY 10.5X80 OD: 10.5 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.25 kgf/mm | Max deflection: 40 mm
LSSY 12.5X15 OD: 12.5 mm | ID: 7 mm | Free length: 15 mm | Spring rate: 2.00 kgf/mm | Max deflection: 7.5 mm
LSSY 12.5X20 OD: 12.5 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 1.50 kgf/mm | Max deflection: 10 mm
LSSY 12.5X25 OD: 12.5 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 1.20 kgf/mm | Max deflection: 12.5 mm
LSSY 12.5X30 OD: 12.5 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 1.00 kgf/mm | Max deflection: 15 mm
LSSY 12.5X35 OD: 12.5 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 0.86 kgf/mm | Max deflection: 17.5 mm
LSSY 12.5X40 OD: 12.5 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 0.75 kgf/mm | Max deflection: 20 mm
LSSY 12.5X45 OD: 12.5 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 0.67 kgf/mm | Max deflection: 22.5 mm
LSSY 12.5X50 OD: 12.5 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 0.60 kgf/mm | Max deflection: 25 mm
LSSY 12.5X55 OD: 12.5 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 0.55 kgf/mm | Max deflection: 27.5 mm
LSSY 12.5X60 OD: 12.5 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 0.50 kgf/mm | Max deflection: 30 mm
LSSY 12.5X65 OD: 12.5 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 0.46 kgf/mm | Max deflection: 32.5 mm
LSSY 12.5X70 OD: 12.5 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 0.43 kgf/mm | Max deflection: 35 mm
LSSY 12.5X75 OD: 12.5 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.40 kgf/mm | Max deflection: 37.5 mm
LSSY 12.5X80 OD: 12.5 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.38 kgf/mm | Max deflection: 40 mm
LSSY 12.5X90 OD: 12.5 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.33 kgf/mm | Max deflection: 45 mm
LSSY 12.5X100 OD: 12.5 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.30 kgf/mm | Max deflection: 50 mm
LSSY 14.5X20 OD: 14.5 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 2.10 kgf/mm | Max deflection: 10 mm
LSSY 14.5X25 OD: 14.5 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 1.68 kgf/mm | Max deflection: 12.5 mm
LSSY 14.5X30 OD: 14.5 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 1.40 kgf/mm | Max deflection: 15 mm
LSSY 14.5X35 OD: 14.5 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 1.20 kgf/mm | Max deflection: 17.5 mm
LSSY 14.5X40 OD: 14.5 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 1.05 kgf/mm | Max deflection: 20 mm
LSSY 14.5X45 OD: 14.5 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 0.93 kgf/mm | Max deflection: 22.5 mm
LSSY 14.5X50 OD: 14.5 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 0.84 kgf/mm | Max deflection: 25 mm
LSSY 14.5X55 OD: 14.5 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 0.76 kgf/mm | Max deflection: 27.5 mm
LSSY 14.5X60 OD: 14.5 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 0.70 kgf/mm | Max deflection: 30 mm
LSSY 14.5X65 OD: 14.5 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 0.65 kgf/mm | Max deflection: 32.5 mm
LSSY 14.5X70 OD: 14.5 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 0.60 kgf/mm | Max deflection: 35 mm
LSSY 14.5X75 OD: 14.5 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 0.56 kgf/mm | Max deflection: 37.5 mm
LSSY 14.5X80 OD: 14.5 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 0.53 kgf/mm | Max deflection: 40 mm
LSSY 14.5X90 OD: 14.5 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 0.47 kgf/mm | Max deflection: 45 mm
LSSY 14.5X100 OD: 14.5 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 0.42 kgf/mm | Max deflection: 50 mm
LSSY 14.5X125 OD: 14.5 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.34 kgf/mm | Max deflection: 62.5 mm
LSSY 17X25 OD: 17 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 2.46 kgf/mm | Max deflection: 12.5 mm
LSSY 17X30 OD: 17 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 2.05 kgf/mm | Max deflection: 15 mm
LSSY 17X35 OD: 17 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 1.76 kgf/mm | Max deflection: 17.5 mm
LSSY 17X40 OD: 17 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 1.54 kgf/mm | Max deflection: 20 mm
LSSY 17X45 OD: 17 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 1.37 kgf/mm | Max deflection: 22.5 mm
LSSY 17X50 OD: 17 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 1.23 kgf/mm | Max deflection: 25 mm
LSSY 17X55 OD: 17 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 1.12 kgf/mm | Max deflection: 27.5 mm
LSSY 17X60 OD: 17 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 1.03 kgf/mm | Max deflection: 30 mm
LSSY 17X65 OD: 17 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 0.95 kgf/mm | Max deflection: 32.5 mm
LSSY 17X70 OD: 17 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 0.88 kgf/mm | Max deflection: 35 mm
LSSY 17X75 OD: 17 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 0.82 kgf/mm | Max deflection: 37.5 mm
LSSY 17X80 OD: 17 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 0.77 kgf/mm | Max deflection: 40 mm
LSSY 17X90 OD: 17 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 0.68 kgf/mm | Max deflection: 45 mm
LSSY 17X100 OD: 17 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 0.62 kgf/mm | Max deflection: 50 mm
LSSY 17X125 OD: 17 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 0.49 kgf/mm | Max deflection: 62.5 mm
LSSY 17X150 OD: 17 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 0.41 kgf/mm | Max deflection: 75 mm
LSSY 21X25 OD: 21 mm | ID: 13 mm | Free length: 25 mm | Spring rate: 3.19 kgf/mm | Max deflection: 12.5 mm
LSSY 21X30 OD: 21 mm | ID: 13 mm | Free length: 30 mm | Spring rate: 2.67 kgf/mm | Max deflection: 15 mm
LSSY 21X35 OD: 21 mm | ID: 13 mm | Free length: 35 mm | Spring rate: 2.29 kgf/mm | Max deflection: 17.5 mm
LSSY 21X40 OD: 21 mm | ID: 13 mm | Free length: 40 mm | Spring rate: 2.00 kgf/mm | Max deflection: 20 mm
LSSY 21X45 OD: 21 mm | ID: 13 mm | Free length: 45 mm | Spring rate: 1.78 kgf/mm | Max deflection: 22.5 mm
LSSY 21X50 OD: 21 mm | ID: 13 mm | Free length: 50 mm | Spring rate: 1.60 kgf/mm | Max deflection: 25 mm
LSSY 21X55 OD: 21 mm | ID: 13 mm | Free length: 55 mm | Spring rate: 1.45 kgf/mm | Max deflection: 27.5 mm
LSSY 21X60 OD: 21 mm | ID: 13 mm | Free length: 60 mm | Spring rate: 1.33 kgf/mm | Max deflection: 30 mm
LSSY 21X65 OD: 21 mm | ID: 13 mm | Free length: 65 mm | Spring rate: 1.23 kgf/mm | Max deflection: 32.5 mm
LSSY 21X70 OD: 21 mm | ID: 13 mm | Free length: 70 mm | Spring rate: 1.14 kgf/mm | Max deflection: 35 mm
LSSY 21X75 OD: 21 mm | ID: 13 mm | Free length: 75 mm | Spring rate: 1.07 kgf/mm | Max deflection: 37.5 mm
LSSY 21X80 OD: 21 mm | ID: 13 mm | Free length: 80 mm | Spring rate: 1.00 kgf/mm | Max deflection: 40 mm
LSSY 21X90 OD: 21 mm | ID: 13 mm | Free length: 90 mm | Spring rate: 0.89 kgf/mm | Max deflection: 45 mm
LSSY 21X100 OD: 21 mm | ID: 13 mm | Free length: 100 mm | Spring rate: 0.80 kgf/mm | Max deflection: 50 mm
LSSY 21X125 OD: 21 mm | ID: 13 mm | Free length: 125 mm | Spring rate: 0.64 kgf/mm | Max deflection: 62.5 mm
LSSY 21X150 OD: 21 mm | ID: 13 mm | Free length: 150 mm | Spring rate: 0.53 kgf/mm | Max deflection: 75 mm
LSSY 21X175 OD: 21 mm | ID: 13 mm | Free length: 175 mm | Spring rate: 0.46 kgf/mm | Max deflection: 87.5 mm
LSSY 26X30 OD: 26 mm | ID: 16.5 mm | Free length: 30 mm | Spring rate: 3.87 kgf/mm | Max deflection: 15 mm
LSSY 26X35 OD: 26 mm | ID: 16.5 mm | Free length: 35 mm | Spring rate: 3.31 kgf/mm | Max deflection: 17.5 mm
LSSY 26X40 OD: 26 mm | ID: 16.5 mm | Free length: 40 mm | Spring rate: 2.90 kgf/mm | Max deflection: 20 mm
LSSY 26X45 OD: 26 mm | ID: 16.5 mm | Free length: 45 mm | Spring rate: 2.58 kgf/mm | Max deflection: 22.5 mm
LSSY 26X50 OD: 26 mm | ID: 16.5 mm | Free length: 50 mm | Spring rate: 2.32 kgf/mm | Max deflection: 25 mm
LSSY 26X55 OD: 26 mm | ID: 16.5 mm | Free length: 55 mm | Spring rate: 2.11 kgf/mm | Max deflection: 27.5 mm
LSSY 26X60 OD: 26 mm | ID: 16.5 mm | Free length: 60 mm | Spring rate: 1.93 kgf/mm | Max deflection: 30 mm
LSSY 26X65 OD: 26 mm | ID: 16.5 mm | Free length: 65 mm | Spring rate: 1.78 kgf/mm | Max deflection: 32.5 mm
LSSY 26X70 OD: 26 mm | ID: 16.5 mm | Free length: 70 mm | Spring rate: 1.66 kgf/mm | Max deflection: 35 mm
LSSY 26X75 OD: 26 mm | ID: 16.5 mm | Free length: 75 mm | Spring rate: 1.55 kgf/mm | Max deflection: 37.5 mm
LSSY 26X80 OD: 26 mm | ID: 16.5 mm | Free length: 80 mm | Spring rate: 1.45 kgf/mm | Max deflection: 40 mm
LSSY 26X90 OD: 26 mm | ID: 16.5 mm | Free length: 90 mm | Spring rate: 1.29 kgf/mm | Max deflection: 45 mm
LSSY 26X100 OD: 26 mm | ID: 16.5 mm | Free length: 100 mm | Spring rate: 1.16 kgf/mm | Max deflection: 50 mm
LSSY 26X110 OD: 26 mm | ID: 16.5 mm | Free length: 110 mm | Spring rate: 1.05 kgf/mm | Max deflection: 55 mm
LSSY 26X125 OD: 26 mm | ID: 16.5 mm | Free length: 125 mm | Spring rate: 0.93 kgf/mm | Max deflection: 62.5 mm
LSSY 26X150 OD: 26 mm | ID: 16.5 mm | Free length: 150 mm | Spring rate: 0.77 kgf/mm | Max deflection: 75 mm
LSSY 26X175 OD: 26 mm | ID: 16.5 mm | Free length: 175 mm | Spring rate: 0.66 kgf/mm | Max deflection: 87.5 mm
LSSY 26X200 OD: 26 mm | ID: 16.5 mm | Free length: 200 mm | Spring rate: 0.58 kgf/mm | Max deflection: 100 mm
LSSY 31X40 OD: 31 mm | ID: 21 mm | Free length: 40 mm | Spring rate: 3.90 kgf/mm | Max deflection: 20 mm
LSSY 31X45 OD: 31 mm | ID: 21 mm | Free length: 45 mm | Spring rate: 3.47 kgf/mm | Max deflection: 22.5 mm
LSSY 31X50 OD: 31 mm | ID: 21 mm | Free length: 50 mm | Spring rate: 3.12 kgf/mm | Max deflection: 25 mm
LSSY 31X55 OD: 31 mm | ID: 21 mm | Free length: 55 mm | Spring rate: 2.84 kgf/mm | Max deflection: 27.5 mm
LSSY 31X60 OD: 31 mm | ID: 21 mm | Free length: 60 mm | Spring rate: 2.60 kgf/mm | Max deflection: 30 mm
LSSY 31X65 OD: 31 mm | ID: 21 mm | Free length: 65 mm | Spring rate: 2.40 kgf/mm | Max deflection: 32.5 mm
LSSY 31X70 OD: 31 mm | ID: 21 mm | Free length: 70 mm | Spring rate: 2.23 kgf/mm | Max deflection: 35 mm
LSSY 31X75 OD: 31 mm | ID: 21 mm | Free length: 75 mm | Spring rate: 2.08 kgf/mm | Max deflection: 37.5 mm
LSSY 31X80 OD: 31 mm | ID: 21 mm | Free length: 80 mm | Spring rate: 1.95 kgf/mm | Max deflection: 40 mm
LSSY 31X90 OD: 31 mm | ID: 21 mm | Free length: 90 mm | Spring rate: 1.73 kgf/mm | Max deflection: 45 mm
LSSY 31X100 OD: 31 mm | ID: 21 mm | Free length: 100 mm | Spring rate: 1.56 kgf/mm | Max deflection: 50 mm
LSSY 31X110 OD: 31 mm | ID: 21 mm | Free length: 110 mm | Spring rate: 1.42 kgf/mm | Max deflection: 55 mm
LSSY 31X125 OD: 31 mm | ID: 21 mm | Free length: 125 mm | Spring rate: 1.25 kgf/mm | Max deflection: 62.5 mm
LSSY 31X150 OD: 31 mm | ID: 21 mm | Free length: 150 mm | Spring rate: 1.04 kgf/mm | Max deflection: 75 mm
LSSY 31X175 OD: 31 mm | ID: 21 mm | Free length: 175 mm | Spring rate: 0.89 kgf/mm | Max deflection: 87.5 mm
LSSY 31X200 OD: 31 mm | ID: 21 mm | Free length: 200 mm | Spring rate: 0.78 kgf/mm | Max deflection: 100 mm
LSSY 31X250 OD: 31 mm | ID: 21 mm | Free length: 250 mm | Spring rate: 0.62 kgf/mm | Max deflection: 125 mm
LSSY 31X300 OD: 31 mm | ID: 21 mm | Free length: 300 mm | Spring rate: 0.52 kgf/mm | Max deflection: 150 mm
LSSY 39X40 OD: 39 mm | ID: 26 mm | Free length: 40 mm | Spring rate: 5.10 kgf/mm | Max deflection: 20 mm
LSSY 39X45 OD: 39 mm | ID: 26 mm | Free length: 45 mm | Spring rate: 4.53 kgf/mm | Max deflection: 22.5 mm
LSSY 39X50 OD: 39 mm | ID: 26 mm | Free length: 50 mm | Spring rate: 4.08 kgf/mm | Max deflection: 25 mm
LSSY 39X55 OD: 39 mm | ID: 26 mm | Free length: 55 mm | Spring rate: 3.71 kgf/mm | Max deflection: 27.5 mm
LSSY 39X60 OD: 39 mm | ID: 26 mm | Free length: 60 mm | Spring rate: 3.40 kgf/mm | Max deflection: 30 mm
LSSY 39X65 OD: 39 mm | ID: 26 mm | Free length: 65 mm | Spring rate: 3.14 kgf/mm | Max deflection: 32.5 mm
LSSY 39X70 OD: 39 mm | ID: 26 mm | Free length: 70 mm | Spring rate: 2.91 kgf/mm | Max deflection: 35 mm
LSSY 39X75 OD: 39 mm | ID: 26 mm | Free length: 75 mm | Spring rate: 2.72 kgf/mm | Max deflection: 37.5 mm
LSSY 39X80 OD: 39 mm | ID: 26 mm | Free length: 80 mm | Spring rate: 2.55 kgf/mm | Max deflection: 40 mm
LSSY 39X90 OD: 39 mm | ID: 26 mm | Free length: 90 mm | Spring rate: 2.27 kgf/mm | Max deflection: 45 mm
LSSY 39X100 OD: 39 mm | ID: 26 mm | Free length: 100 mm | Spring rate: 2.04 kgf/mm | Max deflection: 50 mm
LSSY 39X110 OD: 39 mm | ID: 26 mm | Free length: 110 mm | Spring rate: 1.85 kgf/mm | Max deflection: 55 mm
LSSY 39X125 OD: 39 mm | ID: 26 mm | Free length: 125 mm | Spring rate: 1.63 kgf/mm | Max deflection: 62.5 mm
LSSY 39X150 OD: 39 mm | ID: 26 mm | Free length: 150 mm | Spring rate: 1.36 kgf/mm | Max deflection: 75 mm
LSSY 39X175 OD: 39 mm | ID: 26 mm | Free length: 175 mm | Spring rate: 1.17 kgf/mm | Max deflection: 87.5 mm
LSSY 39X200 OD: 39 mm | ID: 26 mm | Free length: 200 mm | Spring rate: 1.02 kgf/mm | Max deflection: 100 mm
LSSY 39X250 OD: 39 mm | ID: 26 mm | Free length: 250 mm | Spring rate: 0.82 kgf/mm | Max deflection: 125 mm
LSSY 39X300 OD: 39 mm | ID: 26 mm | Free length: 300 mm | Spring rate: 0.68 kgf/mm | Max deflection: 150 mm
LSSY 46X50 OD: 46 mm | ID: 32 mm | Free length: 50 mm | Spring rate: 5.44 kgf/mm | Max deflection: 25 mm
LSSY 46X55 OD: 46 mm | ID: 32 mm | Free length: 55 mm | Spring rate: 4.95 kgf/mm | Max deflection: 27.5 mm
LSSY 46X60 OD: 46 mm | ID: 32 mm | Free length: 60 mm | Spring rate: 4.53 kgf/mm | Max deflection: 30 mm
LSSY 46X65 OD: 46 mm | ID: 32 mm | Free length: 65 mm | Spring rate: 4.18 kgf/mm | Max deflection: 32.5 mm
LSSY 46X70 OD: 46 mm | ID: 32 mm | Free length: 70 mm | Spring rate: 3.89 kgf/mm | Max deflection: 35 mm
LSSY 46X75 OD: 46 mm | ID: 32 mm | Free length: 75 mm | Spring rate: 3.63 kgf/mm | Max deflection: 37.5 mm
LSSY 46X80 OD: 46 mm | ID: 32 mm | Free length: 80 mm | Spring rate: 3.40 kgf/mm | Max deflection: 40 mm
LSSY 46X90 OD: 46 mm | ID: 32 mm | Free length: 90 mm | Spring rate: 3.02 kgf/mm | Max deflection: 45 mm
LSSY 46X100 OD: 46 mm | ID: 32 mm | Free length: 100 mm | Spring rate: 2.72 kgf/mm | Max deflection: 50 mm
LSSY 46X110 OD: 46 mm | ID: 32 mm | Free length: 110 mm | Spring rate: 2.47 kgf/mm | Max deflection: 55 mm
LSSY 46X125 OD: 46 mm | ID: 32 mm | Free length: 125 mm | Spring rate: 2.18 kgf/mm | Max deflection: 62.5 mm
LSSY 46X150 OD: 46 mm | ID: 32 mm | Free length: 150 mm | Spring rate: 1.81 kgf/mm | Max deflection: 75 mm
LSSY 46X175 OD: 46 mm | ID: 32 mm | Free length: 175 mm | Spring rate: 1.55 kgf/mm | Max deflection: 87.5 mm
LSSY 46X200 OD: 46 mm | ID: 32 mm | Free length: 200 mm | Spring rate: 1.36 kgf/mm | Max deflection: 100 mm
LSSY 46X250 OD: 46 mm | ID: 32 mm | Free length: 250 mm | Spring rate: 1.09 kgf/mm | Max deflection: 125 mm
LSSY 46X300 OD: 46 mm | ID: 32 mm | Free length: 300 mm | Spring rate: 0.91 kgf/mm | Max deflection: 150 mm
LSSY 52X60 OD: 52 mm | ID: 37 mm | Free length: 60 mm | Spring rate: 5.33 kgf/mm | Max deflection: 30 mm
LSSY 52X70 OD: 52 mm | ID: 37 mm | Free length: 70 mm | Spring rate: 4.57 kgf/mm | Max deflection: 35 mm
LSSY 52X80 OD: 52 mm | ID: 37 mm | Free length: 80 mm | Spring rate: 4.00 kgf/mm | Max deflection: 40 mm
LSSY 52X90 OD: 52 mm | ID: 37 mm | Free length: 90 mm | Spring rate: 3.56 kgf/mm | Max deflection: 45 mm
LSSY 52X100 OD: 52 mm | ID: 37 mm | Free length: 100 mm | Spring rate: 3.20 kgf/mm | Max deflection: 50 mm
LSSY 52X110 OD: 52 mm | ID: 37 mm | Free length: 110 mm | Spring rate: 2.91 kgf/mm | Max deflection: 55 mm
LSSY 52X125 OD: 52 mm | ID: 37 mm | Free length: 125 mm | Spring rate: 2.56 kgf/mm | Max deflection: 62.5 mm
LSSY 52X150 OD: 52 mm | ID: 37 mm | Free length: 150 mm | Spring rate: 2.13 kgf/mm | Max deflection: 75 mm
LSSY 52X175 OD: 52 mm | ID: 37 mm | Free length: 175 mm | Spring rate: 1.83 kgf/mm | Max deflection: 87.5 mm
LSSY 52X200 OD: 52 mm | ID: 37 mm | Free length: 200 mm | Spring rate: 1.60 kgf/mm | Max deflection: 100 mm
LSSY 52X225 OD: 52 mm | ID: 37 mm | Free length: 225 mm | Spring rate: 1.42 kgf/mm | Max deflection: 112.5 mm
LSSY 52X250 OD: 52 mm | ID: 37 mm | Free length: 250 mm | Spring rate: 1.28 kgf/mm | Max deflection: 125 mm
LSSY 52X275 OD: 52 mm | ID: 37 mm | Free length: 275 mm | Spring rate: 1.16 kgf/mm | Max deflection: 137.5 mm
LSSY 52X300 OD: 52 mm | ID: 37 mm | Free length: 300 mm | Spring rate: 1.07 kgf/mm | Max deflection: 150 mm
LSSY 52X350 OD: 52 mm | ID: 37 mm | Free length: 350 mm | Spring rate: 0.91 kgf/mm | Max deflection: 175 mm
Die SpringLuBo
164 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSSY Die Spring (Middle Deflection, Purple)

Brand LuBo·Die Spring

Available part numbers (164)

LSSY 10.5X15, LSSY 10.5X20, LSSY 10.5X25, LSSY 10.5X30, LSSY 10.5X35, LSSY 10.5X40, LSSY 10.5X45, LSSY 10.5X50, LSSY 10.5X55, LSSY 10.5X60 + 154 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSSY 10.5X15OD: 10.5 mm | ID: 6 mm | Free length: 15 mm | Spring rate: 1.33 kgf/mm | Max deflection: 7.5 mm
LSSY 10.5X20OD: 10.5 mm | ID: 6 mm | Free length: 20 mm | Spring rate: 1.00 kgf/mm | Max deflection: 10 mm
LSSY 10.5X25OD: 10.5 mm | ID: 6 mm | Free length: 25 mm | Spring rate: 0.80 kgf/mm | Max deflection: 12.5 mm
LSSY 10.5X30OD: 10.5 mm | ID: 6 mm | Free length: 30 mm | Spring rate: 0.67 kgf/mm | Max deflection: 15 mm
LSSY 10.5X35OD: 10.5 mm | ID: 6 mm | Free length: 35 mm | Spring rate: 0.57 kgf/mm | Max deflection: 17.5 mm
LSSY 10.5X40OD: 10.5 mm | ID: 6 mm | Free length: 40 mm | Spring rate: 0.50 kgf/mm | Max deflection: 20 mm
LSSY 10.5X45OD: 10.5 mm | ID: 6 mm | Free length: 45 mm | Spring rate: 0.44 kgf/mm | Max deflection: 22.5 mm
LSSY 10.5X50OD: 10.5 mm | ID: 6 mm | Free length: 50 mm | Spring rate: 0.40 kgf/mm | Max deflection: 25 mm
LSSY 10.5X55OD: 10.5 mm | ID: 6 mm | Free length: 55 mm | Spring rate: 0.36 kgf/mm | Max deflection: 27.5 mm
LSSY 10.5X60OD: 10.5 mm | ID: 6 mm | Free length: 60 mm | Spring rate: 0.33 kgf/mm | Max deflection: 30 mm
LSSY 10.5X65OD: 10.5 mm | ID: 6 mm | Free length: 65 mm | Spring rate: 0.31 kgf/mm | Max deflection: 32.5 mm
LSSY 10.5X70OD: 10.5 mm | ID: 6 mm | Free length: 70 mm | Spring rate: 0.29 kgf/mm | Max deflection: 35 mm
LSSY 10.5X75OD: 10.5 mm | ID: 6 mm | Free length: 75 mm | Spring rate: 0.27 kgf/mm | Max deflection: 37.5 mm
LSSY 10.5X80OD: 10.5 mm | ID: 6 mm | Free length: 80 mm | Spring rate: 0.25 kgf/mm | Max deflection: 40 mm
LSSY 12.5X15OD: 12.5 mm | ID: 7 mm | Free length: 15 mm | Spring rate: 2.00 kgf/mm | Max deflection: 7.5 mm
LSSY 12.5X20OD: 12.5 mm | ID: 7 mm | Free length: 20 mm | Spring rate: 1.50 kgf/mm | Max deflection: 10 mm
LSSY 12.5X25OD: 12.5 mm | ID: 7 mm | Free length: 25 mm | Spring rate: 1.20 kgf/mm | Max deflection: 12.5 mm
LSSY 12.5X30OD: 12.5 mm | ID: 7 mm | Free length: 30 mm | Spring rate: 1.00 kgf/mm | Max deflection: 15 mm
LSSY 12.5X35OD: 12.5 mm | ID: 7 mm | Free length: 35 mm | Spring rate: 0.86 kgf/mm | Max deflection: 17.5 mm
LSSY 12.5X40OD: 12.5 mm | ID: 7 mm | Free length: 40 mm | Spring rate: 0.75 kgf/mm | Max deflection: 20 mm
LSSY 12.5X45OD: 12.5 mm | ID: 7 mm | Free length: 45 mm | Spring rate: 0.67 kgf/mm | Max deflection: 22.5 mm
LSSY 12.5X50OD: 12.5 mm | ID: 7 mm | Free length: 50 mm | Spring rate: 0.60 kgf/mm | Max deflection: 25 mm
LSSY 12.5X55OD: 12.5 mm | ID: 7 mm | Free length: 55 mm | Spring rate: 0.55 kgf/mm | Max deflection: 27.5 mm
LSSY 12.5X60OD: 12.5 mm | ID: 7 mm | Free length: 60 mm | Spring rate: 0.50 kgf/mm | Max deflection: 30 mm
LSSY 12.5X65OD: 12.5 mm | ID: 7 mm | Free length: 65 mm | Spring rate: 0.46 kgf/mm | Max deflection: 32.5 mm
LSSY 12.5X70OD: 12.5 mm | ID: 7 mm | Free length: 70 mm | Spring rate: 0.43 kgf/mm | Max deflection: 35 mm
LSSY 12.5X75OD: 12.5 mm | ID: 7 mm | Free length: 75 mm | Spring rate: 0.40 kgf/mm | Max deflection: 37.5 mm
LSSY 12.5X80OD: 12.5 mm | ID: 7 mm | Free length: 80 mm | Spring rate: 0.38 kgf/mm | Max deflection: 40 mm
LSSY 12.5X90OD: 12.5 mm | ID: 7 mm | Free length: 90 mm | Spring rate: 0.33 kgf/mm | Max deflection: 45 mm
LSSY 12.5X100OD: 12.5 mm | ID: 7 mm | Free length: 100 mm | Spring rate: 0.30 kgf/mm | Max deflection: 50 mm
LSSY 14.5X20OD: 14.5 mm | ID: 9 mm | Free length: 20 mm | Spring rate: 2.10 kgf/mm | Max deflection: 10 mm
LSSY 14.5X25OD: 14.5 mm | ID: 9 mm | Free length: 25 mm | Spring rate: 1.68 kgf/mm | Max deflection: 12.5 mm
LSSY 14.5X30OD: 14.5 mm | ID: 9 mm | Free length: 30 mm | Spring rate: 1.40 kgf/mm | Max deflection: 15 mm
LSSY 14.5X35OD: 14.5 mm | ID: 9 mm | Free length: 35 mm | Spring rate: 1.20 kgf/mm | Max deflection: 17.5 mm
LSSY 14.5X40OD: 14.5 mm | ID: 9 mm | Free length: 40 mm | Spring rate: 1.05 kgf/mm | Max deflection: 20 mm
LSSY 14.5X45OD: 14.5 mm | ID: 9 mm | Free length: 45 mm | Spring rate: 0.93 kgf/mm | Max deflection: 22.5 mm
LSSY 14.5X50OD: 14.5 mm | ID: 9 mm | Free length: 50 mm | Spring rate: 0.84 kgf/mm | Max deflection: 25 mm
LSSY 14.5X55OD: 14.5 mm | ID: 9 mm | Free length: 55 mm | Spring rate: 0.76 kgf/mm | Max deflection: 27.5 mm
LSSY 14.5X60OD: 14.5 mm | ID: 9 mm | Free length: 60 mm | Spring rate: 0.70 kgf/mm | Max deflection: 30 mm
LSSY 14.5X65OD: 14.5 mm | ID: 9 mm | Free length: 65 mm | Spring rate: 0.65 kgf/mm | Max deflection: 32.5 mm
LSSY 14.5X70OD: 14.5 mm | ID: 9 mm | Free length: 70 mm | Spring rate: 0.60 kgf/mm | Max deflection: 35 mm
LSSY 14.5X75OD: 14.5 mm | ID: 9 mm | Free length: 75 mm | Spring rate: 0.56 kgf/mm | Max deflection: 37.5 mm
LSSY 14.5X80OD: 14.5 mm | ID: 9 mm | Free length: 80 mm | Spring rate: 0.53 kgf/mm | Max deflection: 40 mm
LSSY 14.5X90OD: 14.5 mm | ID: 9 mm | Free length: 90 mm | Spring rate: 0.47 kgf/mm | Max deflection: 45 mm
LSSY 14.5X100OD: 14.5 mm | ID: 9 mm | Free length: 100 mm | Spring rate: 0.42 kgf/mm | Max deflection: 50 mm
LSSY 14.5X125OD: 14.5 mm | ID: 9 mm | Free length: 125 mm | Spring rate: 0.34 kgf/mm | Max deflection: 62.5 mm
LSSY 17X25OD: 17 mm | ID: 11 mm | Free length: 25 mm | Spring rate: 2.46 kgf/mm | Max deflection: 12.5 mm
LSSY 17X30OD: 17 mm | ID: 11 mm | Free length: 30 mm | Spring rate: 2.05 kgf/mm | Max deflection: 15 mm
LSSY 17X35OD: 17 mm | ID: 11 mm | Free length: 35 mm | Spring rate: 1.76 kgf/mm | Max deflection: 17.5 mm
LSSY 17X40OD: 17 mm | ID: 11 mm | Free length: 40 mm | Spring rate: 1.54 kgf/mm | Max deflection: 20 mm
LSSY 17X45OD: 17 mm | ID: 11 mm | Free length: 45 mm | Spring rate: 1.37 kgf/mm | Max deflection: 22.5 mm
LSSY 17X50OD: 17 mm | ID: 11 mm | Free length: 50 mm | Spring rate: 1.23 kgf/mm | Max deflection: 25 mm
LSSY 17X55OD: 17 mm | ID: 11 mm | Free length: 55 mm | Spring rate: 1.12 kgf/mm | Max deflection: 27.5 mm
LSSY 17X60OD: 17 mm | ID: 11 mm | Free length: 60 mm | Spring rate: 1.03 kgf/mm | Max deflection: 30 mm
LSSY 17X65OD: 17 mm | ID: 11 mm | Free length: 65 mm | Spring rate: 0.95 kgf/mm | Max deflection: 32.5 mm
LSSY 17X70OD: 17 mm | ID: 11 mm | Free length: 70 mm | Spring rate: 0.88 kgf/mm | Max deflection: 35 mm
LSSY 17X75OD: 17 mm | ID: 11 mm | Free length: 75 mm | Spring rate: 0.82 kgf/mm | Max deflection: 37.5 mm
LSSY 17X80OD: 17 mm | ID: 11 mm | Free length: 80 mm | Spring rate: 0.77 kgf/mm | Max deflection: 40 mm
LSSY 17X90OD: 17 mm | ID: 11 mm | Free length: 90 mm | Spring rate: 0.68 kgf/mm | Max deflection: 45 mm
LSSY 17X100OD: 17 mm | ID: 11 mm | Free length: 100 mm | Spring rate: 0.62 kgf/mm | Max deflection: 50 mm
LSSY 17X125OD: 17 mm | ID: 11 mm | Free length: 125 mm | Spring rate: 0.49 kgf/mm | Max deflection: 62.5 mm
LSSY 17X150OD: 17 mm | ID: 11 mm | Free length: 150 mm | Spring rate: 0.41 kgf/mm | Max deflection: 75 mm
LSSY 21X25OD: 21 mm | ID: 13 mm | Free length: 25 mm | Spring rate: 3.19 kgf/mm | Max deflection: 12.5 mm
LSSY 21X30OD: 21 mm | ID: 13 mm | Free length: 30 mm | Spring rate: 2.67 kgf/mm | Max deflection: 15 mm
LSSY 21X35OD: 21 mm | ID: 13 mm | Free length: 35 mm | Spring rate: 2.29 kgf/mm | Max deflection: 17.5 mm
LSSY 21X40OD: 21 mm | ID: 13 mm | Free length: 40 mm | Spring rate: 2.00 kgf/mm | Max deflection: 20 mm
LSSY 21X45OD: 21 mm | ID: 13 mm | Free length: 45 mm | Spring rate: 1.78 kgf/mm | Max deflection: 22.5 mm
LSSY 21X50OD: 21 mm | ID: 13 mm | Free length: 50 mm | Spring rate: 1.60 kgf/mm | Max deflection: 25 mm
LSSY 21X55OD: 21 mm | ID: 13 mm | Free length: 55 mm | Spring rate: 1.45 kgf/mm | Max deflection: 27.5 mm
LSSY 21X60OD: 21 mm | ID: 13 mm | Free length: 60 mm | Spring rate: 1.33 kgf/mm | Max deflection: 30 mm
LSSY 21X65OD: 21 mm | ID: 13 mm | Free length: 65 mm | Spring rate: 1.23 kgf/mm | Max deflection: 32.5 mm
LSSY 21X70OD: 21 mm | ID: 13 mm | Free length: 70 mm | Spring rate: 1.14 kgf/mm | Max deflection: 35 mm
LSSY 21X75OD: 21 mm | ID: 13 mm | Free length: 75 mm | Spring rate: 1.07 kgf/mm | Max deflection: 37.5 mm
LSSY 21X80OD: 21 mm | ID: 13 mm | Free length: 80 mm | Spring rate: 1.00 kgf/mm | Max deflection: 40 mm
LSSY 21X90OD: 21 mm | ID: 13 mm | Free length: 90 mm | Spring rate: 0.89 kgf/mm | Max deflection: 45 mm
LSSY 21X100OD: 21 mm | ID: 13 mm | Free length: 100 mm | Spring rate: 0.80 kgf/mm | Max deflection: 50 mm
LSSY 21X125OD: 21 mm | ID: 13 mm | Free length: 125 mm | Spring rate: 0.64 kgf/mm | Max deflection: 62.5 mm
LSSY 21X150OD: 21 mm | ID: 13 mm | Free length: 150 mm | Spring rate: 0.53 kgf/mm | Max deflection: 75 mm
LSSY 21X175OD: 21 mm | ID: 13 mm | Free length: 175 mm | Spring rate: 0.46 kgf/mm | Max deflection: 87.5 mm
LSSY 26X30OD: 26 mm | ID: 16.5 mm | Free length: 30 mm | Spring rate: 3.87 kgf/mm | Max deflection: 15 mm
LSSY 26X35OD: 26 mm | ID: 16.5 mm | Free length: 35 mm | Spring rate: 3.31 kgf/mm | Max deflection: 17.5 mm
LSSY 26X40OD: 26 mm | ID: 16.5 mm | Free length: 40 mm | Spring rate: 2.90 kgf/mm | Max deflection: 20 mm
LSSY 26X45OD: 26 mm | ID: 16.5 mm | Free length: 45 mm | Spring rate: 2.58 kgf/mm | Max deflection: 22.5 mm
LSSY 26X50OD: 26 mm | ID: 16.5 mm | Free length: 50 mm | Spring rate: 2.32 kgf/mm | Max deflection: 25 mm
LSSY 26X55OD: 26 mm | ID: 16.5 mm | Free length: 55 mm | Spring rate: 2.11 kgf/mm | Max deflection: 27.5 mm
LSSY 26X60OD: 26 mm | ID: 16.5 mm | Free length: 60 mm | Spring rate: 1.93 kgf/mm | Max deflection: 30 mm
LSSY 26X65OD: 26 mm | ID: 16.5 mm | Free length: 65 mm | Spring rate: 1.78 kgf/mm | Max deflection: 32.5 mm
LSSY 26X70OD: 26 mm | ID: 16.5 mm | Free length: 70 mm | Spring rate: 1.66 kgf/mm | Max deflection: 35 mm
LSSY 26X75OD: 26 mm | ID: 16.5 mm | Free length: 75 mm | Spring rate: 1.55 kgf/mm | Max deflection: 37.5 mm
LSSY 26X80OD: 26 mm | ID: 16.5 mm | Free length: 80 mm | Spring rate: 1.45 kgf/mm | Max deflection: 40 mm
LSSY 26X90OD: 26 mm | ID: 16.5 mm | Free length: 90 mm | Spring rate: 1.29 kgf/mm | Max deflection: 45 mm
LSSY 26X100OD: 26 mm | ID: 16.5 mm | Free length: 100 mm | Spring rate: 1.16 kgf/mm | Max deflection: 50 mm
LSSY 26X110OD: 26 mm | ID: 16.5 mm | Free length: 110 mm | Spring rate: 1.05 kgf/mm | Max deflection: 55 mm
LSSY 26X125OD: 26 mm | ID: 16.5 mm | Free length: 125 mm | Spring rate: 0.93 kgf/mm | Max deflection: 62.5 mm
LSSY 26X150OD: 26 mm | ID: 16.5 mm | Free length: 150 mm | Spring rate: 0.77 kgf/mm | Max deflection: 75 mm
LSSY 26X175OD: 26 mm | ID: 16.5 mm | Free length: 175 mm | Spring rate: 0.66 kgf/mm | Max deflection: 87.5 mm
LSSY 26X200OD: 26 mm | ID: 16.5 mm | Free length: 200 mm | Spring rate: 0.58 kgf/mm | Max deflection: 100 mm
LSSY 31X40OD: 31 mm | ID: 21 mm | Free length: 40 mm | Spring rate: 3.90 kgf/mm | Max deflection: 20 mm
LSSY 31X45OD: 31 mm | ID: 21 mm | Free length: 45 mm | Spring rate: 3.47 kgf/mm | Max deflection: 22.5 mm
LSSY 31X50OD: 31 mm | ID: 21 mm | Free length: 50 mm | Spring rate: 3.12 kgf/mm | Max deflection: 25 mm
LSSY 31X55OD: 31 mm | ID: 21 mm | Free length: 55 mm | Spring rate: 2.84 kgf/mm | Max deflection: 27.5 mm
LSSY 31X60OD: 31 mm | ID: 21 mm | Free length: 60 mm | Spring rate: 2.60 kgf/mm | Max deflection: 30 mm
LSSY 31X65OD: 31 mm | ID: 21 mm | Free length: 65 mm | Spring rate: 2.40 kgf/mm | Max deflection: 32.5 mm
LSSY 31X70OD: 31 mm | ID: 21 mm | Free length: 70 mm | Spring rate: 2.23 kgf/mm | Max deflection: 35 mm
LSSY 31X75OD: 31 mm | ID: 21 mm | Free length: 75 mm | Spring rate: 2.08 kgf/mm | Max deflection: 37.5 mm
LSSY 31X80OD: 31 mm | ID: 21 mm | Free length: 80 mm | Spring rate: 1.95 kgf/mm | Max deflection: 40 mm
LSSY 31X90OD: 31 mm | ID: 21 mm | Free length: 90 mm | Spring rate: 1.73 kgf/mm | Max deflection: 45 mm
LSSY 31X100OD: 31 mm | ID: 21 mm | Free length: 100 mm | Spring rate: 1.56 kgf/mm | Max deflection: 50 mm
LSSY 31X110OD: 31 mm | ID: 21 mm | Free length: 110 mm | Spring rate: 1.42 kgf/mm | Max deflection: 55 mm
LSSY 31X125OD: 31 mm | ID: 21 mm | Free length: 125 mm | Spring rate: 1.25 kgf/mm | Max deflection: 62.5 mm
LSSY 31X150OD: 31 mm | ID: 21 mm | Free length: 150 mm | Spring rate: 1.04 kgf/mm | Max deflection: 75 mm
LSSY 31X175OD: 31 mm | ID: 21 mm | Free length: 175 mm | Spring rate: 0.89 kgf/mm | Max deflection: 87.5 mm
LSSY 31X200OD: 31 mm | ID: 21 mm | Free length: 200 mm | Spring rate: 0.78 kgf/mm | Max deflection: 100 mm
LSSY 31X250OD: 31 mm | ID: 21 mm | Free length: 250 mm | Spring rate: 0.62 kgf/mm | Max deflection: 125 mm
LSSY 31X300OD: 31 mm | ID: 21 mm | Free length: 300 mm | Spring rate: 0.52 kgf/mm | Max deflection: 150 mm
LSSY 39X40OD: 39 mm | ID: 26 mm | Free length: 40 mm | Spring rate: 5.10 kgf/mm | Max deflection: 20 mm
LSSY 39X45OD: 39 mm | ID: 26 mm | Free length: 45 mm | Spring rate: 4.53 kgf/mm | Max deflection: 22.5 mm
LSSY 39X50OD: 39 mm | ID: 26 mm | Free length: 50 mm | Spring rate: 4.08 kgf/mm | Max deflection: 25 mm
LSSY 39X55OD: 39 mm | ID: 26 mm | Free length: 55 mm | Spring rate: 3.71 kgf/mm | Max deflection: 27.5 mm
LSSY 39X60OD: 39 mm | ID: 26 mm | Free length: 60 mm | Spring rate: 3.40 kgf/mm | Max deflection: 30 mm
LSSY 39X65OD: 39 mm | ID: 26 mm | Free length: 65 mm | Spring rate: 3.14 kgf/mm | Max deflection: 32.5 mm
LSSY 39X70OD: 39 mm | ID: 26 mm | Free length: 70 mm | Spring rate: 2.91 kgf/mm | Max deflection: 35 mm
LSSY 39X75OD: 39 mm | ID: 26 mm | Free length: 75 mm | Spring rate: 2.72 kgf/mm | Max deflection: 37.5 mm
LSSY 39X80OD: 39 mm | ID: 26 mm | Free length: 80 mm | Spring rate: 2.55 kgf/mm | Max deflection: 40 mm
LSSY 39X90OD: 39 mm | ID: 26 mm | Free length: 90 mm | Spring rate: 2.27 kgf/mm | Max deflection: 45 mm
LSSY 39X100OD: 39 mm | ID: 26 mm | Free length: 100 mm | Spring rate: 2.04 kgf/mm | Max deflection: 50 mm
LSSY 39X110OD: 39 mm | ID: 26 mm | Free length: 110 mm | Spring rate: 1.85 kgf/mm | Max deflection: 55 mm
LSSY 39X125OD: 39 mm | ID: 26 mm | Free length: 125 mm | Spring rate: 1.63 kgf/mm | Max deflection: 62.5 mm
LSSY 39X150OD: 39 mm | ID: 26 mm | Free length: 150 mm | Spring rate: 1.36 kgf/mm | Max deflection: 75 mm
LSSY 39X175OD: 39 mm | ID: 26 mm | Free length: 175 mm | Spring rate: 1.17 kgf/mm | Max deflection: 87.5 mm
LSSY 39X200OD: 39 mm | ID: 26 mm | Free length: 200 mm | Spring rate: 1.02 kgf/mm | Max deflection: 100 mm
LSSY 39X250OD: 39 mm | ID: 26 mm | Free length: 250 mm | Spring rate: 0.82 kgf/mm | Max deflection: 125 mm
LSSY 39X300OD: 39 mm | ID: 26 mm | Free length: 300 mm | Spring rate: 0.68 kgf/mm | Max deflection: 150 mm
LSSY 46X50OD: 46 mm | ID: 32 mm | Free length: 50 mm | Spring rate: 5.44 kgf/mm | Max deflection: 25 mm
LSSY 46X55OD: 46 mm | ID: 32 mm | Free length: 55 mm | Spring rate: 4.95 kgf/mm | Max deflection: 27.5 mm
LSSY 46X60OD: 46 mm | ID: 32 mm | Free length: 60 mm | Spring rate: 4.53 kgf/mm | Max deflection: 30 mm
LSSY 46X65OD: 46 mm | ID: 32 mm | Free length: 65 mm | Spring rate: 4.18 kgf/mm | Max deflection: 32.5 mm
LSSY 46X70OD: 46 mm | ID: 32 mm | Free length: 70 mm | Spring rate: 3.89 kgf/mm | Max deflection: 35 mm
LSSY 46X75OD: 46 mm | ID: 32 mm | Free length: 75 mm | Spring rate: 3.63 kgf/mm | Max deflection: 37.5 mm
LSSY 46X80OD: 46 mm | ID: 32 mm | Free length: 80 mm | Spring rate: 3.40 kgf/mm | Max deflection: 40 mm
LSSY 46X90OD: 46 mm | ID: 32 mm | Free length: 90 mm | Spring rate: 3.02 kgf/mm | Max deflection: 45 mm
LSSY 46X100OD: 46 mm | ID: 32 mm | Free length: 100 mm | Spring rate: 2.72 kgf/mm | Max deflection: 50 mm
LSSY 46X110OD: 46 mm | ID: 32 mm | Free length: 110 mm | Spring rate: 2.47 kgf/mm | Max deflection: 55 mm
LSSY 46X125OD: 46 mm | ID: 32 mm | Free length: 125 mm | Spring rate: 2.18 kgf/mm | Max deflection: 62.5 mm
LSSY 46X150OD: 46 mm | ID: 32 mm | Free length: 150 mm | Spring rate: 1.81 kgf/mm | Max deflection: 75 mm
LSSY 46X175OD: 46 mm | ID: 32 mm | Free length: 175 mm | Spring rate: 1.55 kgf/mm | Max deflection: 87.5 mm
LSSY 46X200OD: 46 mm | ID: 32 mm | Free length: 200 mm | Spring rate: 1.36 kgf/mm | Max deflection: 100 mm
LSSY 46X250OD: 46 mm | ID: 32 mm | Free length: 250 mm | Spring rate: 1.09 kgf/mm | Max deflection: 125 mm
LSSY 46X300OD: 46 mm | ID: 32 mm | Free length: 300 mm | Spring rate: 0.91 kgf/mm | Max deflection: 150 mm
LSSY 52X60OD: 52 mm | ID: 37 mm | Free length: 60 mm | Spring rate: 5.33 kgf/mm | Max deflection: 30 mm
LSSY 52X70OD: 52 mm | ID: 37 mm | Free length: 70 mm | Spring rate: 4.57 kgf/mm | Max deflection: 35 mm
LSSY 52X80OD: 52 mm | ID: 37 mm | Free length: 80 mm | Spring rate: 4.00 kgf/mm | Max deflection: 40 mm
LSSY 52X90OD: 52 mm | ID: 37 mm | Free length: 90 mm | Spring rate: 3.56 kgf/mm | Max deflection: 45 mm
LSSY 52X100OD: 52 mm | ID: 37 mm | Free length: 100 mm | Spring rate: 3.20 kgf/mm | Max deflection: 50 mm
LSSY 52X110OD: 52 mm | ID: 37 mm | Free length: 110 mm | Spring rate: 2.91 kgf/mm | Max deflection: 55 mm
LSSY 52X125OD: 52 mm | ID: 37 mm | Free length: 125 mm | Spring rate: 2.56 kgf/mm | Max deflection: 62.5 mm
LSSY 52X150OD: 52 mm | ID: 37 mm | Free length: 150 mm | Spring rate: 2.13 kgf/mm | Max deflection: 75 mm
LSSY 52X175OD: 52 mm | ID: 37 mm | Free length: 175 mm | Spring rate: 1.83 kgf/mm | Max deflection: 87.5 mm
LSSY 52X200OD: 52 mm | ID: 37 mm | Free length: 200 mm | Spring rate: 1.60 kgf/mm | Max deflection: 100 mm
LSSY 52X225OD: 52 mm | ID: 37 mm | Free length: 225 mm | Spring rate: 1.42 kgf/mm | Max deflection: 112.5 mm
LSSY 52X250OD: 52 mm | ID: 37 mm | Free length: 250 mm | Spring rate: 1.28 kgf/mm | Max deflection: 125 mm
LSSY 52X275OD: 52 mm | ID: 37 mm | Free length: 275 mm | Spring rate: 1.16 kgf/mm | Max deflection: 137.5 mm
LSSY 52X300OD: 52 mm | ID: 37 mm | Free length: 300 mm | Spring rate: 1.07 kgf/mm | Max deflection: 150 mm
LSSY 52X350OD: 52 mm | ID: 37 mm | Free length: 350 mm | Spring rate: 0.91 kgf/mm | Max deflection: 175 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
