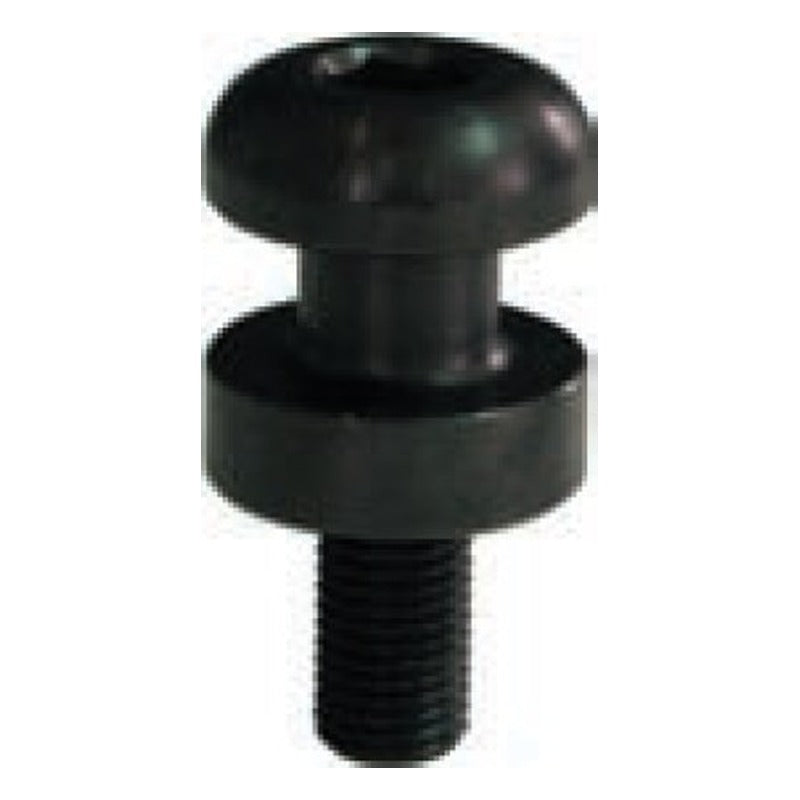

LuBo LSY / LSYL Bolt Type Hooks (Size 10-30)

LuBo LSY / LSYL Bolt Type Hooks (Size 10-30)

LuBo LSY / LSYL Bolt Type Hooks from the LuBo Hook & Lift Components catalogue, listed in 12 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Bolt Type Hooks - series LSY / LSYL
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 12 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LSY / LSYL
Product Bolt Type Hooks
Catalogue chapter Hook & Lift Components
Orderable codes 12
Size range Size 10-30
Code example LSY-10
Row spec keys Size, Thread, Rated load, Head
Source LuBo Hook & Lift Components catalogue
LSY-10 Size: 10 | Thread: M10x1.5 | Rated load: 2452 N [250 kgf] | Head: Standard
LSY-12 Size: 12 | Thread: M12x1.75 | Rated load: 3530 N [360 kgf] | Head: Standard
LSY-16 Size: 16 | Thread: M16x2.0 | Rated load: 6669 N [680 kgf] | Head: Standard
LSY-20 Size: 20 | Thread: M20x2.5 | Rated load: 10395 N [1060 kgf] | Head: Standard
LSY-24 Size: 24 | Thread: M24x3.0 | Rated load: 15004 N [1530 kgf] | Head: Standard
LSY-30 Size: 30 | Thread: M30x3.5 | Rated load: 23830 N [2430 kgf] | Head: Standard
LSYL-10 Size: 10 | Thread: M10x1.5 | Rated load: 2452 N [250 kgf] | Head: Large
LSYL-12 Size: 12 | Thread: M12x1.75 | Rated load: 3530 N [360 kgf] | Head: Large
LSYL-16 Size: 16 | Thread: M16x2.0 | Rated load: 6669 N [680 kgf] | Head: Large
LSYL-20 Size: 20 | Thread: M20x2.5 | Rated load: 10395 N [1060 kgf] | Head: Large
LSYL-24 Size: 24 | Thread: M24x3.0 | Rated load: 15004 N [1530 kgf] | Head: Large
LSYL-30 Size: 30 | Thread: M30x3.5 | Rated load: 23830 N [2430 kgf] | Head: Large
Die Lifting ComponentLuBo
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LSY / LSYL Bolt Type Hooks (Size 10-30)

Brand LuBo·Die Lifting Component

Available part numbers (12)

LSY-10, LSY-12, LSY-16, LSY-20, LSY-24, LSY-30, LSYL-10, LSYL-12, LSYL-16, LSYL-20 + 2 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSY-10Size: 10 | Thread: M10x1.5 | Rated load: 2452 N [250 kgf] | Head: Standard
LSY-12Size: 12 | Thread: M12x1.75 | Rated load: 3530 N [360 kgf] | Head: Standard
LSY-16Size: 16 | Thread: M16x2.0 | Rated load: 6669 N [680 kgf] | Head: Standard
LSY-20Size: 20 | Thread: M20x2.5 | Rated load: 10395 N [1060 kgf] | Head: Standard
LSY-24Size: 24 | Thread: M24x3.0 | Rated load: 15004 N [1530 kgf] | Head: Standard
LSY-30Size: 30 | Thread: M30x3.5 | Rated load: 23830 N [2430 kgf] | Head: Standard
LSYL-10Size: 10 | Thread: M10x1.5 | Rated load: 2452 N [250 kgf] | Head: Large
LSYL-12Size: 12 | Thread: M12x1.75 | Rated load: 3530 N [360 kgf] | Head: Large
LSYL-16Size: 16 | Thread: M16x2.0 | Rated load: 6669 N [680 kgf] | Head: Large
LSYL-20Size: 20 | Thread: M20x2.5 | Rated load: 10395 N [1060 kgf] | Head: Large
LSYL-24Size: 24 | Thread: M24x3.0 | Rated load: 15004 N [1530 kgf] | Head: Large
LSYL-30Size: 30 | Thread: M30x3.5 | Rated load: 23830 N [2430 kgf] | Head: Large
