• LuBo LTB Thrust Bushings (Bore d 12-60 mm)
1 1

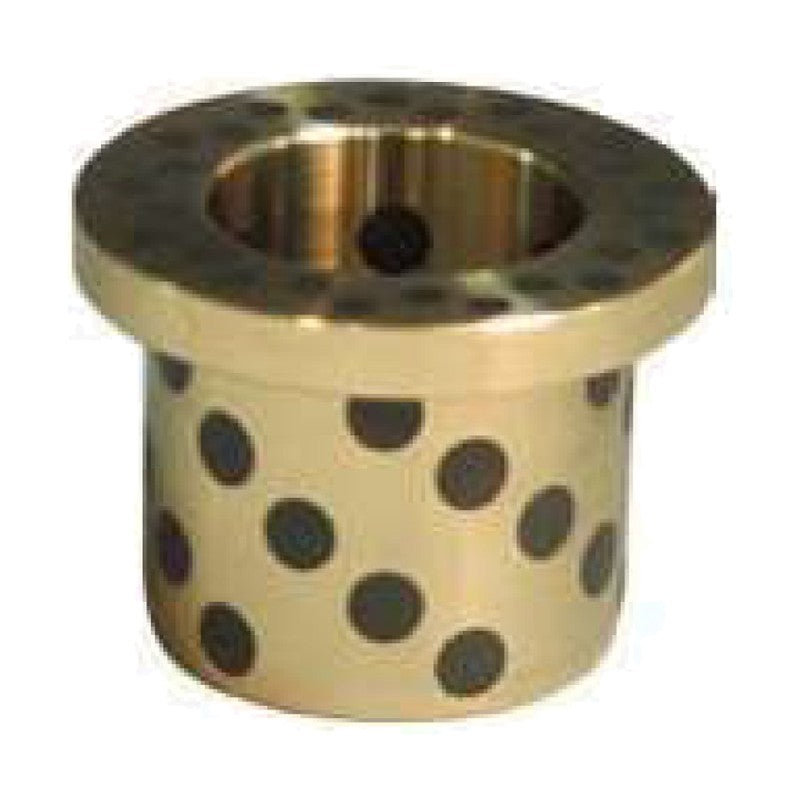

LuBo LTB Thrust Bushings (Bore d 12-60 mm)

LuBo LTB Thrust Bushings (Bore d 12-60 mm)

LuBo LTB Thrust Bushings from the LuBo Oilless Bushings & Plates catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Thrust Bushings - series LTB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 8 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LTB
Product Thrust Bushings
Catalogue chapter Oilless Bushings & Plates
Orderable codes 8
Size range Bore d 12-60 mm
Code example LTB-12X15
Row spec keys Bore d, Outer D, Length L
Source LuBo Oilless Bushings & Plates catalogue
LTB-12X15 Bore d: 12 mm | Outer D: 18 mm | Length L: 15 mm
LTB-16X20 Bore d: 16 mm | Outer D: 22 mm | Length L: 20 mm
LTB-20X25 Bore d: 20 mm | Outer D: 28 mm | Length L: 25 mm
LTB-25X30 Bore d: 25 mm | Outer D: 33 mm | Length L: 30 mm
LTB-30X35 Bore d: 30 mm | Outer D: 38 mm | Length L: 35 mm
LTB-40X45 Bore d: 40 mm | Outer D: 50 mm | Length L: 45 mm
LTB-50X55 Bore d: 50 mm | Outer D: 62 mm | Length L: 55 mm
LTB-60X65 Bore d: 60 mm | Outer D: 75 mm | Length L: 65 mm
Oilless Slide ComponentLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LTB Thrust Bushings (Bore d 12-60 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (8)

LTB-12X15, LTB-16X20, LTB-20X25, LTB-25X30, LTB-30X35, LTB-40X45, LTB-50X55, LTB-60X65

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LTB-12X15Bore d: 12 mm | Outer D: 18 mm | Length L: 15 mm
LTB-16X20Bore d: 16 mm | Outer D: 22 mm | Length L: 20 mm
LTB-20X25Bore d: 20 mm | Outer D: 28 mm | Length L: 25 mm
LTB-25X30Bore d: 25 mm | Outer D: 33 mm | Length L: 30 mm
LTB-30X35Bore d: 30 mm | Outer D: 38 mm | Length L: 35 mm
LTB-40X45Bore d: 40 mm | Outer D: 50 mm | Length L: 45 mm
LTB-50X55Bore d: 50 mm | Outer D: 62 mm | Length L: 55 mm
LTB-60X65Bore d: 60 mm | Outer D: 75 mm | Length L: 65 mm
