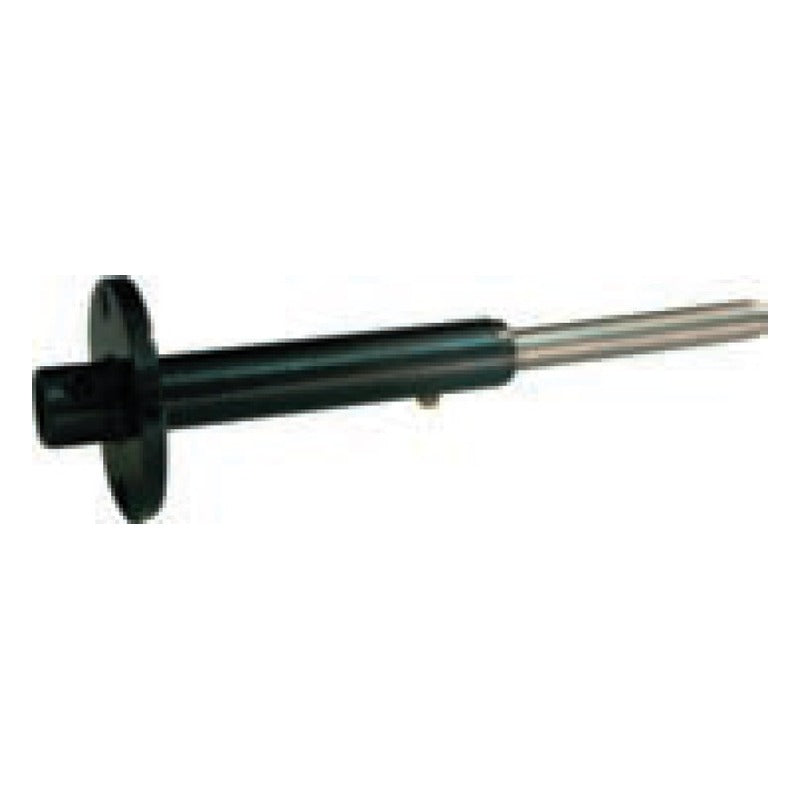

LuBo LTOWA Panel Stabilizer Pins - Self Weight Type (28 sizes)

LuBo LTOWA Panel Stabilizer Pins - Self Weight Type (28 sizes)

LuBo LTOWA / LTOWB / LTOWC / LTOWD Panel Stabilizer Pins - Self Weight Type from the LuBo Knock-Out Pins of Panel catalogue, listed in 28 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Panel Stabilizer Pins - Self Weight Type - series LTOWA / LTOWB / LTOWC / LTOWD
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 28 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LTOWA / LTOWB / LTOWC / LTOWD
Product Panel Stabilizer Pins - Self Weight Type
Catalogue chapter Knock-Out Pins of Panel
Orderable codes 28
Size range Stroke ST 100-300 mm
Code example LTOWA-200
Row spec keys Stroke ST, Length L, Rod length, Type
Source LuBo Knock-Out Pins of Panel catalogue
LTOWA-200 Stroke ST: 200 mm | Length L: 295 mm | Rod length: 10-250 mm | Type: LTOWA
LTOWA-220 Stroke ST: 220 mm | Length L: 315 mm | Rod length: 10-270 mm | Type: LTOWA
LTOWA-250 Stroke ST: 250 mm | Length L: 345 mm | Rod length: 10-300 mm | Type: LTOWA
LTOWA-270 Stroke ST: 270 mm | Length L: 365 mm | Rod length: 10-320 mm | Type: LTOWA
LTOWA-300 Stroke ST: 300 mm | Length L: 395 mm | Rod length: 10-350 mm | Type: LTOWA
LTOWB-200 Stroke ST: 200 mm | Length L: 295 mm | Rod length: 10-250 mm | Type: LTOWB
LTOWB-220 Stroke ST: 220 mm | Length L: 315 mm | Rod length: 10-270 mm | Type: LTOWB
LTOWB-250 Stroke ST: 250 mm | Length L: 345 mm | Rod length: 10-300 mm | Type: LTOWB
LTOWB-270 Stroke ST: 270 mm | Length L: 365 mm | Rod length: 10-320 mm | Type: LTOWB
LTOWB-300 Stroke ST: 300 mm | Length L: 395 mm | Rod length: 10-350 mm | Type: LTOWB
LTOWC-100 Stroke ST: 100 mm | Length L: 10-140 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-120 Stroke ST: 120 mm | Length L: 10-160 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-150 Stroke ST: 150 mm | Length L: 10-190 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-170 Stroke ST: 170 mm | Length L: 10-210 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-200 Stroke ST: 200 mm | Length L: 10-240 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-220 Stroke ST: 220 mm | Length L: 10-260 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-250 Stroke ST: 250 mm | Length L: 10-290 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-270 Stroke ST: 270 mm | Length L: 10-310 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWC-300 Stroke ST: 300 mm | Length L: 10-340 mm | Rod length: - | Type: LTOWC (opt. -L)
LTOWD-100 Stroke ST: 100 mm | Length L: 10-140 mm | Rod length: - | Type: LTOWD
LTOWD-120 Stroke ST: 120 mm | Length L: 10-160 mm | Rod length: - | Type: LTOWD
LTOWD-150 Stroke ST: 150 mm | Length L: 10-190 mm | Rod length: - | Type: LTOWD
LTOWD-170 Stroke ST: 170 mm | Length L: 10-210 mm | Rod length: - | Type: LTOWD
LTOWD-200 Stroke ST: 200 mm | Length L: 10-240 mm | Rod length: - | Type: LTOWD
LTOWD-220 Stroke ST: 220 mm | Length L: 10-260 mm | Rod length: - | Type: LTOWD
LTOWD-250 Stroke ST: 250 mm | Length L: 10-290 mm | Rod length: - | Type: LTOWD
LTOWD-270 Stroke ST: 270 mm | Length L: 10-310 mm | Rod length: - | Type: LTOWD
LTOWD-300 Stroke ST: 300 mm | Length L: 10-340 mm | Rod length: - | Type: LTOWD
Panel Knock-Out ComponentLuBo
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LTOWA Panel Stabilizer Pins - Self Weight Type (28 sizes)

Brand LuBo·Panel Knock-Out Component

Available part numbers (28)

LTOWA-200, LTOWA-220, LTOWA-250, LTOWA-270, LTOWA-300, LTOWB-200, LTOWB-220, LTOWB-250, LTOWB-270, LTOWB-300 + 18 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
