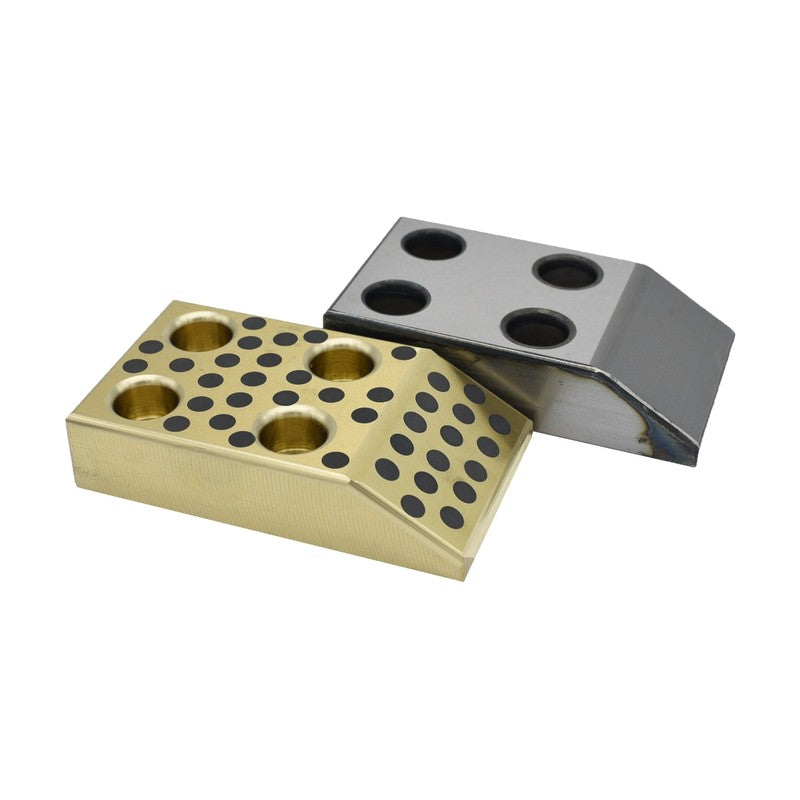

LuBo LTPB / LTPSB Cam Stroke Plates (15° Type) (Width 50-100 mm)

LuBo LTPB / LTPSB Cam Stroke Plates (15° Type) (Width 50-100 mm)

LuBo LTPB / LTPSB Cam Stroke Plates (15° Type) from the LuBo Oilless Bushings & Plates catalogue, listed in 18 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Stroke Plates (15° Type) - series LTPB / LTPSB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500SP, SM45C

Specifications

Brand LuBo
Series LTPB / LTPSB
Product Cam Stroke Plates (15° Type)
Catalogue chapter Oilless Bushings & Plates
Material #500SP, SM45C
Orderable codes 18
Size range Width 50-100 mm
Code example LTPB-50X110
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LTPB-50X110 Width W: 50 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-50X130 Width W: 50 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-50X150 Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPB-75X110 Width W: 75 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-75X130 Width W: 75 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-75X150 Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPB-100X110 Width W: 100 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-100X130 Width W: 100 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-100X150 Width W: 100 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPSB-50X110 Width W: 50 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-50X130 Width W: 50 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-50X150 Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
LTPSB-75X110 Width W: 75 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-75X130 Width W: 75 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-75X150 Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
LTPSB-100X110 Width W: 100 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-100X130 Width W: 100 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-100X150 Width W: 100 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
Oilless Slide ComponentLuBo
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LTPB / LTPSB Cam Stroke Plates (15° Type) (Width 50-100 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (18)

LTPB-50X110, LTPB-50X130, LTPB-50X150, LTPB-75X110, LTPB-75X130, LTPB-75X150, LTPB-100X110, LTPB-100X130, LTPB-100X150, LTPSB-50X110 + 8 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LTPB-50X110Width W: 50 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-50X130Width W: 50 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-50X150Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPB-75X110Width W: 75 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-75X130Width W: 75 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-75X150Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPB-100X110Width W: 100 mm | Length L: 110 mm | Thickness T: 25 mm | Material: #500SP
LTPB-100X130Width W: 100 mm | Length L: 130 mm | Thickness T: 30 mm | Material: #500SP
LTPB-100X150Width W: 100 mm | Length L: 150 mm | Thickness T: 35 mm | Material: #500SP
LTPSB-50X110Width W: 50 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-50X130Width W: 50 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-50X150Width W: 50 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
LTPSB-75X110Width W: 75 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-75X130Width W: 75 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-75X150Width W: 75 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
LTPSB-100X110Width W: 100 mm | Length L: 110 mm | Thickness T: 25 mm | Material: SM45C
LTPSB-100X130Width W: 100 mm | Length L: 130 mm | Thickness T: 30 mm | Material: SM45C
LTPSB-100X150Width W: 100 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SM45C
