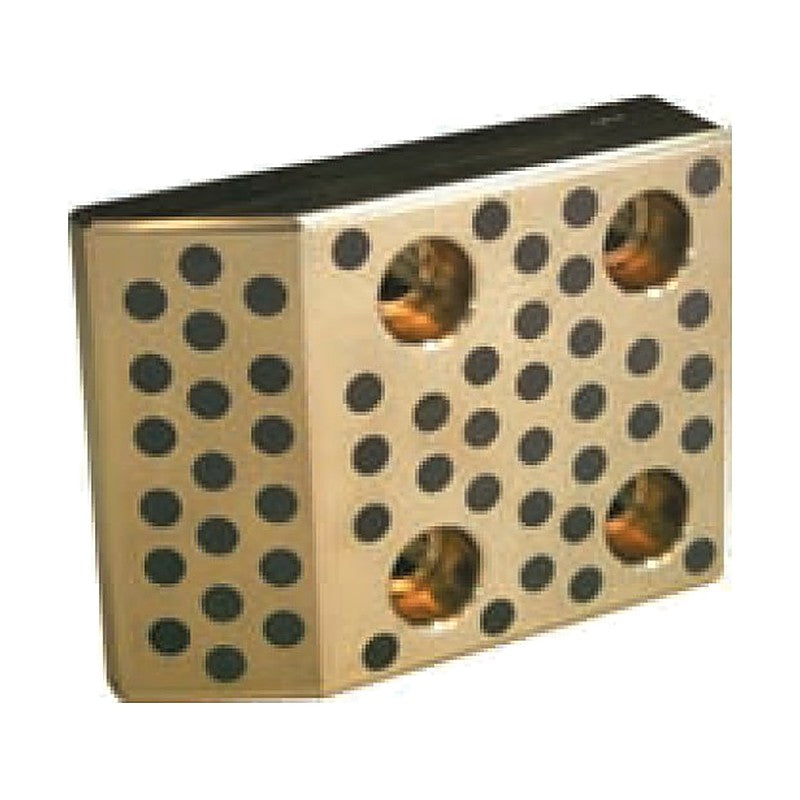

LuBo LTPQ / LTPQS Cam Stroke Plates (45° Type) (Width 150-200 mm)

LuBo LTPQ / LTPQS Cam Stroke Plates (45° Type) (Width 150-200 mm)

LuBo LTPQ / LTPQS Cam Stroke Plates (45° Type) from the LuBo Oilless Bushings & Plates catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Stroke Plates (45° Type) - series LTPQ / LTPQS
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500SP, S45C
  • Table header prints "LTPQ / LTPWS"; drawing labels the steel version LTPQS.

Specifications

Brand LuBo
Series LTPQ / LTPQS
Product Cam Stroke Plates (45° Type)
Catalogue chapter Oilless Bushings & Plates
Material #500SP, S45C
Orderable codes 8
Size range Width 150-200 mm
Code example LTPQ-150X170
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LTPQ-150X170 Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Material: #500SP
LTPQ-150X200 Width W: 150 mm | Length L: 200 mm | Thickness T: 90 mm | Material: #500SP
LTPQ-200X170 Width W: 200 mm | Length L: 170 mm | Thickness T: 60 mm | Material: #500SP
LTPQ-200X200 Width W: 200 mm | Length L: 200 mm | Thickness T: 90 mm | Material: #500SP
LTPQS-150X170 Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Material: S45C
LTPQS-150X200 Width W: 150 mm | Length L: 200 mm | Thickness T: 90 mm | Material: S45C
LTPQS-200X170 Width W: 200 mm | Length L: 170 mm | Thickness T: 60 mm | Material: S45C
LTPQS-200X200 Width W: 200 mm | Length L: 200 mm | Thickness T: 90 mm | Material: S45C
Oilless Slide ComponentLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LTPQ / LTPQS Cam Stroke Plates (45° Type) (Width 150-200 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (8)

LTPQ-150X170, LTPQ-150X200, LTPQ-200X170, LTPQ-200X200, LTPQS-150X170, LTPQS-150X200, LTPQS-200X170, LTPQS-200X200

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LTPQ-150X170Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Material: #500SP
LTPQ-150X200Width W: 150 mm | Length L: 200 mm | Thickness T: 90 mm | Material: #500SP
LTPQ-200X170Width W: 200 mm | Length L: 170 mm | Thickness T: 60 mm | Material: #500SP
LTPQ-200X200Width W: 200 mm | Length L: 200 mm | Thickness T: 90 mm | Material: #500SP
LTPQS-150X170Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Material: S45C
LTPQS-150X200Width W: 150 mm | Length L: 200 mm | Thickness T: 90 mm | Material: S45C
LTPQS-200X170Width W: 200 mm | Length L: 170 mm | Thickness T: 60 mm | Material: S45C
LTPQS-200X200Width W: 200 mm | Length L: 200 mm | Thickness T: 90 mm | Material: S45C
