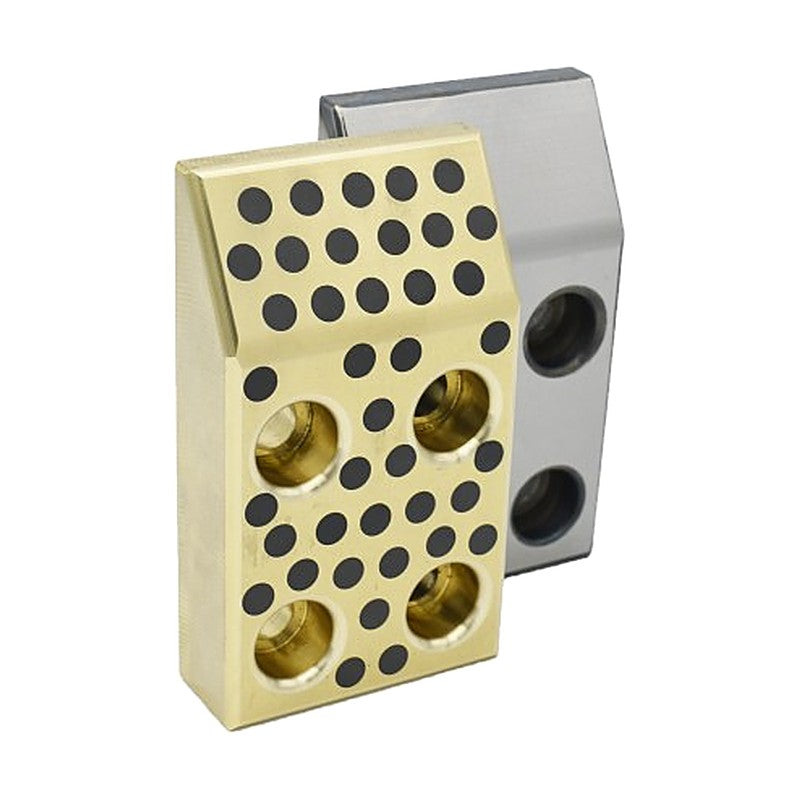

LuBo LTPV Cam Stroke Plates - VDI 3357 (Width 100-150 mm)

LuBo LTPV Cam Stroke Plates - VDI 3357 (Width 100-150 mm)

LuBo LTPV Cam Stroke Plates - VDI 3357 from the LuBo Oilless Bushings & Plates catalogue, listed in 27 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Stroke Plates - VDI 3357 - series LTPV
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • 27 catalogue codes covering the full printed size range
  • 170x45 (20°) and 150x45/170x60 (30°) per printed table.

Specifications

Brand LuBo
Series LTPV
Product Cam Stroke Plates - VDI 3357
Catalogue chapter Oilless Bushings & Plates
Orderable codes 27
Size range Width 100-150 mm
Code example LTPV-100X170X45-SP
Row spec keys Width W, Length L, Thickness T, Angle
Source LuBo Oilless Bushings & Plates catalogue
LTPV-100X170X45-SP Width W: 100 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-100X150X45-SP Width W: 100 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-100X170X60-SP Width W: 100 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-125X170X45-SP Width W: 125 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-125X150X45-SP Width W: 125 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-125X170X60-SP Width W: 125 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-150X170X45-SP Width W: 150 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-150X150X45-SP Width W: 150 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-150X170X60-SP Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-100X170X45-SM Width W: 100 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-100X150X45-SM Width W: 100 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-100X170X60-SM Width W: 100 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-125X170X45-SM Width W: 125 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-125X150X45-SM Width W: 125 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-125X170X60-SM Width W: 125 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-150X170X45-SM Width W: 150 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-150X150X45-SM Width W: 150 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-150X170X60-SM Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-100X170X45-TD Width W: 100 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-100X150X45-TD Width W: 100 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-100X170X60-TD Width W: 100 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-125X170X45-TD Width W: 125 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-125X150X45-TD Width W: 125 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-125X170X60-TD Width W: 125 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
LTPV-150X170X45-TD Width W: 150 mm | Length L: 170 mm | Thickness T: 45 mm | Angle: 20°
LTPV-150X150X45-TD Width W: 150 mm | Length L: 150 mm | Thickness T: 45 mm | Angle: 30°
LTPV-150X170X60-TD Width W: 150 mm | Length L: 170 mm | Thickness T: 60 mm | Angle: 30°
