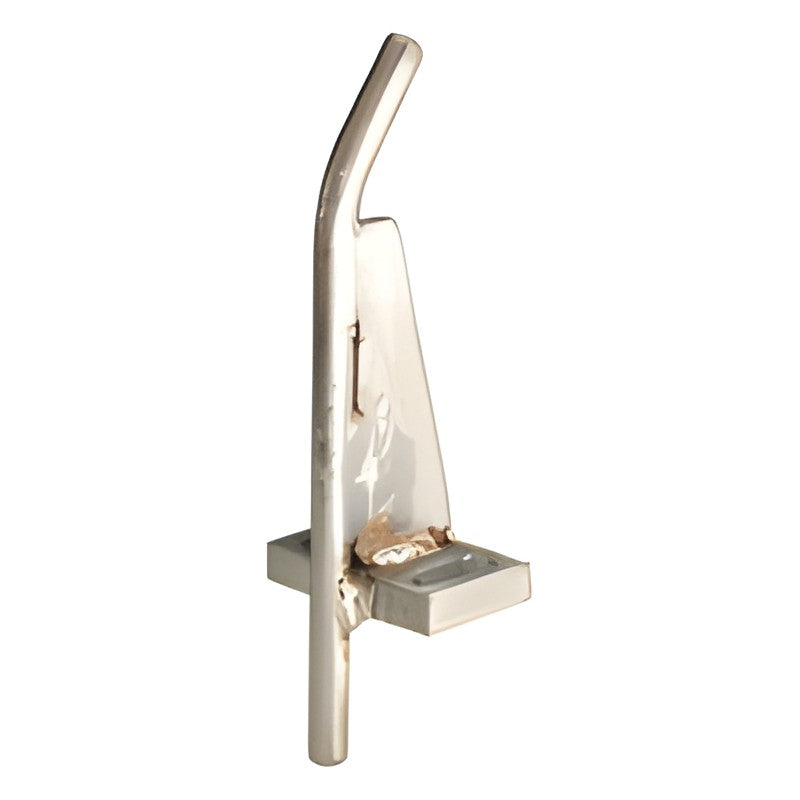

LuBo LUA Side Gauges - Round Gauges (Pin dia. 8-20 mm)

LuBo LUA Side Gauges - Round Gauges (Pin dia. 8-20 mm)

LuBo LUA Side Gauges - Round Gauges from the LuBo Locating & Checking Components catalogue, listed in 5 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Side Gauges - Round Gauges - series LUA
  • Standard press die / mold component from LuBo
  • Sizes selected from the catalogue table
  • Dimensions per LuBo catalogue drawing
  • 5 catalogue codes covering the full printed size range

Specifications

Brand LuBo
Series LUA
Product Side Gauges - Round Gauges
Catalogue chapter Locating & Checking Components
Orderable codes 5
Size range Pin dia. 8-20 mm
Code example LUA-8
Row spec keys Pin dia. D, L, F, H
Source LuBo Locating & Checking Components catalogue
LUA-8 Pin dia. D: 8 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-10 Pin dia. D: 10 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-12 Pin dia. D: 12 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-16 Pin dia. D: 16 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-20 Pin dia. D: 20 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
Panel Locating GaugeLuBo
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LUA Side Gauges - Round Gauges (Pin dia. 8-20 mm)

Brand LuBo·Panel Locating Gauge

Available part numbers (5)

LUA-8, LUA-10, LUA-12, LUA-16, LUA-20

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LUA-8Pin dia. D: 8 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-10Pin dia. D: 10 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-12Pin dia. D: 12 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-16Pin dia. D: 16 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
LUA-20Pin dia. D: 20 mm | L: 60-300 mm | F: 10-50 mm | H: 0-80 mm
