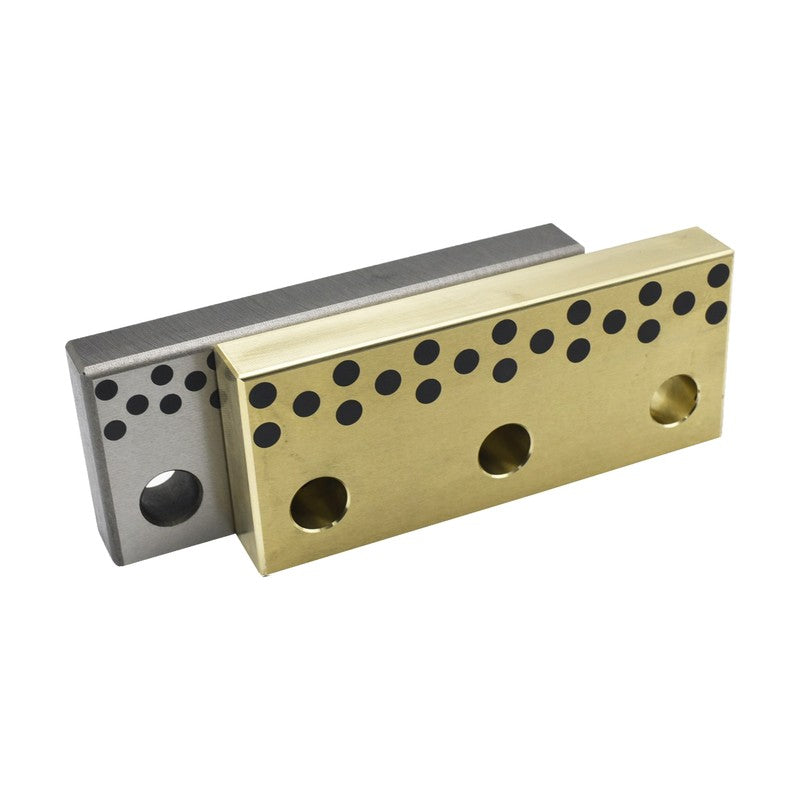

LuBo LUP / LUPC Cam Upper Plates (Width 52-105 mm)

LuBo LUP / LUPC Cam Upper Plates (Width 52-105 mm)

LuBo LUP / LUPC Cam Upper Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 102 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Upper Plates - series LUP / LUPC
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: 50H, CS, F, SP

Specifications

Brand LuBo
Series LUP / LUPC
Product Cam Upper Plates
Catalogue chapter Oilless Bushings & Plates
Material 50H, CS, F, SP
Orderable codes 102
Size range Width 52-105 mm
Code example LUP-70X160-SP
Row spec keys Width W, Length L, Thickness T, Material
Source LuBo Oilless Bushings & Plates catalogue
LUP-70X160-SP Width W: 70 mm | Length L: 160 mm | Thickness T: 25 mm | Material: SP
LUP-70X200-SP Width W: 70 mm | Length L: 200 mm | Thickness T: 25 mm | Material: SP
LUP-70X240-SP Width W: 70 mm | Length L: 240 mm | Thickness T: 25 mm | Material: SP
LUP-85X75-SP Width W: 85 mm | Length L: 75 mm | Thickness T: 28 mm | Material: SP
LUP-85X100-SP Width W: 85 mm | Length L: 100 mm | Thickness T: 28 mm | Material: SP
LUP-85X125-SP Width W: 85 mm | Length L: 125 mm | Thickness T: 28 mm | Material: SP
LUP-85X150-SP Width W: 85 mm | Length L: 150 mm | Thickness T: 28 mm | Material: SP
LUP-85X200-SP Width W: 85 mm | Length L: 200 mm | Thickness T: 28 mm | Material: SP
LUP-85X240-SP Width W: 85 mm | Length L: 240 mm | Thickness T: 28 mm | Material: SP
LUP-85X250-SP Width W: 85 mm | Length L: 250 mm | Thickness T: 28 mm | Material: SP
LUP-85X300-SP Width W: 85 mm | Length L: 300 mm | Thickness T: 28 mm | Material: SP
LUP-85X350-SP Width W: 85 mm | Length L: 350 mm | Thickness T: 28 mm | Material: SP
LUP-85X400-SP Width W: 85 mm | Length L: 400 mm | Thickness T: 28 mm | Material: SP
LUP-100X200-SP Width W: 100 mm | Length L: 200 mm | Thickness T: 28 mm | Material: SP
LUP-100X240-SP Width W: 100 mm | Length L: 240 mm | Thickness T: 28 mm | Material: SP
LUP-100X300-SP Width W: 100 mm | Length L: 300 mm | Thickness T: 28 mm | Material: SP
LUP-100X350-SP Width W: 100 mm | Length L: 350 mm | Thickness T: 28 mm | Material: SP
LUP-70X160-F Width W: 70 mm | Length L: 160 mm | Thickness T: 25 mm | Material: F
LUP-70X200-F Width W: 70 mm | Length L: 200 mm | Thickness T: 25 mm | Material: F
LUP-70X240-F Width W: 70 mm | Length L: 240 mm | Thickness T: 25 mm | Material: F
LUP-85X75-F Width W: 85 mm | Length L: 75 mm | Thickness T: 28 mm | Material: F
LUP-85X100-F Width W: 85 mm | Length L: 100 mm | Thickness T: 28 mm | Material: F
LUP-85X125-F Width W: 85 mm | Length L: 125 mm | Thickness T: 28 mm | Material: F
LUP-85X150-F Width W: 85 mm | Length L: 150 mm | Thickness T: 28 mm | Material: F
LUP-85X200-F Width W: 85 mm | Length L: 200 mm | Thickness T: 28 mm | Material: F
LUP-85X240-F Width W: 85 mm | Length L: 240 mm | Thickness T: 28 mm | Material: F
LUP-85X250-F Width W: 85 mm | Length L: 250 mm | Thickness T: 28 mm | Material: F
LUP-85X300-F Width W: 85 mm | Length L: 300 mm | Thickness T: 28 mm | Material: F
LUP-85X350-F Width W: 85 mm | Length L: 350 mm | Thickness T: 28 mm | Material: F
LUP-85X400-F Width W: 85 mm | Length L: 400 mm | Thickness T: 28 mm | Material: F
LUP-100X200-F Width W: 100 mm | Length L: 200 mm | Thickness T: 28 mm | Material: F
LUP-100X240-F Width W: 100 mm | Length L: 240 mm | Thickness T: 28 mm | Material: F
LUP-100X300-F Width W: 100 mm | Length L: 300 mm | Thickness T: 28 mm | Material: F
LUP-100X350-F Width W: 100 mm | Length L: 350 mm | Thickness T: 28 mm | Material: F
LUP-70X160-CS Width W: 70 mm | Length L: 160 mm | Thickness T: 25 mm | Material: CS
LUP-70X200-CS Width W: 70 mm | Length L: 200 mm | Thickness T: 25 mm | Material: CS
LUP-70X240-CS Width W: 70 mm | Length L: 240 mm | Thickness T: 25 mm | Material: CS
LUP-85X75-CS Width W: 85 mm | Length L: 75 mm | Thickness T: 28 mm | Material: CS
LUP-85X100-CS Width W: 85 mm | Length L: 100 mm | Thickness T: 28 mm | Material: CS
LUP-85X125-CS Width W: 85 mm | Length L: 125 mm | Thickness T: 28 mm | Material: CS
LUP-85X150-CS Width W: 85 mm | Length L: 150 mm | Thickness T: 28 mm | Material: CS
LUP-85X200-CS Width W: 85 mm | Length L: 200 mm | Thickness T: 28 mm | Material: CS
LUP-85X240-CS Width W: 85 mm | Length L: 240 mm | Thickness T: 28 mm | Material: CS
LUP-85X250-CS Width W: 85 mm | Length L: 250 mm | Thickness T: 28 mm | Material: CS
LUP-85X300-CS Width W: 85 mm | Length L: 300 mm | Thickness T: 28 mm | Material: CS
LUP-85X350-CS Width W: 85 mm | Length L: 350 mm | Thickness T: 28 mm | Material: CS
LUP-85X400-CS Width W: 85 mm | Length L: 400 mm | Thickness T: 28 mm | Material: CS
LUP-100X200-CS Width W: 100 mm | Length L: 200 mm | Thickness T: 28 mm | Material: CS
LUP-100X240-CS Width W: 100 mm | Length L: 240 mm | Thickness T: 28 mm | Material: CS
LUP-100X300-CS Width W: 100 mm | Length L: 300 mm | Thickness T: 28 mm | Material: CS
LUP-100X350-CS Width W: 100 mm | Length L: 350 mm | Thickness T: 28 mm | Material: CS
LUP-70X160-50H Width W: 70 mm | Length L: 160 mm | Thickness T: 25 mm | Material: 50H
LUP-70X200-50H Width W: 70 mm | Length L: 200 mm | Thickness T: 25 mm | Material: 50H
LUP-70X240-50H Width W: 70 mm | Length L: 240 mm | Thickness T: 25 mm | Material: 50H
LUP-85X75-50H Width W: 85 mm | Length L: 75 mm | Thickness T: 28 mm | Material: 50H
LUP-85X100-50H Width W: 85 mm | Length L: 100 mm | Thickness T: 28 mm | Material: 50H
LUP-85X125-50H Width W: 85 mm | Length L: 125 mm | Thickness T: 28 mm | Material: 50H
LUP-85X150-50H Width W: 85 mm | Length L: 150 mm | Thickness T: 28 mm | Material: 50H
LUP-85X200-50H Width W: 85 mm | Length L: 200 mm | Thickness T: 28 mm | Material: 50H
LUP-85X240-50H Width W: 85 mm | Length L: 240 mm | Thickness T: 28 mm | Material: 50H
LUP-85X250-50H Width W: 85 mm | Length L: 250 mm | Thickness T: 28 mm | Material: 50H
LUP-85X300-50H Width W: 85 mm | Length L: 300 mm | Thickness T: 28 mm | Material: 50H
LUP-85X350-50H Width W: 85 mm | Length L: 350 mm | Thickness T: 28 mm | Material: 50H
LUP-85X400-50H Width W: 85 mm | Length L: 400 mm | Thickness T: 28 mm | Material: 50H
LUP-100X200-50H Width W: 100 mm | Length L: 200 mm | Thickness T: 28 mm | Material: 50H
LUP-100X240-50H Width W: 100 mm | Length L: 240 mm | Thickness T: 28 mm | Material: 50H
LUP-100X300-50H Width W: 100 mm | Length L: 300 mm | Thickness T: 28 mm | Material: 50H
LUP-100X350-50H Width W: 100 mm | Length L: 350 mm | Thickness T: 28 mm | Material: 50H
LUPC-52X100-SP Width W: 52 mm | Length L: 100 mm | Thickness T: 20 mm | Material: SP
LUPC-52X150-SP Width W: 52 mm | Length L: 150 mm | Thickness T: 20 mm | Material: SP
LUPC-52X200-SP Width W: 52 mm | Length L: 200 mm | Thickness T: 20 mm | Material: SP
LUPC-52X250-SP Width W: 52 mm | Length L: 250 mm | Thickness T: 20 mm | Material: SP
LUPC-72X100-SP Width W: 72 mm | Length L: 100 mm | Thickness T: 30 mm | Material: SP
LUPC-72X150-SP Width W: 72 mm | Length L: 150 mm | Thickness T: 30 mm | Material: SP
LUPC-72X200-SP Width W: 72 mm | Length L: 200 mm | Thickness T: 30 mm | Material: SP
LUPC-72X250-SP Width W: 72 mm | Length L: 250 mm | Thickness T: 30 mm | Material: SP
LUPC-77X150-SP Width W: 77 mm | Length L: 150 mm | Thickness T: 35 mm | Material: SP
LUPC-77X200-SP Width W: 77 mm | Length L: 200 mm | Thickness T: 35 mm | Material: SP
LUPC-77X250-SP Width W: 77 mm | Length L: 250 mm | Thickness T: 35 mm | Material: SP
LUPC-82X150-SP Width W: 82 mm | Length L: 150 mm | Thickness T: 40 mm | Material: SP
LUPC-82X200-SP Width W: 82 mm | Length L: 200 mm | Thickness T: 40 mm | Material: SP
LUPC-82X250-SP Width W: 82 mm | Length L: 250 mm | Thickness T: 40 mm | Material: SP
LUPC-105X150-SP Width W: 105 mm | Length L: 150 mm | Thickness T: 40 mm | Material: SP
LUPC-105X200-SP Width W: 105 mm | Length L: 200 mm | Thickness T: 40 mm | Material: SP
LUPC-105X250-SP Width W: 105 mm | Length L: 250 mm | Thickness T: 40 mm | Material: SP
LUPC-52X100-F Width W: 52 mm | Length L: 100 mm | Thickness T: 20 mm | Material: F
LUPC-52X150-F Width W: 52 mm | Length L: 150 mm | Thickness T: 20 mm | Material: F
LUPC-52X200-F Width W: 52 mm | Length L: 200 mm | Thickness T: 20 mm | Material: F
LUPC-52X250-F Width W: 52 mm | Length L: 250 mm | Thickness T: 20 mm | Material: F
LUPC-72X100-F Width W: 72 mm | Length L: 100 mm | Thickness T: 30 mm | Material: F
LUPC-72X150-F Width W: 72 mm | Length L: 150 mm | Thickness T: 30 mm | Material: F
LUPC-72X200-F Width W: 72 mm | Length L: 200 mm | Thickness T: 30 mm | Material: F
LUPC-72X250-F Width W: 72 mm | Length L: 250 mm | Thickness T: 30 mm | Material: F
LUPC-77X150-F Width W: 77 mm | Length L: 150 mm | Thickness T: 35 mm | Material: F
LUPC-77X200-F Width W: 77 mm | Length L: 200 mm | Thickness T: 35 mm | Material: F
LUPC-77X250-F Width W: 77 mm | Length L: 250 mm | Thickness T: 35 mm | Material: F
LUPC-82X150-F Width W: 82 mm | Length L: 150 mm | Thickness T: 40 mm | Material: F
LUPC-82X200-F Width W: 82 mm | Length L: 200 mm | Thickness T: 40 mm | Material: F
LUPC-82X250-F Width W: 82 mm | Length L: 250 mm | Thickness T: 40 mm | Material: F
LUPC-105X150-F Width W: 105 mm | Length L: 150 mm | Thickness T: 40 mm | Material: F
LUPC-105X200-F Width W: 105 mm | Length L: 200 mm | Thickness T: 40 mm | Material: F
LUPC-105X250-F Width W: 105 mm | Length L: 250 mm | Thickness T: 40 mm | Material: F
