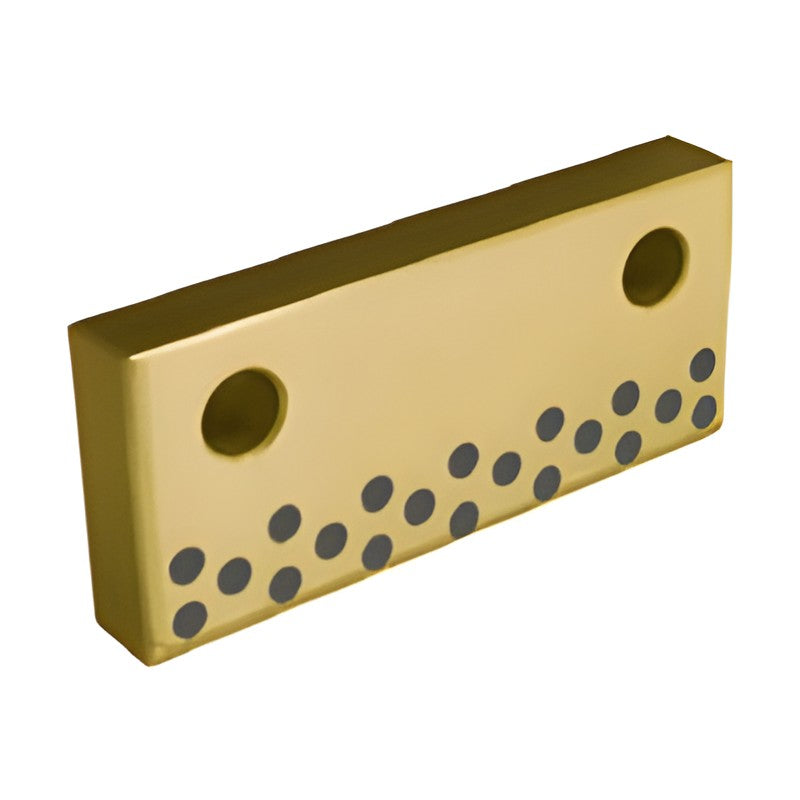

LuBo LUPM Mini Upper Plates (Width 25-33 mm)

LuBo LUPM Mini Upper Plates (Width 25-33 mm)

LuBo LUPM Mini Upper Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 8 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Mini Upper Plates - series LUPM
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500SP

Specifications

Brand LuBo
Series LUPM
Product Mini Upper Plates
Catalogue chapter Oilless Bushings & Plates
Material #500SP
Orderable codes 8
Size range Width 25-33 mm
Code example LUPM-25X75
Row spec keys Width W, Length L, Material
Source LuBo Oilless Bushings & Plates catalogue
LUPM-25X75 Width W: 25 mm | Length L: 75 mm | Material: #500SP
LUPM-25X100 Width W: 25 mm | Length L: 100 mm | Material: #500SP
LUPM-25X125 Width W: 25 mm | Length L: 125 mm | Material: #500SP
LUPM-33X75 Width W: 33 mm | Length L: 75 mm | Material: #500SP
LUPM-33X100 Width W: 33 mm | Length L: 100 mm | Material: #500SP
LUPM-33X125 Width W: 33 mm | Length L: 125 mm | Material: #500SP
LUPM-33X150 Width W: 33 mm | Length L: 150 mm | Material: #500SP
LUPM-33X200 Width W: 33 mm | Length L: 200 mm | Material: #500SP
Oilless Slide ComponentLuBo
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LUPM Mini Upper Plates (Width 25-33 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (8)

LUPM-25X75, LUPM-25X100, LUPM-25X125, LUPM-33X75, LUPM-33X100, LUPM-33X125, LUPM-33X150, LUPM-33X200

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LUPM-25X75Width W: 25 mm | Length L: 75 mm | Material: #500SP
LUPM-25X100Width W: 25 mm | Length L: 100 mm | Material: #500SP
LUPM-25X125Width W: 25 mm | Length L: 125 mm | Material: #500SP
LUPM-33X75Width W: 33 mm | Length L: 75 mm | Material: #500SP
LUPM-33X100Width W: 33 mm | Length L: 100 mm | Material: #500SP
LUPM-33X125Width W: 33 mm | Length L: 125 mm | Material: #500SP
LUPM-33X150Width W: 33 mm | Length L: 150 mm | Material: #500SP
LUPM-33X200Width W: 33 mm | Length L: 200 mm | Material: #500SP
