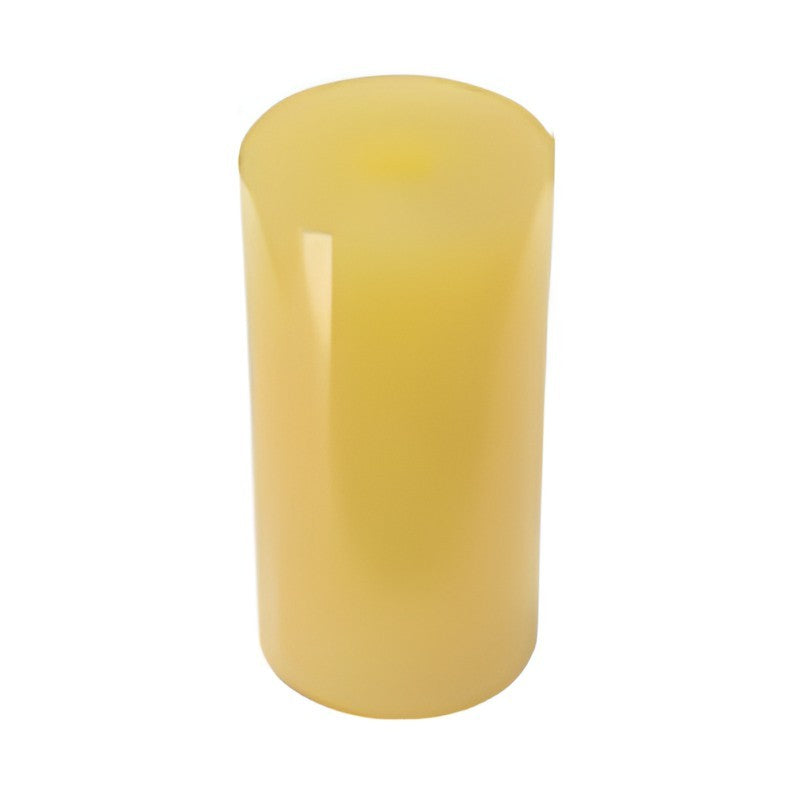

LuBo LUSE Urethane Spring (Economy Type, Yellow, A90)

LuBo LUSE Urethane Spring (Economy Type, Yellow, A90)

LuBo LUSE is an economy-grade yellow polyurethane spring with a centre bore for general press-die cushioning.

Key features

  • Economy yellow polyurethane, Shore A90
  • Outer diameter 15-60 mm, length 25-80 mm
  • Load data at 15%, 20% and 25% deflection
  • Centre bore for guide pin location
  • Cost-effective alternative to LUSWH

Specifications

Series LUSE
Material Polyurethane (yellow)
Hardness Shore A90
Bore tolerance +/-0.2 mm
Length tolerance +/-0.5 mm
Max deflection 25% of length
Order format LUSE - D x L (e.g. LUSE 20X25)
Lead time 7 days (catalogue)
Source LuBo Springs catalogue (Urethane Springs - Economy Type)
LUSE 15X25 OD: 15 mm | Bore: 7 mm | Length: 25 mm | Load at 25%: 932 N
LUSE 15X30 OD: 15 mm | Bore: 7 mm | Length: 30 mm | Load at 25%: 932 N
LUSE 15X35 OD: 15 mm | Bore: 7 mm | Length: 35 mm | Load at 25%: 932 N
LUSE 15X40 OD: 15 mm | Bore: 7 mm | Length: 40 mm | Load at 25%: 932 N
LUSE 20X25 OD: 20 mm | Bore: 8.5 mm | Length: 25 mm | Load at 25%: 1667 N
LUSE 20X30 OD: 20 mm | Bore: 8.5 mm | Length: 30 mm | Load at 25%: 1667 N
LUSE 20X35 OD: 20 mm | Bore: 8.5 mm | Length: 35 mm | Load at 25%: 1667 N
LUSE 20X40 OD: 20 mm | Bore: 8.5 mm | Length: 40 mm | Load at 25%: 1667 N
LUSE 25X25 OD: 25 mm | Bore: 11 mm | Length: 25 mm | Load at 25%: 2550 N
LUSE 25X30 OD: 25 mm | Bore: 11 mm | Length: 30 mm | Load at 25%: 2550 N
LUSE 25X35 OD: 25 mm | Bore: 11 mm | Length: 35 mm | Load at 25%: 2550 N
LUSE 25X40 OD: 25 mm | Bore: 11 mm | Length: 40 mm | Load at 25%: 2550 N
LUSE 25X45 OD: 25 mm | Bore: 11 mm | Length: 45 mm | Load at 25%: 2550 N
LUSE 25X50 OD: 25 mm | Bore: 11 mm | Length: 50 mm | Load at 25%: 2550 N
LUSE 30X30 OD: 30 mm | Bore: 14 mm | Length: 30 mm | Load at 25%: 3334 N
LUSE 30X35 OD: 30 mm | Bore: 14 mm | Length: 35 mm | Load at 25%: 3334 N
LUSE 30X40 OD: 30 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 3334 N
LUSE 30X45 OD: 30 mm | Bore: 14 mm | Length: 45 mm | Load at 25%: 3334 N
LUSE 30X50 OD: 30 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 3334 N
LUSE 30X55 OD: 30 mm | Bore: 14 mm | Length: 55 mm | Load at 25%: 3334 N
LUSE 30X60 OD: 30 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 3334 N
LUSE 40X40 OD: 40 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 5982 N
LUSE 40X50 OD: 40 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 5982 N
LUSE 40X60 OD: 40 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 5982 N
LUSE 50X50 OD: 50 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 10297 N
LUSE 50X60 OD: 50 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 10297 N
LUSE 50X80 OD: 50 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 10297 N
LUSE 60X50 OD: 60 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 16769 N
LUSE 60X60 OD: 60 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 16769 N
LUSE 60X80 OD: 60 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 16769 N
Urethane SpringLuBo
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LUSE Urethane Spring (Economy Type, Yellow, A90)

Brand LuBo·Urethane Spring

Available part numbers (30)

LUSE 15X25, LUSE 15X30, LUSE 15X35, LUSE 15X40, LUSE 20X25, LUSE 20X30, LUSE 20X35, LUSE 20X40, LUSE 25X25, LUSE 25X30 + 20 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LUSE 15X25OD: 15 mm | Bore: 7 mm | Length: 25 mm | Load at 25%: 932 N
LUSE 15X30OD: 15 mm | Bore: 7 mm | Length: 30 mm | Load at 25%: 932 N
LUSE 15X35OD: 15 mm | Bore: 7 mm | Length: 35 mm | Load at 25%: 932 N
LUSE 15X40OD: 15 mm | Bore: 7 mm | Length: 40 mm | Load at 25%: 932 N
LUSE 20X25OD: 20 mm | Bore: 8.5 mm | Length: 25 mm | Load at 25%: 1667 N
LUSE 20X30OD: 20 mm | Bore: 8.5 mm | Length: 30 mm | Load at 25%: 1667 N
LUSE 20X35OD: 20 mm | Bore: 8.5 mm | Length: 35 mm | Load at 25%: 1667 N
LUSE 20X40OD: 20 mm | Bore: 8.5 mm | Length: 40 mm | Load at 25%: 1667 N
LUSE 25X25OD: 25 mm | Bore: 11 mm | Length: 25 mm | Load at 25%: 2550 N
LUSE 25X30OD: 25 mm | Bore: 11 mm | Length: 30 mm | Load at 25%: 2550 N
LUSE 25X35OD: 25 mm | Bore: 11 mm | Length: 35 mm | Load at 25%: 2550 N
LUSE 25X40OD: 25 mm | Bore: 11 mm | Length: 40 mm | Load at 25%: 2550 N
LUSE 25X45OD: 25 mm | Bore: 11 mm | Length: 45 mm | Load at 25%: 2550 N
LUSE 25X50OD: 25 mm | Bore: 11 mm | Length: 50 mm | Load at 25%: 2550 N
LUSE 30X30OD: 30 mm | Bore: 14 mm | Length: 30 mm | Load at 25%: 3334 N
LUSE 30X35OD: 30 mm | Bore: 14 mm | Length: 35 mm | Load at 25%: 3334 N
LUSE 30X40OD: 30 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 3334 N
LUSE 30X45OD: 30 mm | Bore: 14 mm | Length: 45 mm | Load at 25%: 3334 N
LUSE 30X50OD: 30 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 3334 N
LUSE 30X55OD: 30 mm | Bore: 14 mm | Length: 55 mm | Load at 25%: 3334 N
LUSE 30X60OD: 30 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 3334 N
LUSE 40X40OD: 40 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 5982 N
LUSE 40X50OD: 40 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 5982 N
LUSE 40X60OD: 40 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 5982 N
LUSE 50X50OD: 50 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 10297 N
LUSE 50X60OD: 50 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 10297 N
LUSE 50X80OD: 50 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 10297 N
LUSE 60X50OD: 60 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 16769 N
LUSE 60X60OD: 60 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 16769 N
LUSE 60X80OD: 60 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 16769 N
