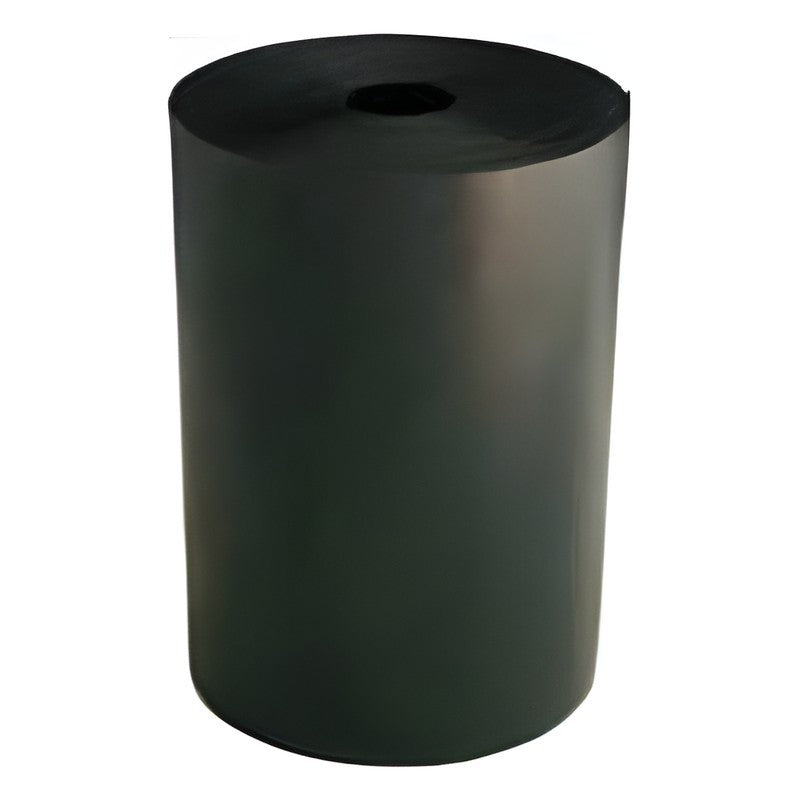

LuBo LUSWH Urethane Spring (Heavy Load, Shore A90)

LuBo LUSWH Urethane Spring (Heavy Load, Shore A90)

LuBo LUSWH is a heavy-load polyurethane spring with a centre bore for press dies, offering high load in a compact length.

Key features

  • Polyurethane, hardness Shore A90
  • Standard deflection up to 25% of length
  • Outer diameter 15-110 mm, length 25-200 mm
  • Load data at 15%, 20% and 25% deflection
  • Resistant to oil and abrasion; long stroke life

Specifications

Series LUSWH
Material Polyurethane
Hardness Shore A90
Length tolerance +/-0.5 mm
Bore tolerance +/-0.3 mm
Max deflection 25% of length
Order format LUSWH - D x L (e.g. LUSWH 20X30)
Lead time 7 days (catalogue)
Source LuBo Springs catalogue (Urethane Springs - Heavy Load)
LUSWH 15X25 OD: 15 mm | Bore: 7 mm | Length: 25 mm | Load at 25%: 981 N
LUSWH 15X30 OD: 15 mm | Bore: 7 mm | Length: 30 mm | Load at 25%: 981 N
LUSWH 15X35 OD: 15 mm | Bore: 7 mm | Length: 35 mm | Load at 25%: 981 N
LUSWH 15X40 OD: 15 mm | Bore: 7 mm | Length: 40 mm | Load at 25%: 981 N
LUSWH 20X25 OD: 20 mm | Bore: 8.5 mm | Length: 25 mm | Load at 25%: 1765 N
LUSWH 20X30 OD: 20 mm | Bore: 8.5 mm | Length: 30 mm | Load at 25%: 1765 N
LUSWH 20X35 OD: 20 mm | Bore: 8.5 mm | Length: 35 mm | Load at 25%: 1765 N
LUSWH 20X40 OD: 20 mm | Bore: 8.5 mm | Length: 40 mm | Load at 25%: 1765 N
LUSWH 25X25 OD: 25 mm | Bore: 11 mm | Length: 25 mm | Load at 25%: 2648 N
LUSWH 25X30 OD: 25 mm | Bore: 11 mm | Length: 30 mm | Load at 25%: 2648 N
LUSWH 25X35 OD: 25 mm | Bore: 11 mm | Length: 35 mm | Load at 25%: 2648 N
LUSWH 25X40 OD: 25 mm | Bore: 11 mm | Length: 40 mm | Load at 25%: 2648 N
LUSWH 25X45 OD: 25 mm | Bore: 11 mm | Length: 45 mm | Load at 25%: 2648 N
LUSWH 25X50 OD: 25 mm | Bore: 11 mm | Length: 50 mm | Load at 25%: 2648 N
LUSWH 30X25 OD: 30 mm | Bore: 14 mm | Length: 25 mm | Load at 25%: 3531 N
LUSWH 30X30 OD: 30 mm | Bore: 14 mm | Length: 30 mm | Load at 25%: 3531 N
LUSWH 30X35 OD: 30 mm | Bore: 14 mm | Length: 35 mm | Load at 25%: 3531 N
LUSWH 30X40 OD: 30 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 3531 N
LUSWH 30X45 OD: 30 mm | Bore: 14 mm | Length: 45 mm | Load at 25%: 3531 N
LUSWH 30X50 OD: 30 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 3531 N
LUSWH 30X55 OD: 30 mm | Bore: 14 mm | Length: 55 mm | Load at 25%: 3531 N
LUSWH 30X60 OD: 30 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 3531 N
LUSWH 40X40 OD: 40 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 6276 N
LUSWH 40X50 OD: 40 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 6276 N
LUSWH 40X60 OD: 40 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 6276 N
LUSWH 40X80 OD: 40 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 6276 N
LUSWH 50X50 OD: 50 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 10787 N
LUSWH 50X60 OD: 50 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 10787 N
LUSWH 50X80 OD: 50 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 10787 N
LUSWH 50X110 OD: 50 mm | Bore: 14 mm | Length: 110 mm | Load at 25%: 10787 N
LUSWH 60X50 OD: 60 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 17652 N
LUSWH 60X60 OD: 60 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 17652 N
LUSWH 60X80 OD: 60 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 17652 N
LUSWH 70X110 OD: 70 mm | Bore: 22 mm | Length: 110 mm | Load at 25%: 27000 N
LUSWH 70X140 OD: 70 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 27000 N
LUSWH 70X170 OD: 70 mm | Bore: 22 mm | Length: 170 mm | Load at 25%: 27000 N
LUSWH 80X60 OD: 80 mm | Bore: 22 mm | Length: 60 mm | Load at 25%: 29420 N
LUSWH 80X80 OD: 80 mm | Bore: 22 mm | Length: 80 mm | Load at 25%: 29420 N
LUSWH 80X100 OD: 80 mm | Bore: 22 mm | Length: 100 mm | Load at 25%: 29420 N
LUSWH 90X110 OD: 90 mm | Bore: 22 mm | Length: 110 mm | Load at 25%: 38000 N
LUSWH 90X140 OD: 90 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 38000 N
LUSWH 90X170 OD: 90 mm | Bore: 22 mm | Length: 170 mm | Load at 25%: 38000 N
LUSWH 90X200 OD: 90 mm | Bore: 22 mm | Length: 200 mm | Load at 25%: 38000 N
LUSWH 100X80 OD: 100 mm | Bore: 22 mm | Length: 80 mm | Load at 25%: 49720 N
LUSWH 100X100 OD: 100 mm | Bore: 22 mm | Length: 100 mm | Load at 25%: 49720 N
LUSWH 100X120 OD: 100 mm | Bore: 22 mm | Length: 120 mm | Load at 25%: 49720 N
LUSWH 100X140 OD: 100 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 49720 N
LUSWH 110X140 OD: 110 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 62000 N
LUSWH 110X200 OD: 110 mm | Bore: 22 mm | Length: 200 mm | Load at 25%: 62000 N
Urethane SpringLuBo
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LUSWH Urethane Spring (Heavy Load, Shore A90)

Brand LuBo·Urethane Spring

Available part numbers (49)

LUSWH 15X25, LUSWH 15X30, LUSWH 15X35, LUSWH 15X40, LUSWH 20X25, LUSWH 20X30, LUSWH 20X35, LUSWH 20X40, LUSWH 25X25, LUSWH 25X30 + 39 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LUSWH 15X25OD: 15 mm | Bore: 7 mm | Length: 25 mm | Load at 25%: 981 N
LUSWH 15X30OD: 15 mm | Bore: 7 mm | Length: 30 mm | Load at 25%: 981 N
LUSWH 15X35OD: 15 mm | Bore: 7 mm | Length: 35 mm | Load at 25%: 981 N
LUSWH 15X40OD: 15 mm | Bore: 7 mm | Length: 40 mm | Load at 25%: 981 N
LUSWH 20X25OD: 20 mm | Bore: 8.5 mm | Length: 25 mm | Load at 25%: 1765 N
LUSWH 20X30OD: 20 mm | Bore: 8.5 mm | Length: 30 mm | Load at 25%: 1765 N
LUSWH 20X35OD: 20 mm | Bore: 8.5 mm | Length: 35 mm | Load at 25%: 1765 N
LUSWH 20X40OD: 20 mm | Bore: 8.5 mm | Length: 40 mm | Load at 25%: 1765 N
LUSWH 25X25OD: 25 mm | Bore: 11 mm | Length: 25 mm | Load at 25%: 2648 N
LUSWH 25X30OD: 25 mm | Bore: 11 mm | Length: 30 mm | Load at 25%: 2648 N
LUSWH 25X35OD: 25 mm | Bore: 11 mm | Length: 35 mm | Load at 25%: 2648 N
LUSWH 25X40OD: 25 mm | Bore: 11 mm | Length: 40 mm | Load at 25%: 2648 N
LUSWH 25X45OD: 25 mm | Bore: 11 mm | Length: 45 mm | Load at 25%: 2648 N
LUSWH 25X50OD: 25 mm | Bore: 11 mm | Length: 50 mm | Load at 25%: 2648 N
LUSWH 30X25OD: 30 mm | Bore: 14 mm | Length: 25 mm | Load at 25%: 3531 N
LUSWH 30X30OD: 30 mm | Bore: 14 mm | Length: 30 mm | Load at 25%: 3531 N
LUSWH 30X35OD: 30 mm | Bore: 14 mm | Length: 35 mm | Load at 25%: 3531 N
LUSWH 30X40OD: 30 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 3531 N
LUSWH 30X45OD: 30 mm | Bore: 14 mm | Length: 45 mm | Load at 25%: 3531 N
LUSWH 30X50OD: 30 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 3531 N
LUSWH 30X55OD: 30 mm | Bore: 14 mm | Length: 55 mm | Load at 25%: 3531 N
LUSWH 30X60OD: 30 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 3531 N
LUSWH 40X40OD: 40 mm | Bore: 14 mm | Length: 40 mm | Load at 25%: 6276 N
LUSWH 40X50OD: 40 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 6276 N
LUSWH 40X60OD: 40 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 6276 N
LUSWH 40X80OD: 40 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 6276 N
LUSWH 50X50OD: 50 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 10787 N
LUSWH 50X60OD: 50 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 10787 N
LUSWH 50X80OD: 50 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 10787 N
LUSWH 50X110OD: 50 mm | Bore: 14 mm | Length: 110 mm | Load at 25%: 10787 N
LUSWH 60X50OD: 60 mm | Bore: 14 mm | Length: 50 mm | Load at 25%: 17652 N
LUSWH 60X60OD: 60 mm | Bore: 14 mm | Length: 60 mm | Load at 25%: 17652 N
LUSWH 60X80OD: 60 mm | Bore: 14 mm | Length: 80 mm | Load at 25%: 17652 N
LUSWH 70X110OD: 70 mm | Bore: 22 mm | Length: 110 mm | Load at 25%: 27000 N
LUSWH 70X140OD: 70 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 27000 N
LUSWH 70X170OD: 70 mm | Bore: 22 mm | Length: 170 mm | Load at 25%: 27000 N
LUSWH 80X60OD: 80 mm | Bore: 22 mm | Length: 60 mm | Load at 25%: 29420 N
LUSWH 80X80OD: 80 mm | Bore: 22 mm | Length: 80 mm | Load at 25%: 29420 N
LUSWH 80X100OD: 80 mm | Bore: 22 mm | Length: 100 mm | Load at 25%: 29420 N
LUSWH 90X110OD: 90 mm | Bore: 22 mm | Length: 110 mm | Load at 25%: 38000 N
LUSWH 90X140OD: 90 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 38000 N
LUSWH 90X170OD: 90 mm | Bore: 22 mm | Length: 170 mm | Load at 25%: 38000 N
LUSWH 90X200OD: 90 mm | Bore: 22 mm | Length: 200 mm | Load at 25%: 38000 N
LUSWH 100X80OD: 100 mm | Bore: 22 mm | Length: 80 mm | Load at 25%: 49720 N
LUSWH 100X100OD: 100 mm | Bore: 22 mm | Length: 100 mm | Load at 25%: 49720 N
LUSWH 100X120OD: 100 mm | Bore: 22 mm | Length: 120 mm | Load at 25%: 49720 N
LUSWH 100X140OD: 100 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 49720 N
LUSWH 110X140OD: 110 mm | Bore: 22 mm | Length: 140 mm | Load at 25%: 62000 N
LUSWH 110X200OD: 110 mm | Bore: 22 mm | Length: 200 mm | Load at 25%: 62000 N
