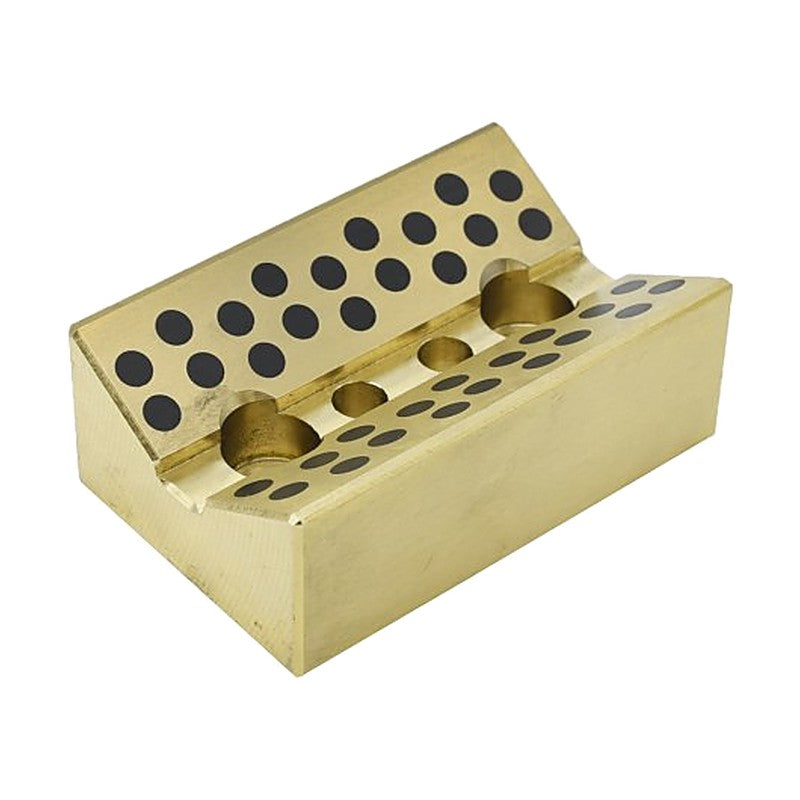

LuBo LVP Cam Bottom Plates (Width 35-65 mm)

LuBo LVP Cam Bottom Plates (Width 35-65 mm)

LuBo LVP / LVPB / LVPS / LVPSB Cam Bottom Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 40 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Cam Bottom Plates - series LVP / LVPB / LVPS / LVPSB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500SP, SM45C
  • Catalogue order format is code - L; LVP/LVPS listed as W x L because L repeats across widths 35/50/65.

Specifications

Brand LuBo
Series LVP / LVPB / LVPS / LVPSB
Product Cam Bottom Plates
Catalogue chapter Oilless Bushings & Plates
Material #500SP, SM45C
Orderable codes 40
Size range Width 35-65 mm
Code example LVP-35X75
Row spec keys Width W, Length L, Height H, Material
Source LuBo Oilless Bushings & Plates catalogue
LVP-35X75 Width W: 35 mm | Length L: 75 mm | Height H: 24 mm | Material: #500SP
LVP-35X100 Width W: 35 mm | Length L: 100 mm | Height H: 24 mm | Material: #500SP
LVP-35X125 Width W: 35 mm | Length L: 125 mm | Height H: 24 mm | Material: #500SP
LVP-35X150 Width W: 35 mm | Length L: 150 mm | Height H: 24 mm | Material: #500SP
LVP-50X75 Width W: 50 mm | Length L: 75 mm | Height H: 31 mm | Material: #500SP
LVP-50X100 Width W: 50 mm | Length L: 100 mm | Height H: 31 mm | Material: #500SP
LVP-50X125 Width W: 50 mm | Length L: 125 mm | Height H: 31 mm | Material: #500SP
LVP-50X150 Width W: 50 mm | Length L: 150 mm | Height H: 31 mm | Material: #500SP
LVP-65X100 Width W: 65 mm | Length L: 100 mm | Height H: 35 mm | Material: #500SP
LVP-65X125 Width W: 65 mm | Length L: 125 mm | Height H: 35 mm | Material: #500SP
LVP-65X150 Width W: 65 mm | Length L: 150 mm | Height H: 35 mm | Material: #500SP
LVP-65X200 Width W: 65 mm | Length L: 200 mm | Height H: 35 mm | Material: #500SP
LVP-65X250 Width W: 65 mm | Length L: 250 mm | Height H: 35 mm | Material: #500SP
LVP-65X300 Width W: 65 mm | Length L: 300 mm | Height H: 35 mm | Material: #500SP
LVPS-35X75 Width W: 35 mm | Length L: 75 mm | Height H: 20 mm | Material: SM45C
LVPS-35X100 Width W: 35 mm | Length L: 100 mm | Height H: 20 mm | Material: SM45C
LVPS-35X125 Width W: 35 mm | Length L: 125 mm | Height H: 20 mm | Material: SM45C
LVPS-35X150 Width W: 35 mm | Length L: 150 mm | Height H: 20 mm | Material: SM45C
LVPS-50X75 Width W: 50 mm | Length L: 75 mm | Height H: 32 mm | Material: SM45C
LVPS-50X100 Width W: 50 mm | Length L: 100 mm | Height H: 32 mm | Material: SM45C
LVPS-50X125 Width W: 50 mm | Length L: 125 mm | Height H: 32 mm | Material: SM45C
LVPS-50X150 Width W: 50 mm | Length L: 150 mm | Height H: 32 mm | Material: SM45C
LVPS-65X100 Width W: 65 mm | Length L: 100 mm | Height H: 47 mm | Material: SM45C
LVPS-65X125 Width W: 65 mm | Length L: 125 mm | Height H: 47 mm | Material: SM45C
LVPS-65X150 Width W: 65 mm | Length L: 150 mm | Height H: 47 mm | Material: SM45C
LVPS-65X200 Width W: 65 mm | Length L: 200 mm | Height H: 47 mm | Material: SM45C
LVPS-65X250 Width W: 65 mm | Length L: 250 mm | Height H: 47 mm | Material: SM45C
LVPS-65X300 Width W: 65 mm | Length L: 300 mm | Height H: 47 mm | Material: SM45C
LVPB-100 Width W: 65 mm | Length L: 100 mm | Height H: 37 mm | Material: #500SP
LVPB-125 Width W: 65 mm | Length L: 125 mm | Height H: 37 mm | Material: #500SP
LVPB-150 Width W: 65 mm | Length L: 150 mm | Height H: 37 mm | Material: #500SP
LVPB-200 Width W: 65 mm | Length L: 200 mm | Height H: 37 mm | Material: #500SP
LVPB-250 Width W: 65 mm | Length L: 250 mm | Height H: 37 mm | Material: #500SP
LVPB-300 Width W: 65 mm | Length L: 300 mm | Height H: 37 mm | Material: #500SP
LVPSB-100 Width W: 65 mm | Length L: 100 mm | Height H: 30 mm | Material: SM45C
LVPSB-125 Width W: 65 mm | Length L: 125 mm | Height H: 30 mm | Material: SM45C
LVPSB-150 Width W: 65 mm | Length L: 150 mm | Height H: 30 mm | Material: SM45C
LVPSB-200 Width W: 65 mm | Length L: 200 mm | Height H: 30 mm | Material: SM45C
LVPSB-250 Width W: 65 mm | Length L: 250 mm | Height H: 30 mm | Material: SM45C
LVPSB-300 Width W: 65 mm | Length L: 300 mm | Height H: 30 mm | Material: SM45C
