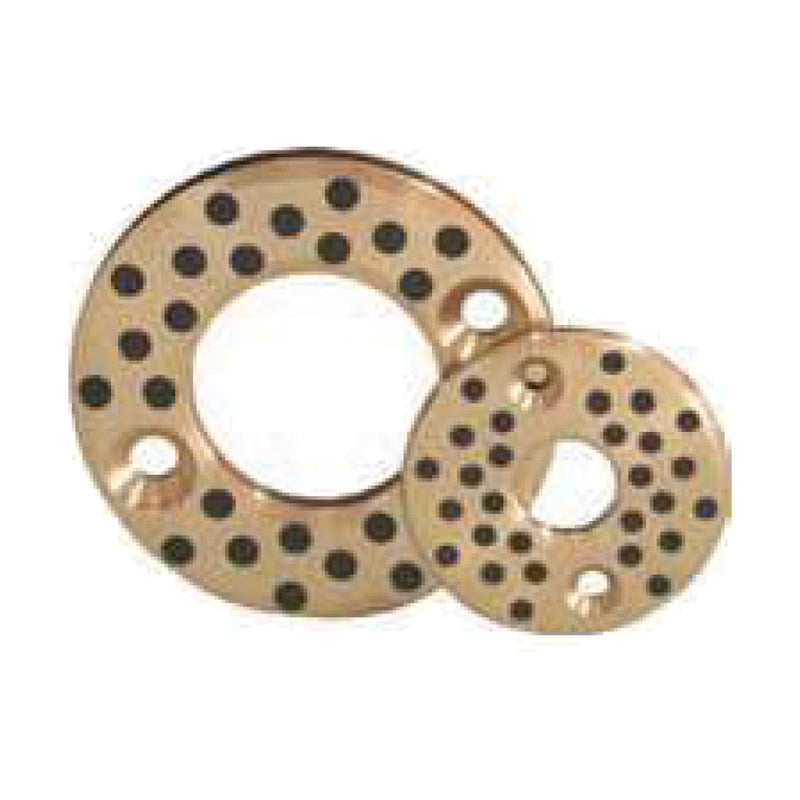

LuBo LWB Thrust Washers (Nominal 10-120)

LuBo LWB Thrust Washers (Nominal 10-120)

LuBo LWB Thrust Washers from the LuBo Oilless Bushings & Plates catalogue, listed in 23 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Thrust Washers - series LWB
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500SP

Specifications

Brand LuBo
Series LWB
Product Thrust Washers
Catalogue chapter Oilless Bushings & Plates
Material #500SP
Orderable codes 23
Size range Nominal 10-120
Code example LWB-10
Row spec keys Nominal, Outer D, Material
Source LuBo Oilless Bushings & Plates catalogue
LWB-10 Nominal: 10 | Outer D: 30 mm | Material: #500SP
LWB-12 Nominal: 12 | Outer D: 40 mm | Material: #500SP
LWB-13 Nominal: 13 | Outer D: 40 mm | Material: #500SP
LWB-14 Nominal: 14 | Outer D: 40 mm | Material: #500SP
LWB-15 Nominal: 15 | Outer D: 50 mm | Material: #500SP
LWB-16 Nominal: 16 | Outer D: 50 mm | Material: #500SP
LWB-18 Nominal: 18 | Outer D: 50 mm | Material: #500SP
LWB-20 Nominal: 20 | Outer D: 55 mm | Material: #500SP
LWB-25 Nominal: 25 | Outer D: 55 mm | Material: #500SP
LWB-30 Nominal: 30 | Outer D: 60 mm | Material: #500SP
LWB-35 Nominal: 35 | Outer D: 70 mm | Material: #500SP
LWB-40 Nominal: 40 | Outer D: 80 mm | Material: #500SP
LWB-45 Nominal: 45 | Outer D: 90 mm | Material: #500SP
LWB-50 Nominal: 50 | Outer D: 100 mm | Material: #500SP
LWB-55 Nominal: 55 | Outer D: 110 mm | Material: #500SP
LWB-60 Nominal: 60 | Outer D: 120 mm | Material: #500SP
LWB-65 Nominal: 65 | Outer D: 125 mm | Material: #500SP
LWB-70 Nominal: 70 | Outer D: 130 mm | Material: #500SP
LWB-75 Nominal: 75 | Outer D: 140 mm | Material: #500SP
LWB-80 Nominal: 80 | Outer D: 150 mm | Material: #500SP
LWB-90 Nominal: 90 | Outer D: 170 mm | Material: #500SP
LWB-100 Nominal: 100 | Outer D: 190 mm | Material: #500SP
LWB-120 Nominal: 120 | Outer D: 200 mm | Material: #500SP
Oilless Slide ComponentLuBo
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
