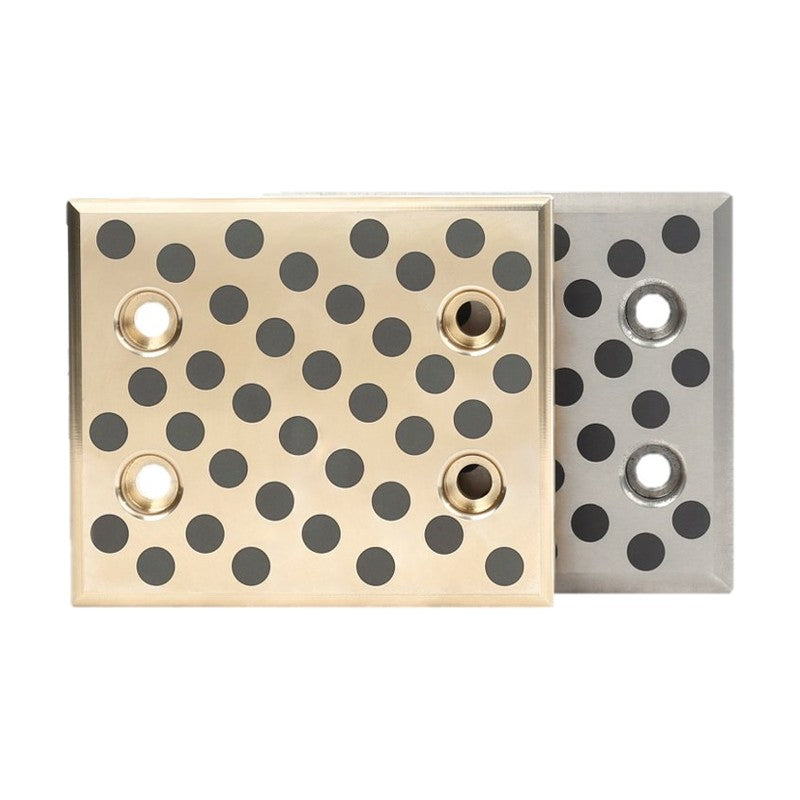

LuBo LWP Wear Plates (Width 28-200 mm)

LuBo LWP Wear Plates (Width 28-200 mm)

LuBo LWP Wear Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 156 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Wear Plates - series LWP
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: 50H, F, SP
  • Hyundai-standard sizes in brackets ordered with H prefix on material (e.g. LWP-125X200-HSP).

Specifications

Brand LuBo
Series LWP
Product Wear Plates
Catalogue chapter Oilless Bushings & Plates
Material 50H, F, SP
Orderable codes 156
Size range Width 28-200 mm
Code example LWP-28X75-SP
Row spec keys Width W, Length L, Thickness, Material
Source LuBo Oilless Bushings & Plates catalogue
LWP-28X75-SP Width W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-28X100-SP Width W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-28X150-SP Width W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-28X200-SP Width W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-28X250-SP Width W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-28X300-SP Width W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-38X75-SP Width W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-38X100-SP Width W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-38X125-SP Width W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-38X150-SP Width W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-38X200-SP Width W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-38X250-SP Width W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-38X300-SP Width W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-48X75-SP Width W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-48X100-SP Width W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-48X125-SP Width W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-48X150-SP Width W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-48X200-SP Width W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-48X250-SP Width W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-48X300-SP Width W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-58X75-SP Width W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-58X100-SP Width W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-58X150-SP Width W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-58X200-SP Width W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-58X250-SP Width W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-58X300-SP Width W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-75X75-SP Width W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-75X100-SP Width W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-75X125-SP Width W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-75X150-SP Width W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-75X200-SP Width W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-75X250-SP Width W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-75X300-SP Width W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-100X100-SP Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-100X125-SP Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-100X150-SP Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-100X200-SP Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-100X250-SP Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-100X300-SP Width W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-125X125-SP Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-125X150-SP Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-125X200-SP Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-125X250-SP Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-125X300-SP Width W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-125X350-SP Width W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: SP
LWP-150X150-SP Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-150X200-SP Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-150X250-SP Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-150X300-SP Width W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-200X200-SP Width W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-200X250-SP Width W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-200X300-SP Width W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-28X75-F Width W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-28X100-F Width W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-28X150-F Width W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-28X200-F Width W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-28X250-F Width W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-28X300-F Width W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-38X75-F Width W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-38X100-F Width W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-38X125-F Width W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-38X150-F Width W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-38X200-F Width W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-38X250-F Width W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-38X300-F Width W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-48X75-F Width W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-48X100-F Width W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-48X125-F Width W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-48X150-F Width W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-48X200-F Width W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-48X250-F Width W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-48X300-F Width W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-58X75-F Width W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-58X100-F Width W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-58X150-F Width W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-58X200-F Width W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-58X250-F Width W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-58X300-F Width W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-75X75-F Width W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-75X100-F Width W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-75X125-F Width W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-75X150-F Width W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-75X200-F Width W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-75X250-F Width W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-75X300-F Width W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-100X100-F Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-100X125-F Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-100X150-F Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-100X200-F Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-100X250-F Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-100X300-F Width W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-125X125-F Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-125X150-F Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-125X200-F Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-125X250-F Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-125X300-F Width W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-125X350-F Width W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: F
LWP-150X150-F Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-150X200-F Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-150X250-F Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-150X300-F Width W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-200X200-F Width W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-200X250-F Width W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-200X300-F Width W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-28X75-50H Width W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-28X100-50H Width W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-28X150-50H Width W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-28X200-50H Width W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-28X250-50H Width W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-28X300-50H Width W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-38X75-50H Width W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-38X100-50H Width W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-38X125-50H Width W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-38X150-50H Width W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-38X200-50H Width W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-38X250-50H Width W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-38X300-50H Width W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-48X75-50H Width W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-48X100-50H Width W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-48X125-50H Width W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-48X150-50H Width W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-48X200-50H Width W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-48X250-50H Width W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-48X300-50H Width W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-58X75-50H Width W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-58X100-50H Width W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-58X150-50H Width W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-58X200-50H Width W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-58X250-50H Width W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-58X300-50H Width W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-75X75-50H Width W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-75X100-50H Width W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-75X125-50H Width W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-75X150-50H Width W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-75X200-50H Width W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-75X250-50H Width W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-75X300-50H Width W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-100X100-50H Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-100X125-50H Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-100X150-50H Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-100X200-50H Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-100X250-50H Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-100X300-50H Width W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-125X125-50H Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-125X150-50H Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-125X200-50H Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-125X250-50H Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-125X300-50H Width W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-125X350-50H Width W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: 50H
LWP-150X150-50H Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-150X200-50H Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-150X250-50H Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-150X300-50H Width W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-200X200-50H Width W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-200X250-50H Width W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-200X300-50H Width W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
Oilless Slide ComponentLuBo
156 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LWP Wear Plates (Width 28-200 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (156)

LWP-28X75-SP, LWP-28X100-SP, LWP-28X150-SP, LWP-28X200-SP, LWP-28X250-SP, LWP-28X300-SP, LWP-38X75-SP, LWP-38X100-SP, LWP-38X125-SP, LWP-38X150-SP + 146 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LWP-28X75-SPWidth W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-28X100-SPWidth W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-28X150-SPWidth W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-28X200-SPWidth W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-28X250-SPWidth W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-28X300-SPWidth W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-38X75-SPWidth W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-38X100-SPWidth W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-38X125-SPWidth W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-38X150-SPWidth W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-38X200-SPWidth W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-38X250-SPWidth W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-38X300-SPWidth W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-48X75-SPWidth W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-48X100-SPWidth W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-48X125-SPWidth W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-48X150-SPWidth W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-48X200-SPWidth W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-48X250-SPWidth W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-48X300-SPWidth W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-58X75-SPWidth W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-58X100-SPWidth W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-58X150-SPWidth W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-58X200-SPWidth W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-58X250-SPWidth W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-58X300-SPWidth W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-75X75-SPWidth W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: SP
LWP-75X100-SPWidth W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-75X125-SPWidth W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-75X150-SPWidth W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-75X200-SPWidth W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-75X250-SPWidth W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-75X300-SPWidth W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-100X100-SPWidth W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWP-100X125-SPWidth W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-100X150-SPWidth W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-100X200-SPWidth W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-100X250-SPWidth W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-100X300-SPWidth W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-125X125-SPWidth W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWP-125X150-SPWidth W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-125X200-SPWidth W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-125X250-SPWidth W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-125X300-SPWidth W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-125X350-SPWidth W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: SP
LWP-150X150-SPWidth W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWP-150X200-SPWidth W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-150X250-SPWidth W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-150X300-SPWidth W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-200X200-SPWidth W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWP-200X250-SPWidth W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWP-200X300-SPWidth W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWP-28X75-FWidth W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-28X100-FWidth W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-28X150-FWidth W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-28X200-FWidth W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-28X250-FWidth W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-28X300-FWidth W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-38X75-FWidth W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-38X100-FWidth W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-38X125-FWidth W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-38X150-FWidth W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-38X200-FWidth W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-38X250-FWidth W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-38X300-FWidth W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-48X75-FWidth W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-48X100-FWidth W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-48X125-FWidth W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-48X150-FWidth W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-48X200-FWidth W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-48X250-FWidth W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-48X300-FWidth W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-58X75-FWidth W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-58X100-FWidth W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-58X150-FWidth W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-58X200-FWidth W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-58X250-FWidth W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-58X300-FWidth W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-75X75-FWidth W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: F
LWP-75X100-FWidth W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-75X125-FWidth W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-75X150-FWidth W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-75X200-FWidth W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-75X250-FWidth W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-75X300-FWidth W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-100X100-FWidth W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWP-100X125-FWidth W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-100X150-FWidth W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-100X200-FWidth W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-100X250-FWidth W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-100X300-FWidth W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-125X125-FWidth W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWP-125X150-FWidth W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-125X200-FWidth W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-125X250-FWidth W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-125X300-FWidth W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-125X350-FWidth W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: F
LWP-150X150-FWidth W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWP-150X200-FWidth W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-150X250-FWidth W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-150X300-FWidth W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-200X200-FWidth W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWP-200X250-FWidth W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWP-200X300-FWidth W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
LWP-28X75-50HWidth W: 28 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-28X100-50HWidth W: 28 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-28X150-50HWidth W: 28 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-28X200-50HWidth W: 28 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-28X250-50HWidth W: 28 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-28X300-50HWidth W: 28 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-38X75-50HWidth W: 38 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-38X100-50HWidth W: 38 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-38X125-50HWidth W: 38 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-38X150-50HWidth W: 38 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-38X200-50HWidth W: 38 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-38X250-50HWidth W: 38 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-38X300-50HWidth W: 38 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-48X75-50HWidth W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-48X100-50HWidth W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-48X125-50HWidth W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-48X150-50HWidth W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-48X200-50HWidth W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-48X250-50HWidth W: 48 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-48X300-50HWidth W: 48 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-58X75-50HWidth W: 58 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-58X100-50HWidth W: 58 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-58X150-50HWidth W: 58 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-58X200-50HWidth W: 58 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-58X250-50HWidth W: 58 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-58X300-50HWidth W: 58 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-75X75-50HWidth W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: 50H
LWP-75X100-50HWidth W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-75X125-50HWidth W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-75X150-50HWidth W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-75X200-50HWidth W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-75X250-50HWidth W: 75 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-75X300-50HWidth W: 75 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-100X100-50HWidth W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: 50H
LWP-100X125-50HWidth W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-100X150-50HWidth W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-100X200-50HWidth W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-100X250-50HWidth W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-100X300-50HWidth W: 100 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-125X125-50HWidth W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: 50H
LWP-125X150-50HWidth W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-125X200-50HWidth W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-125X250-50HWidth W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-125X300-50HWidth W: 125 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-125X350-50HWidth W: 125 mm | Length L: 350 mm | Thickness: 20 mm | Material: 50H
LWP-150X150-50HWidth W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: 50H
LWP-150X200-50HWidth W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-150X250-50HWidth W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-150X300-50HWidth W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H
LWP-200X200-50HWidth W: 200 mm | Length L: 200 mm | Thickness: 20 mm | Material: 50H
LWP-200X250-50HWidth W: 200 mm | Length L: 250 mm | Thickness: 20 mm | Material: 50H
LWP-200X300-50HWidth W: 200 mm | Length L: 300 mm | Thickness: 20 mm | Material: 50H

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Fasteners & Hardware →
