• LuBo LWPE Wear Plates - Economy Type (Width 100-150 mm)
1 1

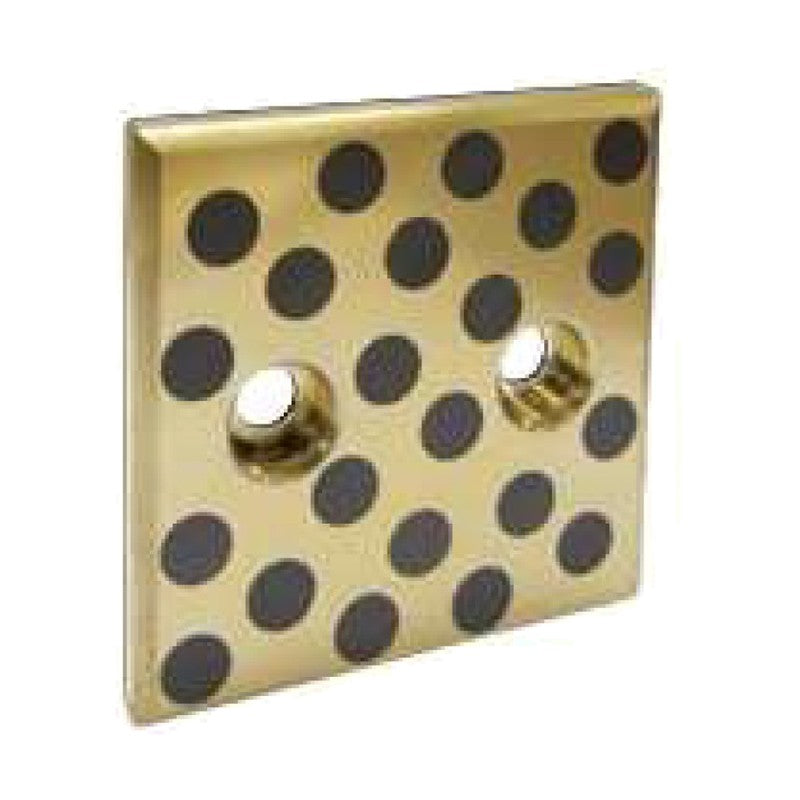

LuBo LWPE Wear Plates - Economy Type (Width 100-150 mm)

LuBo LWPE Wear Plates - Economy Type (Width 100-150 mm)

LuBo LWPE Wear Plates - Economy Type from the LuBo Oilless Bushings & Plates catalogue, listed in 26 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Wear Plates - Economy Type - series LWPE
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: F, SP

Specifications

Brand LuBo
Series LWPE
Product Wear Plates - Economy Type
Catalogue chapter Oilless Bushings & Plates
Material F, SP
Orderable codes 26
Size range Width 100-150 mm
Code example LWPE-100X100-SP
Row spec keys Width W, Length L, Thickness, Material
Source LuBo Oilless Bushings & Plates catalogue
LWPE-100X100-SP Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWPE-100X125-SP Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWPE-100X150-SP Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-100X200-SP Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-100X250-SP Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-125X125-SP Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWPE-125X150-SP Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-125X200-SP Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-125X250-SP Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-150X150-SP Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-150X200-SP Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-150X250-SP Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-150X300-SP Width W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWPE-100X100-F Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWPE-100X125-F Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWPE-100X150-F Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-100X200-F Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-100X250-F Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-125X125-F Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWPE-125X150-F Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-125X200-F Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-125X250-F Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-150X150-F Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-150X200-F Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-150X250-F Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-150X300-F Width W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
Oilless Slide ComponentLuBo
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LWPE Wear Plates - Economy Type (Width 100-150 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (26)

LWPE-100X100-SP, LWPE-100X125-SP, LWPE-100X150-SP, LWPE-100X200-SP, LWPE-100X250-SP, LWPE-125X125-SP, LWPE-125X150-SP, LWPE-125X200-SP, LWPE-125X250-SP, LWPE-150X150-SP + 16 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LWPE-100X100-SPWidth W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: SP
LWPE-100X125-SPWidth W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWPE-100X150-SPWidth W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-100X200-SPWidth W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-100X250-SPWidth W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-125X125-SPWidth W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: SP
LWPE-125X150-SPWidth W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-125X200-SPWidth W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-125X250-SPWidth W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-150X150-SPWidth W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: SP
LWPE-150X200-SPWidth W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: SP
LWPE-150X250-SPWidth W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: SP
LWPE-150X300-SPWidth W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: SP
LWPE-100X100-FWidth W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: F
LWPE-100X125-FWidth W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWPE-100X150-FWidth W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-100X200-FWidth W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-100X250-FWidth W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-125X125-FWidth W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: F
LWPE-125X150-FWidth W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-125X200-FWidth W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-125X250-FWidth W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-150X150-FWidth W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: F
LWPE-150X200-FWidth W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: F
LWPE-150X250-FWidth W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: F
LWPE-150X300-FWidth W: 150 mm | Length L: 300 mm | Thickness: 20 mm | Material: F
