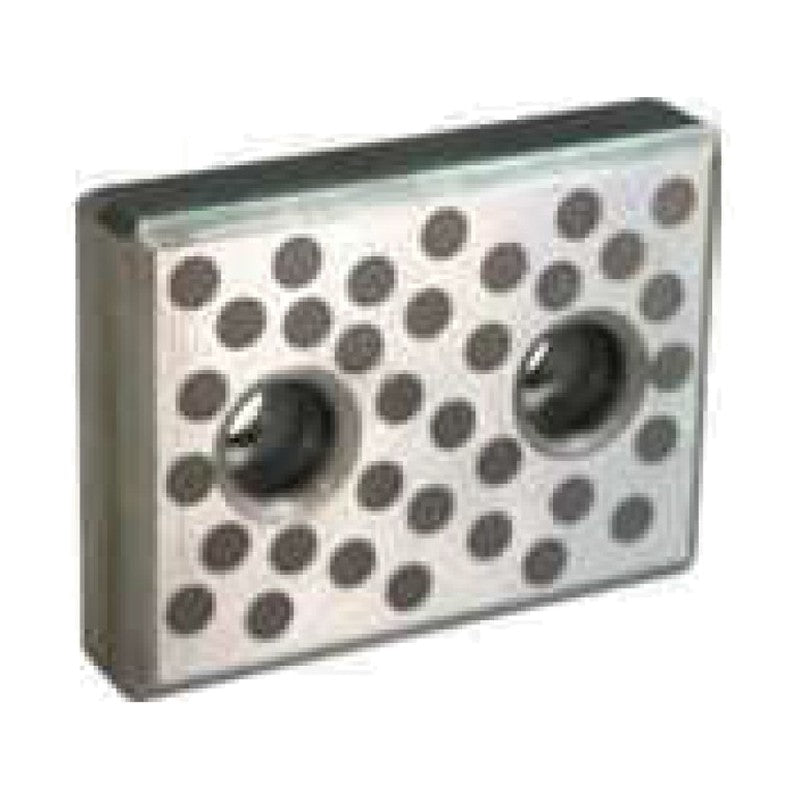

LuBo LWPH Steel Wear Plates (Width 48-150 mm)

LuBo LWPH Steel Wear Plates (Width 48-150 mm)

LuBo LWPH Steel Wear Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 22 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Steel Wear Plates - series LWPH
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: #500CS

Specifications

Brand LuBo
Series LWPH
Product Steel Wear Plates
Catalogue chapter Oilless Bushings & Plates
Material #500CS
Orderable codes 22
Size range Width 48-150 mm
Code example LWPH-48X75
Row spec keys Width W, Length L, Thickness, Material
Source LuBo Oilless Bushings & Plates catalogue
LWPH-48X75 Width W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X100 Width W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X125 Width W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X150 Width W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X200 Width W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X75 Width W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X100 Width W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X125 Width W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X150 Width W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X200 Width W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X100 Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X125 Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X150 Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X200 Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X250 Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X125 Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X150 Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X200 Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X250 Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X150 Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X200 Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X250 Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
Oilless Slide ComponentLuBo
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LuBo LWPH Steel Wear Plates (Width 48-150 mm)

Brand LuBo·Oilless Slide Component

Available part numbers (22)

LWPH-48X75, LWPH-48X100, LWPH-48X125, LWPH-48X150, LWPH-48X200, LWPH-75X75, LWPH-75X100, LWPH-75X125, LWPH-75X150, LWPH-75X200 + 12 more — see full table ↓

How to order

Send the LuBo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LWPH-48X75Width W: 48 mm | Length L: 75 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X100Width W: 48 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X125Width W: 48 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X150Width W: 48 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-48X200Width W: 48 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X75Width W: 75 mm | Length L: 75 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X100Width W: 75 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X125Width W: 75 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X150Width W: 75 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-75X200Width W: 75 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X100Width W: 100 mm | Length L: 100 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X125Width W: 100 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X150Width W: 100 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X200Width W: 100 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-100X250Width W: 100 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X125Width W: 125 mm | Length L: 125 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X150Width W: 125 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X200Width W: 125 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-125X250Width W: 125 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X150Width W: 150 mm | Length L: 150 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X200Width W: 150 mm | Length L: 200 mm | Thickness: 20 mm | Material: #500CS
LWPH-150X250Width W: 150 mm | Length L: 250 mm | Thickness: 20 mm | Material: #500CS
