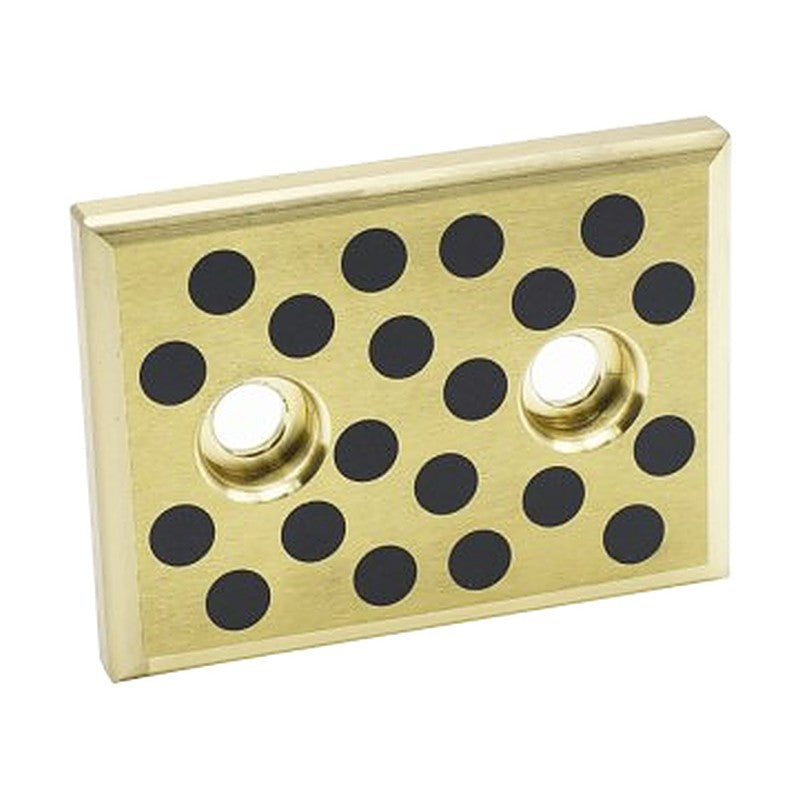

LuBo LWPT Thin Wear Plates (Width 18-150 mm)

LuBo LWPT Thin Wear Plates (Width 18-150 mm)

LuBo LWPT Thin Wear Plates from the LuBo Oilless Bushings & Plates catalogue, listed in 78 orderable catalogue codes. Select the code from the size table below; dimensions follow the LuBo drawing for each series.

Key features

  • Thin Wear Plates - series LWPT
  • Oilless sliding component for press dies and cam slides
  • Graphite-plugged or steel versions as listed per series
  • Sizes selected from the LuBo standard table
  • Material options: 50H, SP

Specifications

Brand LuBo
Series LWPT
Product Thin Wear Plates
Catalogue chapter Oilless Bushings & Plates
Material 50H, SP
Orderable codes 78
Size range Width 18-150 mm
Code example LWPT-28X75-SP
Row spec keys Width W, Length L, Thickness, Material
Source LuBo Oilless Bushings & Plates catalogue
LWPT-28X75-SP Width W: 28 mm | Length L: 75 mm | Thickness: 10 mm | Material: SP
LWPT-28X100-SP Width W: 28 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-28X125-SP Width W: 28 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-28X150-SP Width W: 28 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-38X75-SP Width W: 38 mm | Length L: 75 mm | Thickness: 10 mm | Material: SP
LWPT-38X100-SP Width W: 38 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-38X125-SP Width W: 38 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-38X150-SP Width W: 38 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-48X75-SP Width W: 48 mm | Length L: 75 mm | Thickness: 10 mm | Material: SP
LWPT-48X100-SP Width W: 48 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-48X125-SP Width W: 48 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-48X150-SP Width W: 48 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-48X200-SP Width W: 48 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-58X75-SP Width W: 58 mm | Length L: 75 mm | Thickness: 10 mm | Material: SP
LWPT-58X100-SP Width W: 58 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-58X125-SP Width W: 58 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-58X150-SP Width W: 58 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-58X200-SP Width W: 58 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-75X75-SP Width W: 75 mm | Length L: 75 mm | Thickness: 10 mm | Material: SP
LWPT-75X100-SP Width W: 75 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-75X125-SP Width W: 75 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-75X150-SP Width W: 75 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-75X175-SP Width W: 75 mm | Length L: 175 mm | Thickness: 10 mm | Material: SP
LWPT-75X200-SP Width W: 75 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-100X100-SP Width W: 100 mm | Length L: 100 mm | Thickness: 10 mm | Material: SP
LWPT-100X125-SP Width W: 100 mm | Length L: 125 mm | Thickness: 10 mm | Material: SP
LWPT-100X150-SP Width W: 100 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-100X200-SP Width W: 100 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-100X250-SP Width W: 100 mm | Length L: 250 mm | Thickness: 10 mm | Material: SP
LWPT-125X150-SP Width W: 125 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-125X200-SP Width W: 125 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-125X250-SP Width W: 125 mm | Length L: 250 mm | Thickness: 10 mm | Material: SP
LWPT-150X150-SP Width W: 150 mm | Length L: 150 mm | Thickness: 10 mm | Material: SP
LWPT-150X200-SP Width W: 150 mm | Length L: 200 mm | Thickness: 10 mm | Material: SP
LWPT-18X75-50H Width W: 18 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-18X100-50H Width W: 18 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-18X125-50H Width W: 18 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-18X150-50H Width W: 18 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-28X75-50H Width W: 28 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-28X100-50H Width W: 28 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-28X125-50H Width W: 28 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-28X150-50H Width W: 28 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-38X75-50H Width W: 38 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-38X100-50H Width W: 38 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-38X125-50H Width W: 38 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-38X150-50H Width W: 38 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-48X75-50H Width W: 48 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-48X100-50H Width W: 48 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-48X125-50H Width W: 48 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-48X150-50H Width W: 48 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-48X200-50H Width W: 48 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-48X250-50H Width W: 48 mm | Length L: 250 mm | Thickness: 10 mm | Material: 50H
LWPT-58X75-50H Width W: 58 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-58X100-50H Width W: 58 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-58X125-50H Width W: 58 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-58X150-50H Width W: 58 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-58X200-50H Width W: 58 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-75X75-50H Width W: 75 mm | Length L: 75 mm | Thickness: 10 mm | Material: 50H
LWPT-75X100-50H Width W: 75 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-75X125-50H Width W: 75 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-75X150-50H Width W: 75 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-75X200-50H Width W: 75 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-75X250-50H Width W: 75 mm | Length L: 250 mm | Thickness: 10 mm | Material: 50H
LWPT-75X300-50H Width W: 75 mm | Length L: 300 mm | Thickness: 10 mm | Material: 50H
LWPT-100X100-50H Width W: 100 mm | Length L: 100 mm | Thickness: 10 mm | Material: 50H
LWPT-100X125-50H Width W: 100 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-100X150-50H Width W: 100 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-100X200-50H Width W: 100 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-100X250-50H Width W: 100 mm | Length L: 250 mm | Thickness: 10 mm | Material: 50H
LWPT-100X300-50H Width W: 100 mm | Length L: 300 mm | Thickness: 10 mm | Material: 50H
LWPT-125X125-50H Width W: 125 mm | Length L: 125 mm | Thickness: 10 mm | Material: 50H
LWPT-125X150-50H Width W: 125 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-125X200-50H Width W: 125 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-125X250-50H Width W: 125 mm | Length L: 250 mm | Thickness: 10 mm | Material: 50H
LWPT-125X300-50H Width W: 125 mm | Length L: 300 mm | Thickness: 10 mm | Material: 50H
LWPT-150X150-50H Width W: 150 mm | Length L: 150 mm | Thickness: 10 mm | Material: 50H
LWPT-150X200-50H Width W: 150 mm | Length L: 200 mm | Thickness: 10 mm | Material: 50H
LWPT-150X250-50H Width W: 150 mm | Length L: 250 mm | Thickness: 10 mm | Material: 50H
