LuBo LXB Boundary Lubricating Bushing (LX Series, Metric)

LuBo LXB Boundary Lubricating Bushing (LX Series, Metric)

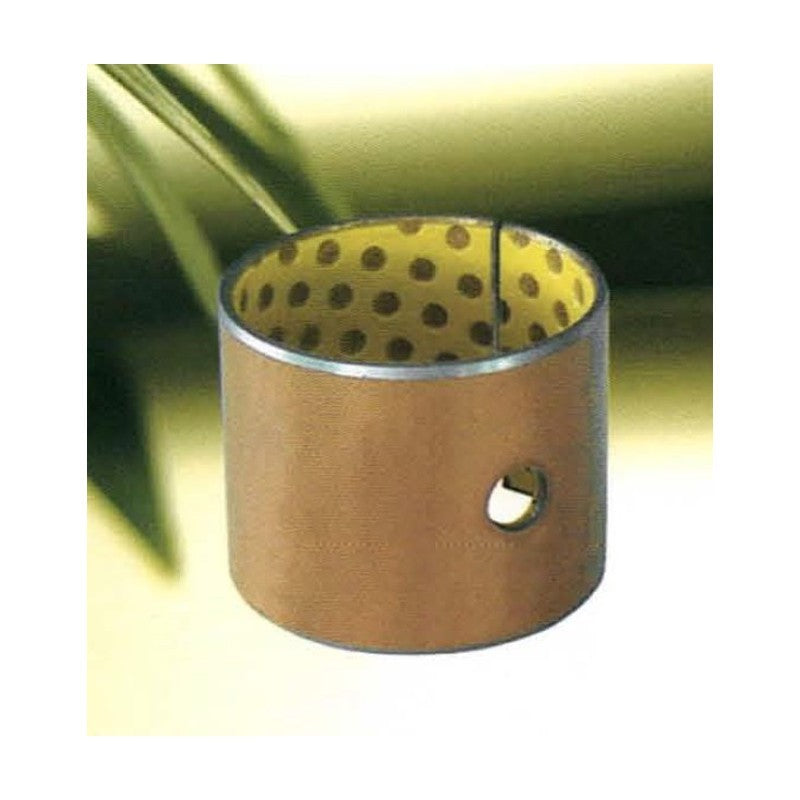

LuBo LXB is a wrapped boundary-lubricating bushing from the LX series with an indented (pocketed) liner and lube hole.

Key features

  • Indented liner retains grease for boundary lubrication
  • Lubrication hole H in the wall
  • Bore 10-300 mm, length 8-100 mm
  • Install with shaft h7 and housing H7
  • Other sizes on special order

Specifications

Series LXB (LX series)
Type Boundary lubricating wrapped bushing
Shaft / housing h7 / H7
Wall thickness 1.5-2.5 mm by bore
Order format Code No. (e.g. LXB 1620)
Code key Bore + length in mm
Source LuBo Boundary Lubricating Bearings (LX Series) Standard Bushings
LXB 1008 Bore d: 10 mm | OD D: 13 mm | Length L: 8 mm
LXB 1010 Bore d: 10 mm | OD D: 13 mm | Length L: 10 mm
LXB 1015 Bore d: 10 mm | OD D: 13 mm | Length L: 15 mm
LXB 1020 Bore d: 10 mm | OD D: 13 mm | Length L: 20 mm
LXB 1210 Bore d: 12 mm | OD D: 15 mm | Length L: 10 mm
LXB 1212 Bore d: 12 mm | OD D: 15 mm | Length L: 12 mm
LXB 1215 Bore d: 12 mm | OD D: 15 mm | Length L: 15 mm
LXB 1220 Bore d: 12 mm | OD D: 15 mm | Length L: 20 mm
LXB 1315 Bore d: 13 mm | OD D: 16 mm | Length L: 15 mm
LXB 1320 Bore d: 13 mm | OD D: 16 mm | Length L: 20 mm
LXB 1410 Bore d: 14 mm | OD D: 17 mm | Length L: 10 mm
LXB 1412 Bore d: 14 mm | OD D: 17 mm | Length L: 12 mm
LXB 1415 Bore d: 14 mm | OD D: 17 mm | Length L: 15 mm
LXB 1420 Bore d: 14 mm | OD D: 17 mm | Length L: 20 mm
LXB 1515 Bore d: 15 mm | OD D: 18 mm | Length L: 15 mm
LXB 1520 Bore d: 15 mm | OD D: 18 mm | Length L: 20 mm
LXB 1525 Bore d: 15 mm | OD D: 18 mm | Length L: 25 mm
LXB 1610 Bore d: 16 mm | OD D: 19 mm | Length L: 10 mm
LXB 1612 Bore d: 16 mm | OD D: 19 mm | Length L: 12 mm
LXB 1615 Bore d: 16 mm | OD D: 19 mm | Length L: 15 mm
LXB 1620 Bore d: 16 mm | OD D: 19 mm | Length L: 20 mm
LXB 1625 Bore d: 16 mm | OD D: 19 mm | Length L: 25 mm
LXB 1715 Bore d: 17 mm | OD D: 20 mm | Length L: 15 mm
LXB 1720 Bore d: 17 mm | OD D: 20 mm | Length L: 20 mm
LXB 1725 Bore d: 17 mm | OD D: 20 mm | Length L: 25 mm
LXB 1810 Bore d: 18 mm | OD D: 21 mm | Length L: 10 mm
LXB 1812 Bore d: 18 mm | OD D: 21 mm | Length L: 12 mm
LXB 1815 Bore d: 18 mm | OD D: 21 mm | Length L: 15 mm
LXB 1820 Bore d: 18 mm | OD D: 21 mm | Length L: 20 mm
LXB 1825 Bore d: 18 mm | OD D: 21 mm | Length L: 25 mm
LXB 2015 Bore d: 20 mm | OD D: 23 mm | Length L: 15 mm
LXB 2020 Bore d: 20 mm | OD D: 23 mm | Length L: 20 mm
LXB 2025 Bore d: 20 mm | OD D: 23 mm | Length L: 25 mm
LXB 2030 Bore d: 20 mm | OD D: 23 mm | Length L: 30 mm
LXB 2215 Bore d: 22 mm | OD D: 25 mm | Length L: 15 mm
LXB 2220 Bore d: 22 mm | OD D: 25 mm | Length L: 20 mm
LXB 2225 Bore d: 22 mm | OD D: 25 mm | Length L: 25 mm
LXB 2230 Bore d: 22 mm | OD D: 25 mm | Length L: 30 mm
LXB 2415 Bore d: 24 mm | OD D: 27 mm | Length L: 15 mm
LXB 2420 Bore d: 24 mm | OD D: 27 mm | Length L: 20 mm
LXB 2425 Bore d: 24 mm | OD D: 27 mm | Length L: 25 mm
LXB 2430 Bore d: 24 mm | OD D: 27 mm | Length L: 30 mm
LXB 2515 Bore d: 25 mm | OD D: 28 mm | Length L: 15 mm
LXB 2520 Bore d: 25 mm | OD D: 28 mm | Length L: 20 mm
LXB 2525 Bore d: 25 mm | OD D: 28 mm | Length L: 25 mm
LXB 2530 Bore d: 25 mm | OD D: 28 mm | Length L: 30 mm
LXB 2540 Bore d: 25 mm | OD D: 28 mm | Length L: 40 mm
LXB 2615 Bore d: 26 mm | OD D: 30 mm | Length L: 15 mm
LXB 2620 Bore d: 26 mm | OD D: 30 mm | Length L: 20 mm
LXB 2630 Bore d: 26 mm | OD D: 30 mm | Length L: 30 mm
LXB 2640 Bore d: 26 mm | OD D: 30 mm | Length L: 40 mm
LXB 2815 Bore d: 28 mm | OD D: 32 mm | Length L: 15 mm
LXB 2840 Bore d: 28 mm | OD D: 32 mm | Length L: 40 mm
LXB 3020 Bore d: 30 mm | OD D: 34 mm | Length L: 20 mm
LXB 3030 Bore d: 30 mm | OD D: 34 mm | Length L: 30 mm
LXB 3040 Bore d: 30 mm | OD D: 34 mm | Length L: 40 mm
LXB 3220 Bore d: 32 mm | OD D: 36 mm | Length L: 20 mm
LXB 3230 Bore d: 32 mm | OD D: 36 mm | Length L: 30 mm
LXB 3240 Bore d: 32 mm | OD D: 36 mm | Length L: 40 mm
LXB 3520 Bore d: 35 mm | OD D: 39 mm | Length L: 20 mm
LXB 3530 Bore d: 35 mm | OD D: 39 mm | Length L: 30 mm
LXB 3550 Bore d: 35 mm | OD D: 39 mm | Length L: 50 mm
LXB 3820 Bore d: 38 mm | OD D: 42 mm | Length L: 20 mm
LXB 3850 Bore d: 38 mm | OD D: 42 mm | Length L: 50 mm
LXB 4020 Bore d: 40 mm | OD D: 44 mm | Length L: 20 mm
LXB 4030 Bore d: 40 mm | OD D: 44 mm | Length L: 30 mm
LXB 4040 Bore d: 40 mm | OD D: 44 mm | Length L: 40 mm
LXB 4050 Bore d: 40 mm | OD D: 44 mm | Length L: 50 mm
LXB 4220 Bore d: 42 mm | OD D: 46 mm | Length L: 20 mm
LXB 4250 Bore d: 42 mm | OD D: 46 mm | Length L: 50 mm
LXB 4420 Bore d: 44 mm | OD D: 48 mm | Length L: 20 mm
LXB 4430 Bore d: 44 mm | OD D: 48 mm | Length L: 30 mm
LXB 4450 Bore d: 44 mm | OD D: 48 mm | Length L: 50 mm
LXB 4520 Bore d: 45 mm | OD D: 50 mm | Length L: 20 mm
LXB 4530 Bore d: 45 mm | OD D: 50 mm | Length L: 30 mm
LXB 4550 Bore d: 45 mm | OD D: 50 mm | Length L: 50 mm
LXB 5040 Bore d: 50 mm | OD D: 55 mm | Length L: 40 mm
LXB 5060 Bore d: 50 mm | OD D: 55 mm | Length L: 60 mm
LXB 5540 Bore d: 55 mm | OD D: 60 mm | Length L: 40 mm
LXB 5560 Bore d: 55 mm | OD D: 60 mm | Length L: 60 mm
LXB 6040 Bore d: 60 mm | OD D: 65 mm | Length L: 40 mm
LXB 6060 Bore d: 60 mm | OD D: 65 mm | Length L: 60 mm
LXB 6540 Bore d: 65 mm | OD D: 70 mm | Length L: 40 mm
LXB 6560 Bore d: 65 mm | OD D: 70 mm | Length L: 60 mm
LXB 7040 Bore d: 70 mm | OD D: 75 mm | Length L: 40 mm
LXB 7080 Bore d: 70 mm | OD D: 75 mm | Length L: 80 mm
LXB 7540 Bore d: 75 mm | OD D: 80 mm | Length L: 40 mm
LXB 7580 Bore d: 75 mm | OD D: 80 mm | Length L: 80 mm
LXB 8040 Bore d: 80 mm | OD D: 85 mm | Length L: 40 mm
LXB 8080 Bore d: 80 mm | OD D: 85 mm | Length L: 80 mm
LXB 8540 Bore d: 85 mm | OD D: 90 mm | Length L: 40 mm
LXB 8580 Bore d: 85 mm | OD D: 90 mm | Length L: 80 mm
LXB 9040 Bore d: 90 mm | OD D: 95 mm | Length L: 40 mm
LXB 9090 Bore d: 90 mm | OD D: 95 mm | Length L: 90 mm
LXB 9560 Bore d: 95 mm | OD D: 100 mm | Length L: 60 mm
LXB 95100 Bore d: 95 mm | OD D: 100 mm | Length L: 100 mm
LXB 10060 Bore d: 100 mm | OD D: 105 mm | Length L: 60 mm
LXB 10095 Bore d: 100 mm | OD D: 105 mm | Length L: 95 mm
LXB 100100 Bore d: 100 mm | OD D: 105 mm | Length L: 100 mm
LXB 10560 Bore d: 105 mm | OD D: 110 mm | Length L: 60 mm
LXB 11060 Bore d: 110 mm | OD D: 115 mm | Length L: 60 mm
LXB 110100 Bore d: 110 mm | OD D: 115 mm | Length L: 100 mm
LXB 11560 Bore d: 115 mm | OD D: 120 mm | Length L: 60 mm
LXB 115100 Bore d: 115 mm | OD D: 120 mm | Length L: 100 mm
LXB 12060 Bore d: 120 mm | OD D: 125 mm | Length L: 60 mm
LXB 120100 Bore d: 120 mm | OD D: 125 mm | Length L: 100 mm
LXB 12560 Bore d: 125 mm | OD D: 130 mm | Length L: 60 mm
LXB 125100 Bore d: 125 mm | OD D: 130 mm | Length L: 100 mm
LXB 13060 Bore d: 130 mm | OD D: 135 mm | Length L: 60 mm
LXB 130100 Bore d: 130 mm | OD D: 135 mm | Length L: 100 mm
LXB 13560 Bore d: 135 mm | OD D: 140 mm | Length L: 60 mm
LXB 135100 Bore d: 135 mm | OD D: 140 mm | Length L: 100 mm
LXB 14060 Bore d: 140 mm | OD D: 145 mm | Length L: 60 mm
LXB 14560 Bore d: 145 mm | OD D: 150 mm | Length L: 60 mm
LXB 145100 Bore d: 145 mm | OD D: 150 mm | Length L: 100 mm
LXB 15060 Bore d: 150 mm | OD D: 155 mm | Length L: 60 mm
LXB 150100 Bore d: 150 mm | OD D: 155 mm | Length L: 100 mm
LXB 16080 Bore d: 160 mm | OD D: 165 mm | Length L: 80 mm
LXB 160100 Bore d: 160 mm | OD D: 165 mm | Length L: 100 mm
LXB 17080 Bore d: 170 mm | OD D: 175 mm | Length L: 80 mm
LXB 170100 Bore d: 170 mm | OD D: 175 mm | Length L: 100 mm
LXB 18080 Bore d: 180 mm | OD D: 185 mm | Length L: 80 mm
LXB 180100 Bore d: 180 mm | OD D: 185 mm | Length L: 100 mm
LXB 19080 Bore d: 190 mm | OD D: 195 mm | Length L: 80 mm
LXB 190100 Bore d: 190 mm | OD D: 195 mm | Length L: 100 mm
LXB 200100 Bore d: 200 mm | OD D: 205 mm | Length L: 100 mm
LXB 210100 Bore d: 210 mm | OD D: 215 mm | Length L: 100 mm
LXB 250100 Bore d: 250 mm | OD D: 255 mm | Length L: 100 mm
LXB 280100 Bore d: 280 mm | OD D: 285 mm | Length L: 100 mm
LXB 300100 Bore d: 300 mm | OD D: 305 mm | Length L: 100 mm
