• Maro Engineering CP Cartridge Pump
1 1

Maro Engineering CP Cartridge Pump

Maro Engineering CP Cartridge Pump

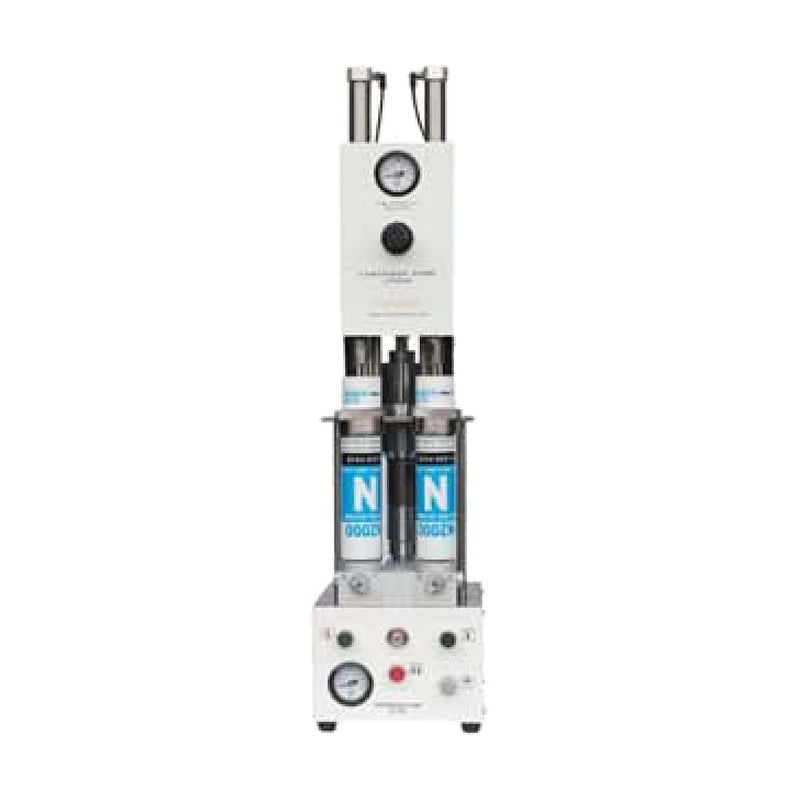

Twin-cartridge high-pressure pump stations using the MFP63 pump, with air (A) or electric/PLC (E) control.

Key features

  • Best-in-class pressure ratio and output for a compact pump
  • Pump plunger removable from the front for maintenance
  • Air-circuit version needs no power supply; E version uses PLC control
  • External signal at cartridge change

Specifications

Operating air pressure 0.1-0.6 MPa
Pump MFP63
Noise 60 dB (1 m)
Weight 12 kg
CP10A Control: Air | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Output per stroke: 0.011 L
CP20A Control: Air | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Output per stroke: 0.008 L
CP40A Control: Air | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Output per stroke: 0.004 L
CP10E Control: Electric (PLC) | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Output per stroke: 0.011 L
CP20E Control: Electric (PLC) | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Output per stroke: 0.008 L
CP40E Control: Electric (PLC) | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Output per stroke: 0.004 L
Dispensing PumpsMaro Engineering
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering CP Cartridge Pump

Brand Maro Engineering·Dispensing Pumps

Available part numbers (6)

CP10A, CP20A, CP40A, CP10E, CP20E, CP40E

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CP10AControl: Air | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Output per stroke: 0.011 L
CP20AControl: Air | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Output per stroke: 0.008 L
CP40AControl: Air | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Output per stroke: 0.004 L
CP10EControl: Electric (PLC) | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Output per stroke: 0.011 L
CP20EControl: Electric (PLC) | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Output per stroke: 0.008 L
CP40EControl: Electric (PLC) | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Output per stroke: 0.004 L
