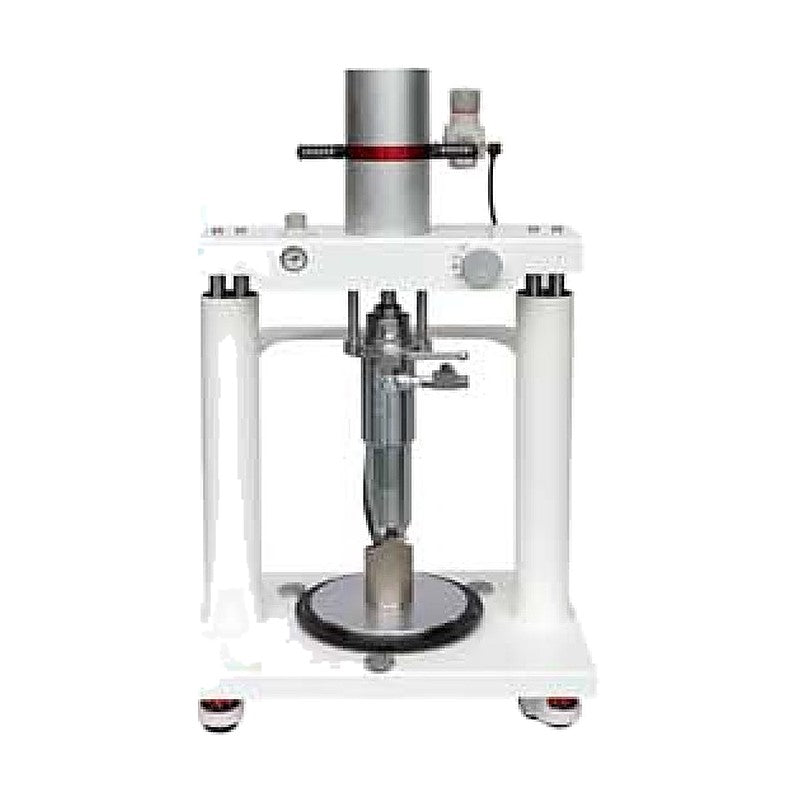

Maro Engineering MFP100 Fluid Transfer Pump

Maro Engineering MFP100 Fluid Transfer Pump

Large-capacity double-acting air-driven fluid pump for 20 L containers on a heavy dual-rod (CDRH) elevator.

Key features

  • High pressure ratio and large-capacity pump
  • Front dial rotary valve (patented) controls up, down, neutral and can separation
  • Robust double dual-rod air-cylinder elevator

Specifications

Operating air pressure 0.1-0.6 MPa
Wetted parts (grease) Steel, Teflon, PEEK, NBR
Wetted parts (sealant) Steel, PTFE, UHMWPE, silicone
Noise 60 dB (1 m)
Weight 71 kg
Container 20 L
MFP100-20-CDRH Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.047 L | Flow at 15 cycles/min: 3.6 L/min | Output per stroke: 0.023 L
MFP100-45-CDRH Pressure ratio: 45:1 | Max. pressure: 27.0 MPa | Output per cycle: 0.105 L | Flow at 15 cycles/min: 1.6 L/min | Output per stroke: 0.052 L
Dispensing PumpsMaro Engineering
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering MFP100 Fluid Transfer Pump

Brand Maro Engineering·Dispensing Pumps

Available part numbers (2)

MFP100-20-CDRH, MFP100-45-CDRH

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFP100-20-CDRHPressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.047 L | Flow at 15 cycles/min: 3.6 L/min | Output per stroke: 0.023 L
MFP100-45-CDRHPressure ratio: 45:1 | Max. pressure: 27.0 MPa | Output per cycle: 0.105 L | Flow at 15 cycles/min: 1.6 L/min | Output per stroke: 0.052 L
